d&b audiotechnik 24S: 2 x 12 Inch High Performance Passive Installation Loudspeaker, 75 x 45 Degree
Model
:
24S
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

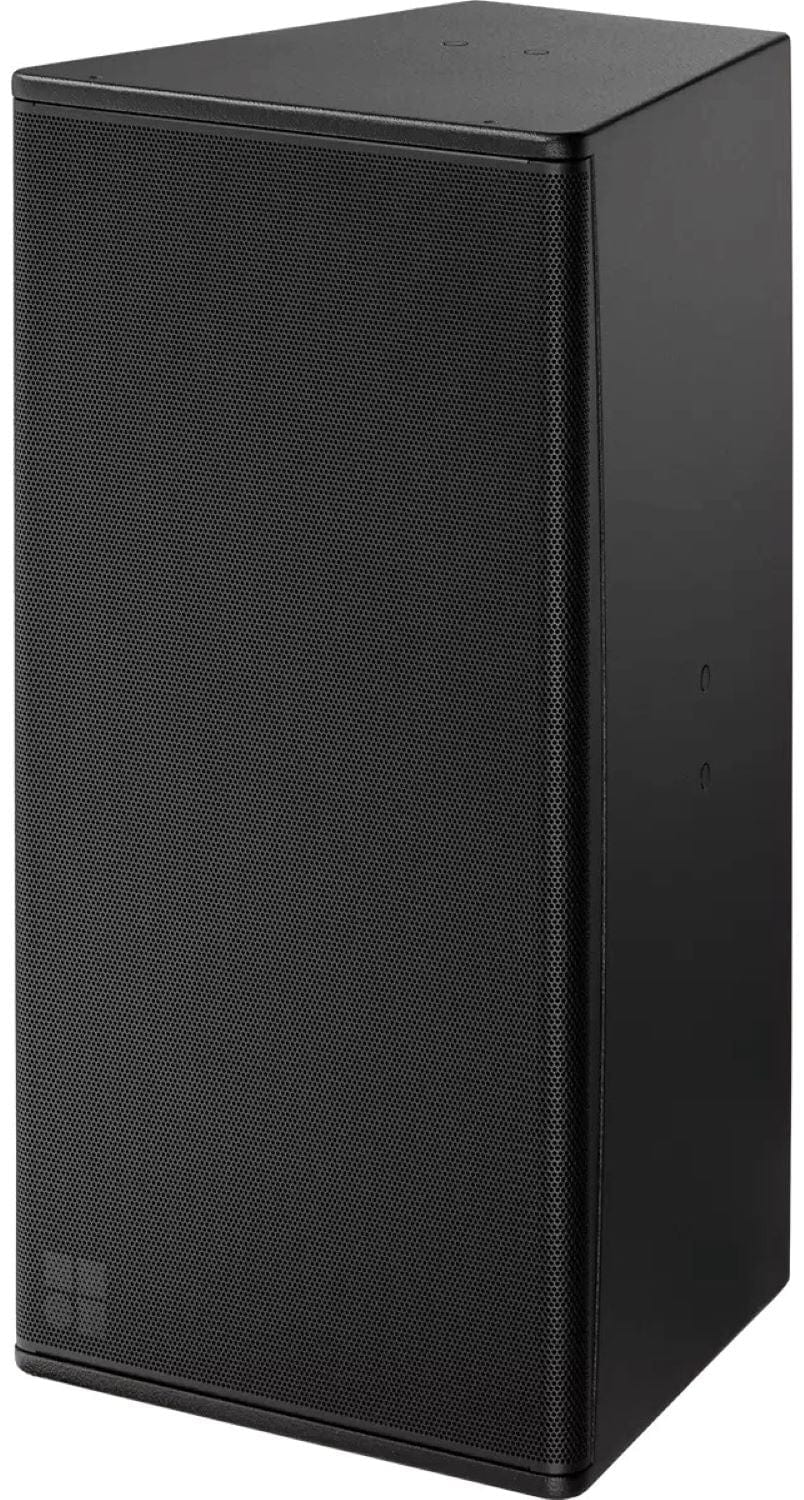

d&b audiotechnik 24S 2 x 12 Inch High Performance Passive Installation Loudspeaker
The d&b audiotechnik 24S is a high performance full range 2-way passive loudspeaker with two 12 inch drivers in a dipolar arrangement and a 1.4 inch exit compression driver on a large rotatable CD horn. It covers 55 Hz to 18 kHz with 138 dB maximum SPL, so it can work as a stand alone full range system or with d&b subwoofers. Trianze Tech supplies the 24S for installed sound projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Two 12 inch neodymium drivers in a dipolar arrangement
- 1.4 inch exit compression driver on a rotatable CD horn
- Directivity control down to approximately 500 Hz
- Frequency response from 55 Hz to 18 kHz
- Marine plywood cabinet, ball impact resistant to DIN 18032-3
- M10 threaded inserts on top, bottom and side panels
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 24S |
| Type | Installation high performance full range 2-way loudspeaker, passive |
| Components | 2 x 12 inch neodymium drivers, 1.4 inch exit compression driver |
| Dispersion (h x v) | 75 x 45 degrees, rotatable |
| Frequency Response (-5 dB) | 55 Hz to 18 kHz standard, 90 Hz to 18 kHz CUT mode |
| Max SPL | 138 dB |
| Nominal Impedance | 4 ohms |
| Power Handling (RMS/peak) | 500/2000 W |
| Cabinets per Amplifier Channel | 1 |

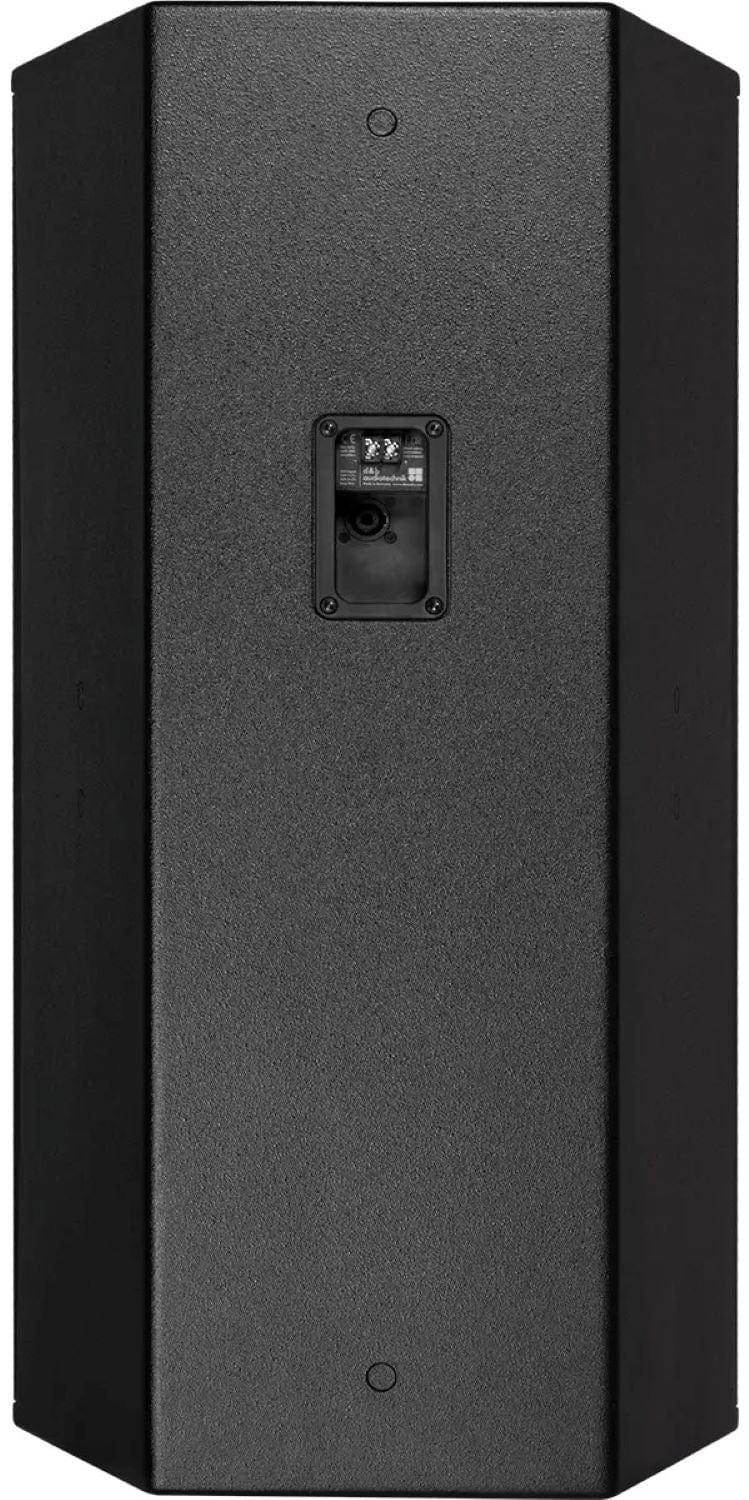

| Connections | 1 x NL4, 1 x screw terminal block |
| Dimensions (H x W x D) | 800 x 410 x 420 mm |
| Weight | 33 kg (73 lb) |
Why Buy the d&b audiotechnik 24S from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 24S with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik 24S has a nominal dispersion of 75 x 45 degrees, and the HF horn can be rotated by 90 degrees for horizontal orientation of the cabinet.
The d&b audiotechnik 24S reaches 138 dB maximum SPL with D20, 30D, D40, D80 or 40D amplifiers.
Not necessarily. The d&b audiotechnik 24S extends down to 55 Hz, so it can be used as a stand alone full range system or supplemented with d&b subwoofers.
The d&b audiotechnik 24S uses two 12 inch neodymium drivers in a dipolar arrangement and a 1.4 inch exit compression driver on a rotatable CD horn, with a passive crossover.
The d&b audiotechnik 24S measures 800 x 410 x 420 mm (H x W x D) and weighs 33 kg (73 lb).
Trianze Tech supplies the d&b audiotechnik 24S in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
