d&b audiotechnik MAX2: 2 Way Coaxial 15 Inch Stage Monitor, 75 Degree Conical, NLT4 F/M Connections
Model
:
MAX2 NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

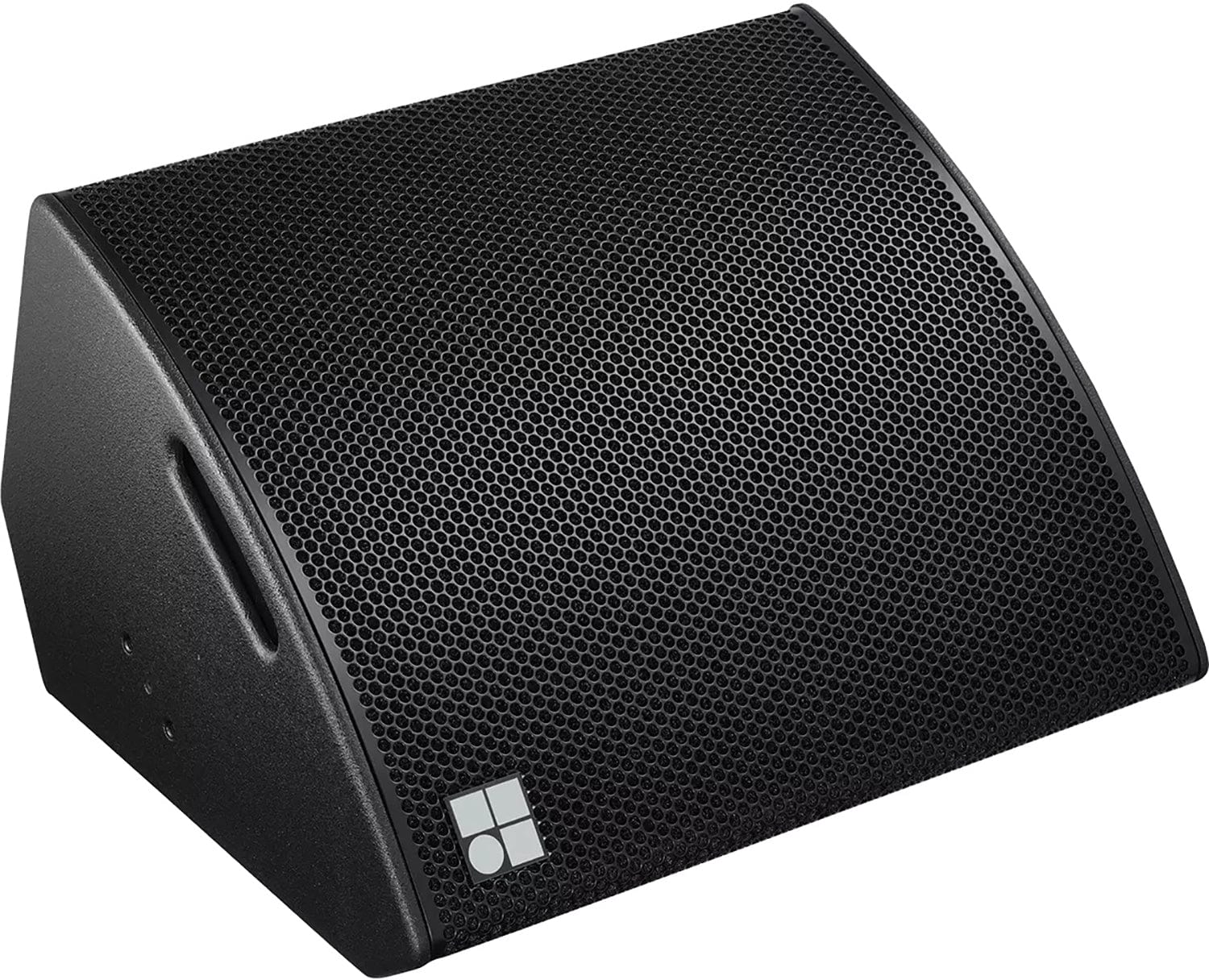

d&b audiotechnik MAX2 Coaxial Stage Monitor with NLT4 F/M Connections
The d&b audiotechnik MAX2 is a 2 way passive loudspeaker with a 15 inch LF driver and a coaxially mounted 1.4 inch HF compression driver giving 75 degree conical constant directivity. A single magnet assembly keeps the cabinet compact and low profile for strict visual demands. It works as a stage monitor, a stand alone full range system with its integrated pole mount, or as a drumfill with d&b subwoofers. The marine plywood cabinet has four M10 inserts for a flying bracket, recessed grips and recessed bottom runners. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the MAX2 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 15 inch LF and coaxial 1.4 inch HF driver
- 75 degree conical dispersion
- Up to 135 dB SPLmax
- High feedback stability and vocal clarity
- Integrated pole mount and four M10 inserts
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | MAX2 (NLT4 F/M) |
| Type | 2 way passive coaxial stage monitor |
| Frequency Response | 55 Hz to 20 kHz (standard), -5 dB |
| Max SPL | 131 dB with 10D, 135 dB with D20/30D and D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 250 W RMS / 1600 W peak (10 ms) |
| Dispersion | 75 degrees conical |
| Components | 15 inch driver with ferrite magnet, coaxial 1.4 inch compression driver |

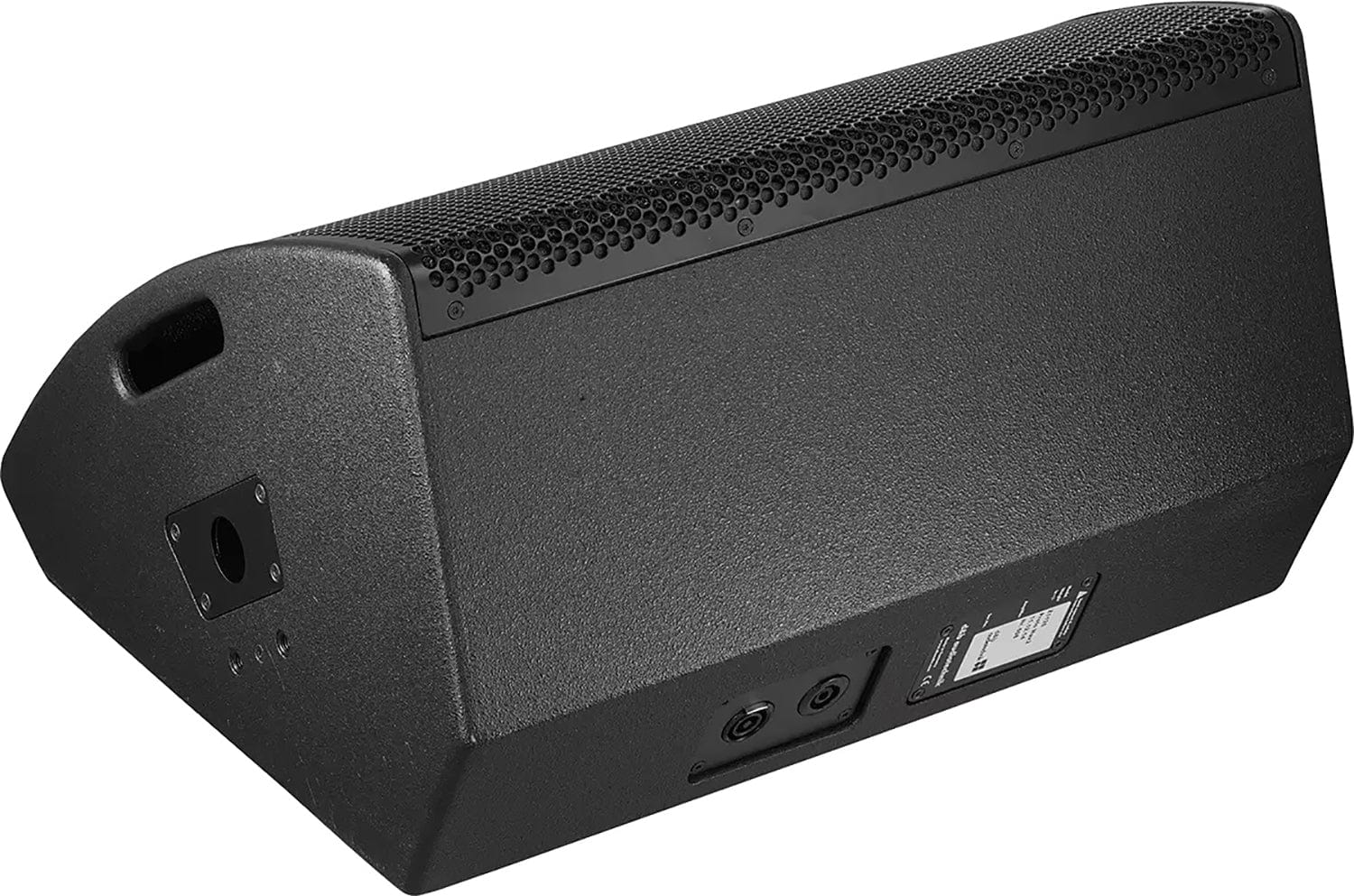

| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 354 x 580 x 496 mm |
| Weight | 23 kg (50 lb) |
Why Buy the d&b audiotechnik MAX2 NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the MAX2 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik MAX2 works as a stage monitor, a stand alone full range system on its integrated pole mount, or as a drumfill when combined with d&b subwoofers.
The d&b audiotechnik MAX2 has 75 degree conical constant directivity dispersion from its coaxial 15 inch and 1.4 inch driver.
The d&b audiotechnik MAX2 reaches 131 dB with a 10D and 135 dB with a D20, 30D, D40, D80 or 40D.
A specific setup in d&b amplifiers gives the d&b audiotechnik MAX2 its best performance and headroom, and it can also be driven by any appropriate linear amplifier.
The d&b audiotechnik MAX2 weighs 23 kg (50 lb) and measures 354 x 580 x 496 mm.
Trianze Tech supplies the d&b audiotechnik MAX2 NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
