d&b audiotechnik MAX2 Coaxial Stage Monitor with NL4 Connections

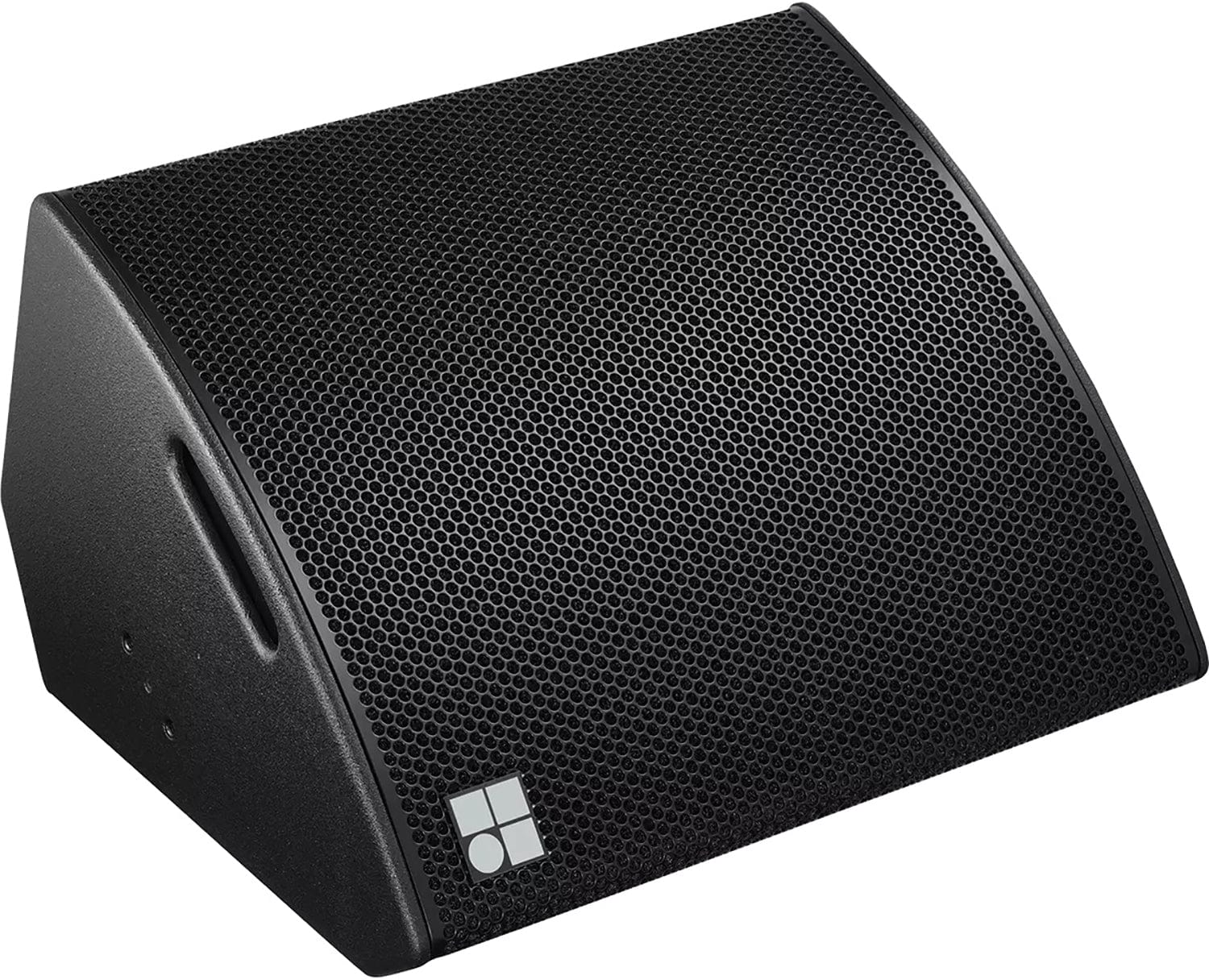

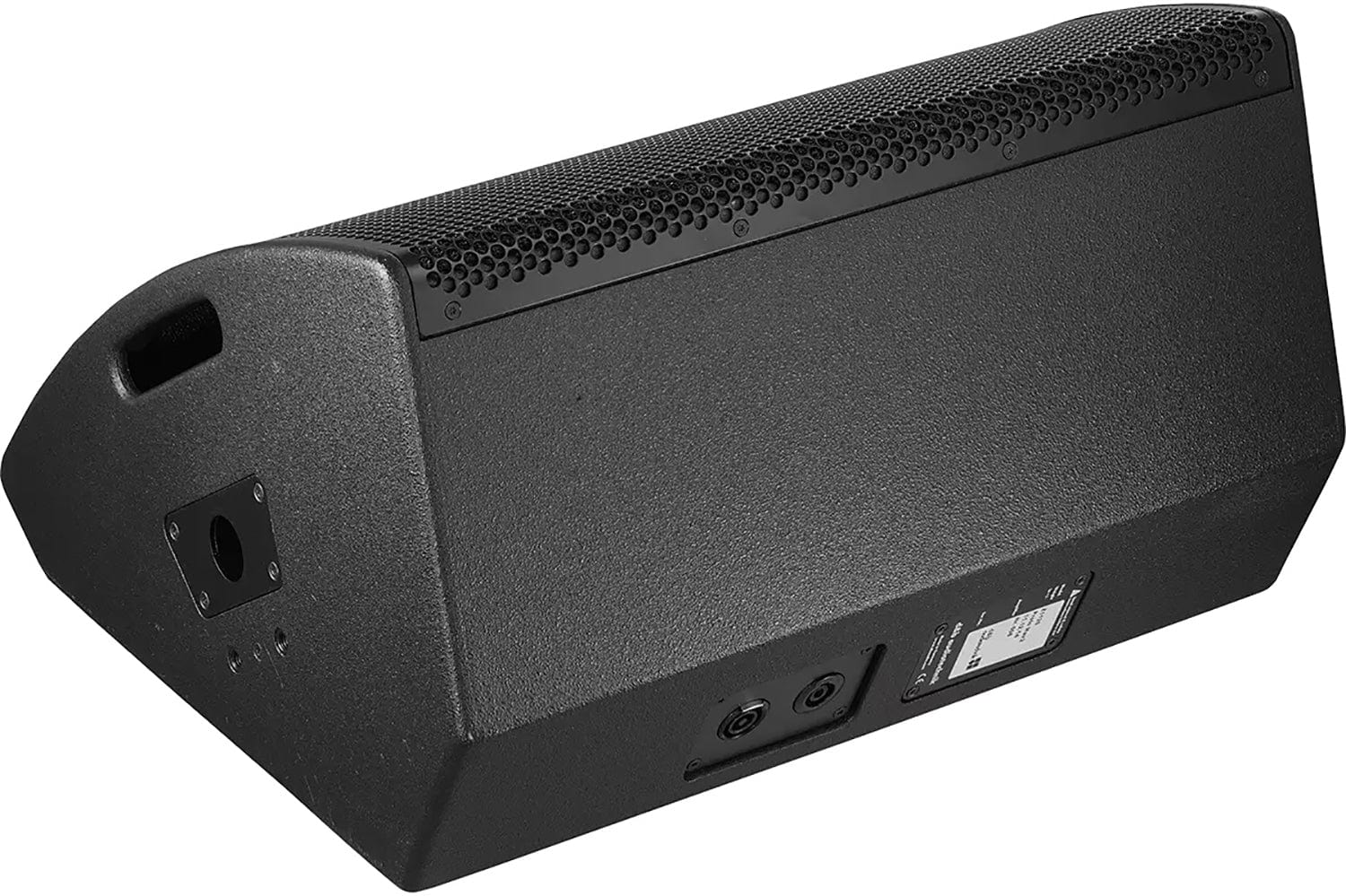

The d&b audiotechnik MAX2 is a 2 way passive loudspeaker with a 15 inch LF driver and a coaxially mounted 1.4 inch HF compression driver, achieving 75 degree conical constant directivity from a compact, low profile cabinet. It suits stage monitoring, stand alone full range use on its integrated pole mount, or drumfill duty with d&b subwoofers. The marine plywood cabinet has an impact resistant paint finish, four M10 inserts for a flying bracket and recessed runners on the bottom. This version has 2 x NL4 connectors. Trianze Tech supplies the MAX2 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 15 inch LF and coaxial 1.4 inch HF driver
- 75 degree conical dispersion
- Up to 135 dB SPLmax
- Compact, low profile cabinet
- Integrated pole mount
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | MAX2 (NL4) |
| Type | 2 way passive coaxial stage monitor |
| Frequency Response | 55 Hz to 20 kHz (standard), -5 dB |
| Max SPL | 131 dB with 10D, 135 dB with D20/30D and D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 250 W RMS / 1600 W peak (10 ms) |
| Dispersion | 75 degrees conical |
| Components | 15 inch driver with ferrite magnet, coaxial 1.4 inch compression driver |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 354 x 580 x 496 mm |
| Weight | 23 kg (50 lb) |
Why Buy the d&b audiotechnik MAX2 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the MAX2 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik MAX2 uses a 15 inch LF driver with ferrite magnet and a coaxially mounted 1.4 inch exit compression driver with a passive crossover.
The d&b audiotechnik MAX2 covers 55 Hz to 20 kHz (-5 dB standard).
The d&b audiotechnik MAX2 handles 250 W RMS and 1600 W peak (10 ms) at a nominal impedance of 8 ohms, with two cabinets per amplifier channel.
This version of the d&b audiotechnik MAX2 has 2 x NL4 connectors.
The d&b audiotechnik MAX2 measures 354 x 580 x 496 mm and weighs 23 kg (50 lb).
