d&b audiotechnik M6: 2 Way Coaxial 12 Inch Stage Monitor, 50 x 80 Degree Rotatable, NLT4 F/M Connections
Model
:
M6 NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik M6 2 Way Coaxial Stage Monitor with NLT4 F/M Connections

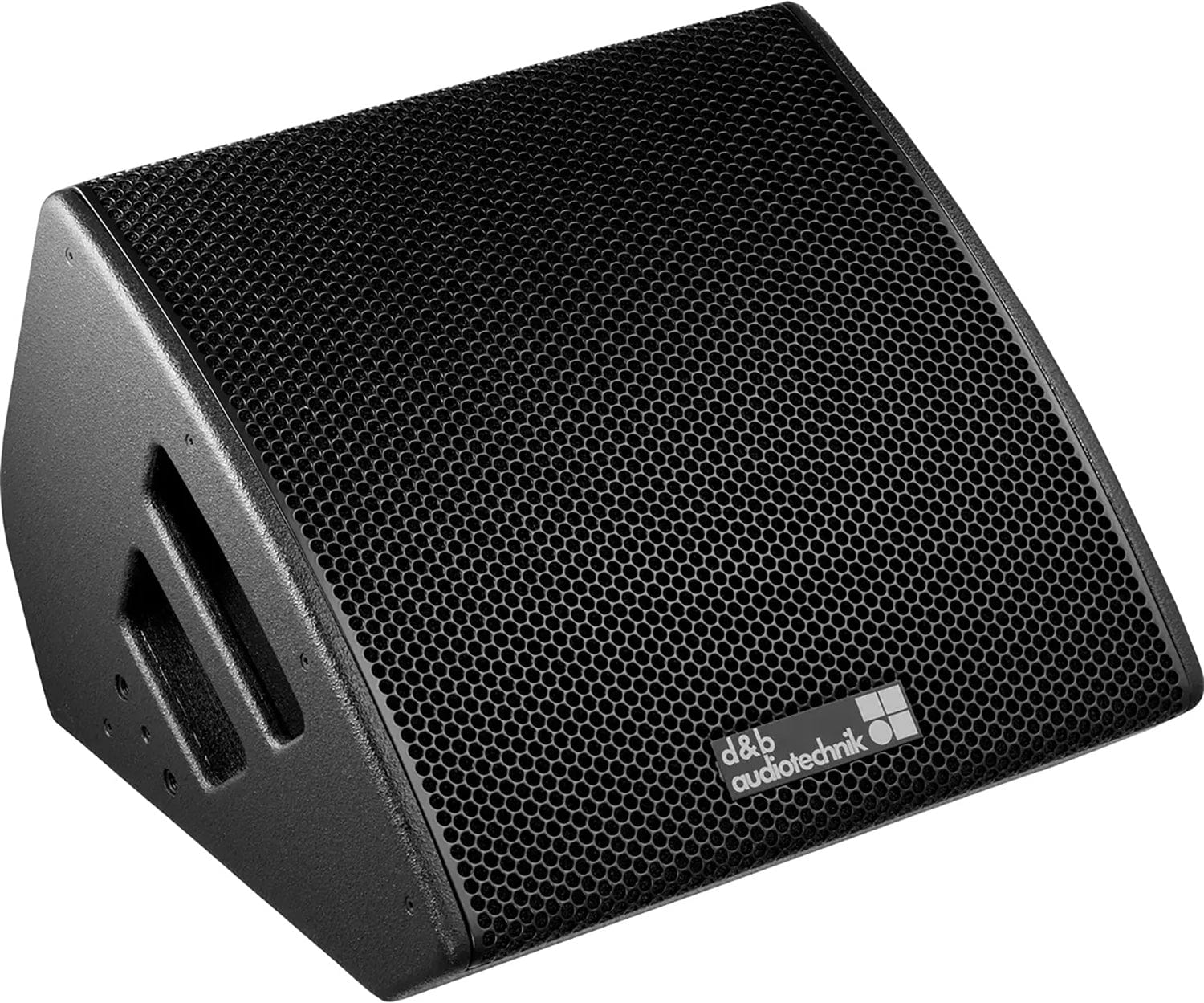

The d&b audiotechnik M6 is a 2 way high performance stage monitor with an integrated 12 inch LF and 1.3 inch exit horn loaded HF coaxial driver using neodymium magnets. Its constant directivity dispersion of 50 x 80 degrees gives an accurately defined coverage area on stage, and it can also run in 2 way active mode. Upright, it serves as a powerful PA loudspeaker with 80 x 50 degree dispersion, and the driver assembly can be rotated for installations. The marine plywood cabinet has handles, M10 inserts and a stand socket. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the M6 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12 inch LF and 1.3 inch HF coaxial driver
- 50 x 80 degree rotatable dispersion
- Passive or 2 way active operation
- Doubles as an upright PA loudspeaker
- M10 inserts and stand socket
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | M6 (NLT4 F/M) |
| Type | 2 way coaxial stage monitor |
| Frequency Response | 65 Hz to 17 kHz (standard), -5 dB |
| Max SPL | 132 / 133 dB with 10D, 135 / 138 dB with D20/30D and D40/D80/40D (two operating configurations) |
| Cabinets per Amplifier Channel | 2 (passive mode) |
| Cabinets per D20/D80/30D | 4 (active mode) |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 50 x 80 degrees, rotatable |
| Components | 12 inch driver, coaxial 1.3 inch compression driver with 3 inch coil and CD horn |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 332 x 486 x 455 mm |
| Weight | 16 kg (35 lb) |
Why Buy the d&b audiotechnik M6 NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the M6 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik M6 uses an integrated 12 inch LF and 1.3 inch exit horn loaded HF coaxial driver with neodymium magnets and a 3 inch coil.
Yes. Used upright, the d&b audiotechnik M6 serves as a PA loudspeaker with 80 x 50 degree dispersion.
Yes. The d&b audiotechnik M6 can run passive with two cabinets per amplifier channel or in 2 way active mode with four cabinets per D20, D80 or 30D.
This version of the d&b audiotechnik M6 has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik M6 weighs 16 kg (35 lb) and measures 332 x 486 x 455 mm.
Trianze Tech supplies the d&b audiotechnik M6 NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
