d&b audiotechnik M6: 2 Way Coaxial 12 Inch Stage Monitor, 50 x 80 Degree Rotatable, NL4 Connections
Model
:
M6 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

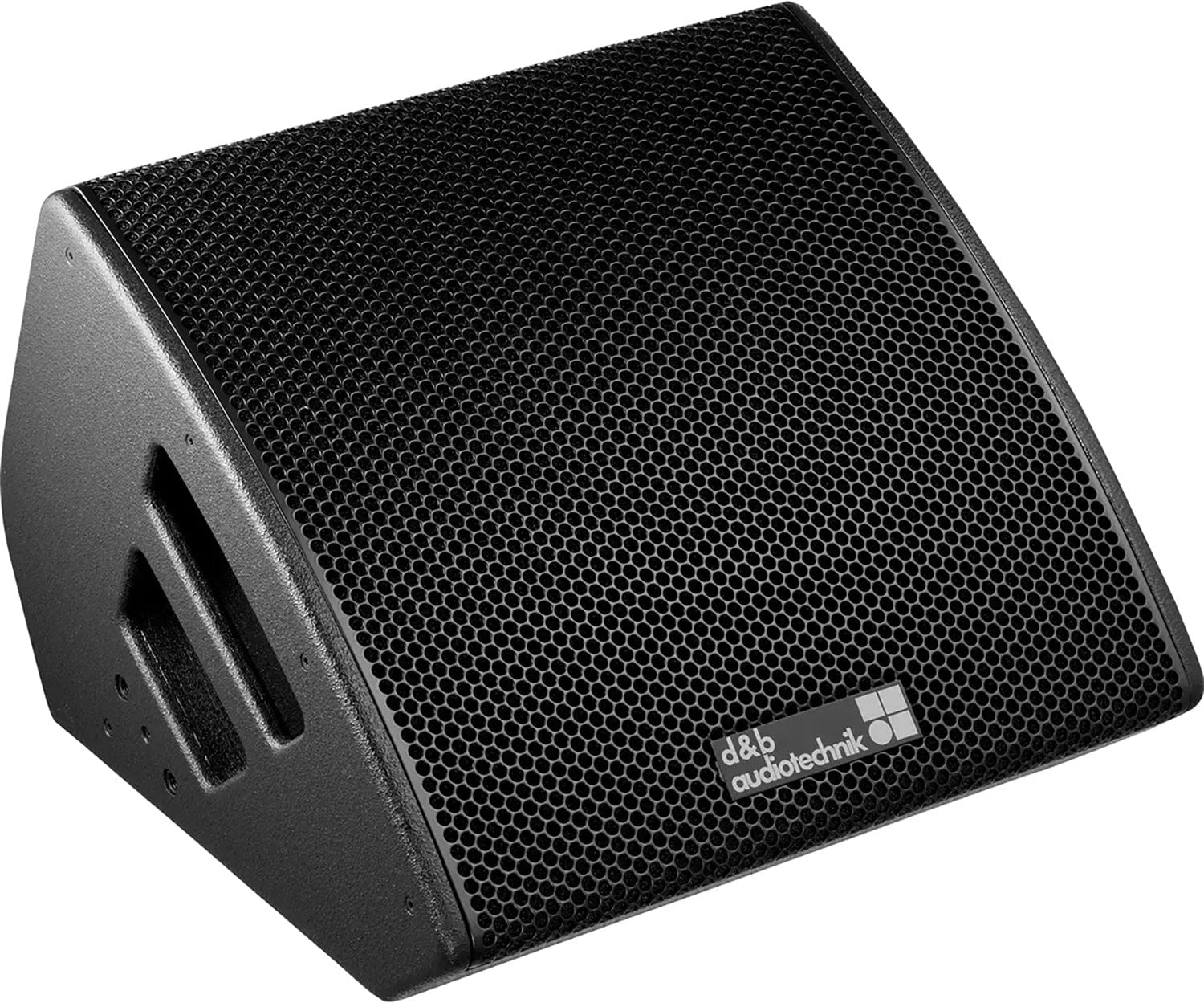

d&b audiotechnik M6 2 Way Coaxial Stage Monitor with NL4 Connections
The d&b audiotechnik M6 is a 2 way high performance stage monitor with an integrated 12 inch LF and 1.3 inch exit horn loaded HF coaxial driver using neodymium magnets, giving 50 x 80 degree constant directivity on stage. It can run in 2 way active mode, serves upright as a PA loudspeaker with 80 x 50 degree dispersion, and its driver assembly can be rotated for installations. The marine plywood cabinet has handles, M10 inserts, a stand socket and recessed runners. This version has 2 x NL4 connectors. Trianze Tech supplies the M6 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12 inch LF and 1.3 inch HF coaxial driver
- 50 x 80 degree rotatable dispersion
- Up to 138 dB SPLmax
- Passive or 2 way active operation
- Stand socket and M10 inserts
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | M6 (NL4) |
| Type | 2 way coaxial stage monitor |
| Frequency Response | 65 Hz to 17 kHz (standard), -5 dB |
| Max SPL | 132 / 133 dB with 10D, 135 / 138 dB with D20/30D and D40/D80/40D (two operating configurations) |
| Cabinets per Amplifier Channel | 2 (passive mode) |
| Cabinets per D20/D80/30D | 4 (active mode) |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 50 x 80 degrees, rotatable |
| Components | 12 inch driver, coaxial 1.3 inch compression driver with 3 inch coil and CD horn |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 332 x 486 x 455 mm |
| Weight | 16 kg (35 lb) |
Why Buy the d&b audiotechnik M6 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the M6 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik M6 has 50 x 80 degree constant directivity dispersion, and the driver assembly can be rotated for installation use.
The d&b audiotechnik M6 reaches up to 138 dB with a D20, 30D, D40, D80 or 40D, and 132 to 133 dB on a 10D.
The d&b audiotechnik M6 covers 65 Hz to 17 kHz (-5 dB standard).
This version of the d&b audiotechnik M6 has 2 x NL4 connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik M6 measures 332 x 486 x 455 mm and weighs 16 kg (35 lb).
