d&b audiotechnik M4: 2 Way Coaxial 15 Inch Stage Monitor, 50 x 70 Degree Rotatable, NL4 Connections
Model
:
M4 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

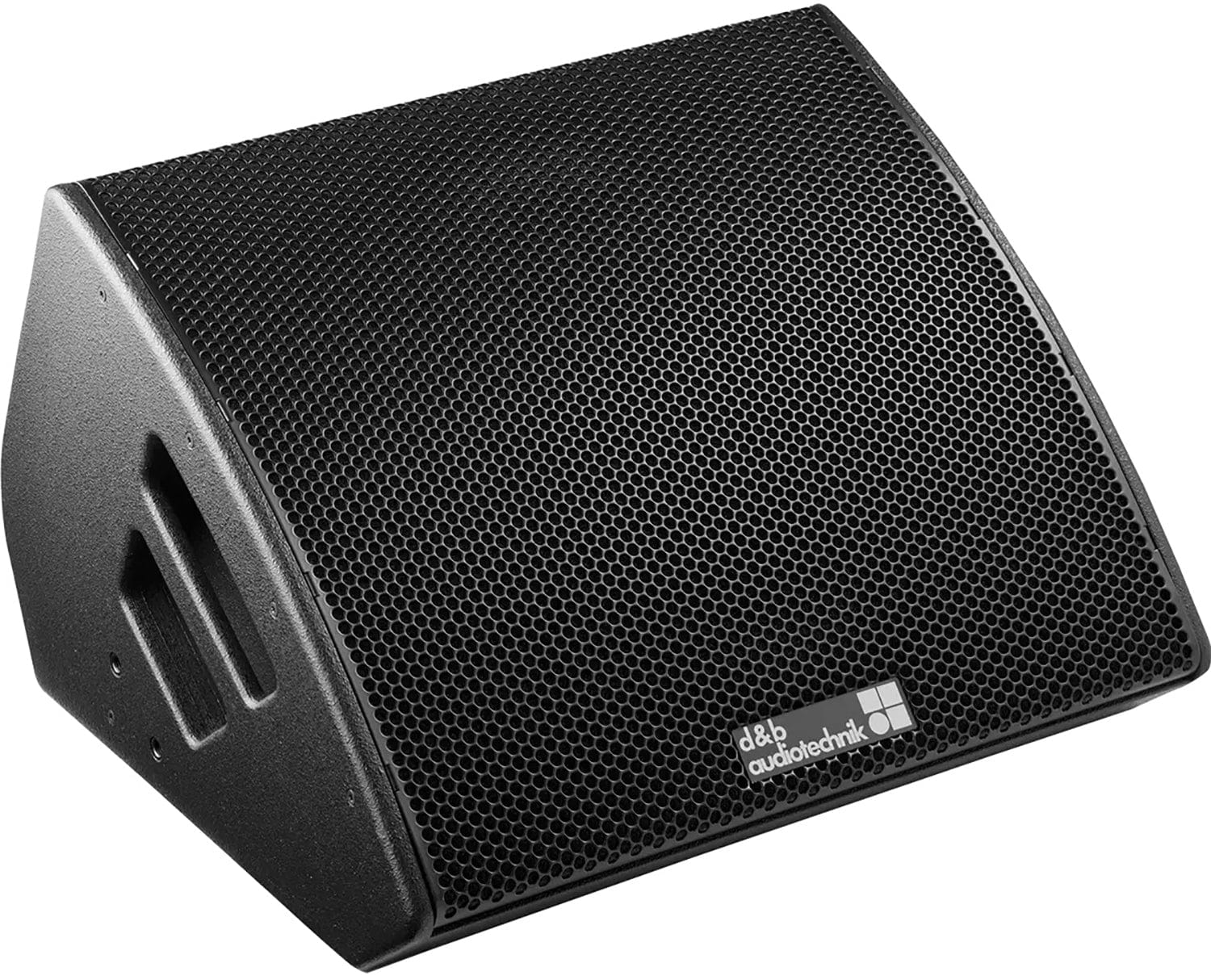

d&b audiotechnik M4 2 Way Coaxial Stage Monitor with NL4 Connections
The d&b audiotechnik M4 is a 2 way high performance stage monitor with an integrated 15 inch LF and 1.3 inch exit horn loaded HF coaxial driver using neodymium magnets. Its 50 x 70 degree constant directivity dispersion defines the coverage area on stage, and it can also run in 2 way active mode. Upright it works as a PA loudspeaker with 70 x 50 degree dispersion, and the driver assembly rotates in 45 degree increments for installations. The marine plywood cabinet has handles, M10 inserts and a stand socket. This version has 2 x NL4 connectors. Trianze Tech supplies the M4 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 15 inch LF and 1.3 inch HF coaxial driver
- 50 x 70 degree dispersion, rotatable in 45 degree steps
- Up to 140 dB SPLmax
- Passive or 2 way active operation
- M10 inserts and stand socket
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | M4 (NL4) |
| Type | 2 way coaxial stage monitor |
| Frequency Response | 55 Hz to 17 kHz (standard), -5 dB |
| Max SPL | 134 / 135 dB with 10D, 138 / 140 dB with D20/30D and D40/D80/40D (two operating configurations) |
| Cabinets per Amplifier Channel | 2 (passive mode) |
| Cabinets per D20/D80 | 4 (active mode) |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 50 x 70 degrees, rotatable |
| Components | 15 inch driver, coaxial 1.3 inch compression driver with 3 inch coil and CD horn |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 363 x 580 x 505 mm |
| Weight | 20 kg (44 lb) |
Why Buy the d&b audiotechnik M4 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the M4 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik M4 uses an integrated 15 inch LF and 1.3 inch exit horn loaded HF coaxial driver with neodymium magnets and a 3 inch coil.
The d&b audiotechnik M4 has 50 x 70 degree constant directivity dispersion, and the driver assembly can be rotated in 45 degree increments for installations.
The d&b audiotechnik M4 reaches up to 140 dB with a D20, 30D, D40, D80 or 40D, with 134 to 135 dB on a 10D.
This version of the d&b audiotechnik M4 has 2 x NL4 connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik M4 weighs 20 kg (44 lb) and measures 363 x 580 x 505 mm.
