d&b audiotechnik AL90: 2 x 10 Inch Augmented Array Passive Loudspeaker, 90 Degree, NLT4 F/M Connections
Model
:
AL90 NLT4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

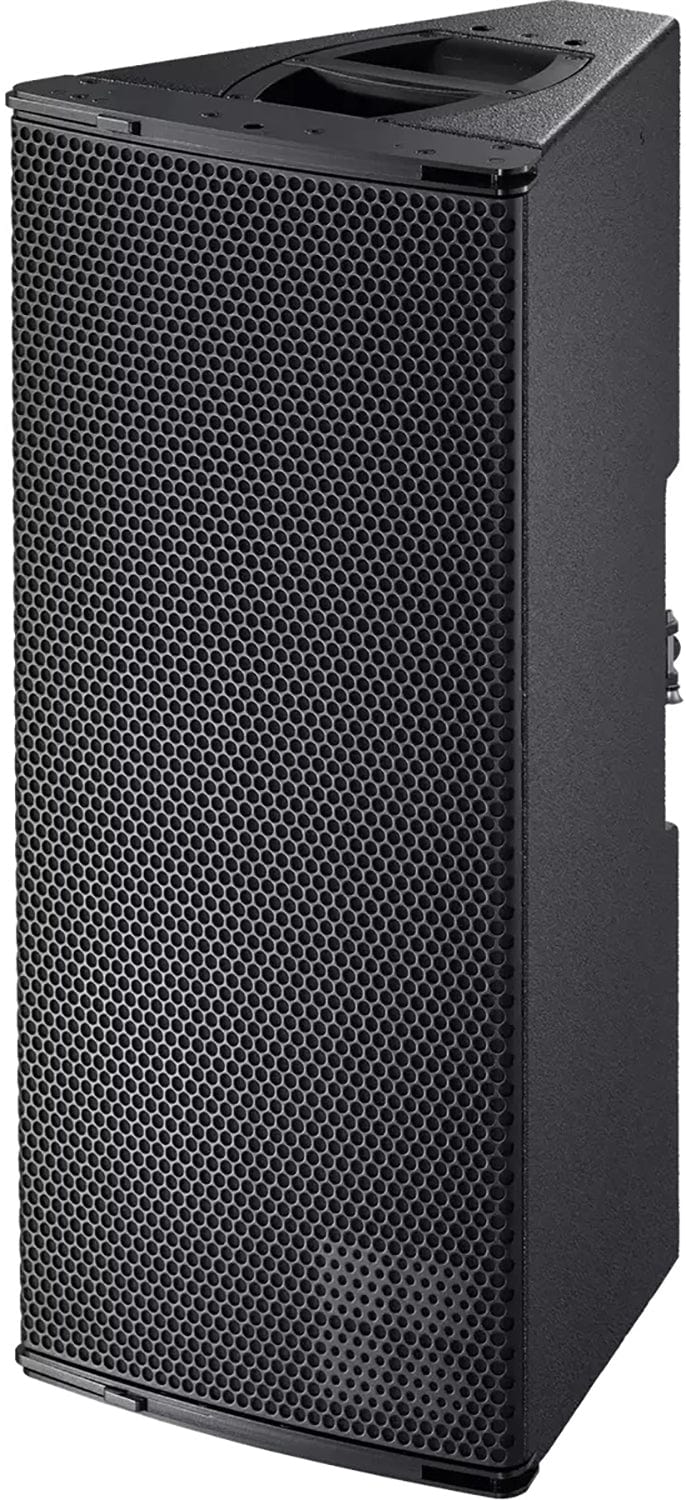

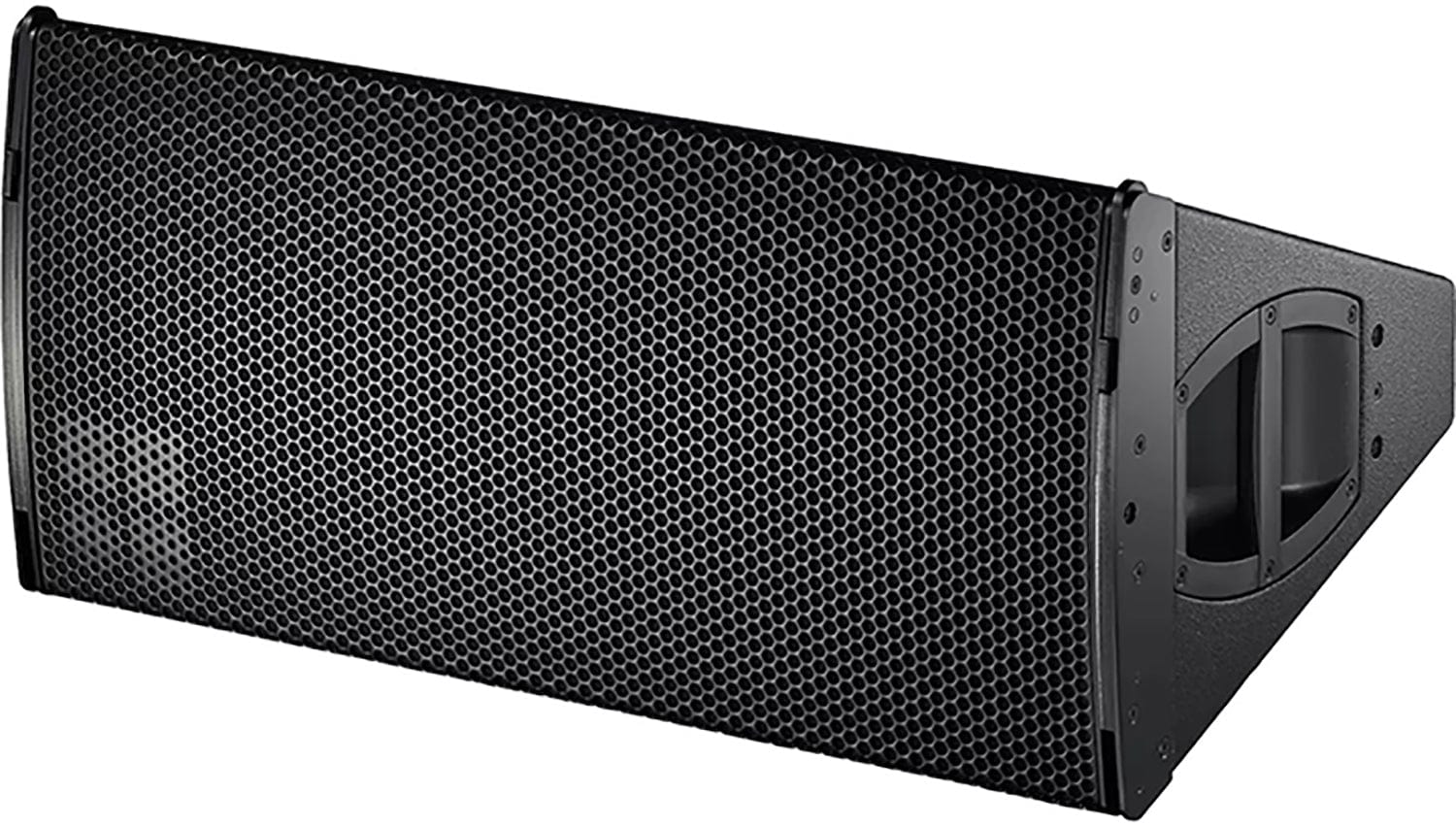

d&b audiotechnik AL90 Augmented Array Loudspeaker with NLT4 F/M Connections
The d&b audiotechnik AL90 with NLT4 F/M connections is the touring connector version of the AL90 augmented array loudspeaker, with two 10 inch neodymium LF drivers and a 1.4 inch exit compression driver. Arrays of up to four cabinets keep 90 degree constant horizontal directivity down to about 370 Hz, and the NLT4 F/M pair allows direct link through between cabinets. Trianze Tech supplies the AL90 for touring and installation projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- NLT4 F/M connectors for input and link through
- Two 10 inch LF drivers and a 1.4 inch exit compression driver with 3 inch coil
- 90 degree constant directivity in the horizontal plane
- Horizontal pattern control down to about 370 Hz
- Horizontal arrays with 20 to 40 degree splay in 5 degree steps
- Marine plywood cabinet with PCP finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AL90, NLT4 F/M version |
| Type | Augmented array loudspeaker, 2-way passive |
| Components | 2 x 10 inch LF drivers, 1 x 1.4 inch exit compression driver with 3 inch coil |
| Dispersion (h x v) | 90 x 30 degrees |
| Splay Angle Settings | 20 to 40 degrees in 5 degree steps |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 95 Hz to 18 kHz CUT mode |
| Max SPL | 138 dB (D20/30D), 139 dB (D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 400/1800 W |
| Cabinets per Amplifier Channel | 2 |
| Connection | 1 x NLT4 F/M |
| Dimensions (H x W x D) | 322 x 700 x 356 mm |
| Weight | 23 kg (51 lb) |
Why Buy the d&b audiotechnik AL90 NLT4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the AL90 NLT4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.

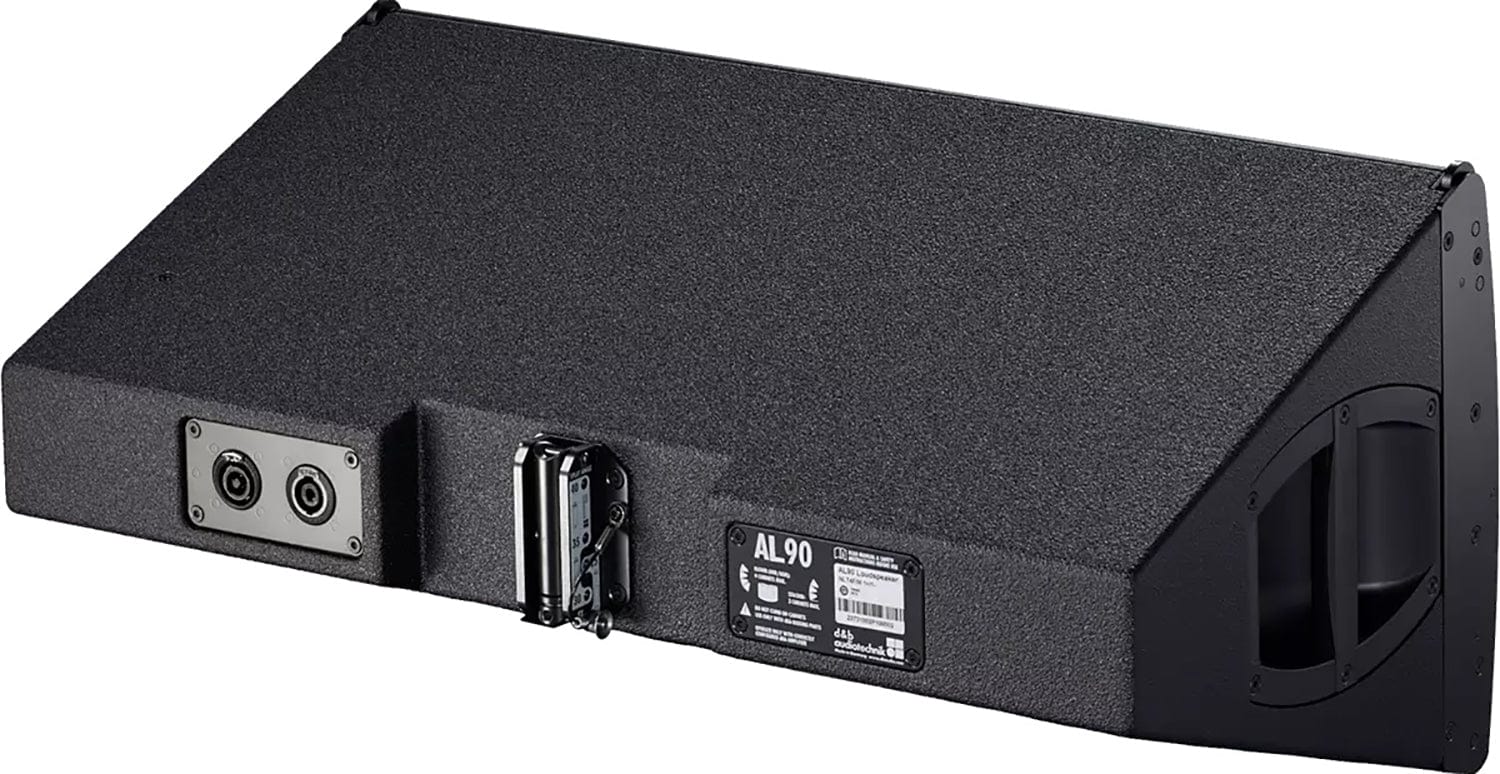

This d&b audiotechnik AL90 version has an NLT4 F/M connector pair, one for input and one to link through to the next cabinet. An NL4 version is also available.
The d&b audiotechnik AL90 has a 90 x 30 degree nominal dispersion, with constant 90 degree horizontal directivity down to about 370 Hz.
Splay angles between adjacent d&b audiotechnik AL90 cabinets can be set from 20 to 40 degrees in 5 degree steps, up to 150 degrees total per array.
Two d&b audiotechnik AL90 cabinets can run on one amplifier channel, each with an 8 ohm nominal impedance and 400 W RMS power handling.
The d&b audiotechnik AL90 weighs 23 kg (51 lb) and measures 322 x 700 x 356 mm (H x W x D).
