d&b audiotechnik AL90: 2 x 10 Inch Augmented Array Passive Loudspeaker, 90 Degree, NL4 Connections
Model
:
AL90
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

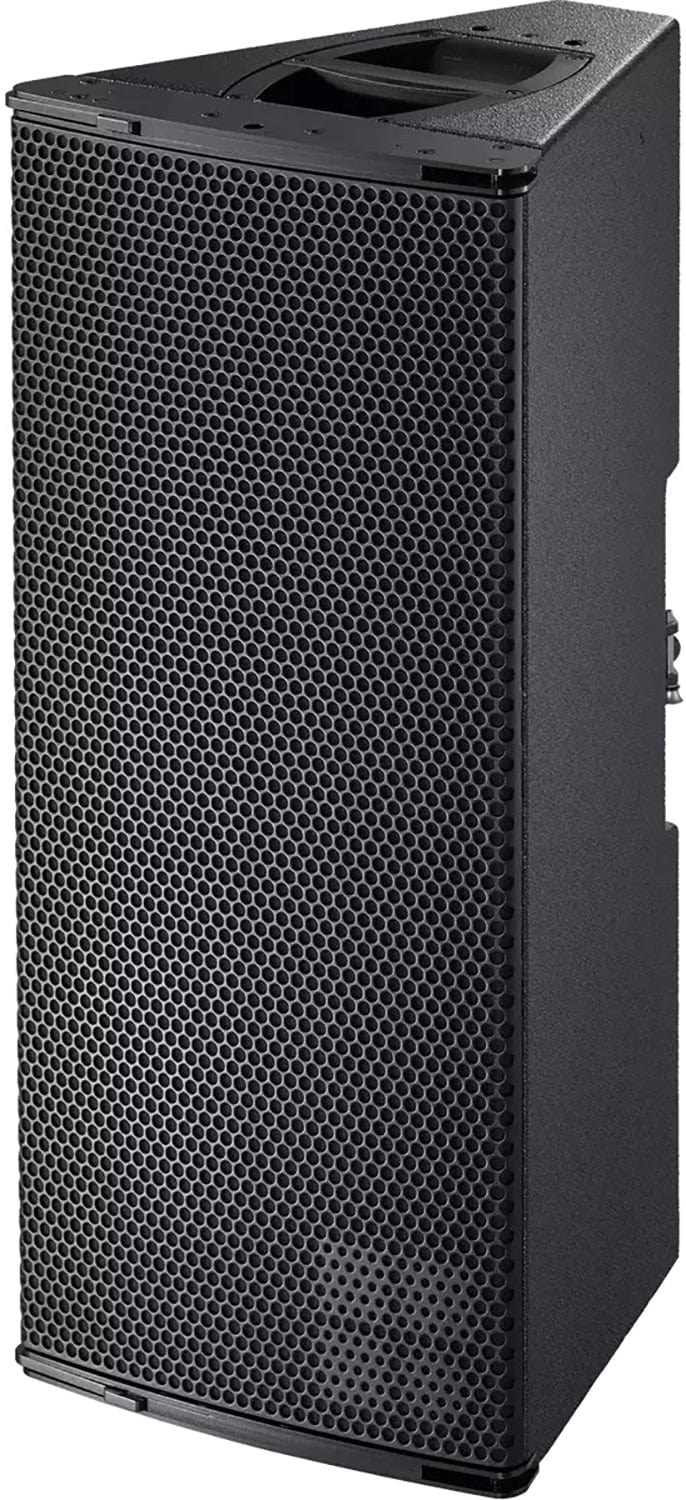

d&b audiotechnik AL90 Augmented Array Loudspeaker with NL4 Connections

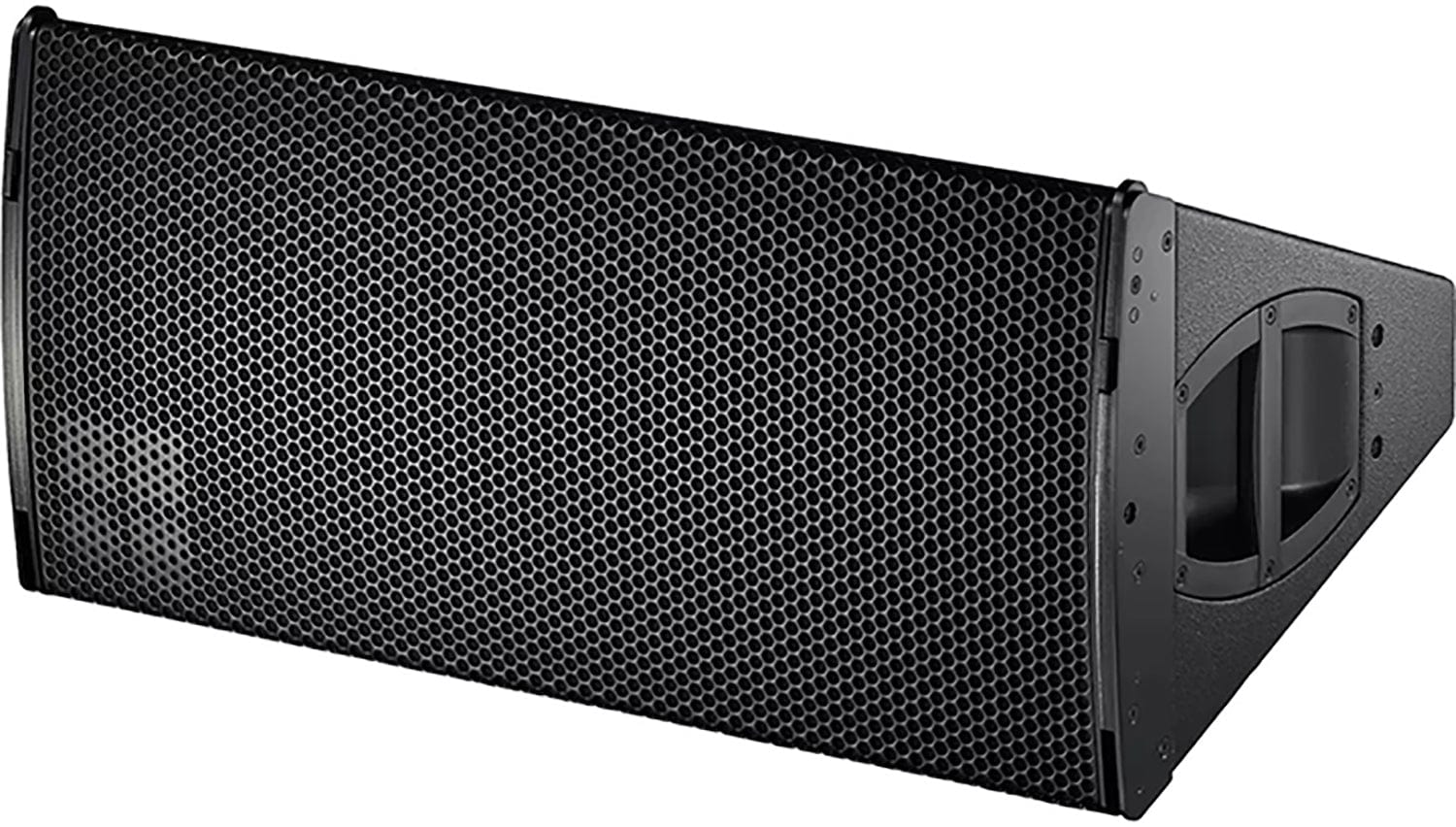

The d&b audiotechnik AL90 is an augmented array loudspeaker for medium scale sound reinforcement, with two 10 inch neodymium LF drivers and a 1.4 inch exit compression driver on a wave shaping device. Up to four cabinets can be flown as a vertical column with 90 degree constant horizontal directivity, maintained down to about 370 Hz. Trianze Tech supplies the AL90 for touring and installation projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Two 10 inch LF drivers and a 1.4 inch exit compression driver with 3 inch coil
- 90 degree constant directivity in the horizontal plane
- Horizontal pattern control down to about 370 Hz
- Up to four cabinets per column on the AL Flyingframe
- Horizontal arrays with 20 to 40 degree splay in 5 degree steps
- Marine plywood cabinet with PCP finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AL90 |
| Type | Augmented array loudspeaker, 2-way passive |
| Components | 2 x 10 inch LF drivers, 1 x 1.4 inch exit compression driver with 3 inch coil |
| Dispersion (h x v) | 90 x 30 degrees |
| Splay Angle Settings | 20 to 40 degrees in 5 degree steps |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 95 Hz to 18 kHz CUT mode |
| Max SPL | 138 dB (D20/30D), 139 dB (D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 400/1800 W |
| Cabinets per Amplifier Channel | 2 |

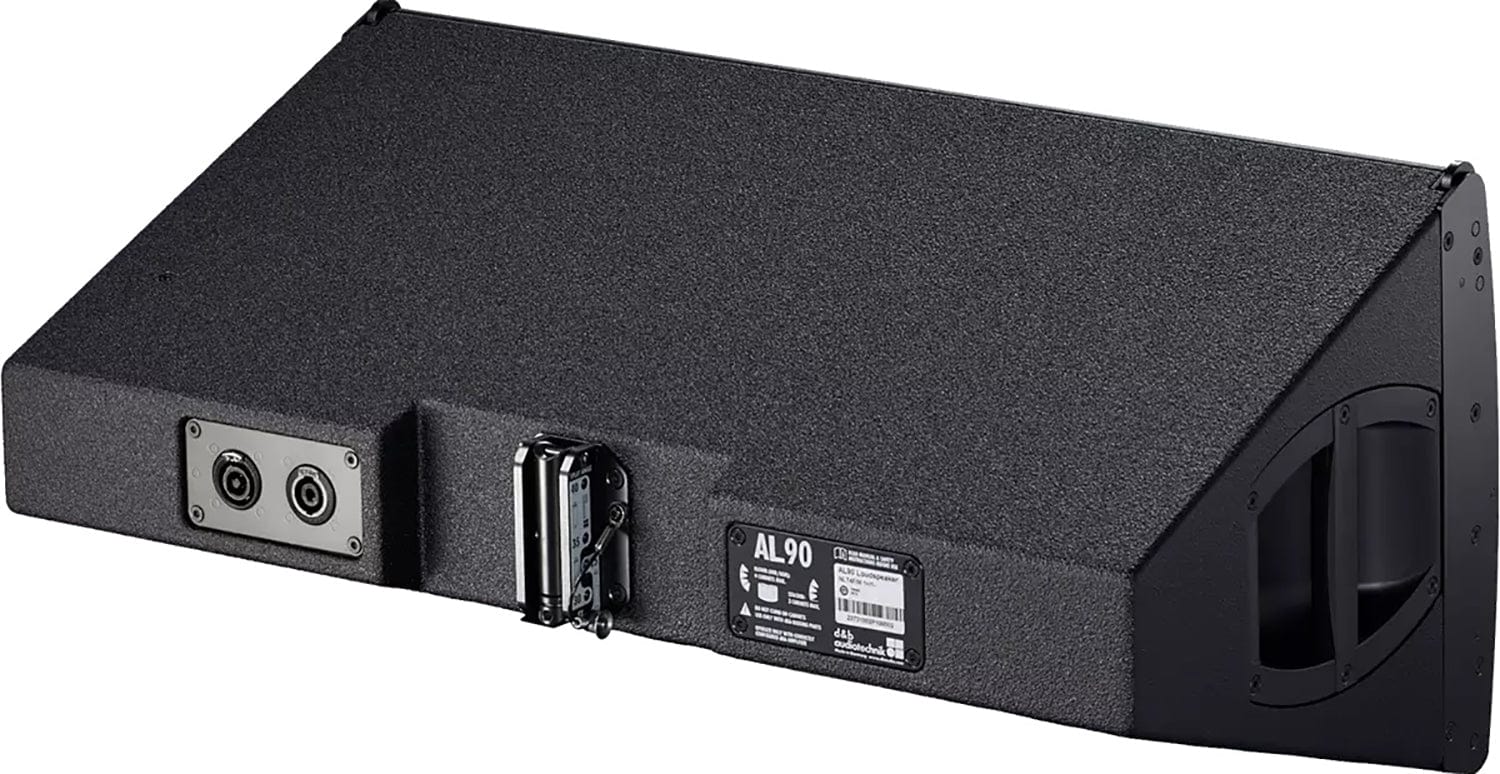

| Connection | 1 x NL4 |
| Dimensions (H x W x D) | 322 x 700 x 356 mm |
| Weight | 23 kg (51 lb) |
Why Buy the d&b audiotechnik AL90 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the AL90 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik AL90 has 90 degree horizontal directivity with control down to about 370 Hz, while the AL60 has 60 degrees with control down to about 550 Hz. Both use the same 2 x 10 inch driver complement.
Up to four d&b audiotechnik AL90 cabinets can be flown in a vertical column on the AL Flyingframe, or used as a horizontal array with the AL Flying adapter.
The d&b audiotechnik AL90 covers 60 Hz to 18 kHz (-5 dB) in standard mode and 95 Hz to 18 kHz in CUT mode.
The d&b audiotechnik AL90 reaches 139 dB maximum SPL with D40, D80 or 40D amplifiers, and 138 dB with D20 or 30D.
The d&b audiotechnik AL90 weighs 23 kg (51 lb) and measures 322 x 700 x 356 mm (H x W x D).
