d&b audiotechnik AL60: 2 x 10 Inch Augmented Array Passive Loudspeaker, 60 Degree, NLT4 F/M Connections
Model
:
AL60 NLT4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

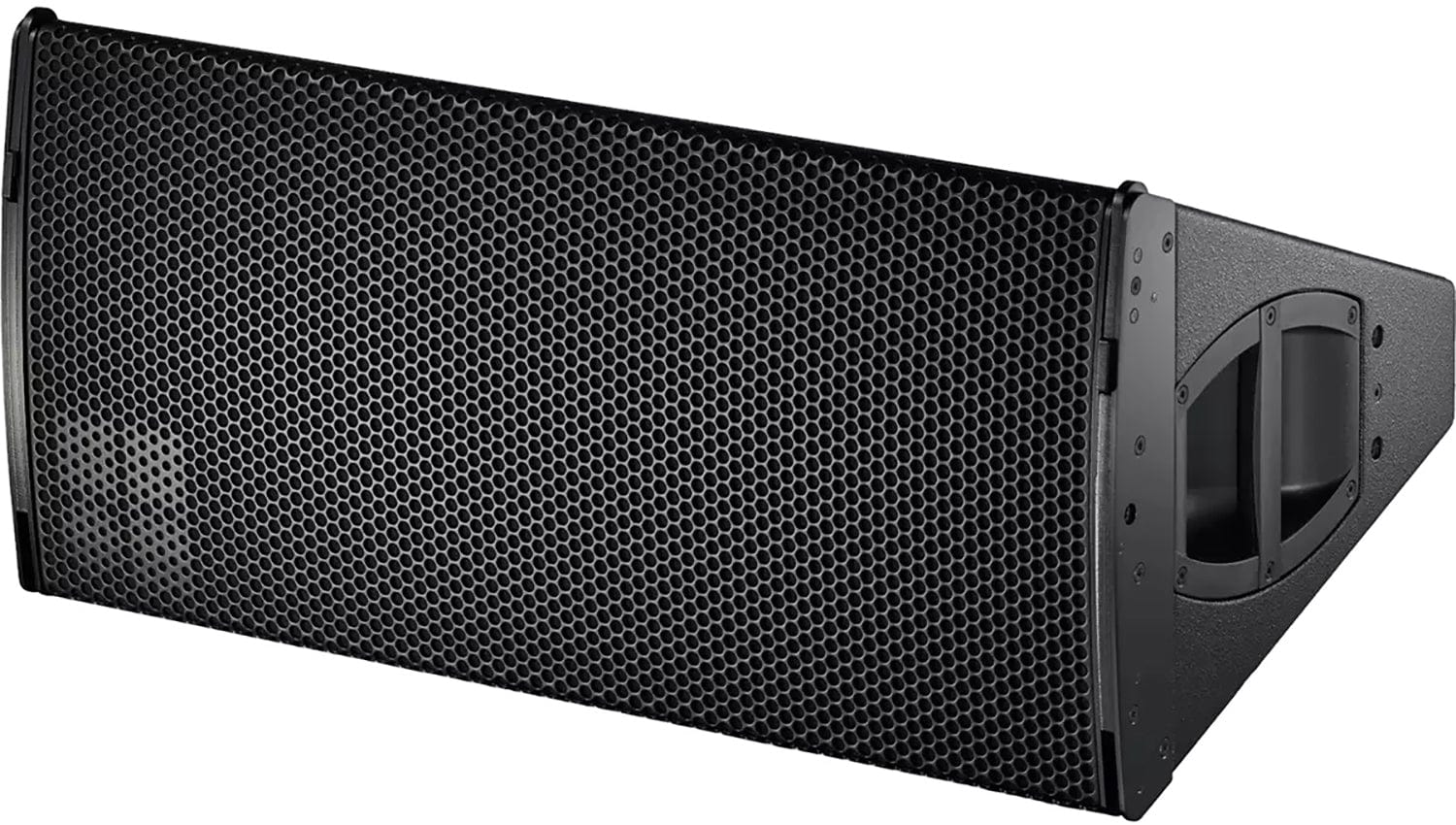

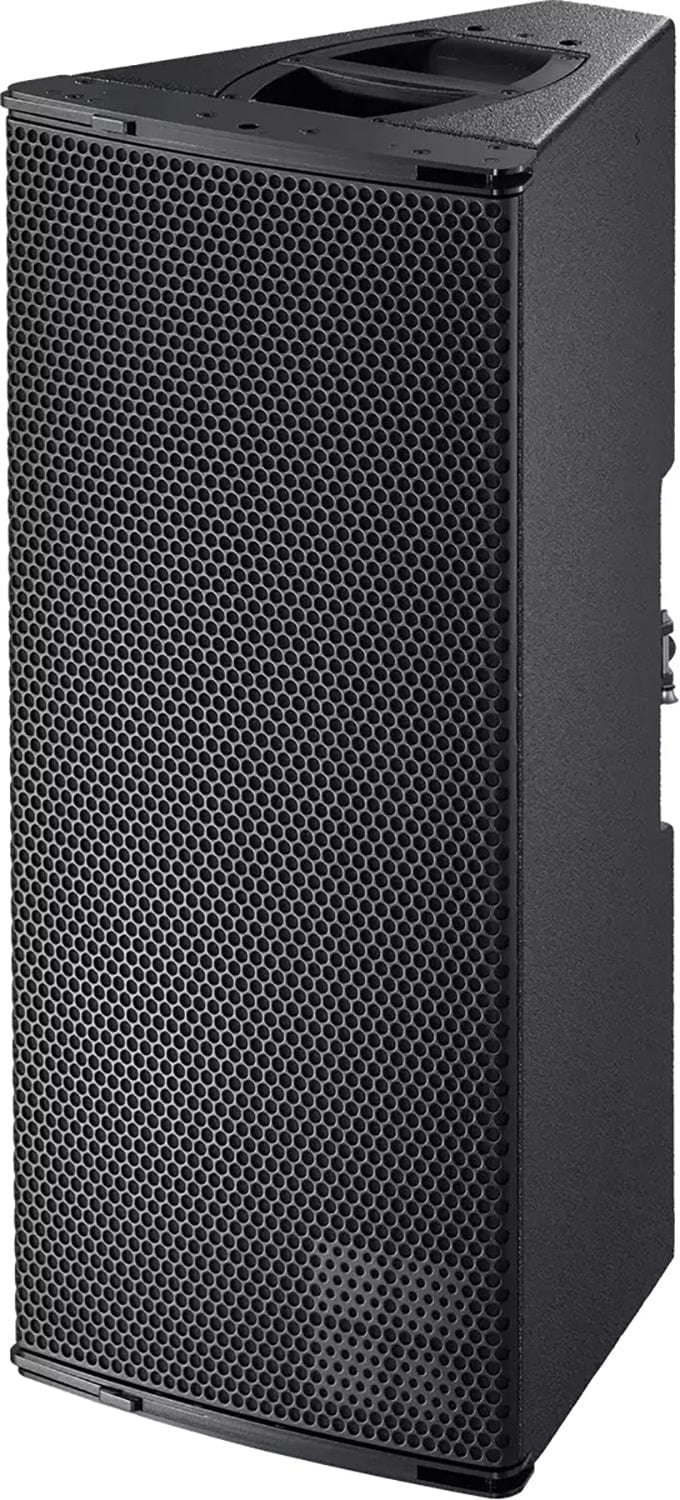

d&b audiotechnik AL60 Augmented Array Loudspeaker with NLT4 F/M Connections
The d&b audiotechnik AL60 with NLT4 F/M connections is the touring connector version of the AL60 augmented array loudspeaker, with two 10 inch neodymium LF drivers and a 1.4 inch exit compression driver on a wave shaping device. Up to four cabinets form a vertical column with 60 degree constant horizontal directivity, and the NLT4 F/M pair allows direct link through to the next cabinet. Trianze Tech supplies the AL60 for touring and installation projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:

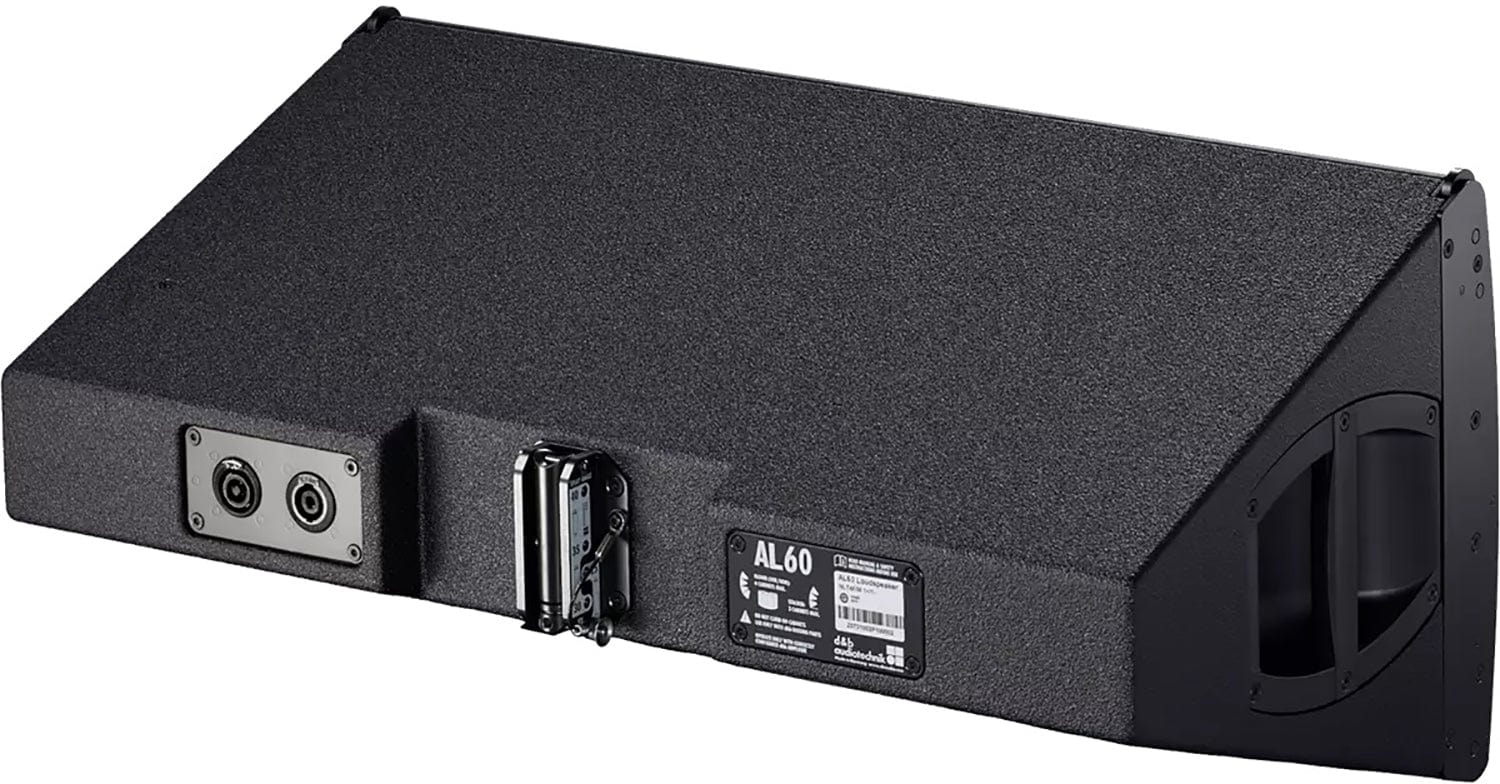

- NLT4 F/M connectors for input and link through
- Two 10 inch LF drivers and a 1.4 inch exit compression driver with 3 inch coil
- 60 degree constant directivity in the horizontal plane
- Up to four cabinets per column on the AL Flyingframe
- Horizontal arrays with 20 to 40 degree splay in 5 degree steps
- Marine plywood cabinet with PCP finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AL60, NLT4 F/M version |
| Type | Augmented array loudspeaker, 2-way passive |
| Components | 2 x 10 inch LF drivers, 1 x 1.4 inch exit compression driver with 3 inch coil |
| Dispersion (h x v) | 60 x 30 degrees |
| Splay Angle Settings | 20 to 40 degrees in 5 degree steps |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 95 Hz to 18 kHz CUT mode |
| Max SPL | 138 dB (D20/30D), 139 dB (D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 400/1800 W |
| Cabinets per Amplifier Channel | 2 |
| Connection | 1 x NLT4 F/M |
| Dimensions (H x W x D) | 322 x 700 x 356 mm |
| Weight | 23 kg (51 lb) |
Why Buy the d&b audiotechnik AL60 NLT4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the AL60 NLT4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Both are the same d&b audiotechnik AL60 loudspeaker. This version has an NLT4 F/M connector pair for input and link through, while the other version uses an NL4 connector.
The d&b audiotechnik AL60 has a 60 x 30 degree nominal dispersion, with constant 60 degree horizontal directivity when up to four cabinets are flown in a column.
Splay angles between adjacent d&b audiotechnik AL60 cabinets can be set from 20 to 40 degrees in 5 degree steps, up to 150 degrees per array.
The d&b audiotechnik AL60 reaches 139 dB maximum SPL with D40, D80 or 40D amplifiers, and 138 dB with D20 or 30D.
The d&b audiotechnik AL60 weighs 23 kg (51 lb) and measures 322 x 700 x 356 mm (H x W x D).
Trianze Tech supplies the d&b audiotechnik AL60 NLT4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
