d&b audiotechnik AL60: 2 x 10 Inch Augmented Array Passive Loudspeaker, 60 Degree, NL4 Connections
Model
:
AL60
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

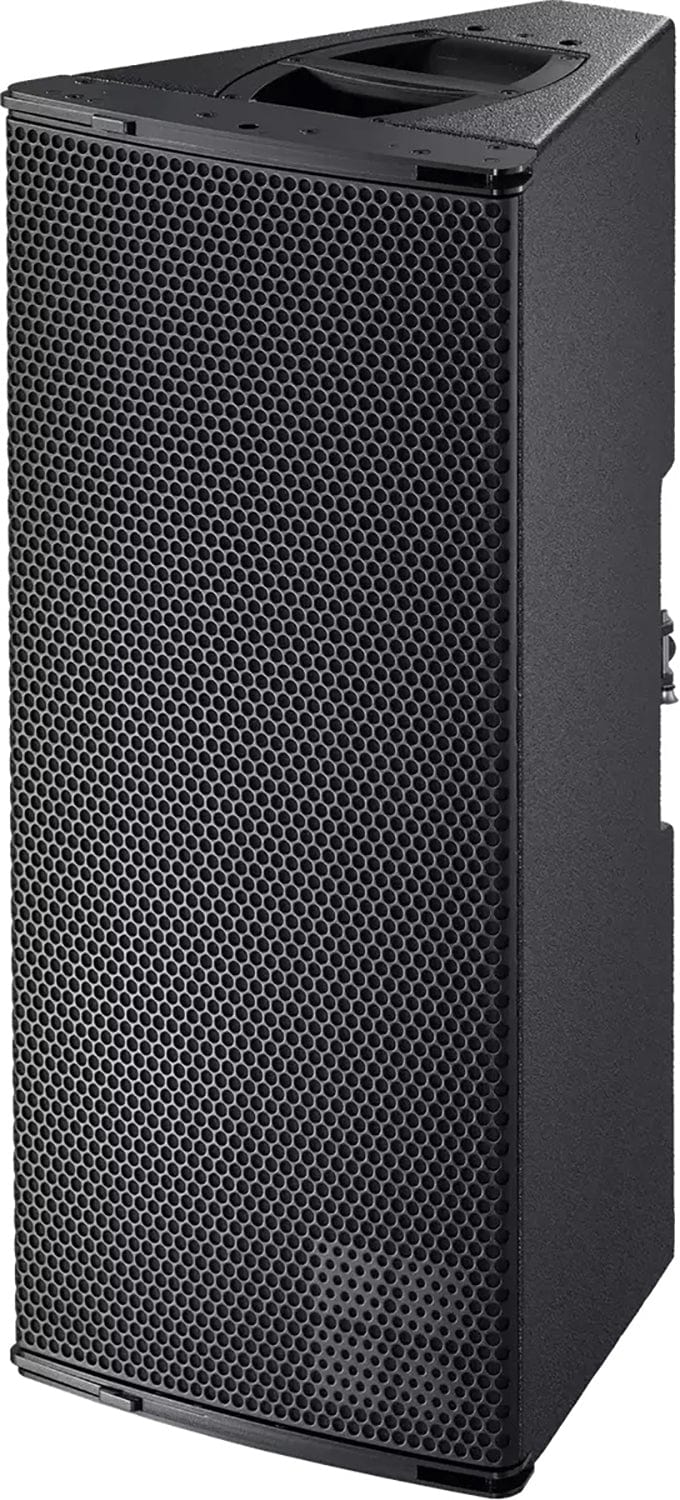

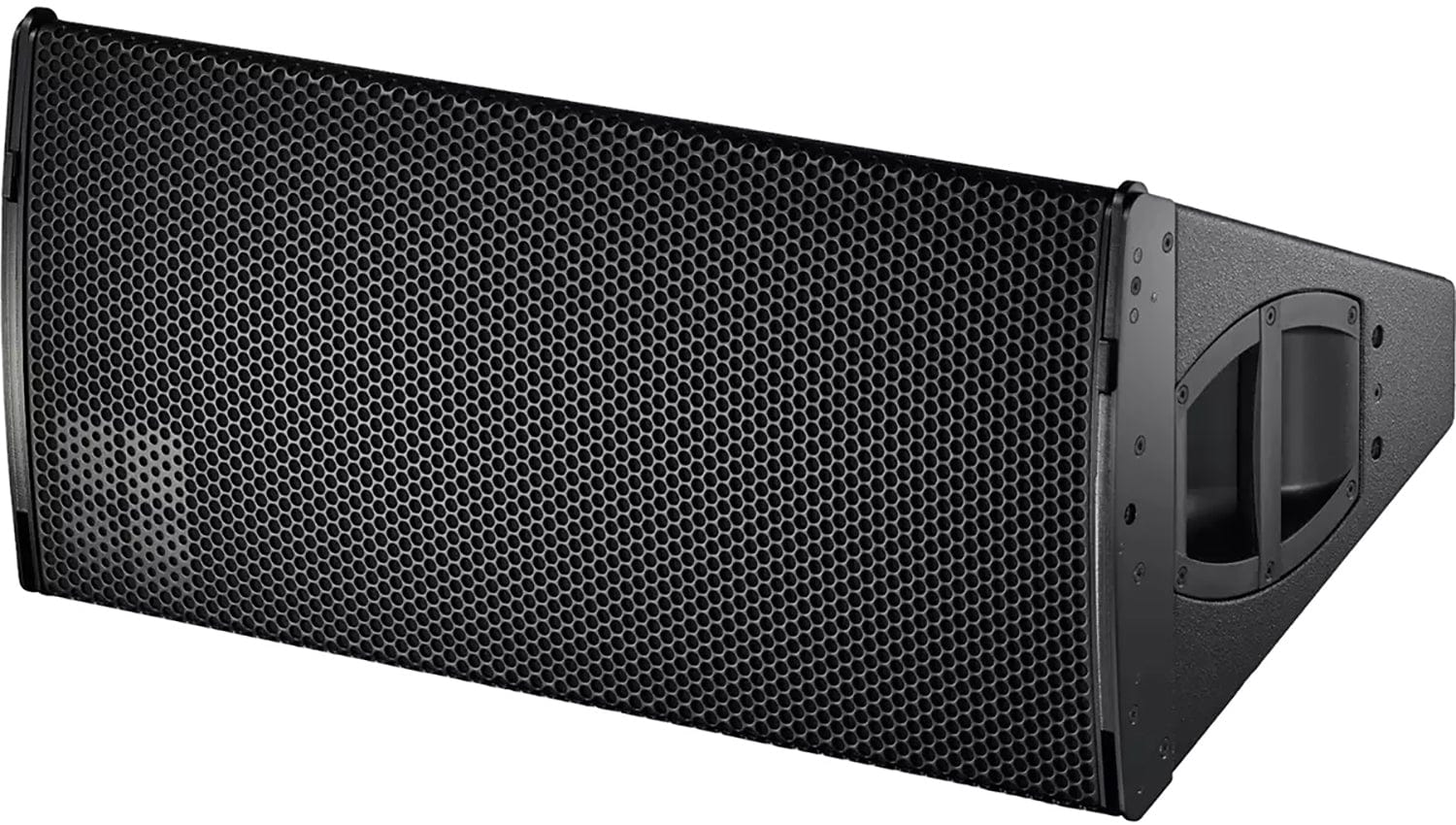

d&b audiotechnik AL60 Augmented Array Loudspeaker with NL4 Connections
The d&b audiotechnik AL60 is an augmented array loudspeaker for medium scale sound reinforcement, with two 10 inch neodymium LF drivers and a 1.4 inch exit compression driver on a wave shaping device. Up to four cabinets can be flown as a vertical column with 60 degree constant horizontal directivity, or used as a horizontal array with splay angles of 20 to 40 degrees. Trianze Tech supplies the AL60 for touring and installation projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Two 10 inch LF drivers and a 1.4 inch exit compression driver with 3 inch coil
- 60 degree constant directivity in the horizontal plane
- Up to four cabinets per column on the AL Flyingframe
- Horizontal arrays with 20 to 40 degree splay in 5 degree steps
- Horizontal pattern control down to about 550 Hz
- Marine plywood cabinet with PCP finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AL60 |
| Type | Augmented array loudspeaker, 2-way passive |
| Components | 2 x 10 inch LF drivers, 1 x 1.4 inch exit compression driver with 3 inch coil |
| Dispersion (h x v) | 60 x 30 degrees |
| Splay Angle Settings | 20 to 40 degrees in 5 degree steps |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 95 Hz to 18 kHz CUT mode |
| Max SPL | 138 dB (D20/30D), 139 dB (D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 400/1800 W |
| Cabinets per Amplifier Channel | 2 |

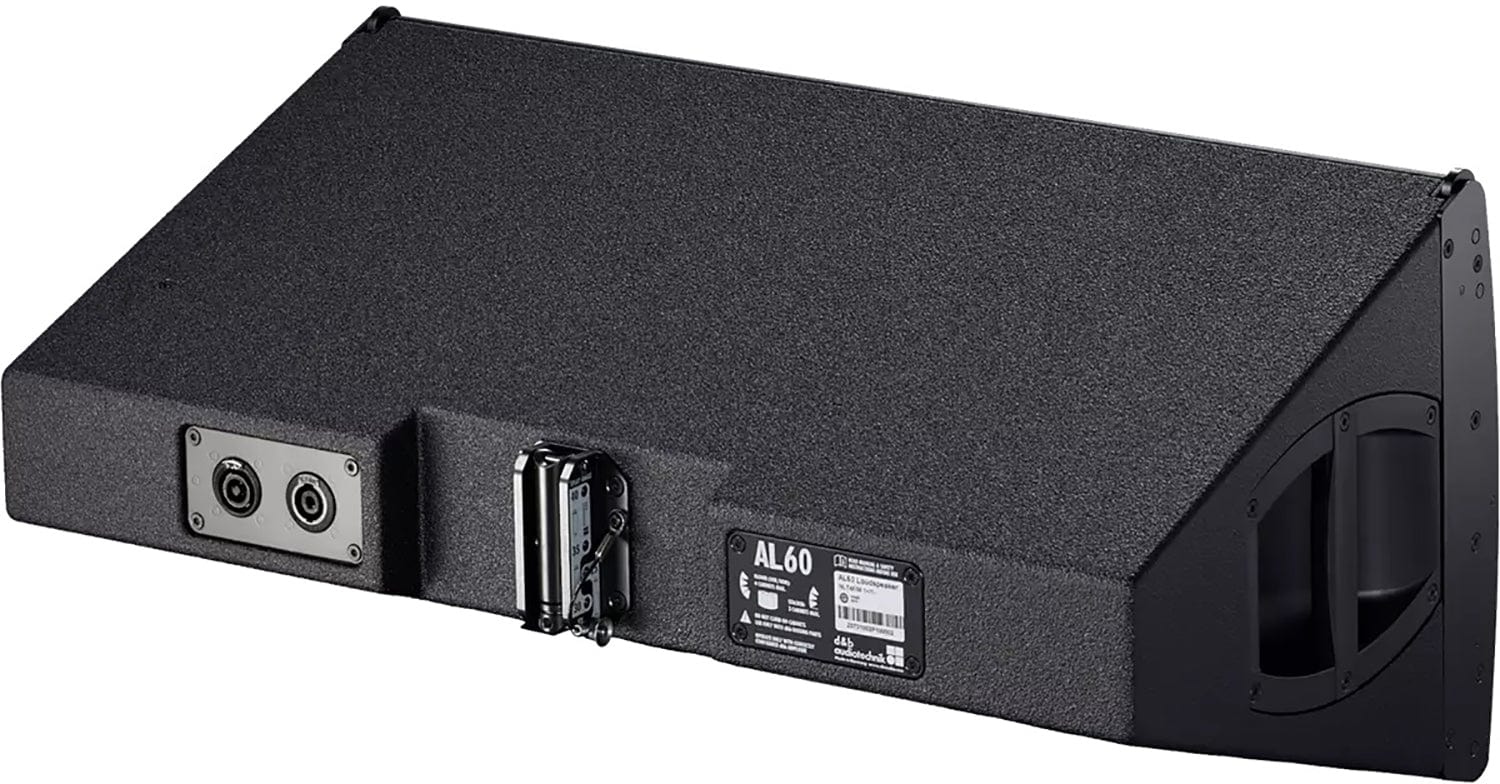

| Connection | 1 x NL4 |
| Dimensions (H x W x D) | 322 x 700 x 356 mm |
| Weight | 23 kg (51 lb) |
Why Buy the d&b audiotechnik AL60 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the AL60 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik AL60 has a 60 x 30 degree nominal dispersion. Arrays of up to four cabinets maintain 60 degree constant horizontal directivity in a vertical column.
Up to four d&b audiotechnik AL60 cabinets can be flown in a vertical column using the AL Flyingframe, or up to four used as a horizontal array with the AL Flying adapter.
The d&b audiotechnik AL60 supports splay angles from 20 to 40 degrees in 5 degree steps, giving 50 to 70 degrees for two cabinets and up to 150 degrees per array.
The d&b audiotechnik AL60 reaches 139 dB maximum SPL with D40, D80 or 40D amplifiers, and 138 dB with D20 or 30D.
The d&b audiotechnik AL60 measures 322 x 700 x 356 mm (H x W x D) and weighs 23 kg (51 lb).
