d&b audiotechnik B6-SUB: 18 Inch High Performance Passive Subwoofer with NLT4 F/M Connections
Model
:
B6-SUB NLT4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

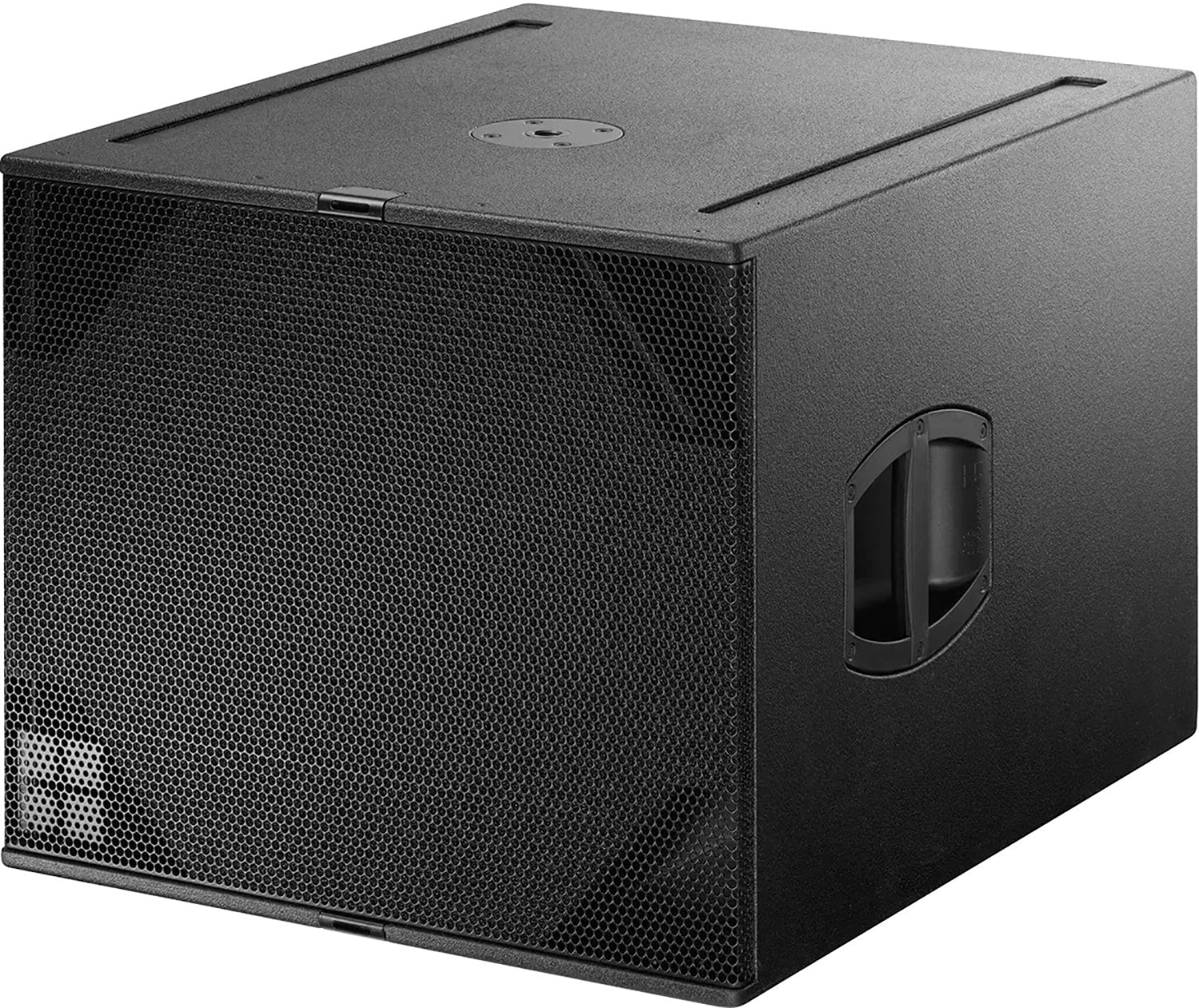

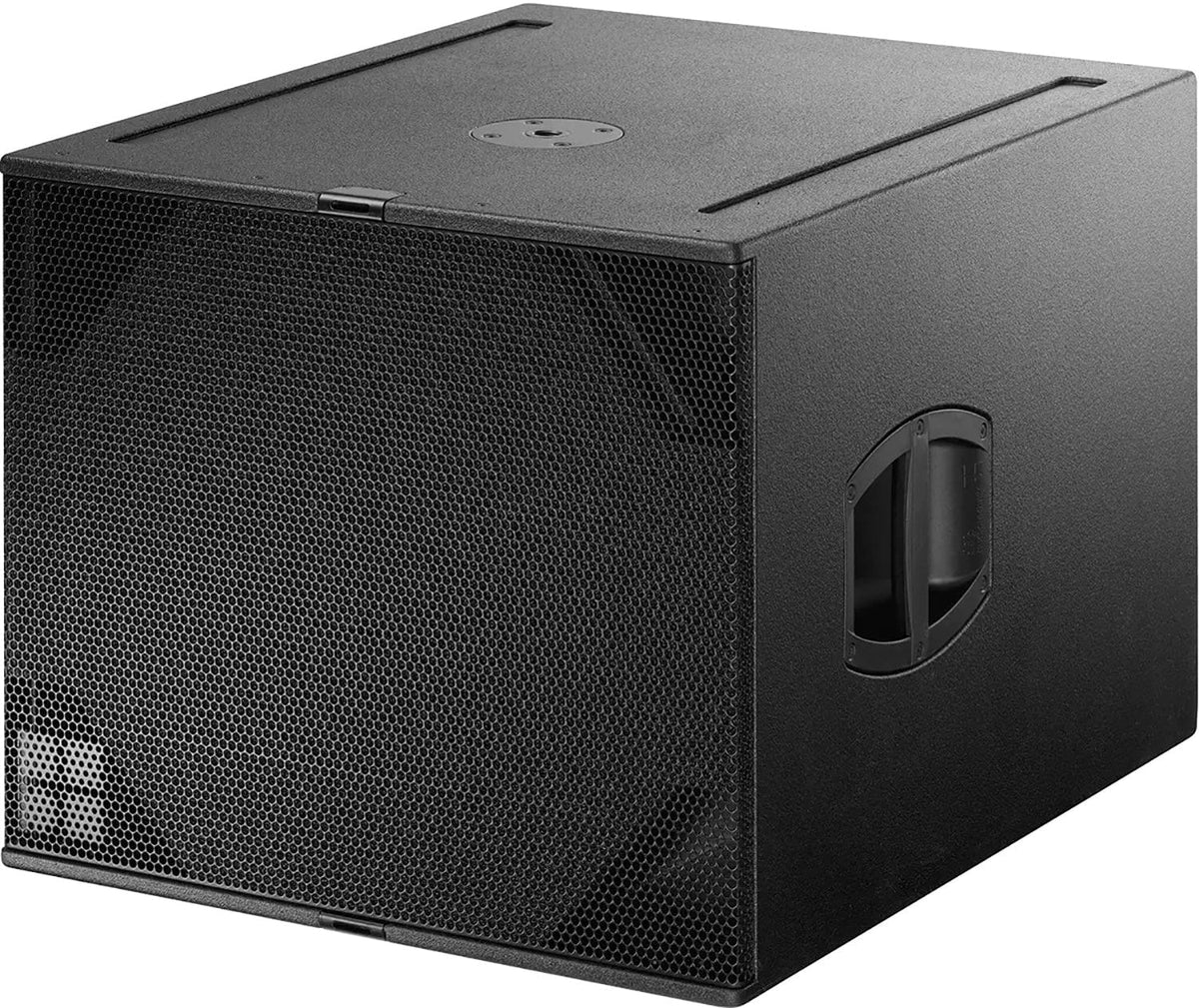

d&b audiotechnik B6-SUB 18 Inch High Performance Subwoofer with NLT4 F/M Connections
The d&b audiotechnik B6-SUB with NLT4 F/M connections is the touring connector version of the B6 subwoofer, with a long excursion 18 inch driver in a bass reflex design for ground stacked use. Three or more cabinets form a Cardioid Subwoofer Array in CSA mode, and INFRA mode extends response down to 35 Hz. Trianze Tech supplies the B6-SUB for live and installed sound in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- NLT4 F/M connectors for input and link through
- Long excursion 18 inch driver in a bass reflex design
- Cardioid Subwoofer Array with CSA mode
- INFRA mode extends response down to 35 Hz
- Marine plywood cabinet with PCP finish
- Four rear wheels, handles and stacking runners
Technical Specifications:
| Spec | Value |
|---|---|
| Model | B6-SUB, NLT4 F/M version |
| Type | High performance subwoofer, passive |
| Components | 1 x 18 inch driver |
| Frequency Response (-5 dB) | 37 to 140 Hz standard, 37 to 110 Hz 100 Hz mode, 35 to 80 Hz INFRA mode |
| Max SPL | 128 dB (10D), 131 dB (D20/30D), 134 dB (D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 500/2000 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 490 x 580 x 700 mm (805 mm with wheels) |
| Weight | 41 kg (90 lb) |
Why Buy the d&b audiotechnik B6-SUB NLT4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the B6-SUB NLT4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Both are the same d&b audiotechnik B6-SUB 18 inch subwoofer. This version has 2 x NLT4 F/M touring connectors, while the other has 2 x NL4.
The d&b audiotechnik B6-SUB reaches 134 dB maximum SPL with D40, D80 or 40D amplifiers and 131 dB with D20 or 30D.
The d&b audiotechnik B6-SUB extends to 37 Hz in standard mode and down to 35 Hz in INFRA mode (35 Hz to 80 Hz).
Yes. Three or any multiple of three d&b audiotechnik B6-SUB cabinets can be arranged as a Cardioid Subwoofer Array using CSA mode on the amplifier.
The d&b audiotechnik B6-SUB measures 490 x 580 x 700 mm (H x W x D), 805 mm deep with wheels, and weighs 41 kg (90 lb).
Trianze Tech supplies the d&b audiotechnik B6-SUB NLT4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
