d&b audiotechnik Y-SUB: Flyable Cardioid Subwoofer with 18 Inch and 12 Inch Drivers, NLT4 F/M Connections
Model
:
Y-SUB NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Y-SUB Flyable Cardioid Subwoofer with NLT4 F/M Connections

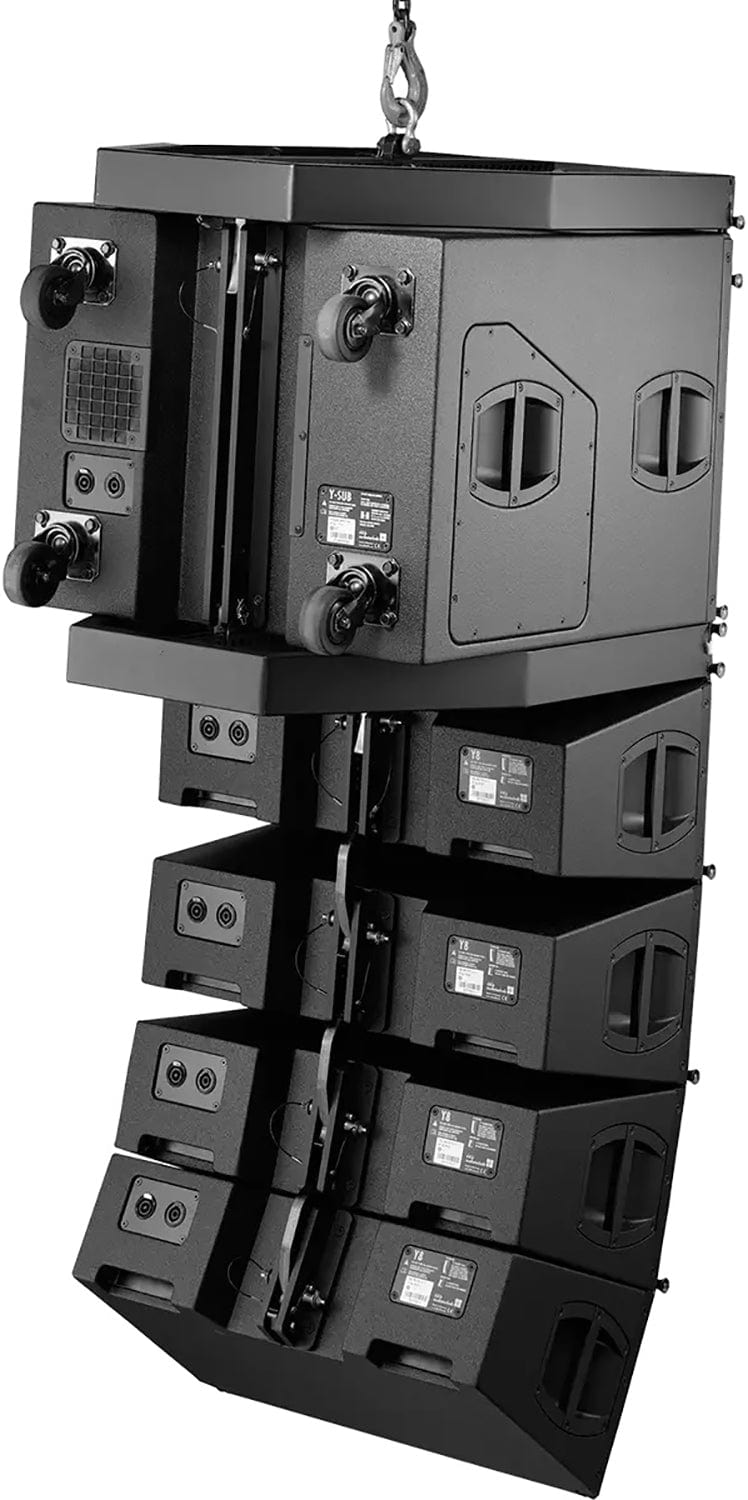

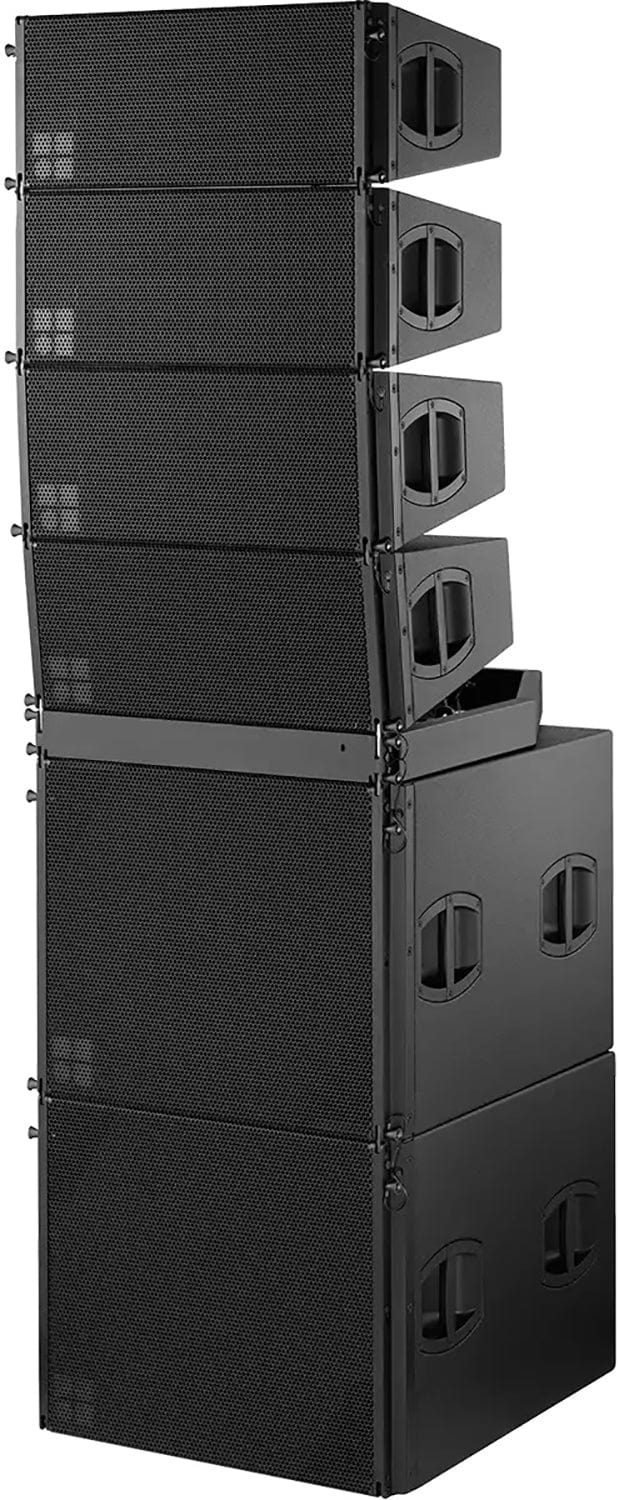

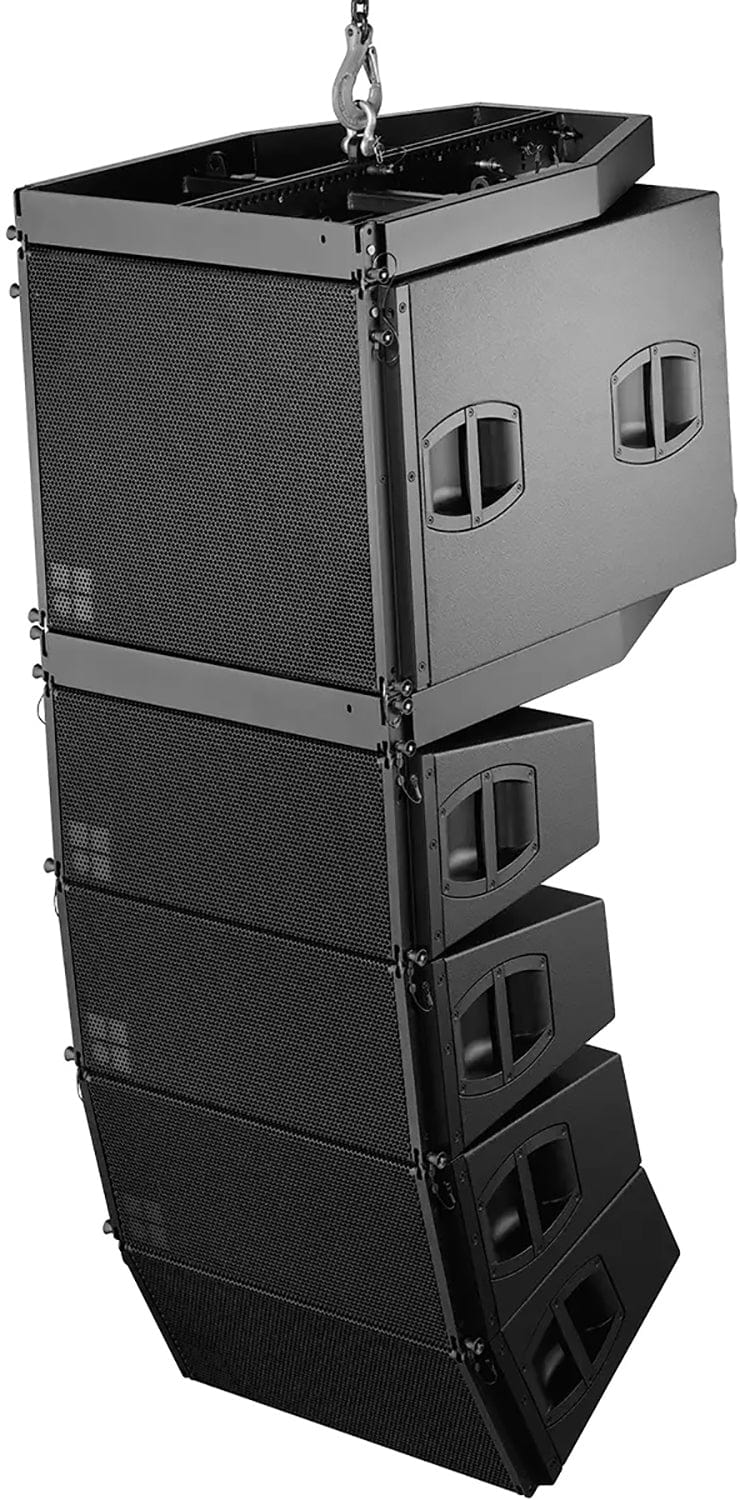

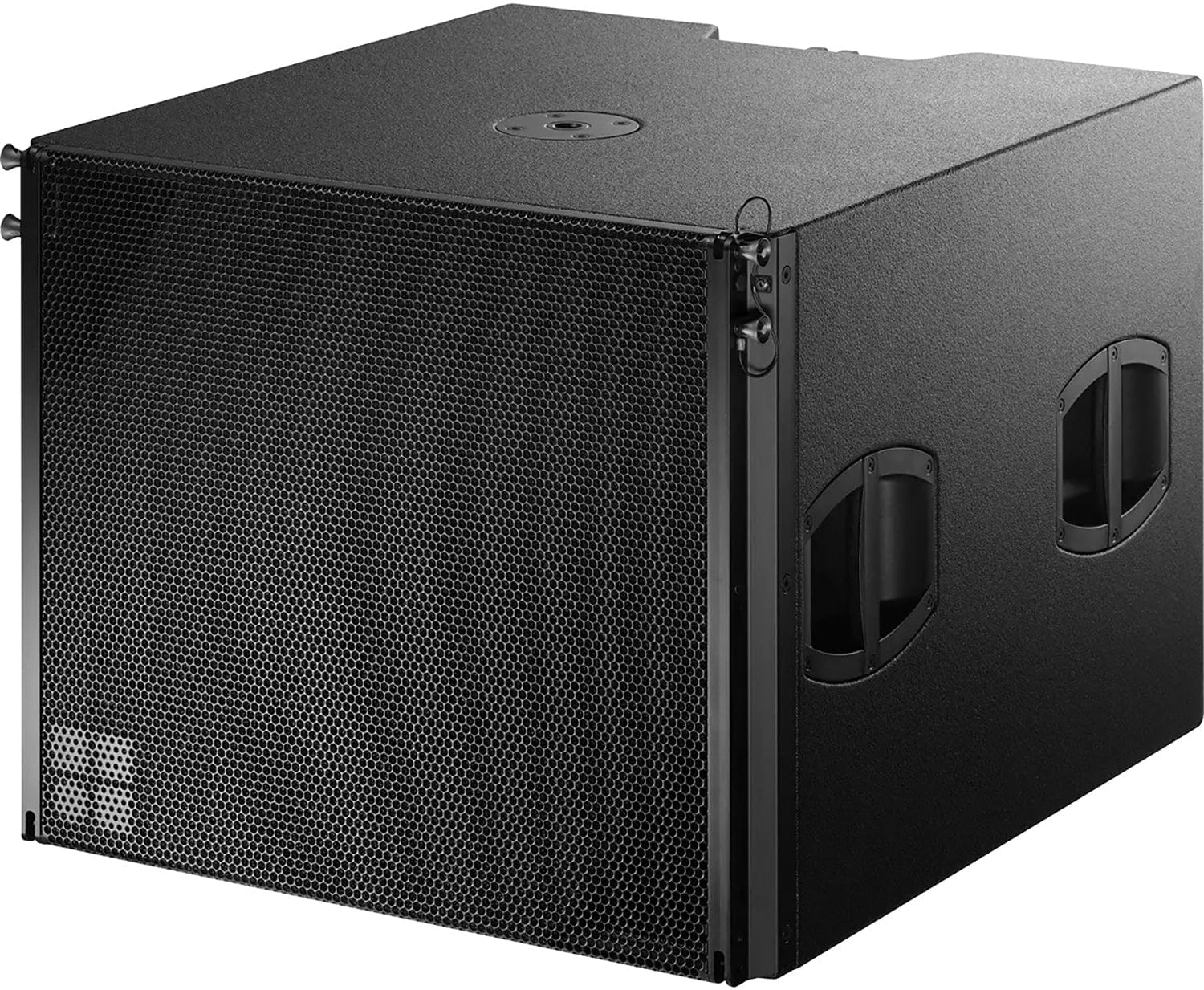

The d&b audiotechnik Y-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel. Its 18 inch bass reflex driver faces front and its 12 inch two chamber bandpass driver radiates to the rear, avoiding energy behind the system. Three point rigging lets it fly in a column of Y subwoofers or at the top of a Y array, or it can be ground stacked. The marine plywood cabinet has a PCP finish, handles and four rear wheels. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the Y-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Cardioid subwoofer powered by a single amplifier channel
- 18 inch front driver and 12 inch rear driver
- 39 to 140 Hz frequency response
- Up to 134 dB SPLmax
- Three point rigging hardware
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y-SUB (NLT4 F/M) |
| Type | Flyable cardioid subwoofer |
| Frequency Response | 39 to 140 Hz (standard), 39 to 110 Hz (CUT mode), -5 dB |
| Max SPL | 128 dB with 10D, 131 dB with D20/30D, 134 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 600 W RMS / 2400 W peak (10 ms) |
| Splay Angle Settings | 0 and 2.5 degrees |
| Components | 1 x 18 inch and 1 x 12 inch neodymium drivers |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 500 x 630 x 700 / 804 mm |
| Weight | 52 kg (115 lb) |
Why Buy the d&b audiotechnik Y-SUB NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y-SUB NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik Y-SUB has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik Y-SUB uses an 18 inch bass reflex driver facing front and a 12 inch driver in a two chamber bandpass design radiating to the rear, from one amplifier channel.
The d&b audiotechnik Y-SUB handles 600 W RMS and 2400 W peak (10 ms), with two cabinets per amplifier channel.
The d&b audiotechnik Y-SUB offers 0 and 2.5 degree splay settings with its three point rigging.
The d&b audiotechnik Y-SUB measures 500 x 630 x 700 / 804 mm and weighs 52 kg (115 lb).
Trianze Tech supplies the d&b audiotechnik Y-SUB NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
