d&b audiotechnik Y-SUB: Flyable Cardioid Subwoofer with 18 Inch and 12 Inch Drivers, NL4 Connections
Model
:
Y-SUB NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Y-SUB Flyable Cardioid Subwoofer with NL4 Connections

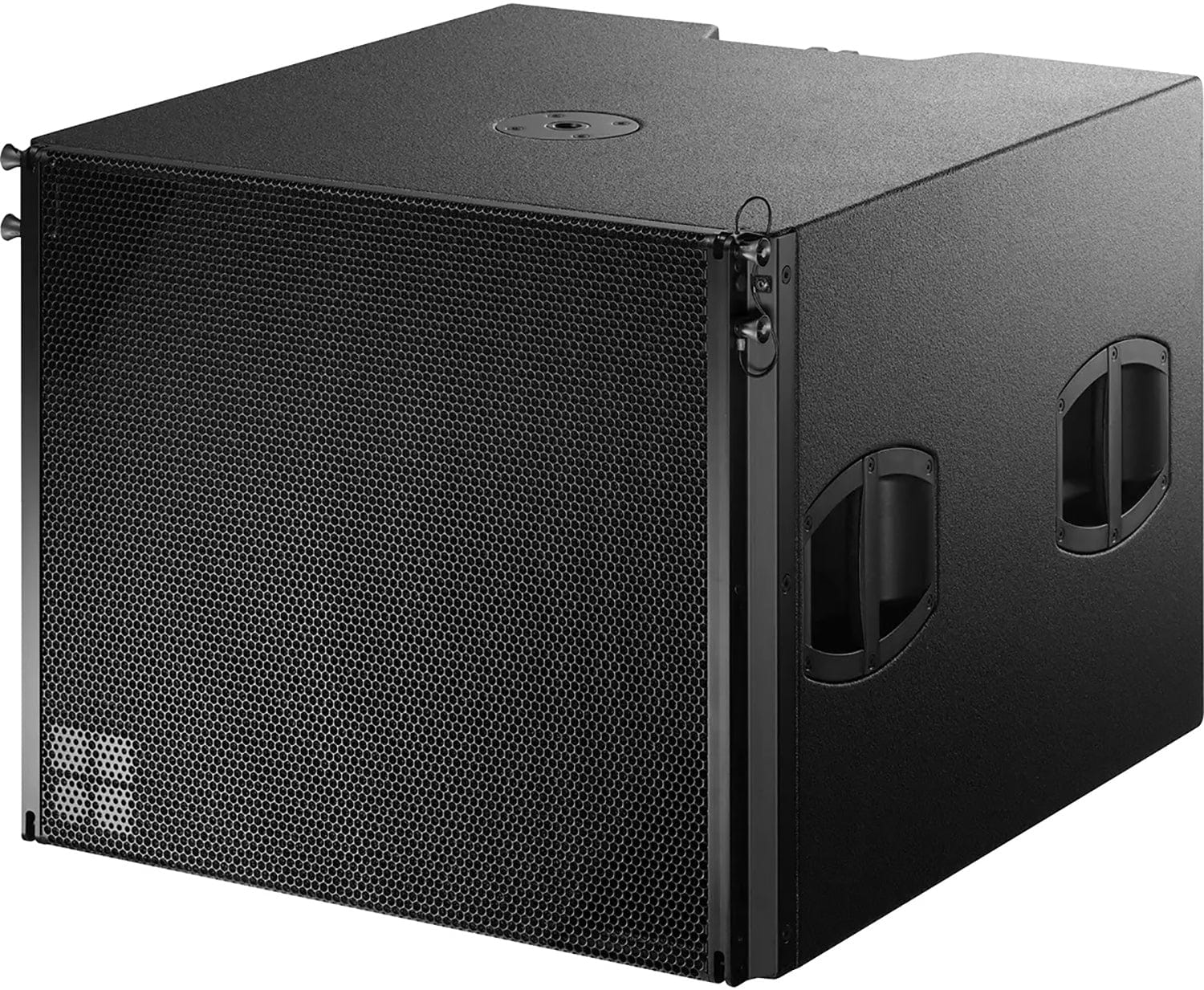

The d&b audiotechnik Y-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel, with an 18 inch driver in a bass reflex chamber facing front and a 12 inch driver in a two chamber bandpass design radiating to the rear. Fitted with three point rigging, it can be flown in a column of Y subwoofers, at the top of a Y array, or ground stacked. The marine plywood cabinet has a PCP finish, two side handles and four rear wheels, and an optional transport lid protects the front in transit. This version has 2 x NL4 connectors. Trianze Tech supplies the Y-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Cardioid subwoofer powered by a single amplifier channel
- 18 inch front driver and 12 inch rear driver
- 39 to 140 Hz frequency response
- Up to 134 dB SPLmax

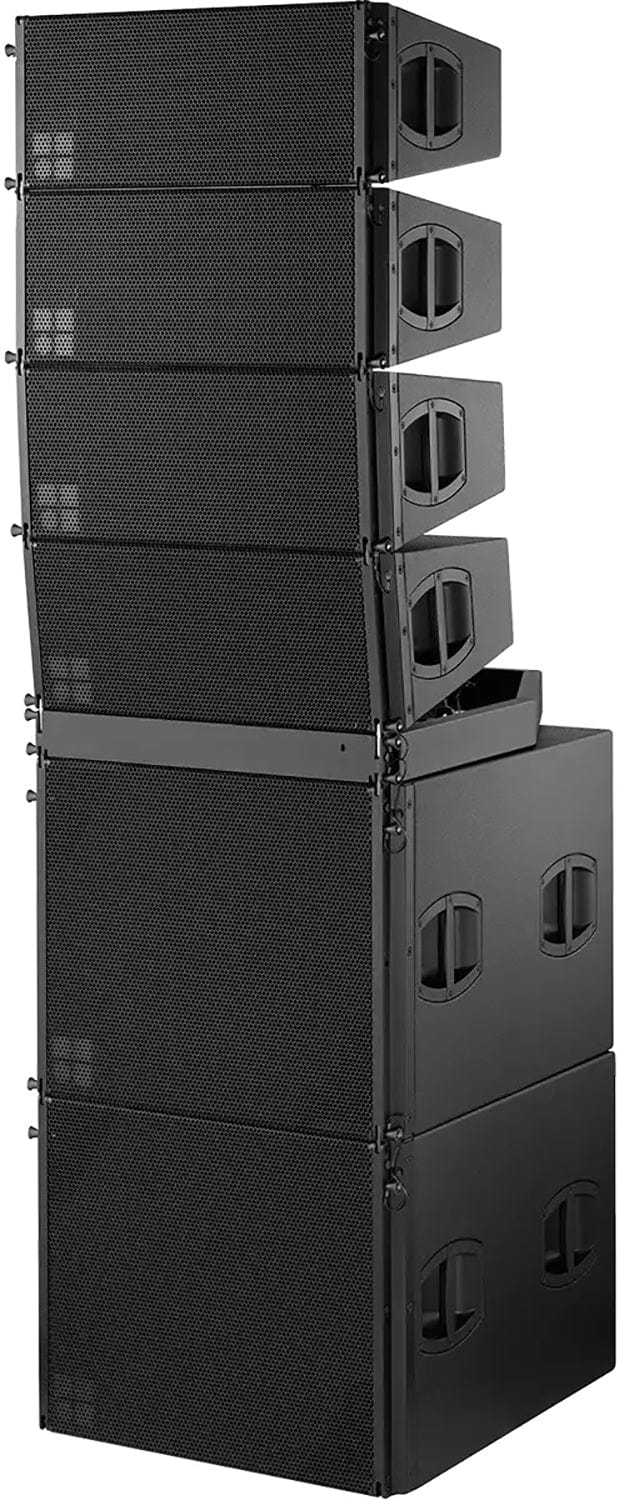

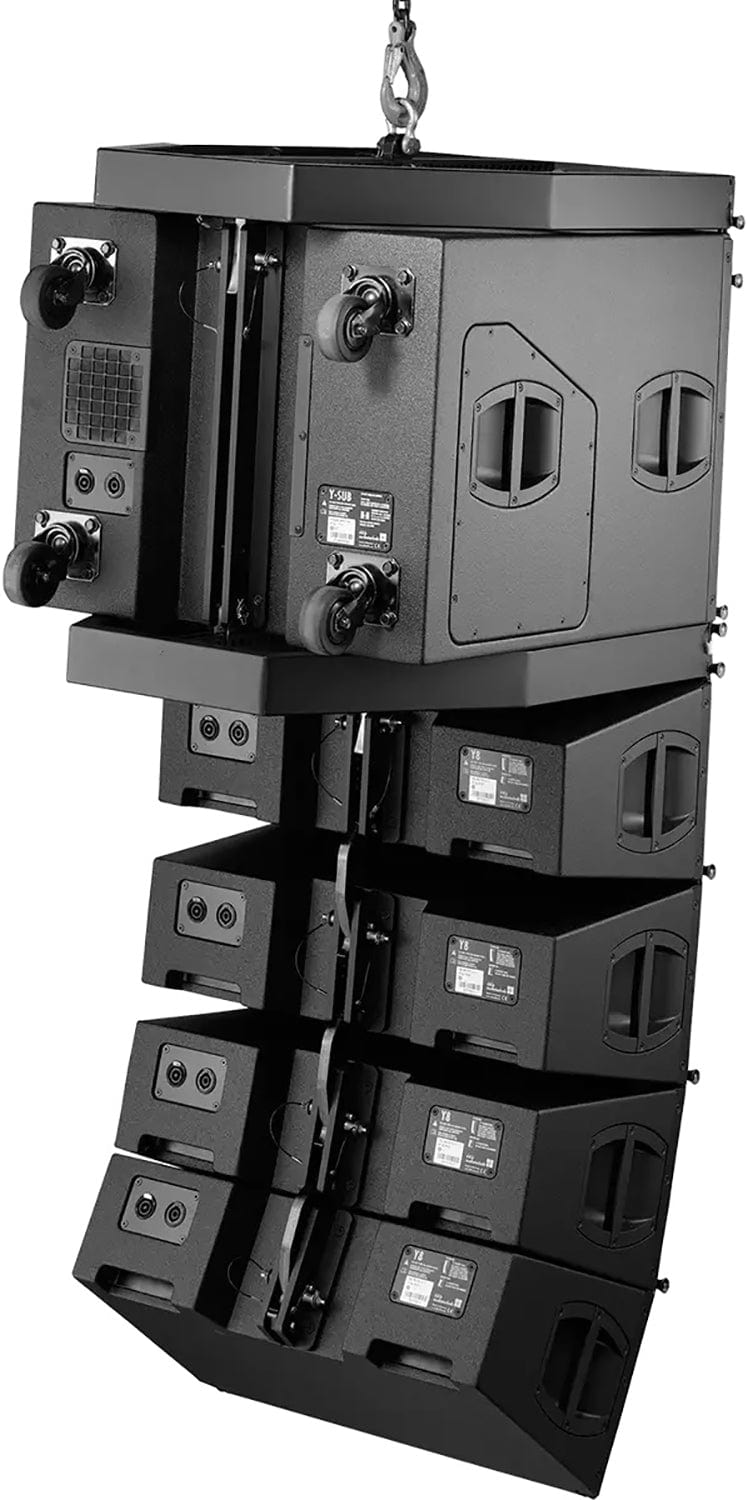

- Three point rigging, flown or ground stacked
- Four rear wheels and optional transport lid
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y-SUB (NL4) |
| Type | Flyable cardioid subwoofer |
| Frequency Response | 39 to 140 Hz (standard), 39 to 110 Hz (CUT mode), -5 dB |
| Max SPL | 128 dB with 10D, 131 dB with D20/30D, 134 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 600 W RMS / 2400 W peak (10 ms) |
| Splay Angle Settings | 0 and 2.5 degrees |
| Components | 1 x 18 inch and 1 x 12 inch neodymium drivers |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 500 x 630 x 700 / 804 mm |
| Weight | 52 kg (115 lb) |
Why Buy the d&b audiotechnik Y-SUB NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y-SUB NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.

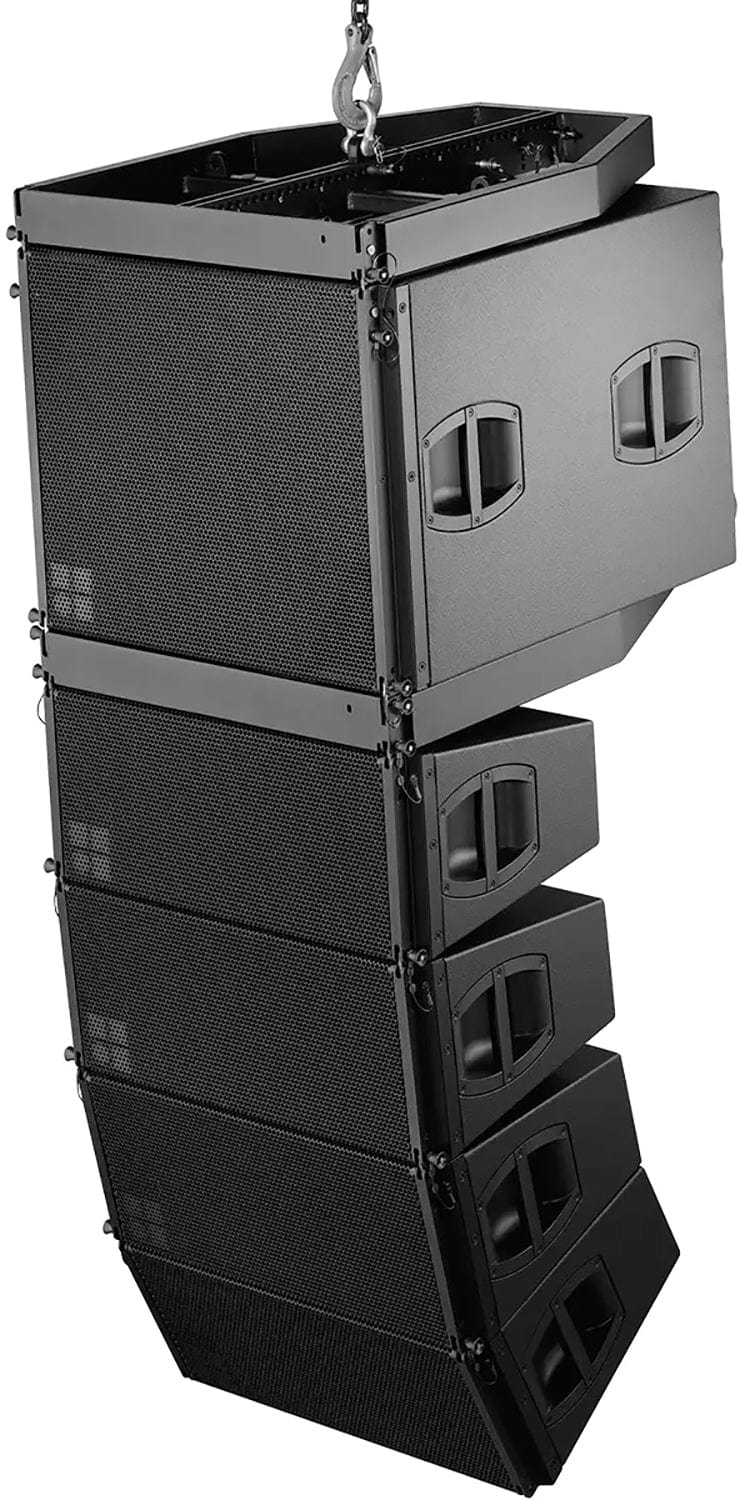

The d&b audiotechnik Y-SUB has three point rigging and can be flown in a column of Y subwoofers, at the top of a Y array, or ground stacked.
The d&b audiotechnik Y-SUB covers 39 to 140 Hz in standard mode and 39 to 110 Hz in CUT mode (-5 dB).
The d&b audiotechnik Y-SUB reaches 128 dB with a 10D, 131 dB with a D20 or 30D, and 134 dB with a D40, D80 or 40D.
Yes. An optional transport lid protects the front of the d&b audiotechnik Y-SUB in transit, and the cabinet has four wheels on the rear.
The d&b audiotechnik Y-SUB weighs 52 kg (115 lb) and measures 500 x 630 x 700 / 804 mm.
Trianze Tech supplies the d&b audiotechnik Y-SUB NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
