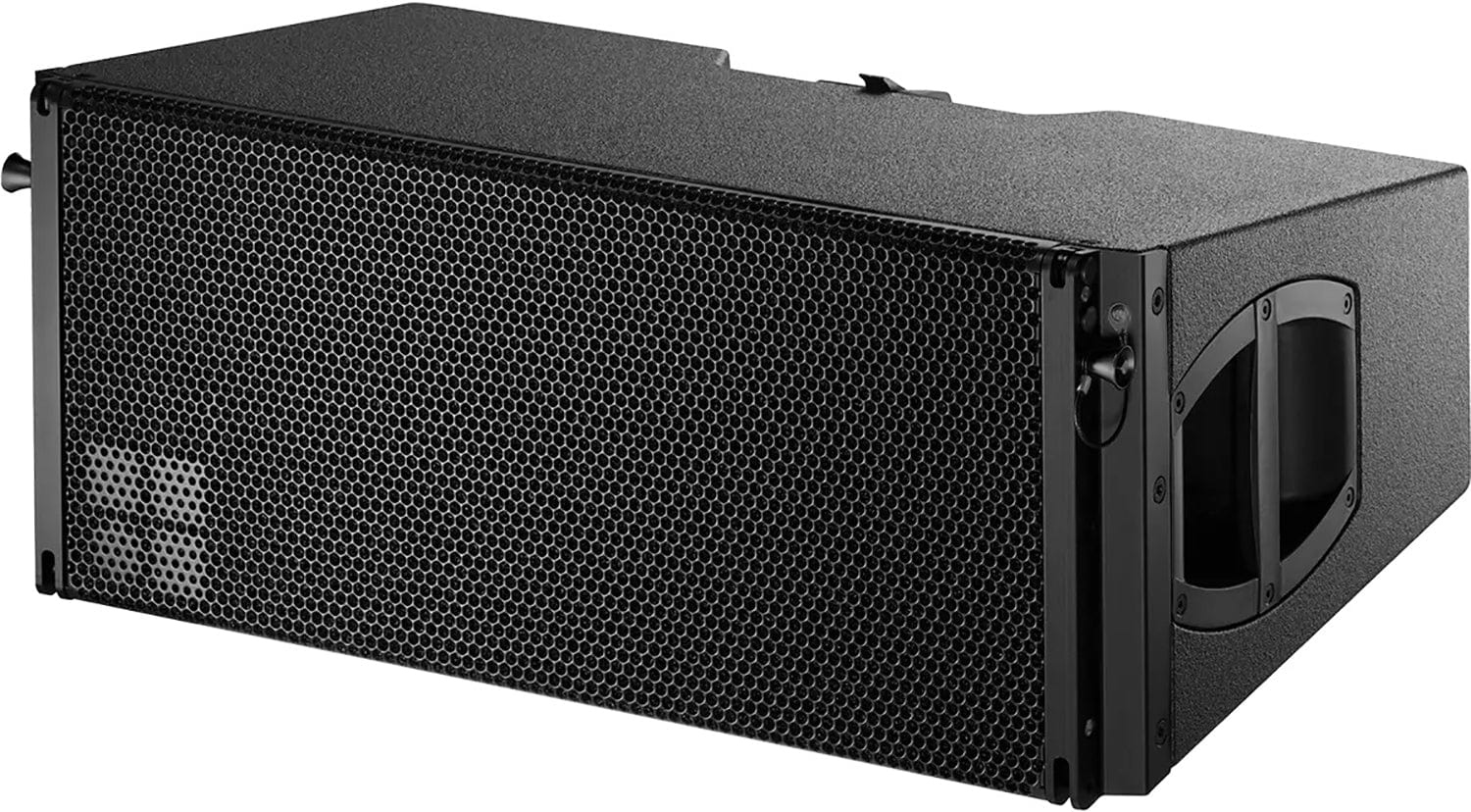

  • d&b audiotechnik Y12 line array loudspeaker, NLT4 version

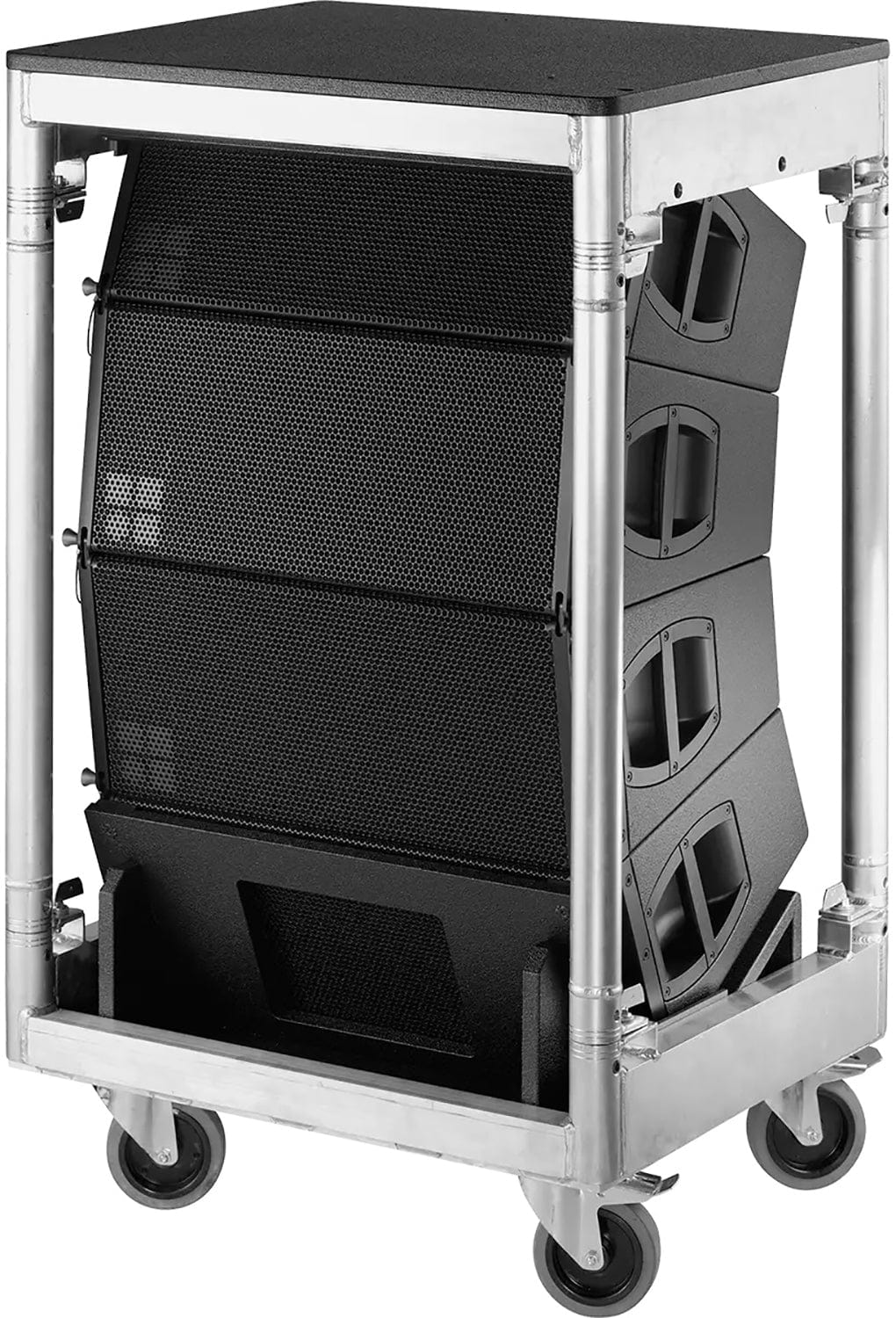

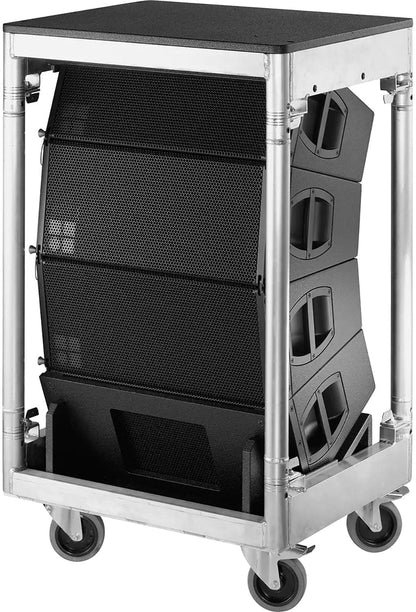

  • d&b audiotechnik Y12 line array loudspeaker, NLT4 version, view 2
  • d&b audiotechnik Y12 line array loudspeaker, NLT4 version, view 3
  • d&b audiotechnik Y12 line array loudspeaker, NLT4 version, view 4
1 4

d&b audiotechnik Y12: Compact 2 Way Line Array Loudspeaker, 120 Degree Horizontal, NLT4 F/M Connections

  • Compact 2 way line array
  • 120 degree horizontal dispersion
  • 139 dB SPLmax
  • 2 x NLT4 F/M connectors
Brand :d&b audiotechnik
Model : Y12 NLT4 F/M

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Rental and touring inventory
  • Theatres and mid size venues
  • Corporate events
  • Houses of worship

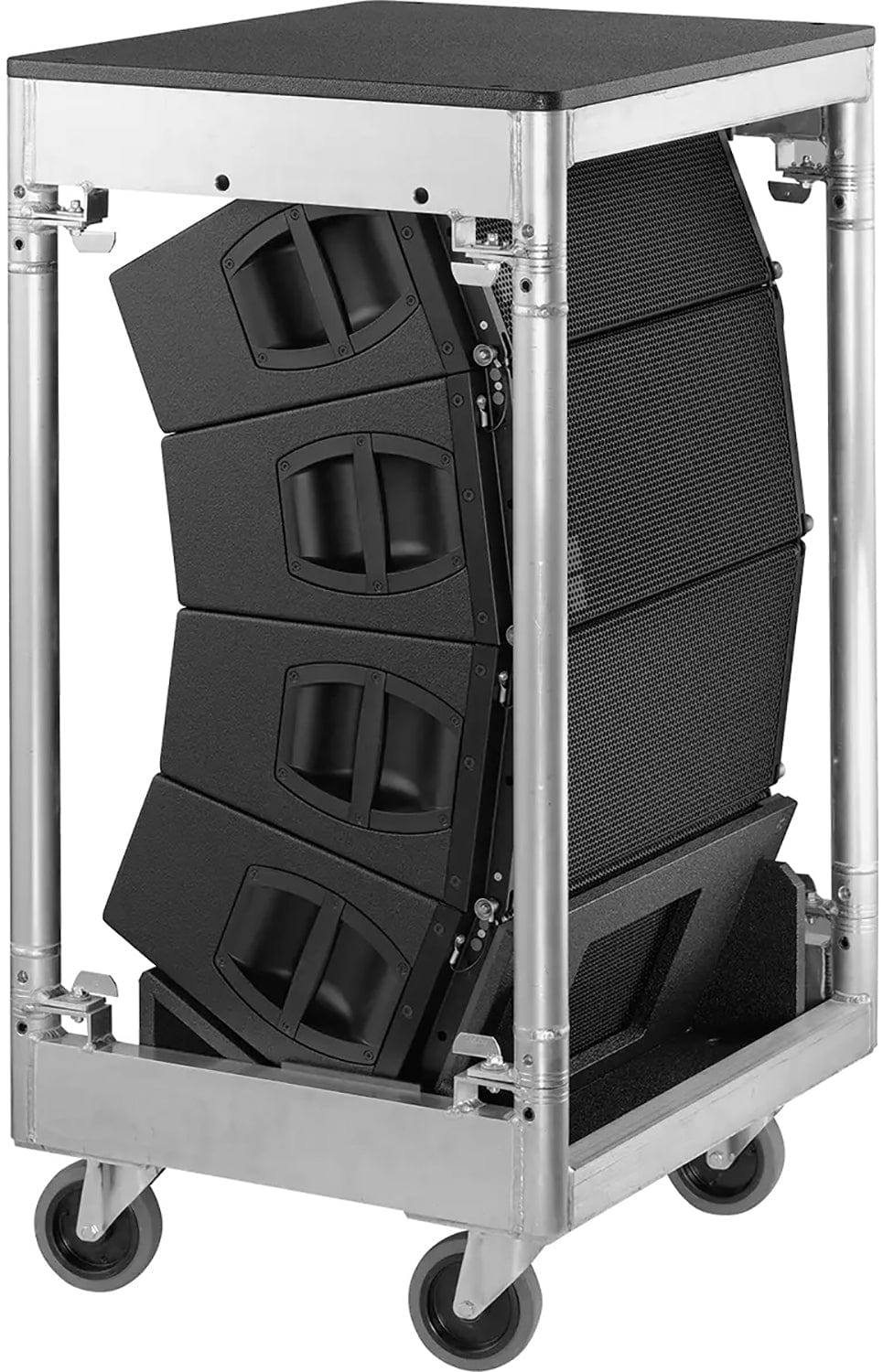

d&b audiotechnik Y12 line array loudspeaker, NLT4 version, view 2
d&b audiotechnik Y12 NLT4 F/M
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

d&b audiotechnik Y12 Compact Line Array Loudspeaker with NLT4 F/M Connections

The d&b audiotechnik Y12 is a compact 2 way passive line array loudspeaker for vertical columns, with two 8 inch drivers in a dipole arrangement and a centrally mounted 1.4 inch compression driver with a wave transformer. It offers 120 degree horizontal directivity controlled down to 500 Hz, and arrays of up to twenty four loudspeakers with splay angles from 0 to 14 degrees in 1 degree steps. It can be used in pure Y12 columns or combined with Y8 and Y-SUB cabinets, with three point rigging integrated into the marine plywood PCP finished cabinet. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the Y12 in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • Compact 2 way passive line array design
  • 120 degree horizontal dispersion controlled down to 500 Hz
  • Up to 139 dB SPLmax
  • Splay angles 0 to 14 degrees in 1 degree steps
  • Integrated three point rigging
  • 2 x NLT4 F/M connectors

Technical Specifications:

Spec Value
Model Y12 (NLT4 F/M)
Type 2 way passive line array loudspeaker
Frequency Response 54 Hz to 19 kHz (standard), 100 Hz to 19 kHz (CUT mode), -5 dB
Max SPL 134 dB with 10D, 137 dB with D20/30D, 139 dB with D40/D80/40D
Cabinets per Amplifier Channel 2
Nominal Impedance 8 ohms
Power Handling 400 W RMS / 1600 W peak (10 ms)
Dispersion 120 degrees horizontal
Splay Angle Settings 0 to 14 degrees (1 degree increments)
Connections 2 x NLT4 F/M
Dimensions (H x W x D) 257 x 630 x 375 mm
Weight 20 kg (44 lb)

Why Buy the d&b audiotechnik Y12 NLT4 F/M from Trianze Tech?

  • Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
  • System design help matching the Y12 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Pre-sales guidance for touring, live event and installed sound projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x d&b audiotechnik Y12 NLT4 F/M
  • Confirm the full package contents with Trianze Tech at time of order

Warranty

  • d&b audiotechnik manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech audio team

Sustainability

  • Weather protected PCP finish for long service
  • Two cabinets per amplifier channel saves amplifier resources

Expandability

  • Combine with Y8 and Y-SUB cabinets
  • Fly up to twenty four cabinets per array

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the Y12 NLT4 F/M

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik Y12 has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik Y12 has 120 degree horizontal directivity controlled down to 500 Hz.

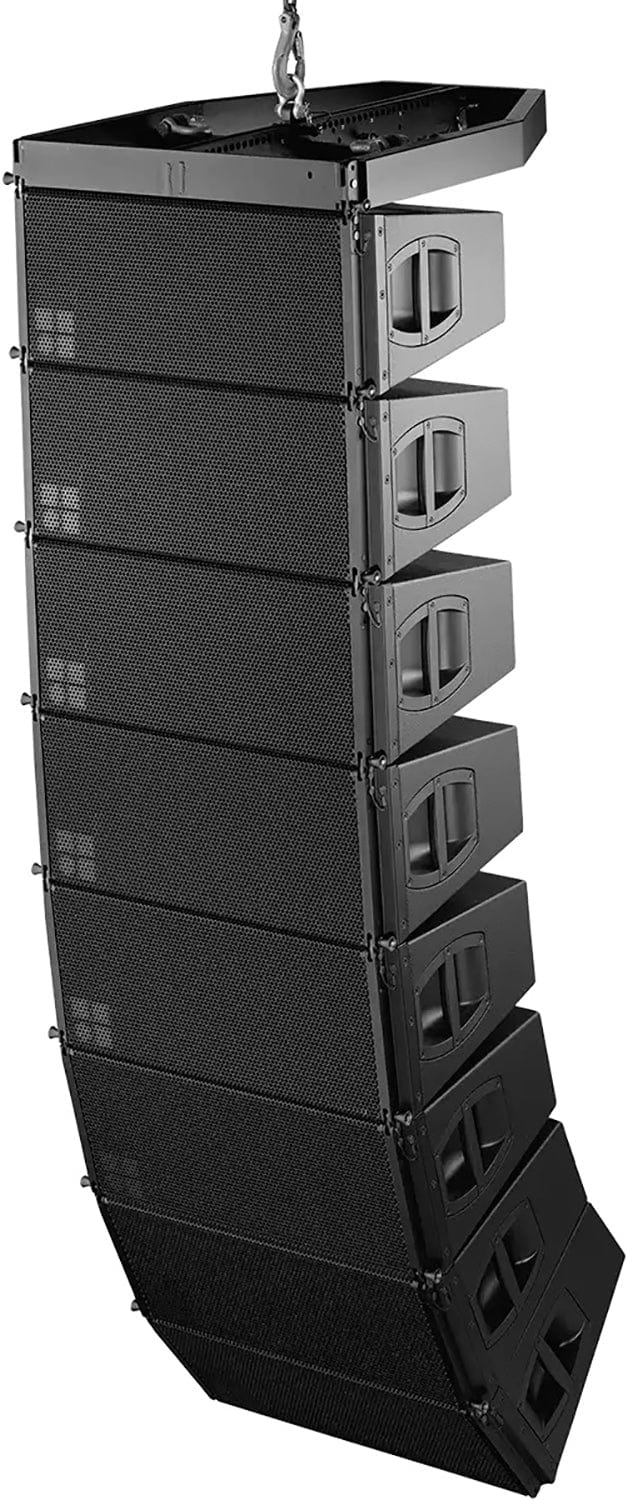

Up to twenty four d&b audiotechnik Y12 cabinets can be flown in a vertical array, with splay angles from 0 to 14 degrees in 1 degree steps.
The d&b audiotechnik Y12 covers 54 Hz to 19 kHz in standard mode and 100 Hz to 19 kHz in CUT mode (-5 dB).
The d&b audiotechnik Y12 weighs 20 kg (44 lb) and measures 257 x 630 x 375 mm (10 x 24.8 x 14.8 inches).
