d&b audiotechnik Y12: Compact 2 Way Line Array Loudspeaker, 120 Degree Horizontal, NL4 Connections
Model
:
Y12 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
d&b audiotechnik Y12 Compact Line Array Loudspeaker with NL4 Connections

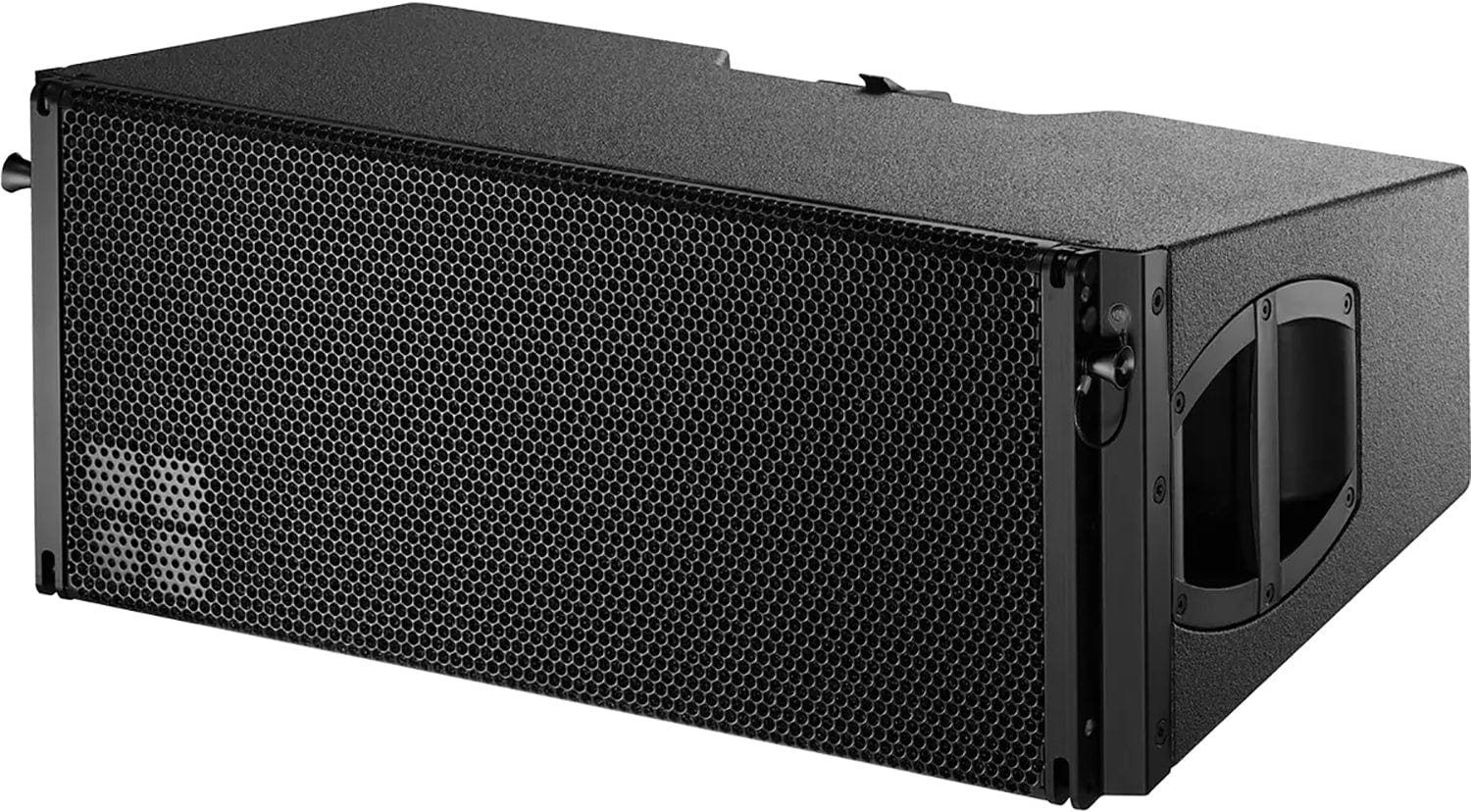

The d&b audiotechnik Y12 is a compact 2 way passive line array loudspeaker designed for vertical columns, with two 8 inch drivers in a dipole arrangement and a centrally mounted 1.4 inch compression driver with a wave transformer. It delivers 120 degree horizontal directivity controlled down to 500 Hz and can be flown in arrays of up to twenty four loudspeakers, alone or with Y8 and Y-SUB cabinets. Each side panel has a handle, with two recessed grips at the rear. This version has 2 x NL4 connectors. Trianze Tech supplies the Y12 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Compact 2 way passive line array design
- 2 x 8 inch drivers and 1.4 inch driver with wave transformer
- 120 degree horizontal dispersion
- Up to 139 dB SPLmax

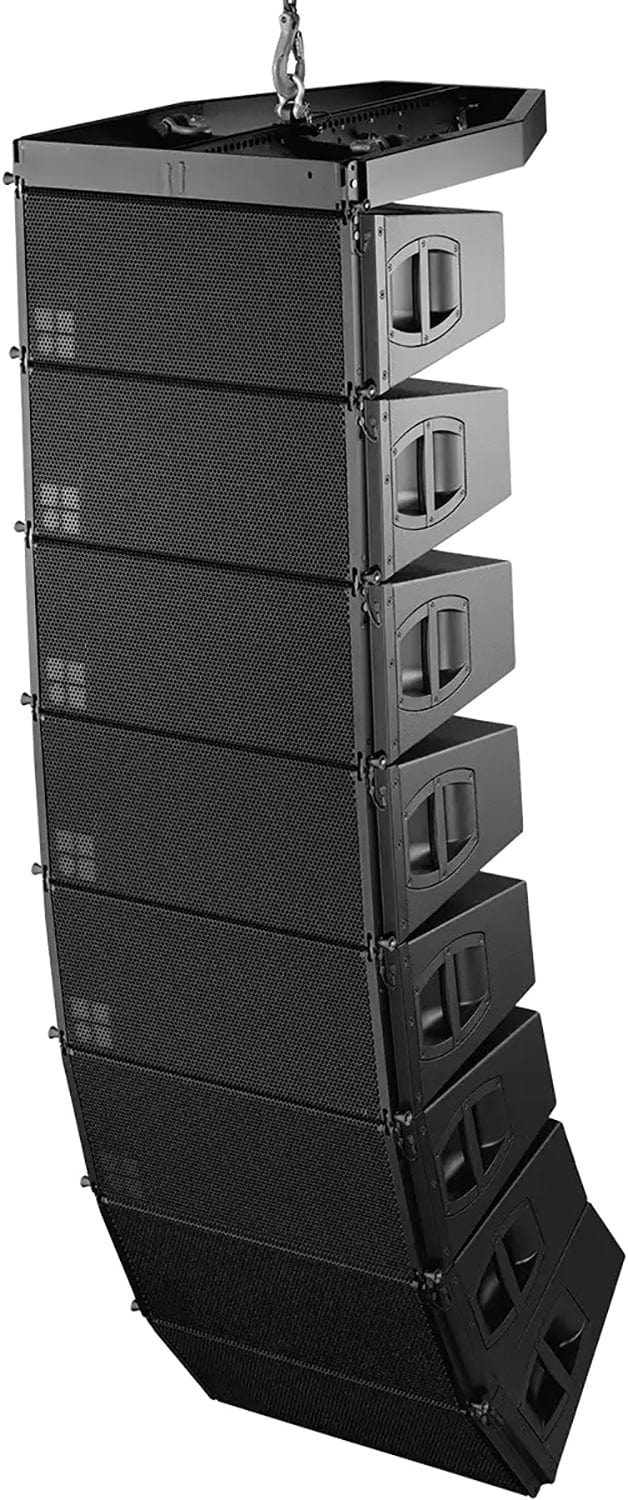

- Arrays of up to twenty four cabinets
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y12 (NL4) |
| Type | 2 way passive line array loudspeaker |
| Frequency Response | 54 Hz to 19 kHz (standard), 100 Hz to 19 kHz (CUT mode), -5 dB |
| Max SPL | 134 dB with 10D, 137 dB with D20/30D, 139 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 120 degrees horizontal |
| Splay Angle Settings | 0 to 14 degrees (1 degree increments) |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 257 x 630 x 375 mm |
| Weight | 20 kg (44 lb) |
Why Buy the d&b audiotechnik Y12 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y12 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Y12 uses two 8 inch drivers in a dipole arrangement and a centrally mounted 1.4 inch compression driver with a wave transformer.
The d&b audiotechnik Y12 reaches 134 dB with a 10D, 137 dB with a D20 or 30D, and 139 dB with a D40, D80 or 40D.
The d&b audiotechnik Y12 has 120 degree horizontal dispersion and the Y8 has 80 degrees, and both can be combined in the same column with Y-SUB cabinets.
This version of the d&b audiotechnik Y12 has 2 x NL4 connectors.
The d&b audiotechnik Y12 weighs 20 kg (44 lb) and measures 257 x 630 x 375 mm.
Trianze Tech supplies the d&b audiotechnik Y12 NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
