d&b audiotechnik Y8: Compact 2 Way Line Array Loudspeaker, 80 Degree Horizontal, NL4 Connections
Model
:
Y8 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

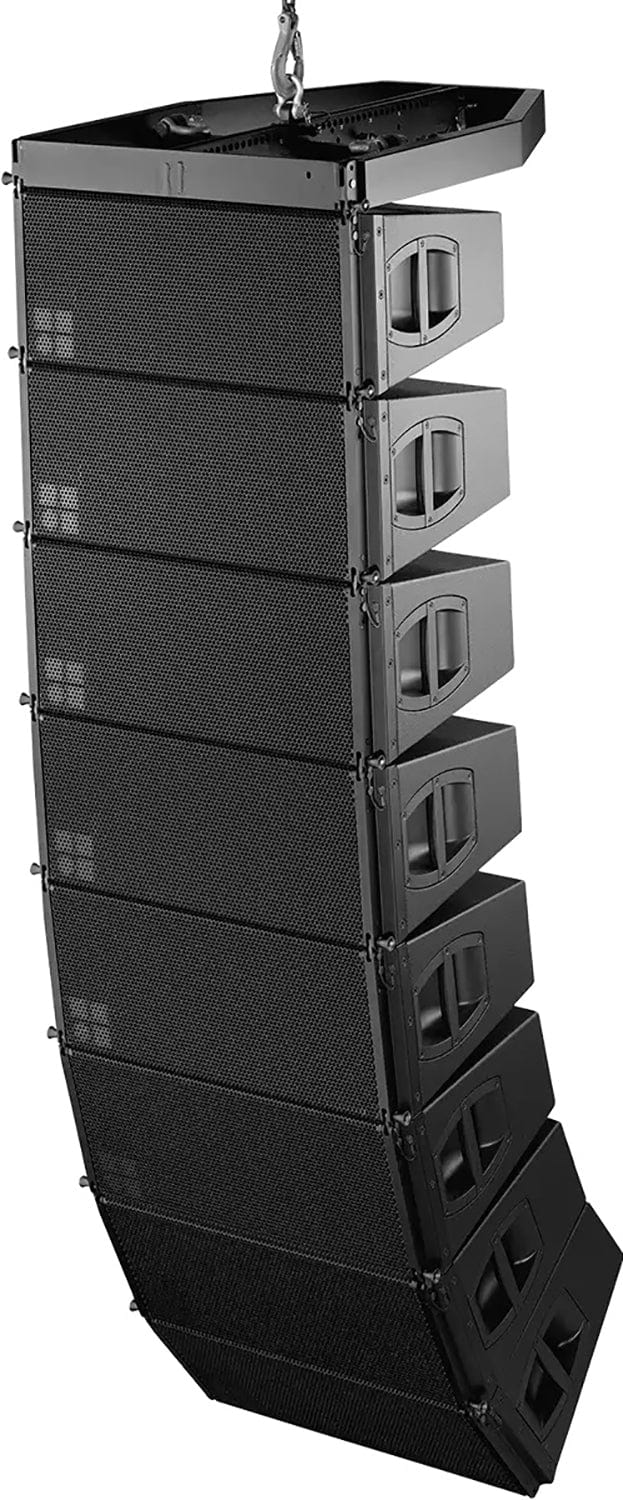

d&b audiotechnik Y8 Compact Line Array Loudspeaker with NL4 Connections

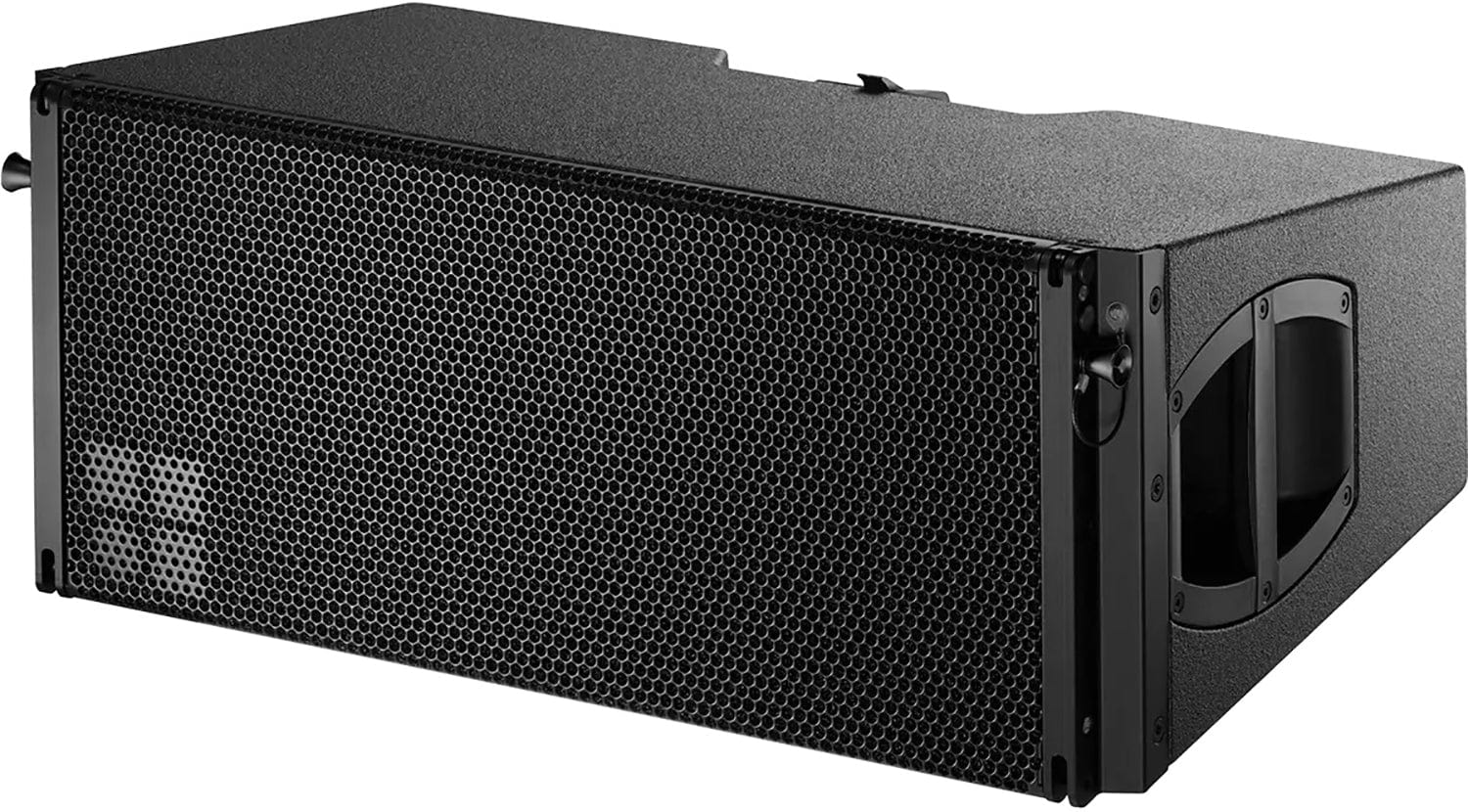

The d&b audiotechnik Y8 is a compact 2 way passive line array loudspeaker designed for vertical columns, with two 8 inch drivers in a dipole arrangement and a centrally mounted 1.4 inch compression driver with a wave transformer. It delivers 80 degree horizontal directivity controlled down to 500 Hz and can be flown in arrays of up to twenty four loudspeakers, alone or with Y12 and Y-SUB cabinets. The marine plywood cabinet has a PCP finish, a handle on each side panel and two recessed grips at the rear. This version has 2 x NL4 connectors. Trianze Tech supplies the Y8 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Compact 2 way passive line array design
- 2 x 8 inch drivers and 1.4 inch driver with wave transformer
- 80 degree horizontal dispersion
- Up to 139 dB SPLmax

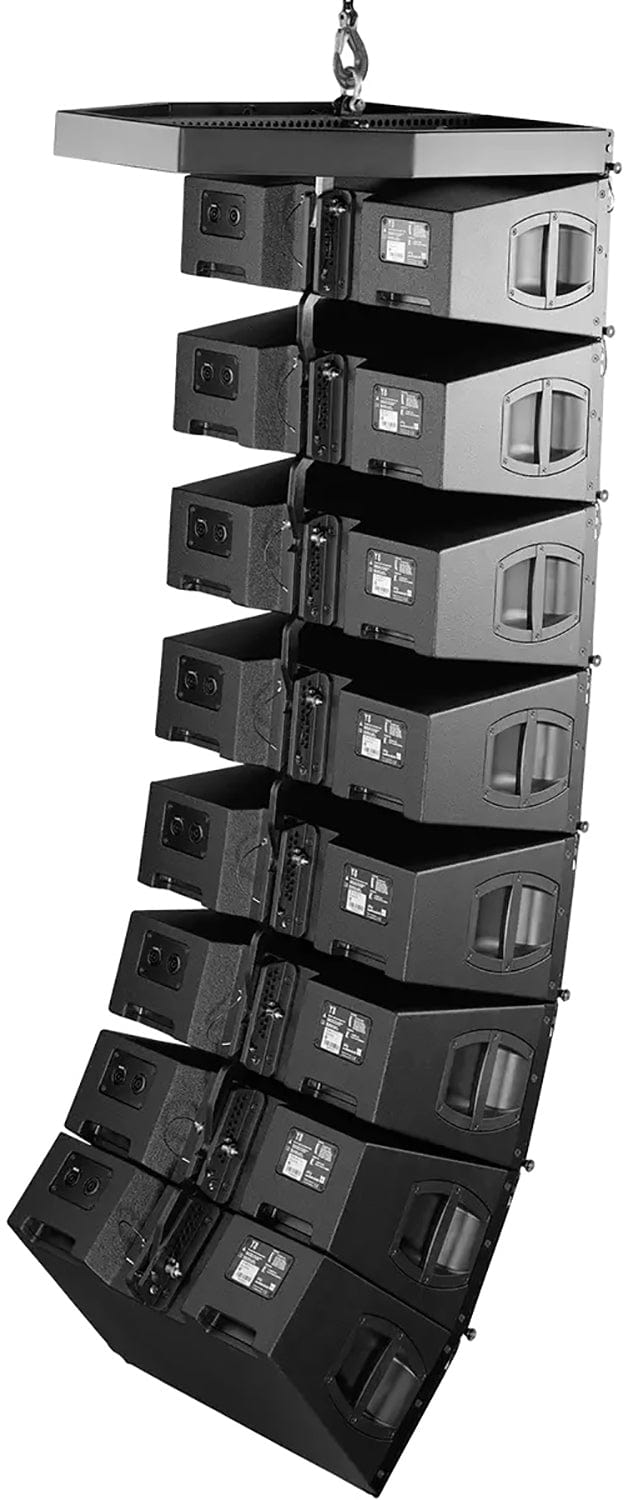

- Arrays of up to twenty four cabinets
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y8 (NL4) |
| Type | 2 way passive line array loudspeaker |
| Frequency Response | 54 Hz to 19 kHz (standard), 100 Hz to 19 kHz (CUT mode), -5 dB |
| Max SPL | 134 dB with 10D, 137 dB with D20/30D, 139 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 80 degrees horizontal |
| Splay Angle Settings | 0 to 14 degrees (1 degree increments) |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 257 x 630 x 375 mm |
| Weight | 20 kg (44 lb) |
Why Buy the d&b audiotechnik Y8 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y8 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Y8 uses two 8 inch drivers in a dipole arrangement and a centrally mounted 1.4 inch compression driver with a wave transformer.
The d&b audiotechnik Y8 reaches 134 dB with a 10D, 137 dB with a D20 or 30D, and 139 dB with a D40, D80 or 40D.
The d&b audiotechnik Y8 covers 54 Hz to 19 kHz in standard mode and 100 Hz to 19 kHz in CUT mode (-5 dB).
This version of the d&b audiotechnik Y8 has 2 x NL4 connectors.
The d&b audiotechnik Y8 weighs 20 kg (44 lb) and measures 257 x 630 x 375 mm.
Trianze Tech supplies the d&b audiotechnik Y8 NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
