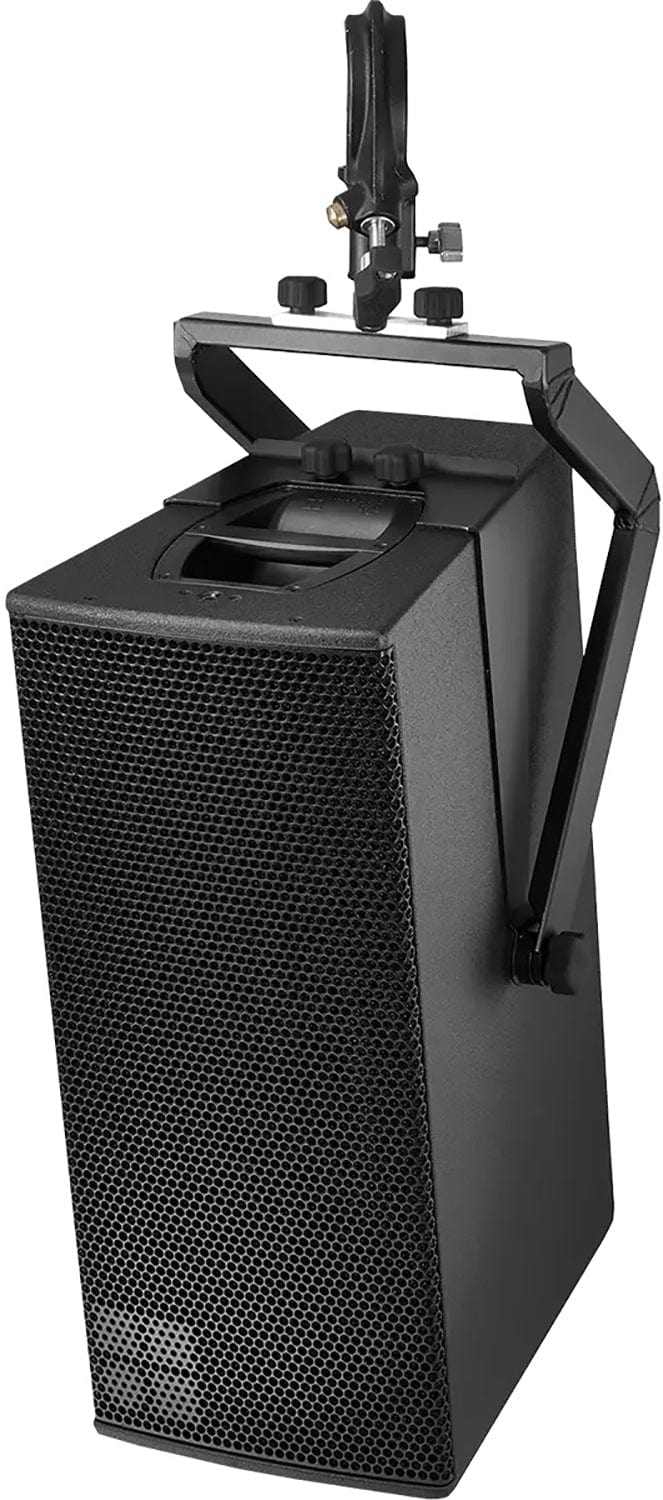

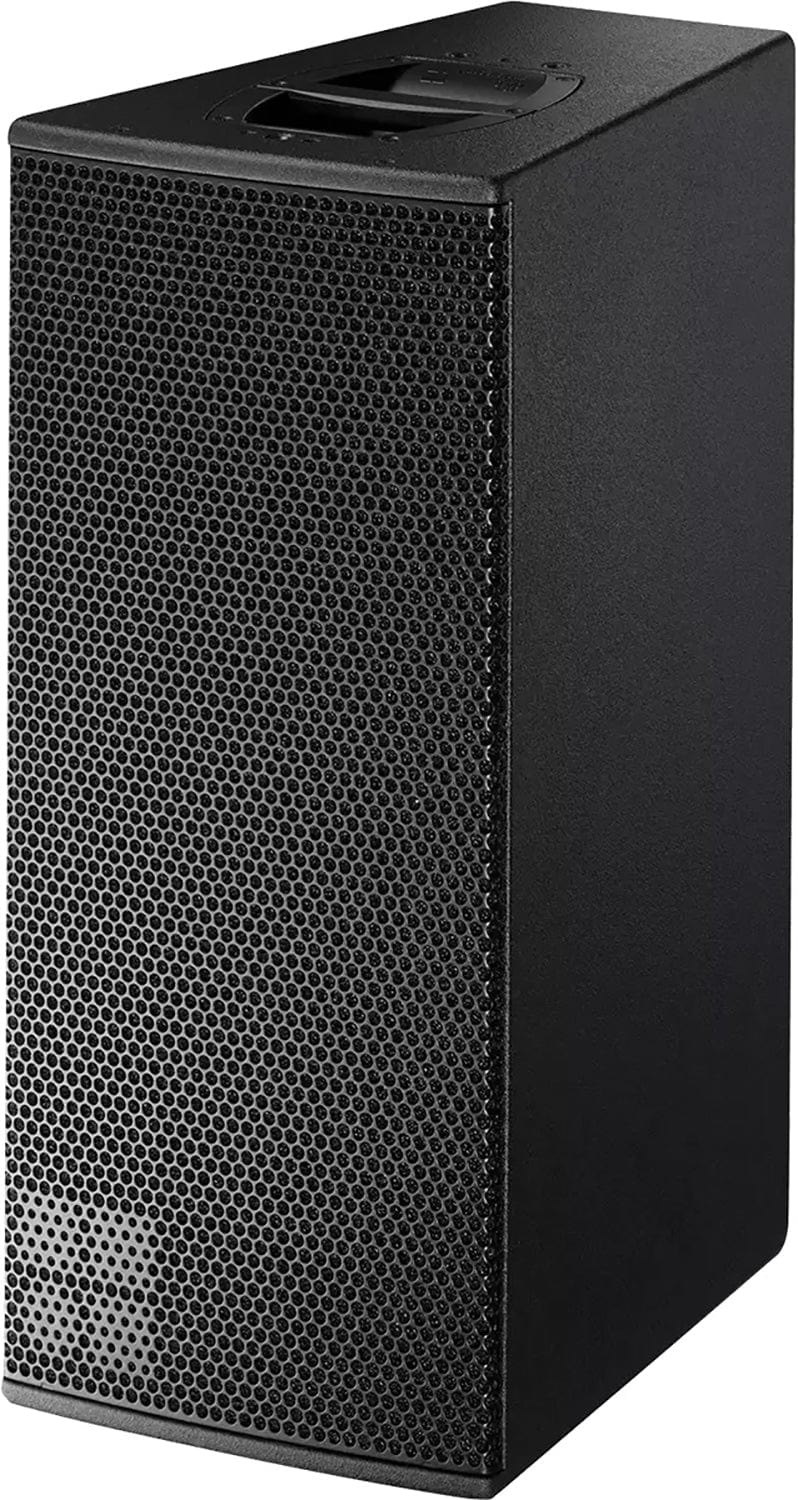

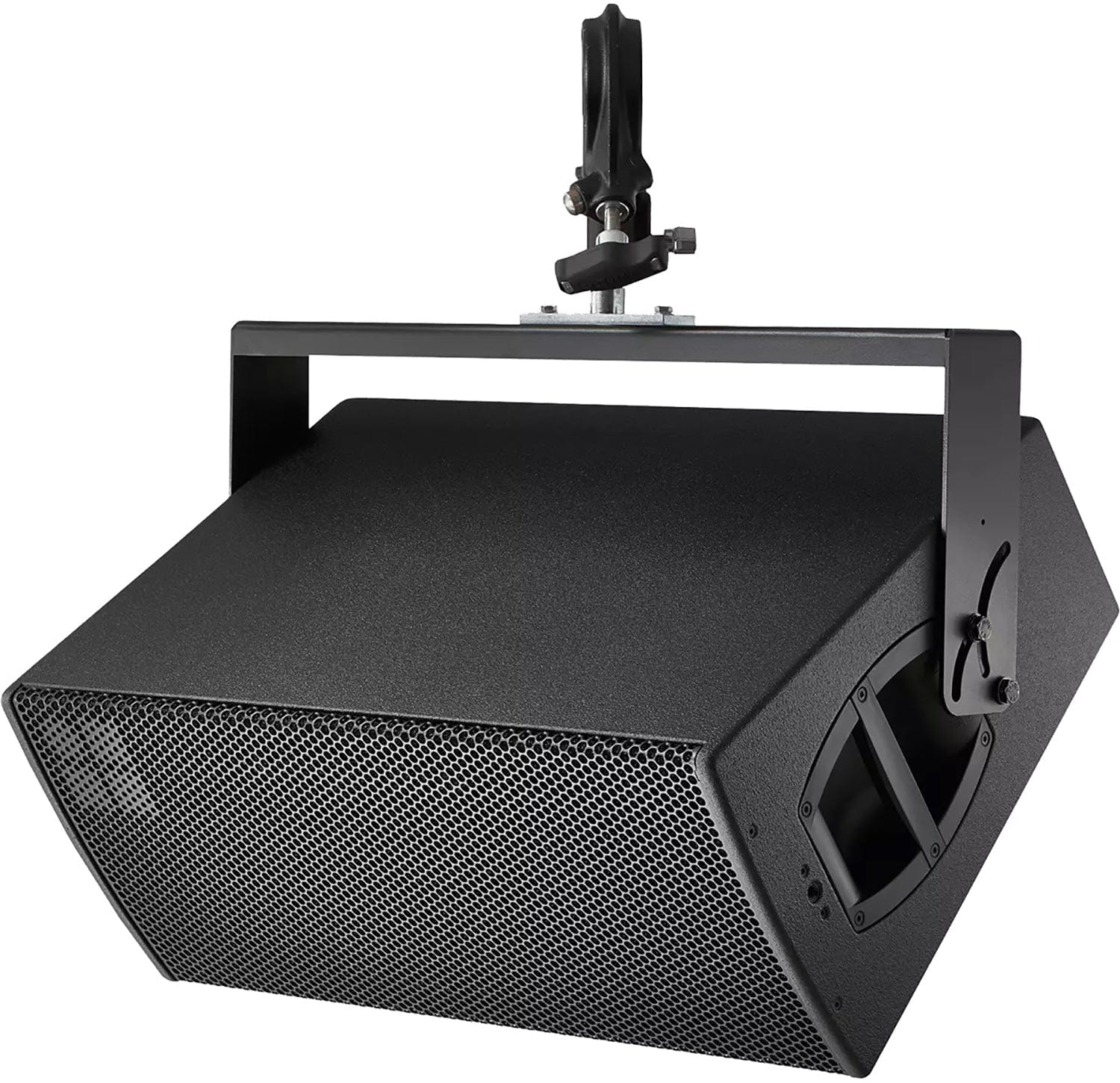

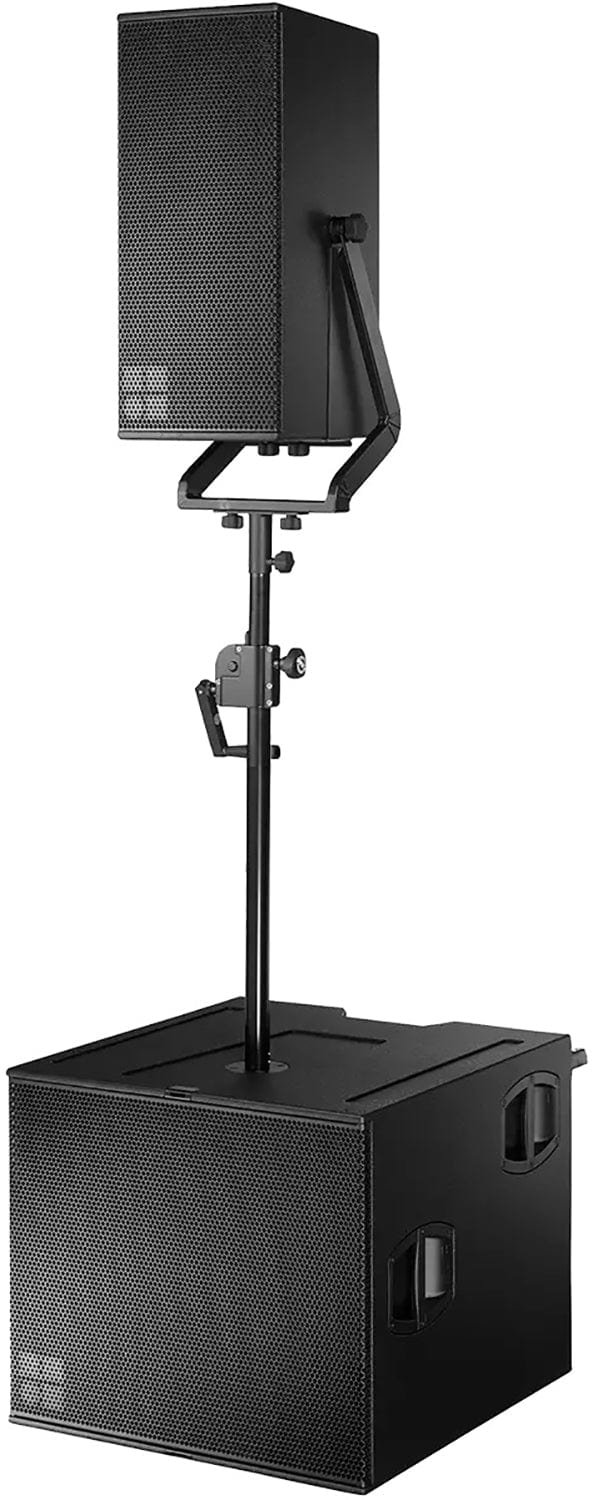

d&b audiotechnik V10P: 3 Way Passive Point Source Loudspeaker, 2 x 10 Inch, 110 x 40 Degree Horn, NLT4 F/M Connections
Model
:
V10P NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik V10P 3 Way Point Source Loudspeaker with NLT4 F/M Connections
The d&b audiotechnik V10P is a 3 way passive point source loudspeaker with two 10 inch drivers in a dipole arrangement, a horn loaded 8 inch MF driver and a 1.4 inch compression driver on a rotatable CD horn. The MF horn gives high sensitivity in the vocal range, and broadband dispersion control is maintained down to about 350 Hz. It offers 110 x 40 degree dispersion with a horn that rotates by 90 degrees. The marine plywood cabinet has a PCP finish, handles, M10 rigging inserts and three further M10 load pin sockets. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the V10P in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 3 way passive design: 2 x 10 inch LF, horn loaded 8 inch MF, 1.4 inch HF
- 110 x 40 degree rotatable CD horn
- Up to 139 dB SPLmax
- Two cabinets per amplifier channel
- M10 rigging inserts and three load pin sockets
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V10P (NLT4 F/M) |
| Type | 3 way passive point source loudspeaker |
| Frequency Response | 59 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 136 dB with D20/30D, 139 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 500 W RMS / 2000 W peak (10 ms) |
| Dispersion | 110 x 40 degrees, rotatable |
| Components | 2 x 10 inch LF, 1 x 8 inch MF, 1 x 1.4 inch compression driver, passive crossover |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 700 x 308 x 466 mm |
| Weight | 33 kg (75 lb) |
Why Buy the d&b audiotechnik V10P NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V10P NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik V10P has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
Two d&b audiotechnik V10P cabinets can be driven per amplifier channel, reaching 136 dB with a D20 or 30D and 139 dB with a D40, D80 or 40D.
The d&b audiotechnik V10P has 110 x 40 degree dispersion, while the V7P covers 75 x 40 degrees, with the same 2 x 10 inch, 8 inch and 1.4 inch driver layout.
The d&b audiotechnik V10P has M10 threaded inserts for d&b rigging hardware plus three further M10 sockets for the 8 mm load pin, for ground stacked or flown use.
The d&b audiotechnik V10P measures 700 x 308 x 466 mm (27.5 x 12 x 18.3 inches) and weighs 33 kg (75 lb).
Trianze Tech supplies the d&b audiotechnik V10P NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
