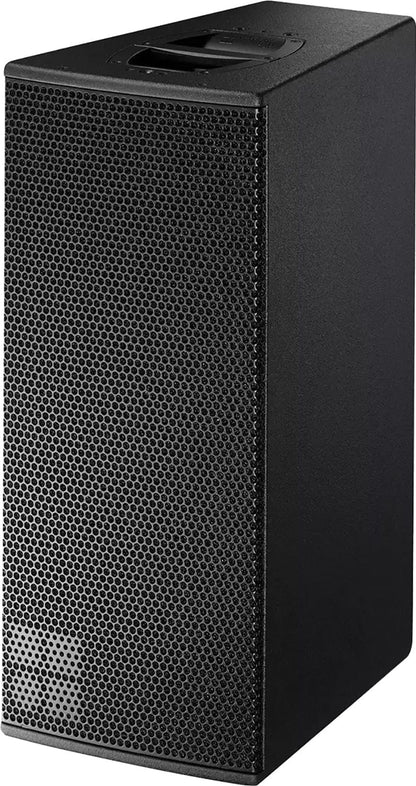

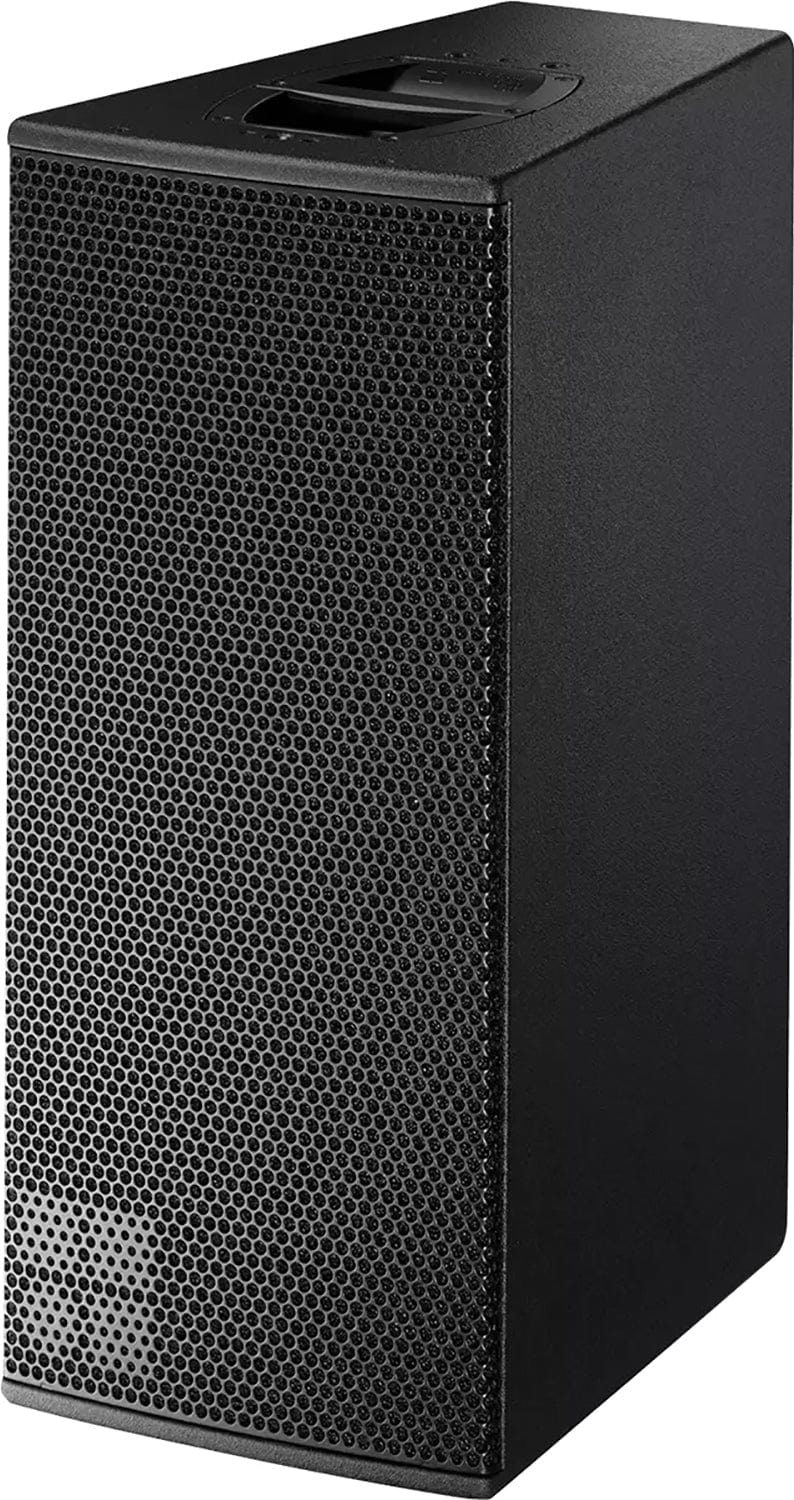

  • d&b audiotechnik V10P 3 way point source loudspeaker

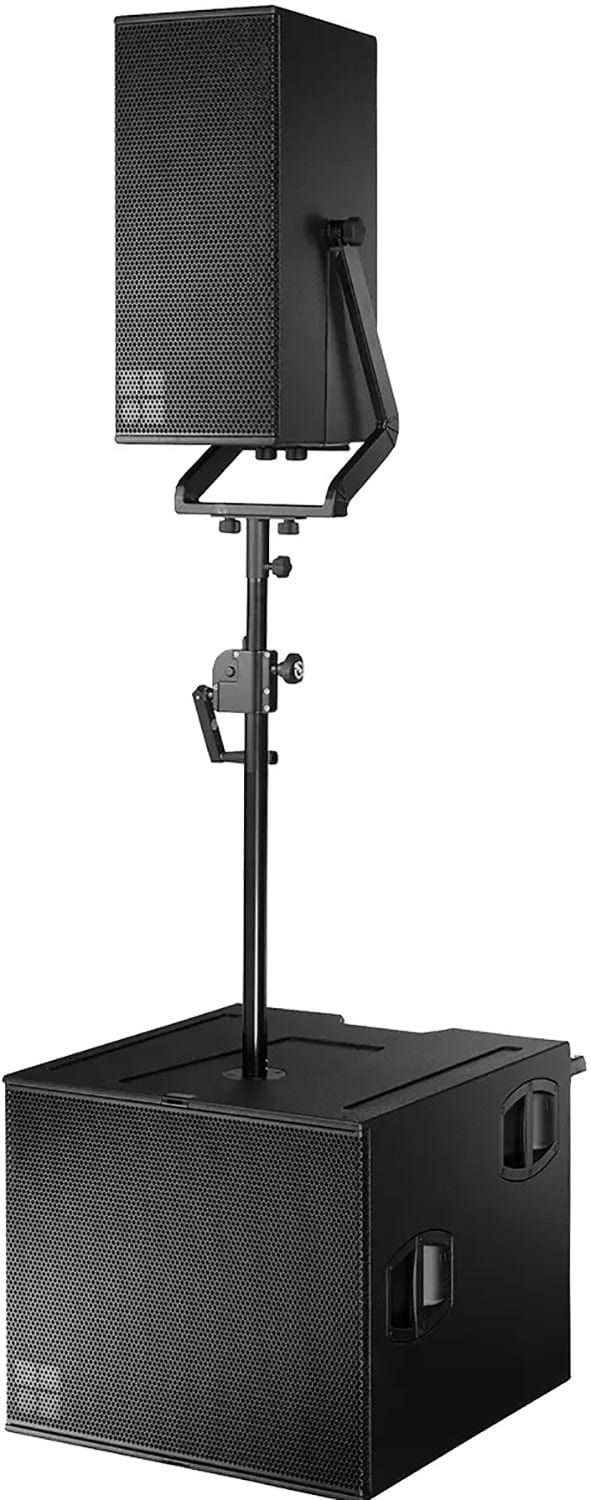

  • d&b audiotechnik V10P 3 way point source loudspeaker, view 2

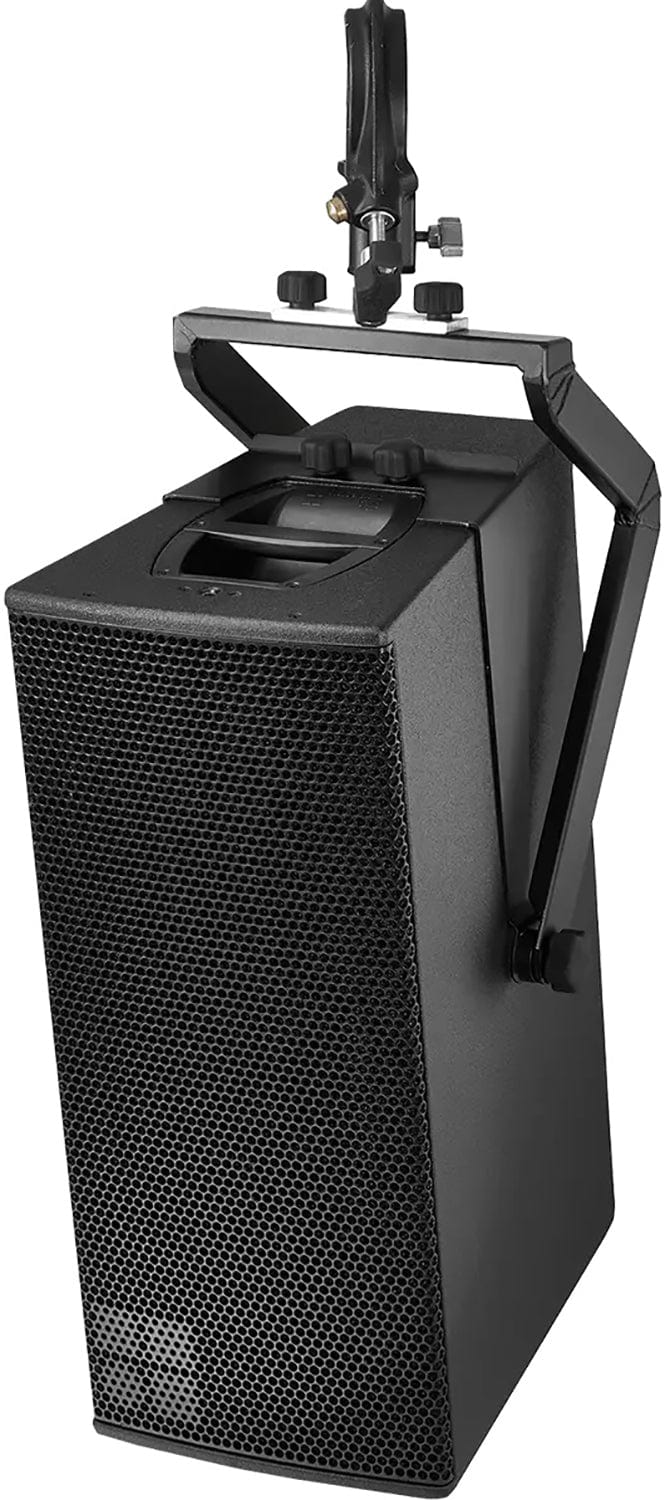

  • d&b audiotechnik V10P 3 way point source loudspeaker, view 3

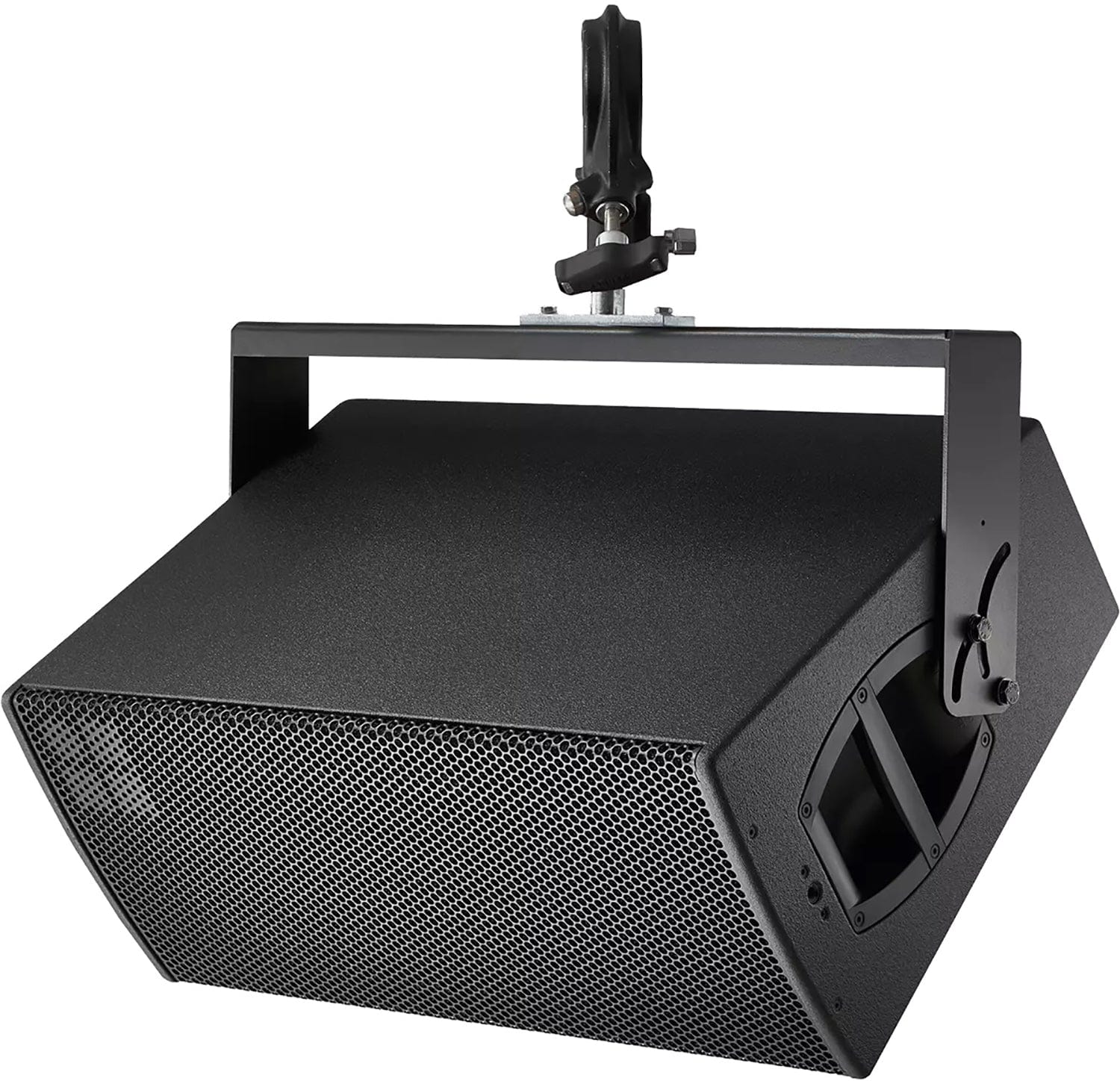

  • d&b audiotechnik V10P 3 way point source loudspeaker, view 4
1 4

d&b audiotechnik V10P: 3 Way Passive Point Source Loudspeaker, 2 x 10 Inch, 110 x 40 Degree Horn, NL4 Connection

  • 3 way passive point source loudspeaker
  • 110 x 40 degree rotatable horn
  • 139 dB SPLmax
  • NL4 connection version
Brand :d&b audiotechnik
Model : V10P NL4

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Concert and event venues
  • Theatres and auditoriums
  • Houses of worship
  • Long throw speech and vocal reinforcement
d&b audiotechnik V10P 3 way point source loudspeaker, view 2
d&b audiotechnik V10P NL4
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

d&b audiotechnik V10P 3 Way Point Source Loudspeaker with NL4 Connection

The d&b audiotechnik V10P is a 3 way passive point source loudspeaker with two 10 inch drivers in a dipole arrangement, a horn loaded 8 inch MF driver and a 1.4 inch compression driver on a rotatable CD horn. The MF horn gives high sensitivity in the vocal range, and the symmetrical layout produces a symmetrical dispersion pattern with broadband control maintained down to about 350 Hz. It offers 110 x 40 degree dispersion, and the horn rotates by 90 degrees. The marine plywood cabinet has a PCP finish, handles, M10 rigging inserts and three further M10 load pin sockets. This listing is the NL4 connection version. Trianze Tech supplies the V10P in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • 3 way passive design: 2 x 10 inch LF, horn loaded 8 inch MF, 1.4 inch HF
  • 110 x 40 degree rotatable CD horn
  • Up to 139 dB SPLmax with D80
  • Dispersion control down to about 350 Hz
  • Vi10P installation version available
  • NL4 connection version

Technical Specifications:

Spec Value
Model V10P (NL4)
Type 3 way passive point source loudspeaker
Frequency Response 59 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB
Max SPL 136 dB with 30D/D20, 139 dB with D80
Nominal Impedance 8 ohms
Power Handling 500 W RMS / 2000 W peak (10 ms)
Dispersion 110 x 40 degrees, rotatable
Components 2 x 10 inch, 1 x 8 inch, 1 x 1.4 inch compression driver, passive crossover
Connections NL4 version (d&b standard 2 x NLT4 F/M, optional 2 x NL4 or 2 x EP5)
Weight 33 kg (75 lb)

Why Buy the d&b audiotechnik V10P NL4 from Trianze Tech?

  • Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
  • System design help matching the V10P NL4 with compatible d&b loudspeakers, amplifiers and rigging
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Pre-sales guidance for touring, live event and installed sound projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x d&b audiotechnik V10P NL4
  • Confirm the full package contents with Trianze Tech at time of order

Warranty

  • d&b audiotechnik manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech audio team

Sustainability

  • Weather protected PCP finish for long service
  • High output from a single box reduces cabinet count

Expandability

  • Combine with other V-Series elements, ground stacked or flown
  • Vi10P installation cabinet option

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the V10P NL4

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik V10P is a 3 way design with 2 x 10 inch LF drivers, a horn loaded 8 inch MF driver and a 1.4 inch exit compression driver on a rotatable CD horn.
The d&b audiotechnik V10P reaches 136 dB with a 30D or D20 and 139 dB with a D80, at 1 m in free field.
The d&b audiotechnik V10P has 110 x 40 degree dispersion with broadband control down to about 350 Hz, and the horn rotates by 90 degrees for horizontal use.
This listing is the NL4 connection version of the d&b audiotechnik V10P. The d&b standard is 2 x NLT4 F/M, with 2 x NL4 or 2 x EP5 as options.
The d&b audiotechnik V10P weighs 33 kg (75 lb) and has a marine plywood cabinet with a PCP finish and a pair of handles.
Trianze Tech supplies the d&b audiotechnik V10P NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
