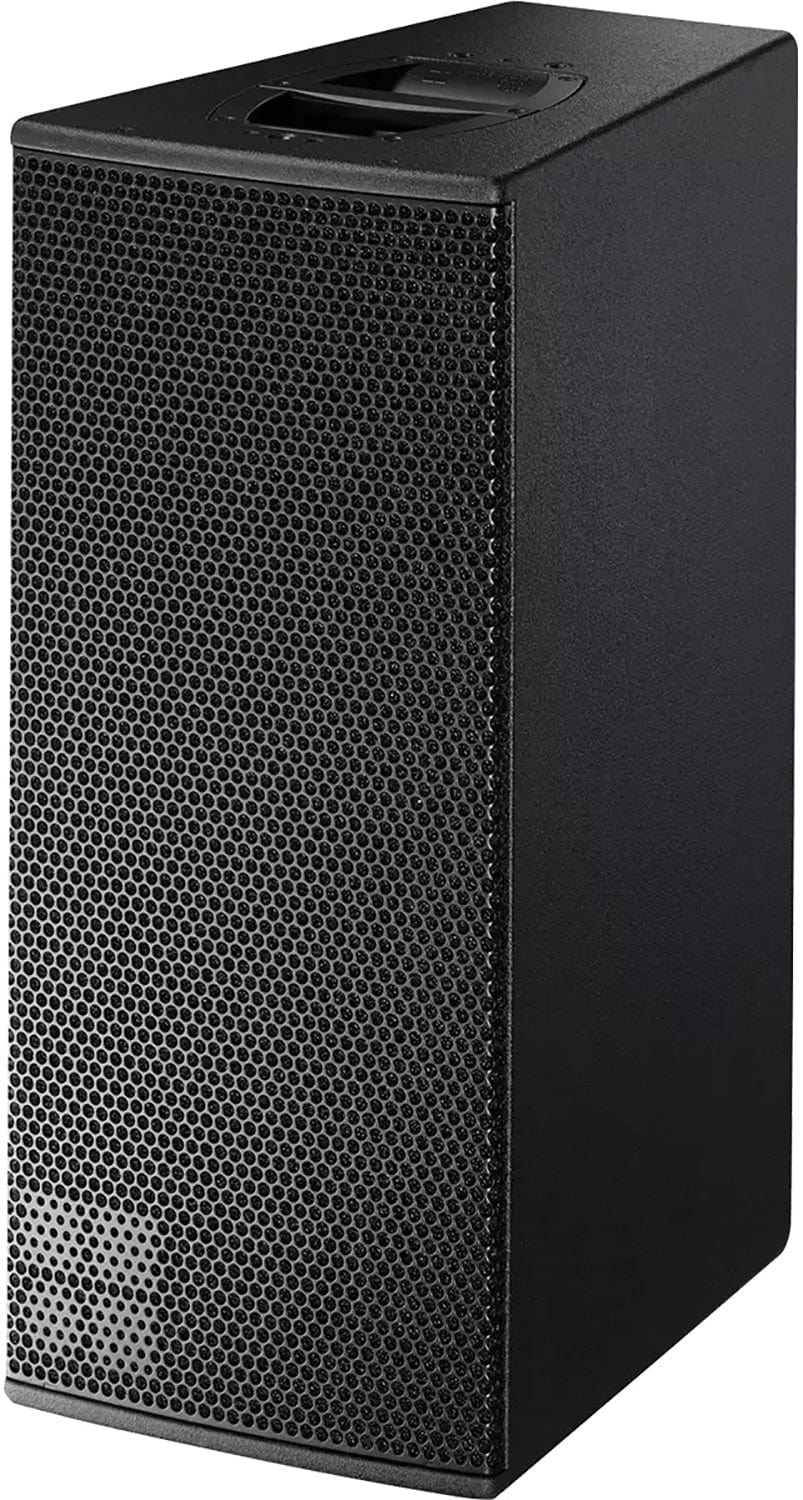

d&b audiotechnik V7P: 3 Way Passive Point Source Loudspeaker, 2 x 10 Inch, 75 x 40 Degree Horn, NLT4 F/M Connections
Model
:
V7P NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik V7P 3 Way Point Source Loudspeaker with NLT4 F/M Connections

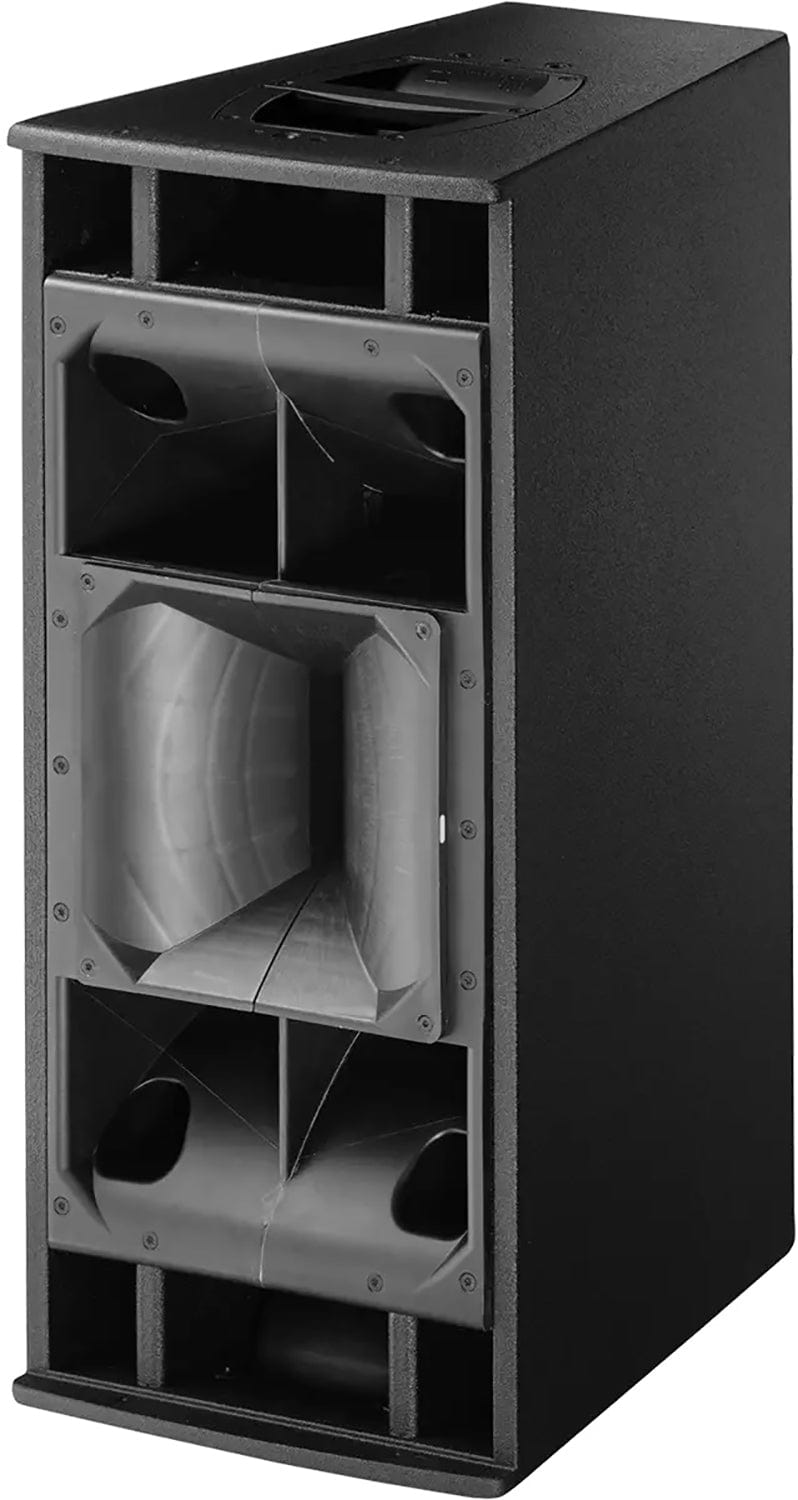

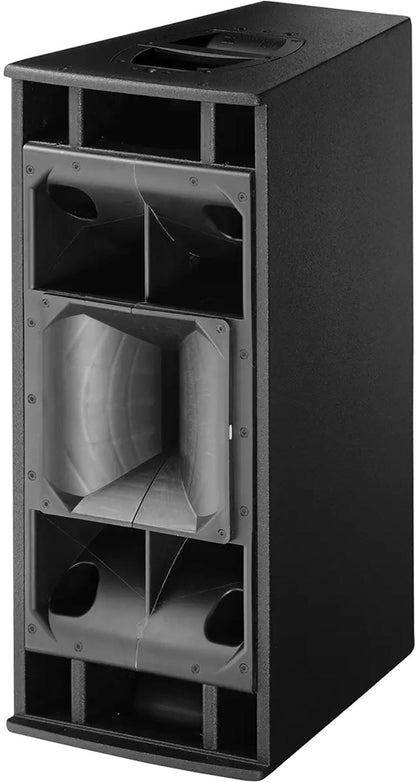

The d&b audiotechnik V7P is a 3 way passive point source loudspeaker with two 10 inch drivers in a dipole arrangement, a horn loaded 8 inch MF driver and a 1.4 inch compression driver on a rotatable CD horn. Its 75 x 40 degree dispersion suits longer throw, broadband dispersion control is maintained down to about 350 Hz, and the horn rotates by 90 degrees. The marine plywood cabinet has a PCP finish, handles, M10 rigging inserts and three further M10 load pin sockets. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the V7P in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 3 way passive design: 2 x 10 inch LF, horn loaded 8 inch MF, 1.4 inch HF
- 75 x 40 degree rotatable CD horn
- Up to 140 dB SPLmax
- Two cabinets per amplifier channel
- M10 rigging inserts and three load pin sockets
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V7P (NLT4 F/M) |
| Type | 3 way passive point source loudspeaker |
| Frequency Response | 59 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 137 dB with D20/30D, 140 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 500 W RMS / 2000 W peak (10 ms) |
| Dispersion | 75 x 40 degrees, rotatable |
| Components | 2 x 10 inch LF, 1 x 8 inch MF, 1 x 1.4 inch compression driver, passive crossover |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 700 x 308 x 466 mm |
| Weight | 33 kg (75 lb) |
Why Buy the d&b audiotechnik V7P NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V7P NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik V7P has 75 x 40 degree dispersion with broadband control down to about 350 Hz, and the horn rotates by 90 degrees for horizontal use.
The d&b audiotechnik V7P reaches 137 dB with a D20 or 30D and 140 dB with a D40, D80 or 40D.
The d&b audiotechnik V7P uses 2 x 10 inch LF drivers, a horn loaded 8 inch MF driver and a 1.4 inch exit compression driver with a passive crossover.
This version of the d&b audiotechnik V7P has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik V7P measures 700 x 308 x 466 mm (27.5 x 12 x 18.3 inches) and weighs 33 kg (75 lb).
