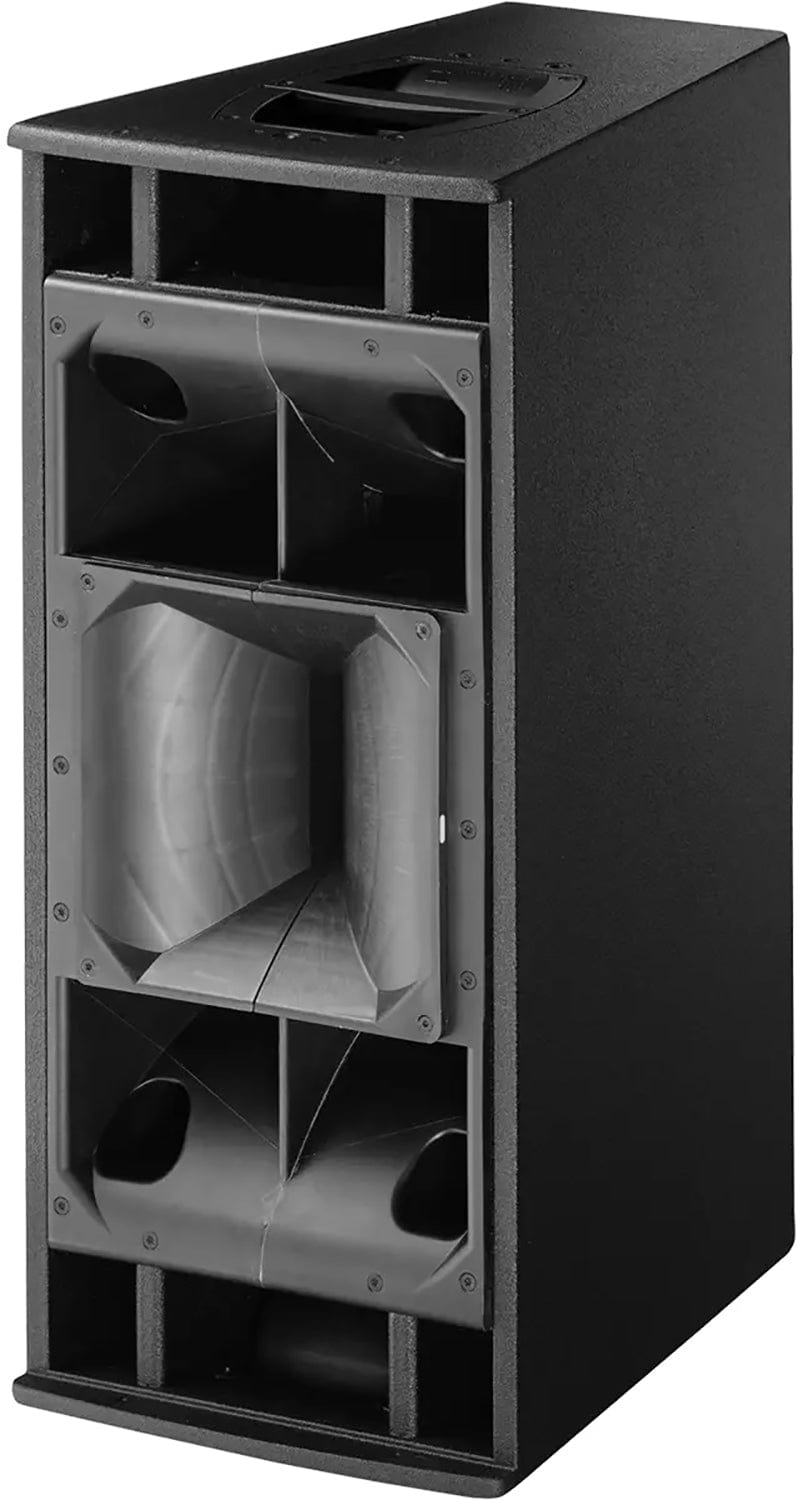

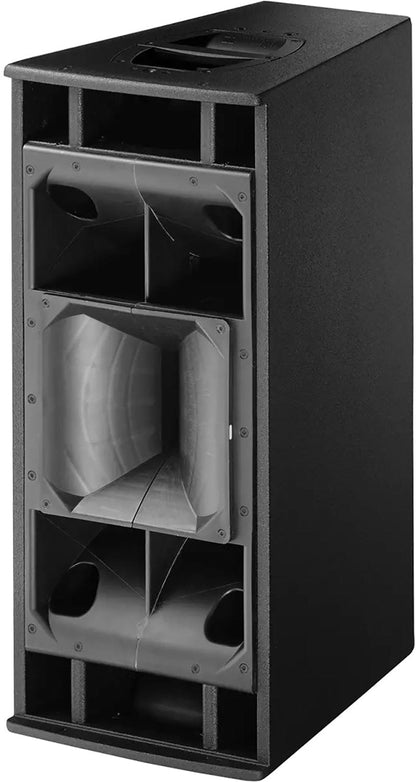

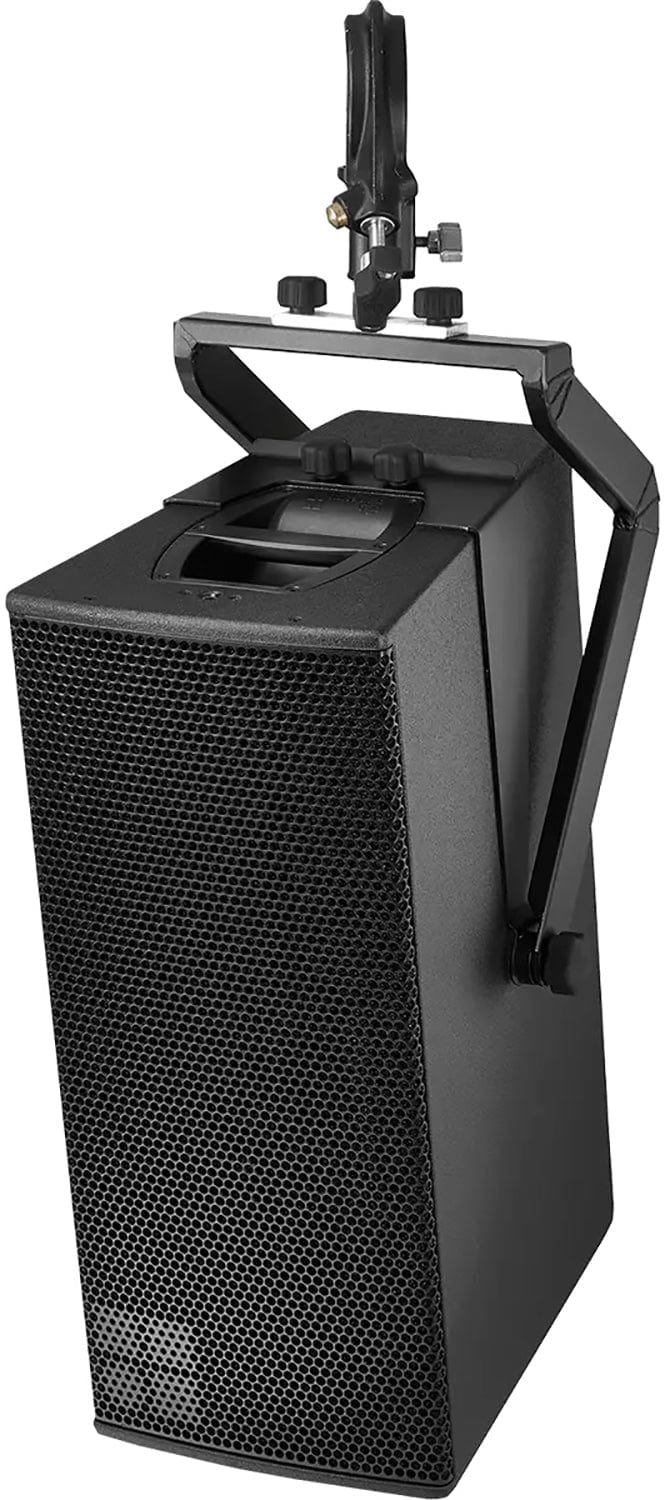

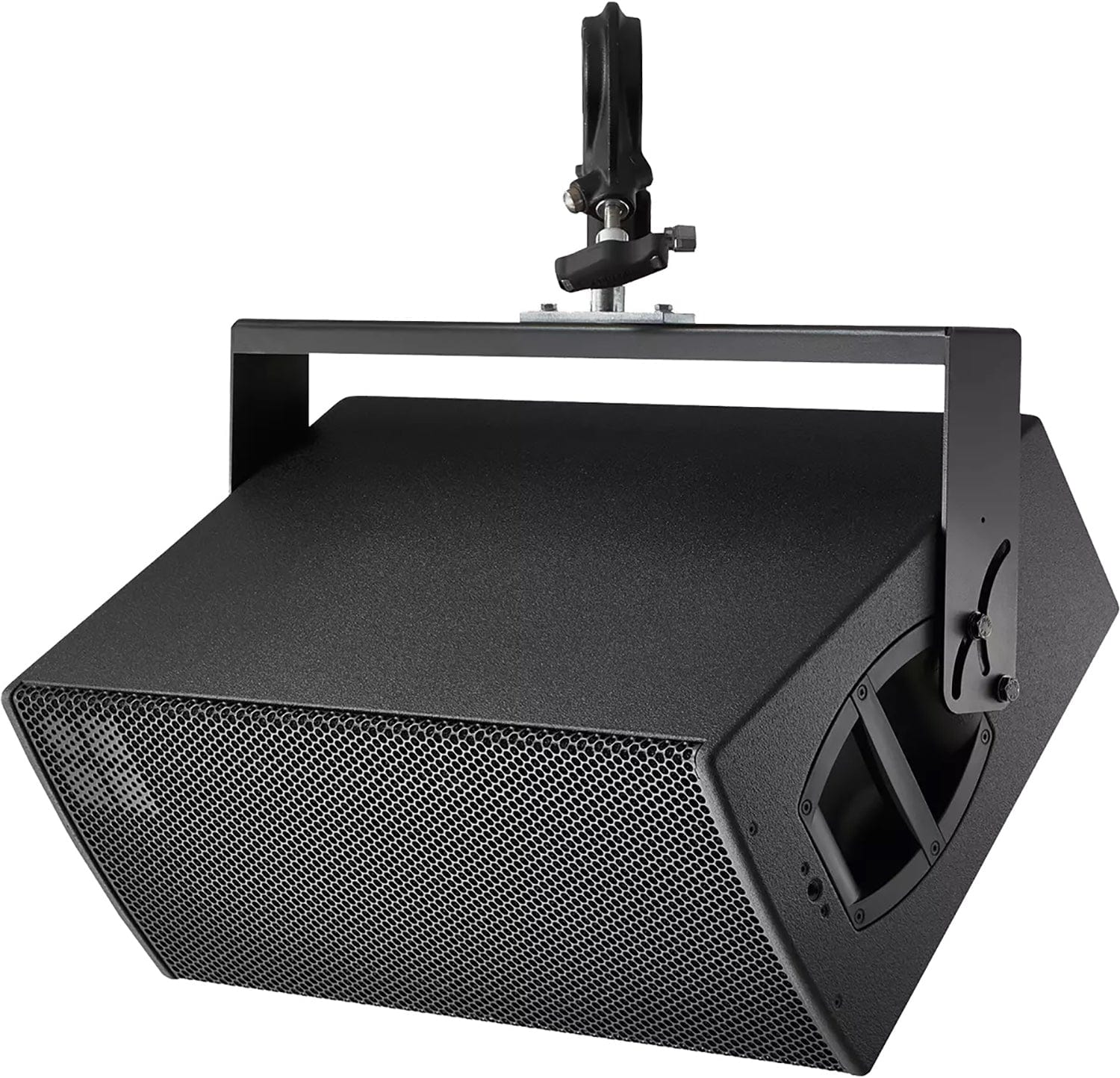

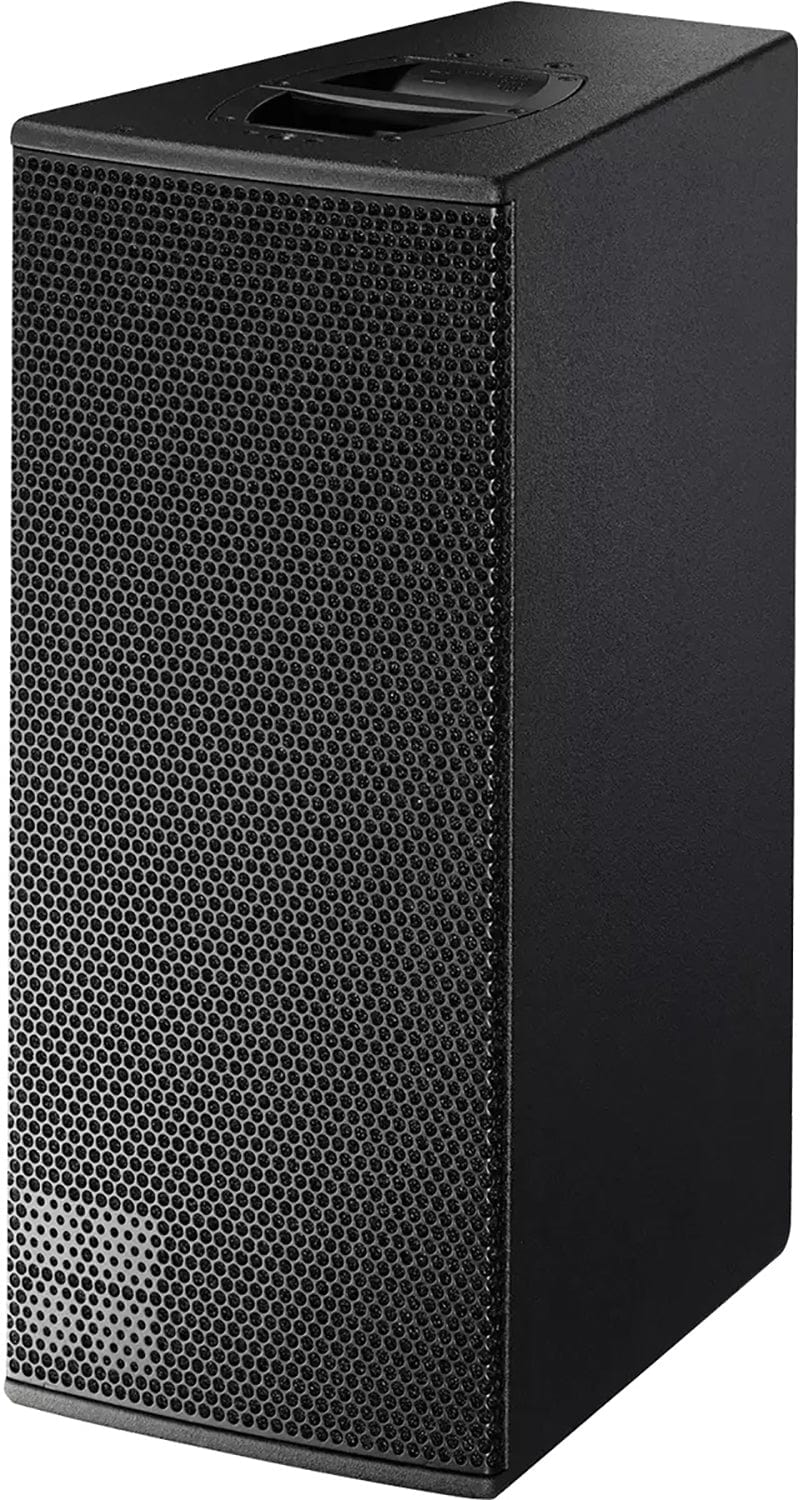

d&b audiotechnik V7P: 3 Way Passive Point Source Loudspeaker, 2 x 10 Inch, 75 x 40 Degree Horn, NL4 Connections
Model
:
V7P NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik V7P 3 Way Point Source Loudspeaker with NL4 Connections

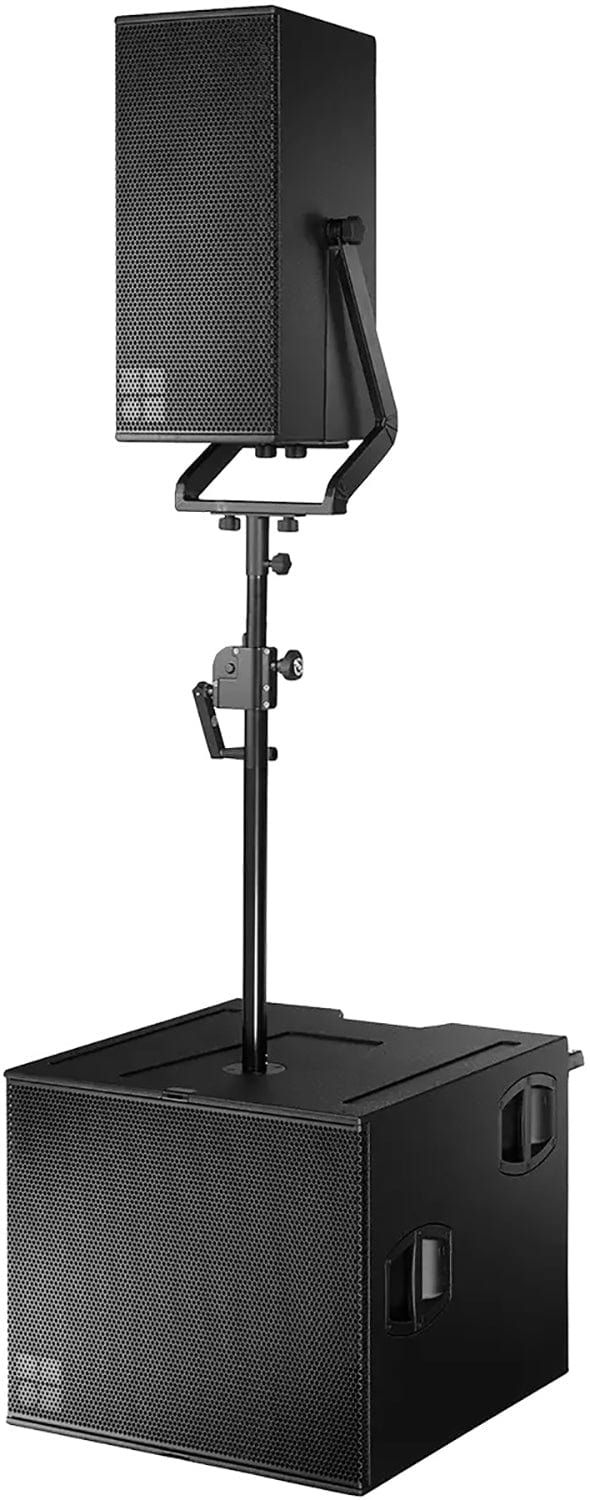

The d&b audiotechnik V7P is a 3 way passive point source loudspeaker with two 10 inch drivers in a dipole arrangement, a horn loaded 8 inch MF driver with high sensitivity in the vocal range, and a 1.4 inch compression driver on a rotatable CD horn. All components are arranged symmetrically for a symmetrical dispersion pattern of 75 x 40 degrees, with broadband control down to about 350 Hz. It works as a stand alone full range system or with other V-Series elements, ground stacked or flown. This version has 2 x NL4 M connectors. Trianze Tech supplies the V7P in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 3 way passive design with horn loaded 8 inch MF driver
- 75 x 40 degree rotatable CD horn
- Up to 140 dB SPLmax
- Symmetrical driver layout for a symmetrical pattern
- Marine plywood cabinet with PCP finish
- 2 x NL4 M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V7P (NL4) |
| Type | 3 way passive point source loudspeaker |
| Frequency Response | 59 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 137 dB with D20/30D, 140 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 500 W RMS / 2000 W peak (10 ms) |
| Dispersion | 75 x 40 degrees, rotatable |
| Components | 2 x 10 inch LF, 1 x 8 inch MF, 1 x 1.4 inch compression driver, passive crossover |
| Connections | 2 x NL4 M |
| Dimensions (H x W x D) | 700 x 308 x 466 mm |
| Weight | 33 kg (75 lb) |
Why Buy the d&b audiotechnik V7P NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V7P NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik V7P uses a horn loaded 8 inch MF driver with a high sensitivity horn design, giving strong performance in the vocal range.
The d&b audiotechnik V7P has 75 x 40 degree dispersion with broadband control maintained down to about 350 Hz.
Two d&b audiotechnik V7P cabinets can be driven per amplifier channel, reaching 137 dB with a D20 or 30D and 140 dB with a D40, D80 or 40D.
This version of the d&b audiotechnik V7P has 2 x NL4 M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik V7P weighs 33 kg (75 lb) and measures 700 x 308 x 466 mm.
Trianze Tech supplies the d&b audiotechnik V7P NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
