d&b audiotechnik Y10P: 2 Way Passive Point Source Loudspeaker, 110 x 40 Degree Horn, NLT4 F/M Connections
Model
:
Y10P NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support

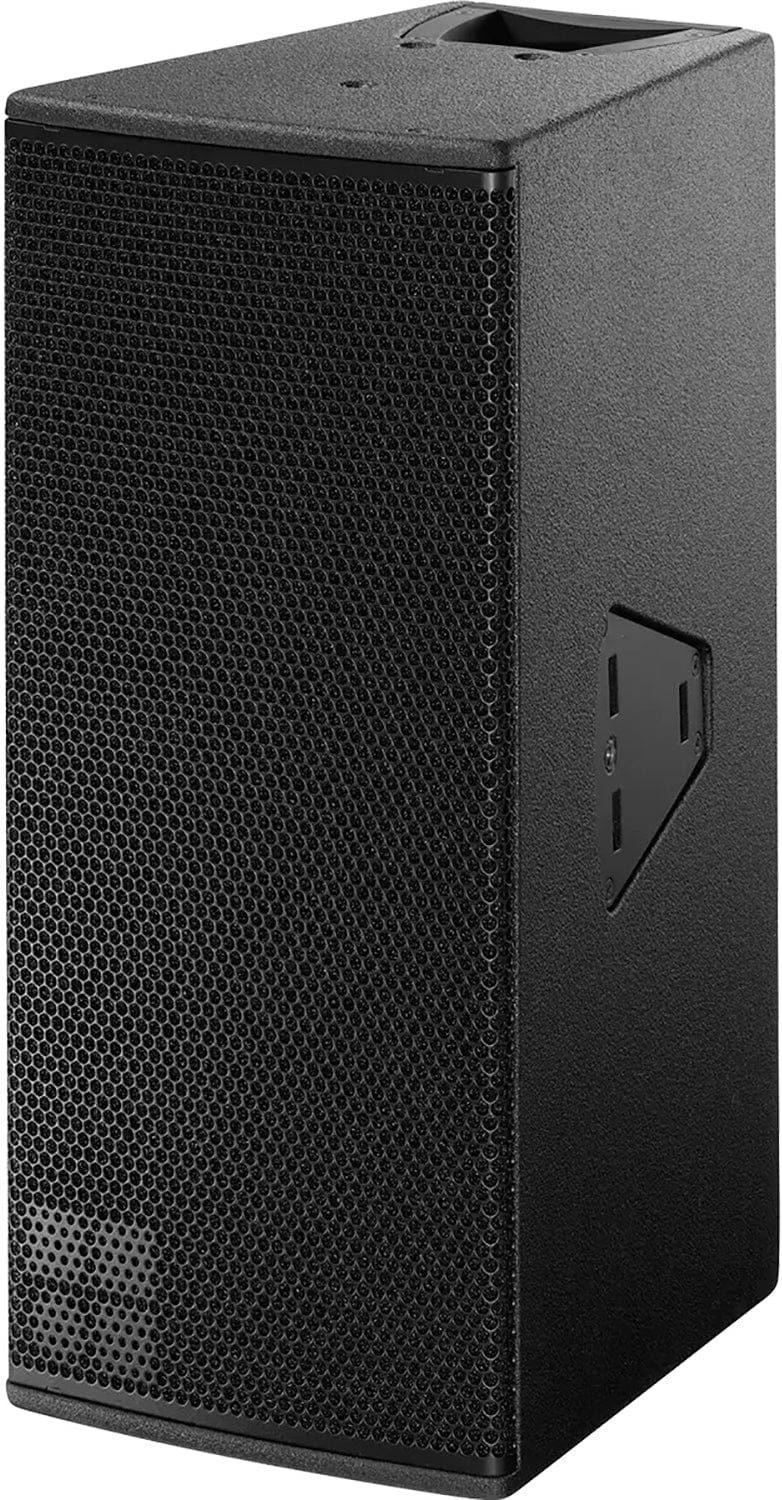

d&b audiotechnik Y10P Point Source Loudspeaker with NLT4 F/M Connections
The d&b audiotechnik Y10P is a compact 2 way passive point source loudspeaker with two 8 inch drivers in a dipole arrangement and a 1.4 inch compression driver on a rotatable CD horn, giving 110 degree horizontal directivity controlled down to 500 Hz with 40 degree vertical dispersion. The marine plywood cabinet has a PCP finish, a pair of handles, M10 inserts for d&b rigging and two further M10 sockets for the 8 mm load pin. This version is fitted with 2 x NLT4 F/M connectors. Trianze Tech supplies the Y10P in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 8 inch neodymium drivers in dipole arrangement
- 1.4 inch compression driver on rotatable CD horn
- 110 x 40 degree dispersion
- Up to 136 dB SPLmax
- M10 rigging inserts plus two 8 mm load pin sockets
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y10P (NLT4 F/M) |
| Type | 2 way passive point source loudspeaker |
| Frequency Response | 59 Hz to 18 kHz (standard), 118 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 131 dB with 10D, 134 dB with D20/30D, 136 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 110 x 40 degrees, rotatable |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 580 x 257 x 341 mm |
| Weight | 18 kg (40 lb) |
Why Buy the d&b audiotechnik Y10P NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y10P NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik Y10P is fitted with 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik Y10P covers 59 Hz to 18 kHz in standard mode and 118 Hz to 18 kHz in CUT mode (-5 dB).
The d&b audiotechnik Y10P handles 400 W RMS and 1600 W peak (10 ms), and two cabinets run per amplifier channel.
The d&b audiotechnik Y10P has M10 threaded inserts for d&b rigging hardware plus two further M10 sockets for the 8 mm load pin, and can be ground stacked or flown.
The d&b audiotechnik Y10P weighs 18 kg (40 lb) and measures 580 x 257 x 341 mm.
Trianze Tech supplies the d&b audiotechnik Y10P NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
