d&b audiotechnik Y10P: 2 Way Passive Point Source Loudspeaker, 2 x 8 Inch, 110 x 40 Degree Horn, NL4 Connections
Model
:
Y10P NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

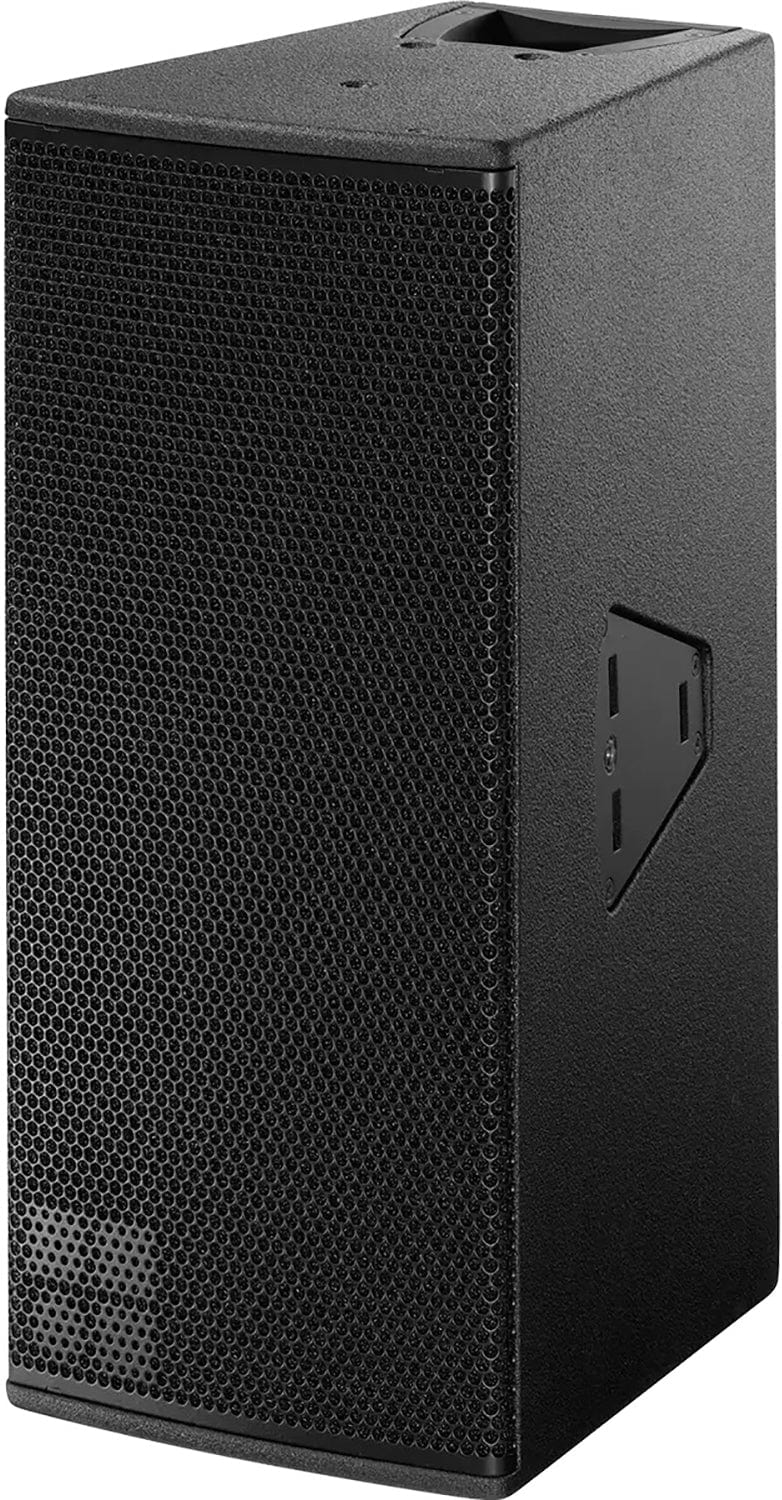

d&b audiotechnik Y10P Point Source Loudspeaker with NL4 Connections
The d&b audiotechnik Y10P is a compact 2 way passive point source loudspeaker with two 8 inch drivers in a dipole arrangement and a 1.4 inch compression driver on a rotatable CD horn. It offers 110 degree horizontal directivity controlled down to 500 Hz with 40 degree vertical dispersion, and the horn rotates by 90 degrees for horizontal orientation. The marine plywood cabinet has a PCP finish, a pair of handles, M10 inserts for d&b rigging and two further M10 sockets for the 8 mm load pin. This version has 2 x NL4 connectors. Trianze Tech supplies the Y10P in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 8 inch neodymium drivers in dipole arrangement
- 1.4 inch compression driver on rotatable CD horn
- 110 x 40 degree dispersion
- Up to 136 dB SPLmax
- M10 rigging inserts plus two 8 mm load pin sockets
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y10P (NL4) |
| Type | 2 way passive point source loudspeaker |
| Frequency Response | 59 Hz to 18 kHz (standard), 118 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 131 dB with 10D, 134 dB with D20/30D, 136 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 110 x 40 degrees, rotatable |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 580 x 257 x 341 mm |
| Weight | 18 kg (40 lb) |
Why Buy the d&b audiotechnik Y10P NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y10P NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Y10P offers 110 degree horizontal directivity controlled down to 500 Hz and 40 degree vertical dispersion, and the horn rotates by 90 degrees.
The d&b audiotechnik Y10P reaches 131 dB with a 10D, 134 dB with a D20 or 30D, and 136 dB with a D40, D80 or 40D.
The d&b audiotechnik Y10P has a wider 110 x 40 degree dispersion, while the Y7P covers 75 x 40 degrees, with the same 2 x 8 inch and 1.4 inch driver layout.
This version of the d&b audiotechnik Y10P has 2 x NL4 connectors and a nominal impedance of 8 ohms.
The d&b audiotechnik Y10P weighs 18 kg (40 lb) and measures 580 x 257 x 341 mm (22.8 x 10 x 13.4 inches).
Trianze Tech supplies the d&b audiotechnik Y10P NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
