d&b audiotechnik Y7P: 2 Way Passive Point Source Loudspeaker, 2 x 8 Inch, 75 x 40 Degree Horn, NL4 Connections
Model
:
Y7P NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

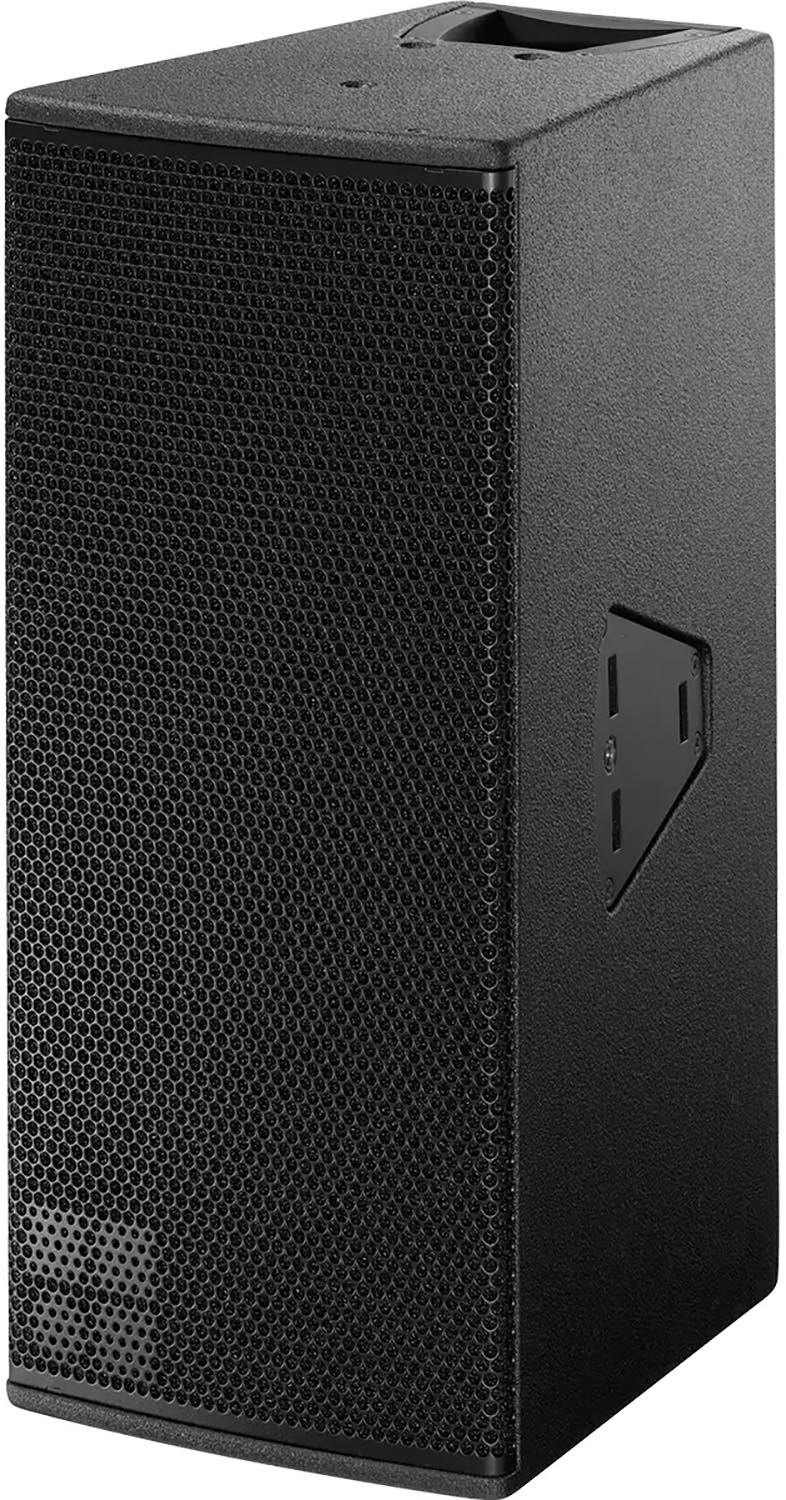

d&b audiotechnik Y7P Point Source Loudspeaker with NL4 Connections

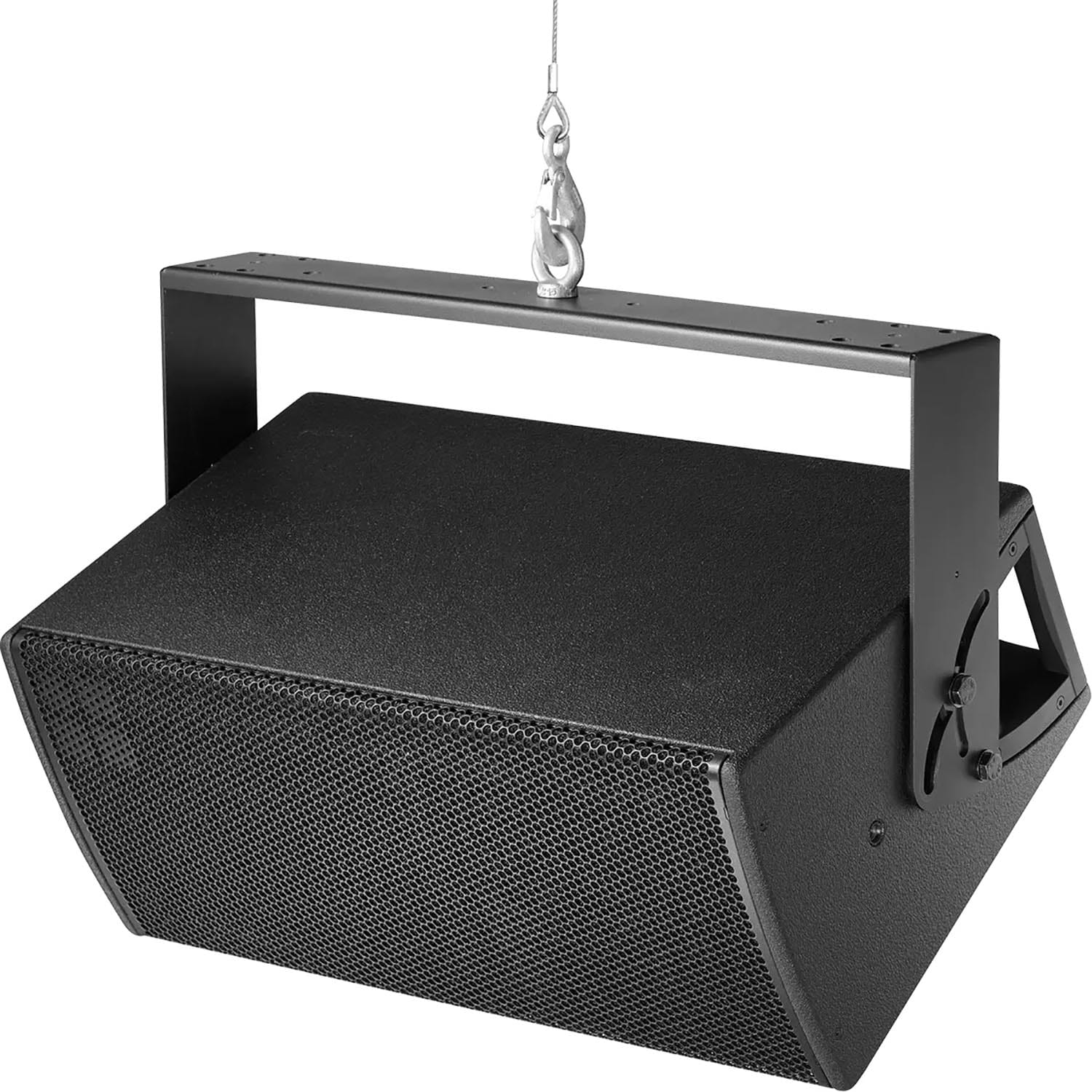

The d&b audiotechnik Y7P is a compact 2 way passive point source loudspeaker with two 8 inch drivers in a dipole arrangement and a 1.4 inch compression driver on a rotatable CD horn. It offers 75 degree horizontal directivity controlled down to 500 Hz with 40 degree vertical dispersion, and the horn rotates by 90 degrees for horizontal orientation. The marine plywood cabinet has a PCP finish, a pair of handles, M10 inserts for d&b rigging and two further M10 sockets for the 8 mm load pin. It is driven by the D20, D40, D80 or 40D. This version has 2 x NL4 connectors. Trianze Tech supplies the Y7P in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 8 inch neodymium drivers in dipole arrangement
- 1.4 inch compression driver on rotatable CD horn
- 75 x 40 degree dispersion
- Up to 137 dB SPLmax
- Driven by D20, D40, D80 or 40D amplifiers
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y7P (NL4) |
| Type | 2 way passive point source loudspeaker |
| Frequency Response | 59 Hz to 18 kHz (standard), 118 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 132 dB with 10D, 135 dB with D20/30D, 137 dB with D40/D80/40D (1 m, free field) |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 75 x 40 degrees, rotatable |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 580 x 257 x 341 mm |
| Weight | 18 kg (40 lb) |
Why Buy the d&b audiotechnik Y7P NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y7P NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Y7P offers 75 degree horizontal directivity controlled down to 500 Hz and 40 degree vertical dispersion, and the horn rotates by 90 degrees.
The d&b audiotechnik Y7P is driven by the D20, D40 and D80 mobile amplifiers or the 40D installation amplifier, with two cabinets per amplifier channel.
The d&b audiotechnik Y7P reaches 132 dB with a 10D, 135 dB with a D20 or 30D, and 137 dB with a D40, D80 or 40D, at 1 m in free field.
This version of the d&b audiotechnik Y7P has 2 x NL4 connectors and a nominal impedance of 8 ohms.
The d&b audiotechnik Y7P weighs 18 kg (40 lb) and measures 580 x 257 x 341 mm (22.8 x 10 x 13.4 inches).
