d&b audiotechnik B8-SUB: 2 x 6.5 Inch Ultra Compact Passive Subwoofer with NL4 Connections
Model
:
B8-SUB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

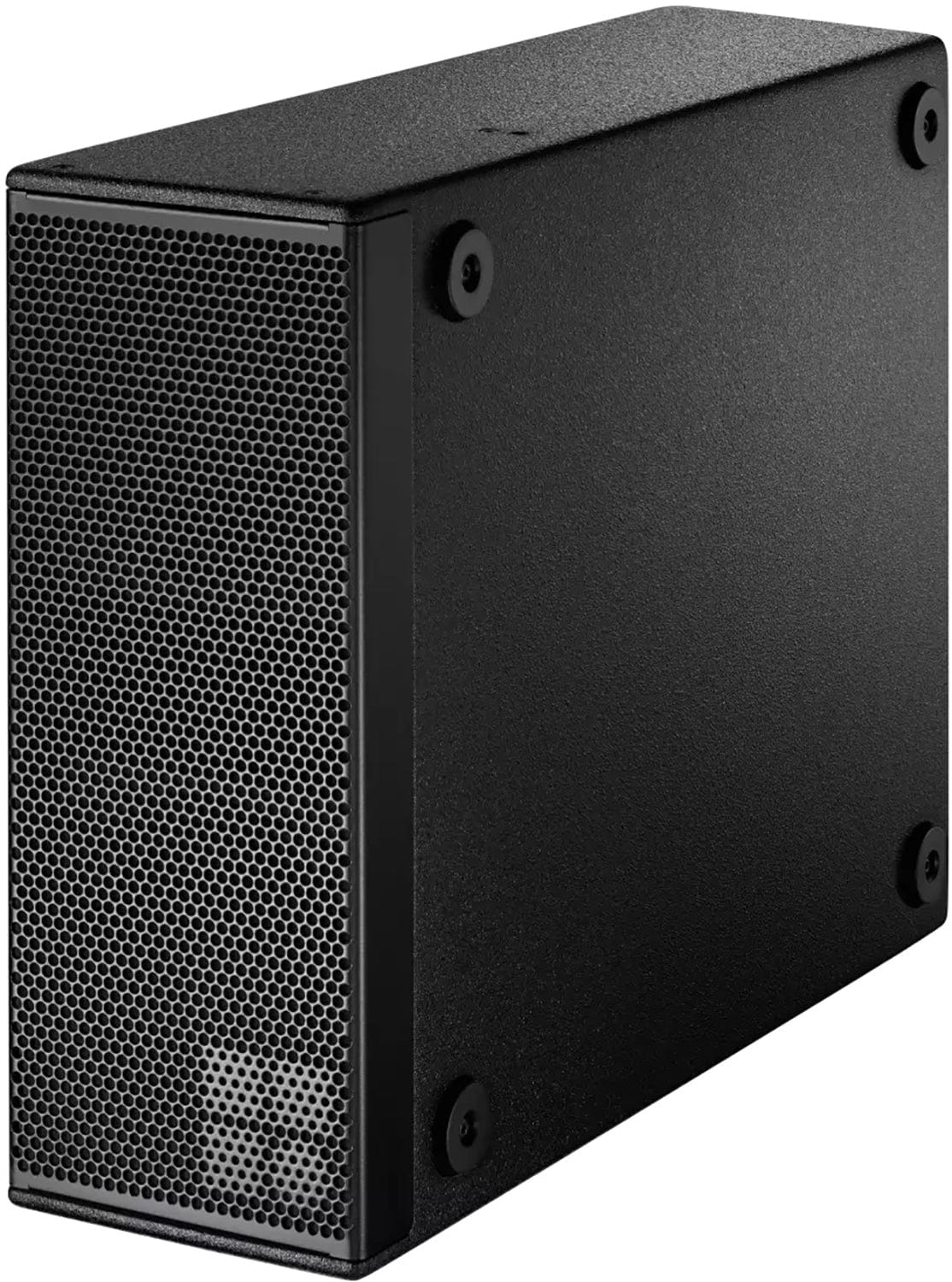

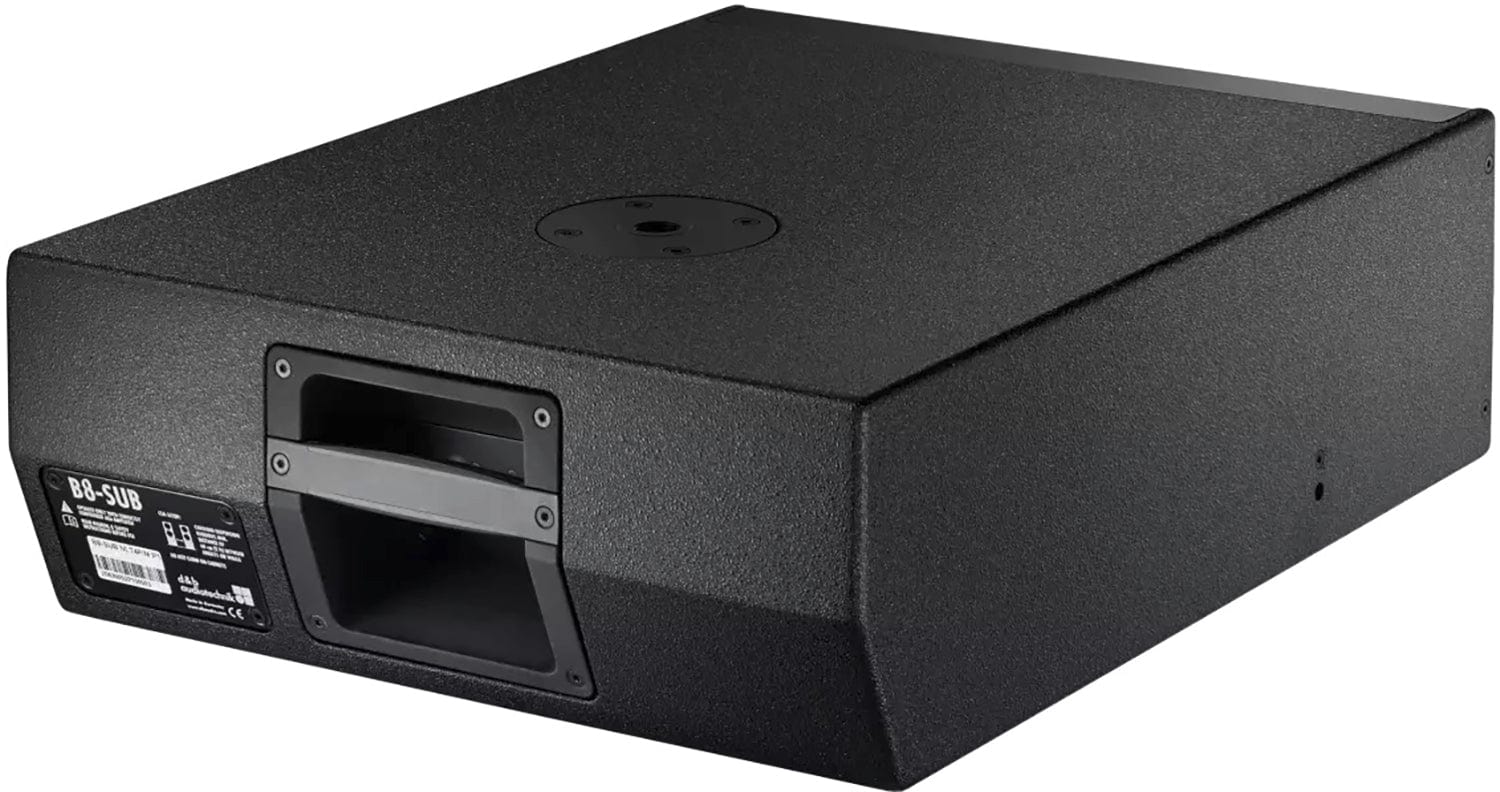

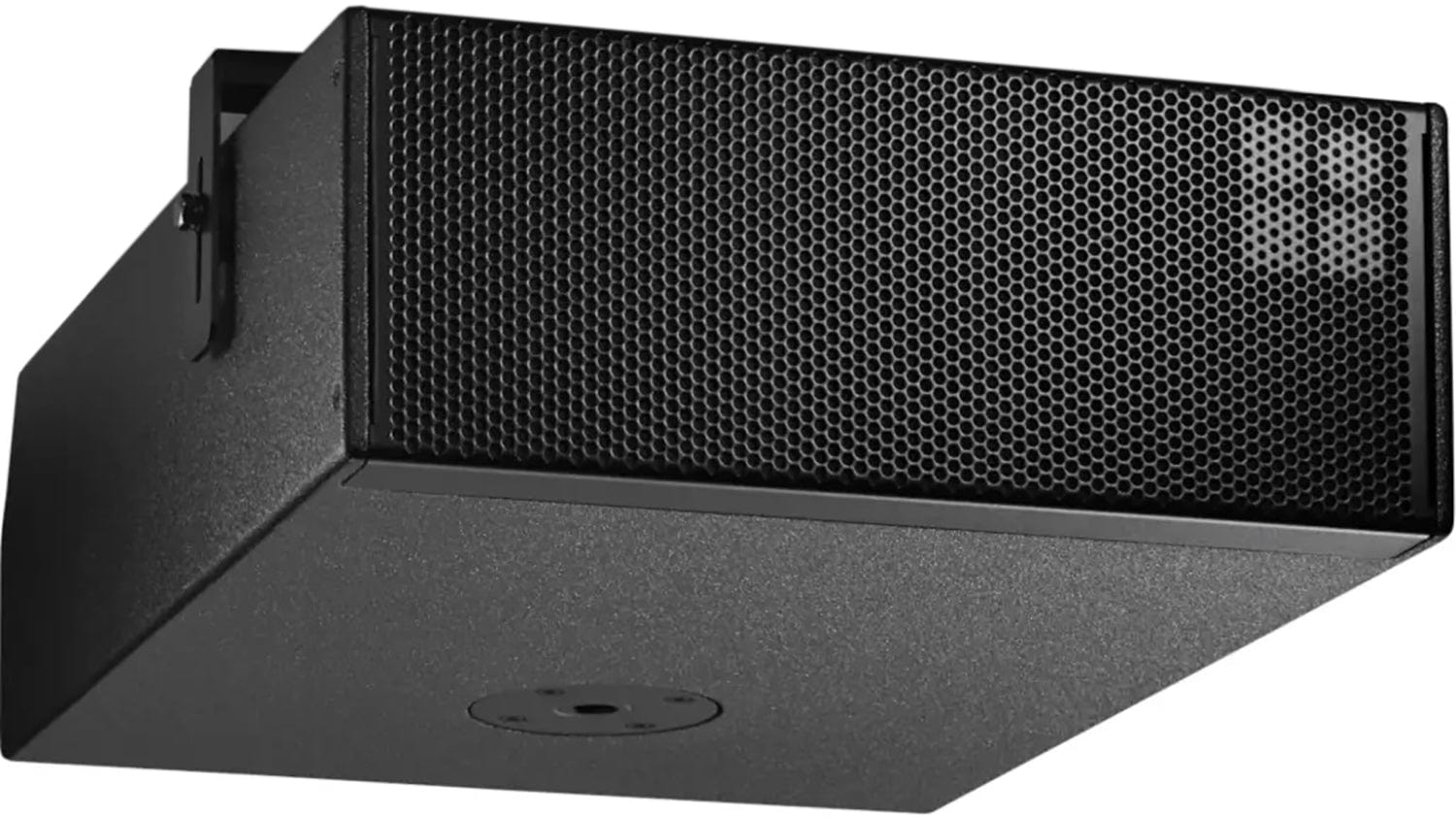

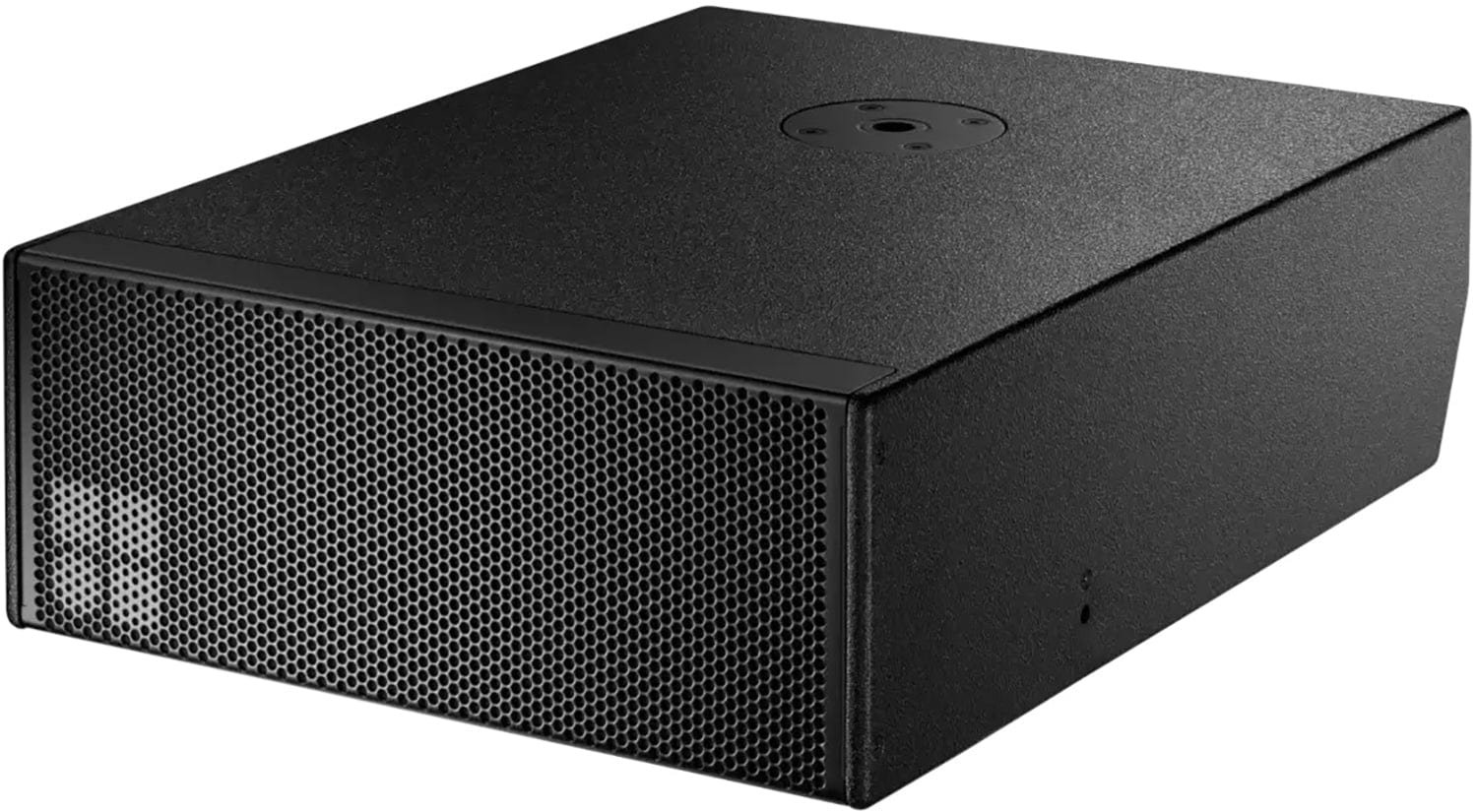

d&b audiotechnik B8-SUB Ultra Compact Subwoofer with NL4 Connections
The d&b audiotechnik B8-SUB with NL4 connections is the ultra compact d&b subwoofer for xC, xS and E-Series systems, using two 6.5 inch drivers in a bass reflex cabinet only 170 mm high. It covers 43 Hz to 170 Hz, flies horizontally or vertically, and supports a pole mounted top up to 8 kg. Trianze Tech supplies the B8-SUB for compact mobile and installed systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x NL4 M connectors, pin assignment 2+/2-
- Two 6.5 inch drivers in a bass reflex cabinet
- Low 170 mm cabinet height
- Frequency response from 43 Hz to 170 Hz
- M20 flange for the d&b Z5013 stand, top load up to 8 kg
- Flown horizontally or vertically via M8 side inserts
Technical Specifications:
| Spec | Value |
|---|---|
| Model | B8-SUB, NL4 version |
| Type | Ultra compact subwoofer, passive |
| Components | 2 x 6.5 inch drivers, ferrite magnet |
| Frequency Response (-5 dB) | 43 to 170 Hz standard, 43 to 125 Hz 100 Hz mode |
| Max SPL | 120 dB (10D), 122 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 200/800 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 2 x NL4 M, pins 2+/2- |
| Dimensions (H x W x D) | 170 x 436 x 580 mm |
| Weight | 18 kg (39 lb) |
Why Buy the d&b audiotechnik B8-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the B8-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This d&b audiotechnik B8-SUB has 2 x NL4 M connectors using pin assignment 2+/2-. A version with NLT4 F/M connectors is also available.
The d&b audiotechnik B8-SUB reaches 122 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers, and 120 dB with the 10D.
The d&b audiotechnik B8-SUB extends down to 43 Hz (-5 dB), with an upper limit of 170 Hz in standard mode or 125 Hz in 100 Hz mode.
Two d&b audiotechnik B8-SUB cabinets can run on one amplifier channel, each with 8 ohm impedance and 200 W RMS power handling.
The d&b audiotechnik B8-SUB weighs 18 kg (39 lb) and measures 170 x 436 x 580 mm (H x W x D).
