d&b audiotechnik E8: 8 Inch Coaxial Passive Loudspeaker with NLT4 F/M Link Through Connectors
Model
:
E8 NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

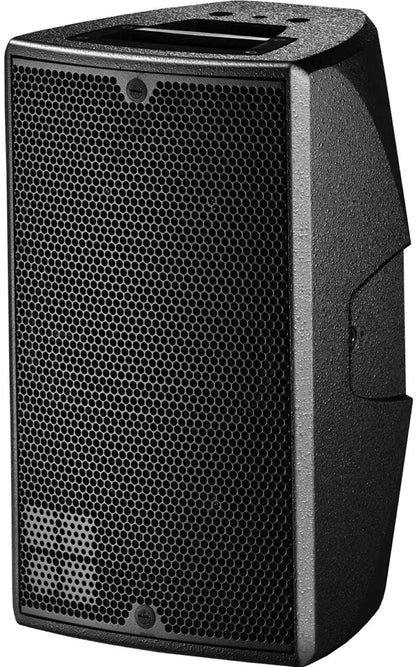

d&b audiotechnik E8 8 Inch Coaxial Loudspeaker with NLT4 F/M
The d&b audiotechnik E8 is a high performance 2 way multipurpose loudspeaker with an integrated 8 inch and 1 inch coaxial driver and a 90 x 50 degree rotatable horn. This version is fitted with NLT4 F/M connectors with all four pins wired in parallel: the E8 uses pins 1+/1- while pins 2+/2- are designated to actively driven subwoofers, and the second connector links directly to a second cabinet. Trianze Tech supplies the E8 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 8 inch neodymium driver with 1 inch compression driver
- NLT4 F/M connectors wired in parallel for link through
- E8 on pins 1+/1-, active subwoofers on pins 2+/2-
- 90 x 50 degree rotatable horn
- Up to 129 dB SPLmax
- 7.3 kg cabinet
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E8 (NLT4 F/M) |
| Type | 2 way compact coaxial passive loudspeaker |
| Frequency Response | 62 Hz to 18 kHz (standard), 120 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 126 dB with 10D, 129 dB with D20/5D/30D/D40/D80/40D |
| Nominal Impedance | 12 ohms |
| Power Handling | 150 W RMS / 800 W peak (10 ms) |
| Connections | 2 x NLT4 F/M, pins 1+/1- |
| Dimensions (H x W x D) | 390 x 232 x 223 mm |
| Weight | 7.3 kg (16.1 lb) |
Why Buy the d&b audiotechnik E8 NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E8 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
On this d&b audiotechnik E8 both NLT4 F/M connectors have all four pins wired in parallel. The E8 uses pins 1+/1-, while pins 2+/2- are designated to actively driven subwoofers.
Yes. Using one NLT4 connector as the input, the second connector on the d&b audiotechnik E8 allows direct connection to a second cabinet.
The d&b audiotechnik E8 covers 62 Hz to 18 kHz in standard mode and 120 Hz to 18 kHz in CUT mode (-5 dB).
The d&b audiotechnik E8 handles 150 W RMS and 800 W peak (10 ms) at a nominal impedance of 12 ohms.
The d&b audiotechnik E8 weighs 7.3 kg (16.1 lb) and measures 390 x 232 x 223 mm.
Trianze Tech supplies the d&b audiotechnik E8 NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
