d&b audiotechnik E8: 8 Inch Coaxial 2 Way Passive Loudspeaker, 90 x 50 Degree Rotatable Horn, NL4
Model
:
E8 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

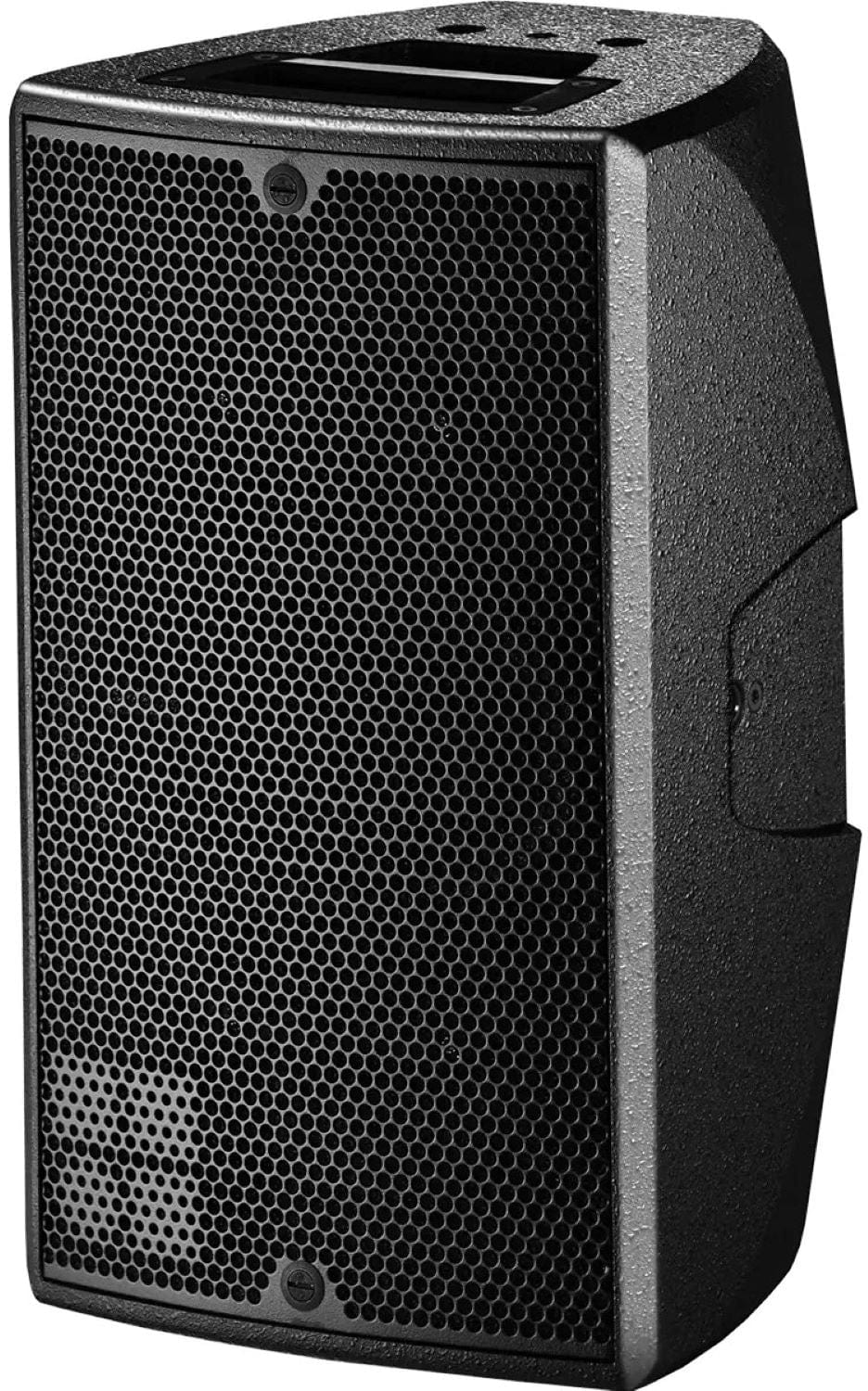

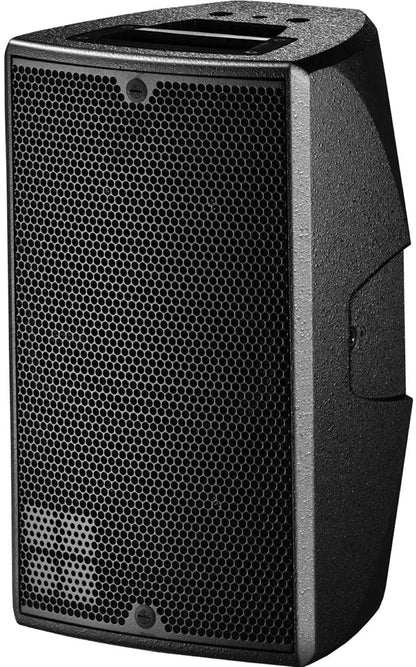

d&b audiotechnik E8 8 Inch Coaxial Loudspeaker with NL4 Connectors
The d&b audiotechnik E8 is a high performance 2 way multipurpose loudspeaker with an integrated 8 inch and 1 inch coaxial driver, for speech and music as a stand alone system or within larger distributed systems. Its 90 x 50 degree horn rotates through 90 degrees, the multifaceted cabinet works upright, horizontal or as a stage monitor, and an E12X subwoofer can be added in passive or active mode. This version has 2 x NL4 connectors. Trianze Tech supplies the E8 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 8 inch neodymium driver with 1 inch compression driver
- 90 x 50 degree horn, rotatable to 50 x 90 degrees
- Up to 129 dB SPLmax
- Three cabinets per amplifier channel
- Pairs with the E12X-SUB passively or actively
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E8 (NL4) |
| Type | 2 way compact coaxial passive loudspeaker |
| Frequency Response | 62 Hz to 18 kHz (standard), 120 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 126 dB with 10D, 129 dB with D20/5D/30D/D40/D80/40D |
| Cabinets per Amplifier Channel | 3 |
| Nominal Impedance | 12 ohms |
| Power Handling | 150 W RMS / 800 W peak (10 ms) |
| Dispersion | 90 x 50 degrees, rotatable |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 390 x 232 x 223 mm |
| Weight | 7.3 kg (16.1 lb) |
Why Buy the d&b audiotechnik E8 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E8 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik E8 has a 90 x 50 degree horn that rotates through 90 degrees to give 50 x 90 degrees.
The d&b audiotechnik E8 reaches 126 dB maximum SPL with a 10D and 129 dB with a D20, 5D, 30D, D40, D80 or 40D.
Up to three d&b audiotechnik E8 cabinets can be driven per amplifier channel, with a 12 ohm nominal impedance each.
The d&b audiotechnik E12X-SUB can be added in passive or active mode, or any other E-Series subwoofer, for higher level music program.
The d&b audiotechnik E8 measures 390 x 232 x 223 mm (15.4 x 9.1 x 8.8 inches) and weighs 7.3 kg (16.1 lb).
Trianze Tech supplies the d&b audiotechnik E8 NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
