d&b audiotechnik E15X-SUB: 15 Inch Compact Passive Subwoofer with Twist Lock Connectors and Link Through
Model
:
E15X-SUB NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik E15X-SUB 15 Inch Compact Subwoofer with NLT4 F/M

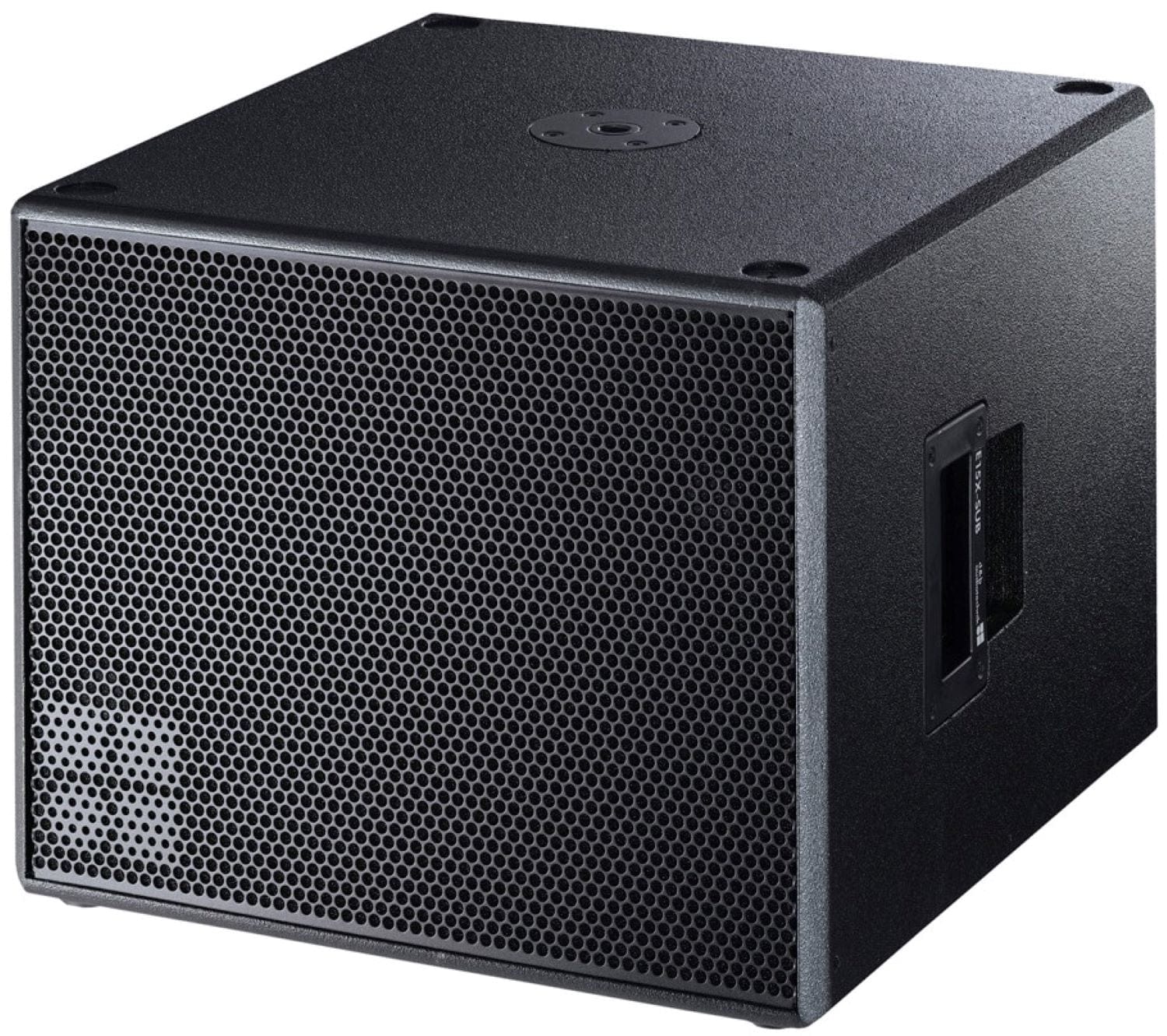

The d&b audiotechnik E15X-SUB is a compact, lightweight, high performance 15 inch subwoofer for d&b E-Series loudspeakers, able to run passively alongside E12 or E12-D tops or actively on its own amplifier channel. This version is fitted with NLT4 F/M connectors with all four pins wired in parallel, using pins 2+/2- for the subwoofer while pins 1+/1- are designated to the top cabinets, so one connector serves as input and the other links to a second cabinet. Trianze Tech supplies the E15X-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 15 inch compact subwoofer for E-Series
- NLT4 F/M connectors wired in parallel for link through
- Subwoofer on pins 2+/2-, top cabinets on pins 1+/1-
- Up to 130 dB SPLmax
- Low frequency extension to 37 Hz
- 24 kg marine plywood cabinet
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E15X-SUB (NLT4 F/M) |
| Type | Compact passive subwoofer |
| Frequency Response | 37 to 100 Hz (standard), 37 to 140 Hz (140 Hz mode), -5 dB |
| Max SPL | 127 dB with D6/10D, 130 dB with D20/30D/D80 |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Connections | 2 x NLT4 F/M, pins 2+/2- |
| Dimensions (H x W x D) | 426 x 530 x 550 mm |
| Weight | 24 kg (53 lb) |
Why Buy the d&b audiotechnik E15X-SUB NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E15X-SUB NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
On this d&b audiotechnik E15X-SUB both NLT4 F/M connectors have all four pins wired in parallel. The subwoofer uses pins 2+/2-, while pins 1+/1- are designated to top cabinets.
Yes. Using one NLT4 connector as the input, the second connector on the d&b audiotechnik E15X-SUB allows direct connection to a second cabinet.
The d&b audiotechnik E15X-SUB covers 37 to 100 Hz in standard mode and 37 to 140 Hz in 140 Hz mode (-5 dB), per this listing.
The d&b audiotechnik E15X-SUB reaches 127 dB with a D6 or 10D and 130 dB with a D20, 30D or D80.
The d&b audiotechnik E15X-SUB weighs 24 kg (53 lb) and measures 426 x 530 x 550 mm.
Trianze Tech supplies the d&b audiotechnik E15X-SUB NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
