d&b audiotechnik E15X-SUB: 15 Inch Compact Passive Subwoofer for E12 and E12-D Systems with NL4 Connectors
Model
:
E15X-SUB NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

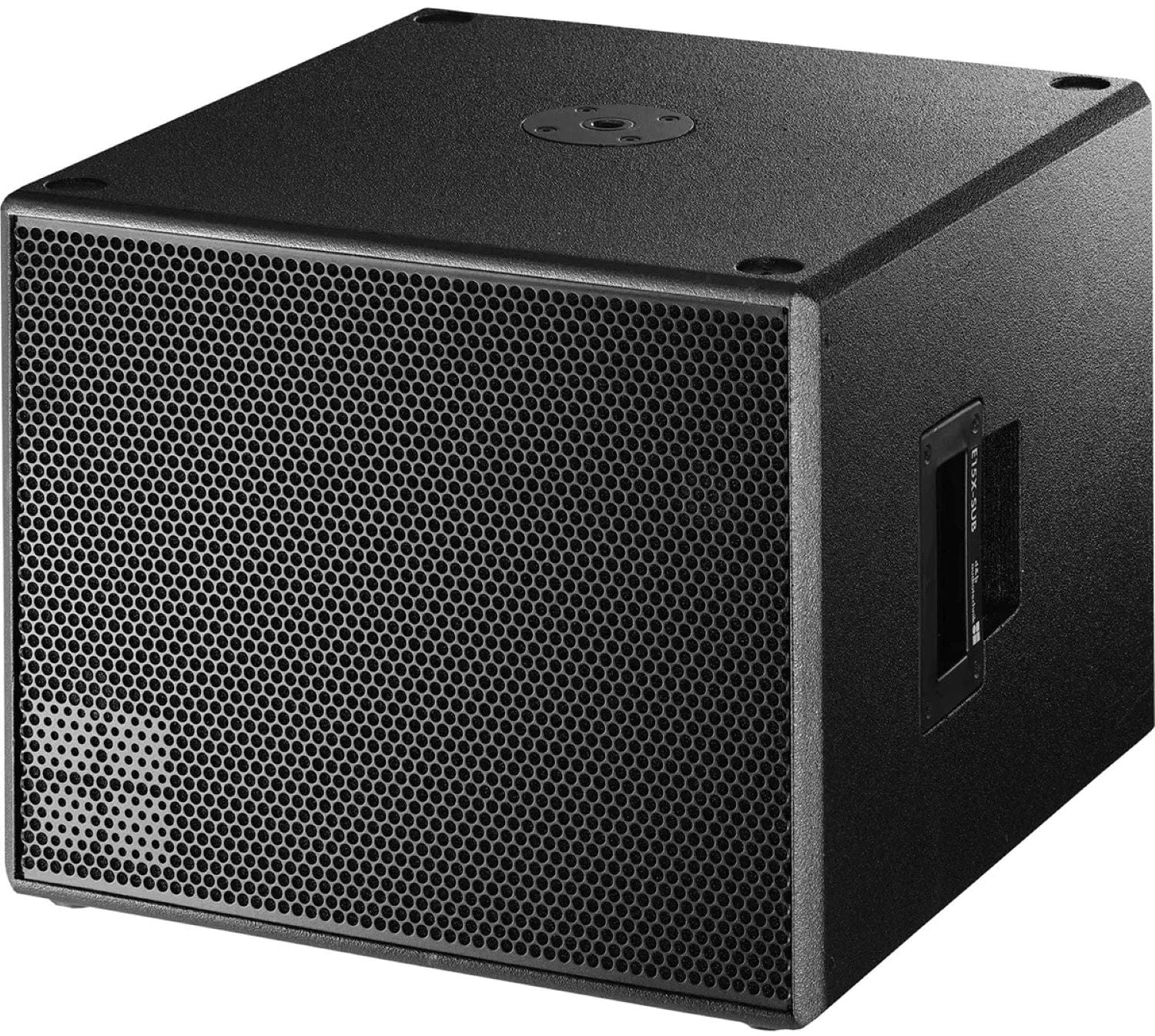

d&b audiotechnik E15X-SUB 15 Inch Compact Subwoofer with NL4
The d&b audiotechnik E15X-SUB is a compact, lightweight, high performance 15 inch subwoofer for d&b E-Series loudspeakers. Its built in passive crossover lets it run in parallel with E12 or E12-D loudspeakers on the same amplifier channel, extending low frequency headroom and bandwidth, or it can be driven actively on its own channel. The marine plywood cabinet has a pair of handles and an M20 threaded flange. This version has 2 x NL4 connectors. Trianze Tech supplies the E15X-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 15 inch compact subwoofer for E-Series
- Passive operation with E12 or E12-D on one amplifier channel
- Active mode on its own amplifier channel
- Up to 130 dB SPLmax
- Low frequency extension to 37 Hz
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E15X-SUB (NL4) |
| Type | Compact passive subwoofer |
| Frequency Response | 37 to 140 Hz or 37 to 100 Hz depending on mode, -5 dB |
| Max SPL | 127 dB with 10D, 130 dB with D20/30D/D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Components | 15 inch driver, passive crossover |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 426 x 530 x 550 mm |
| Weight | 24 kg (53 lb) |
Why Buy the d&b audiotechnik E15X-SUB NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E15X-SUB NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
With the E12-X or E12-DX configuration selected, an E12 or E12-D can be driven passively in parallel with the d&b audiotechnik E15X-SUB from the same amplifier channel.
The d&b audiotechnik E15X-SUB can be driven by the D6, D20, D40 and D80 mobile amplifiers and the 10D, 30D and 40D installation amplifiers.
The d&b audiotechnik E15X-SUB extends down to 37 Hz (-5 dB), with an upper limit of 100 Hz or 140 Hz depending on the selected mode.
The d&b audiotechnik E15X-SUB reaches 127 dB maximum SPL with a 10D and 130 dB with a D20, 30D, D40, D80 or 40D.
The d&b audiotechnik E15X-SUB measures 426 x 530 x 550 mm (16.8 x 20.9 x 21.7 inches) and weighs 24 kg (53 lb).
Trianze Tech supplies the d&b audiotechnik E15X-SUB NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
