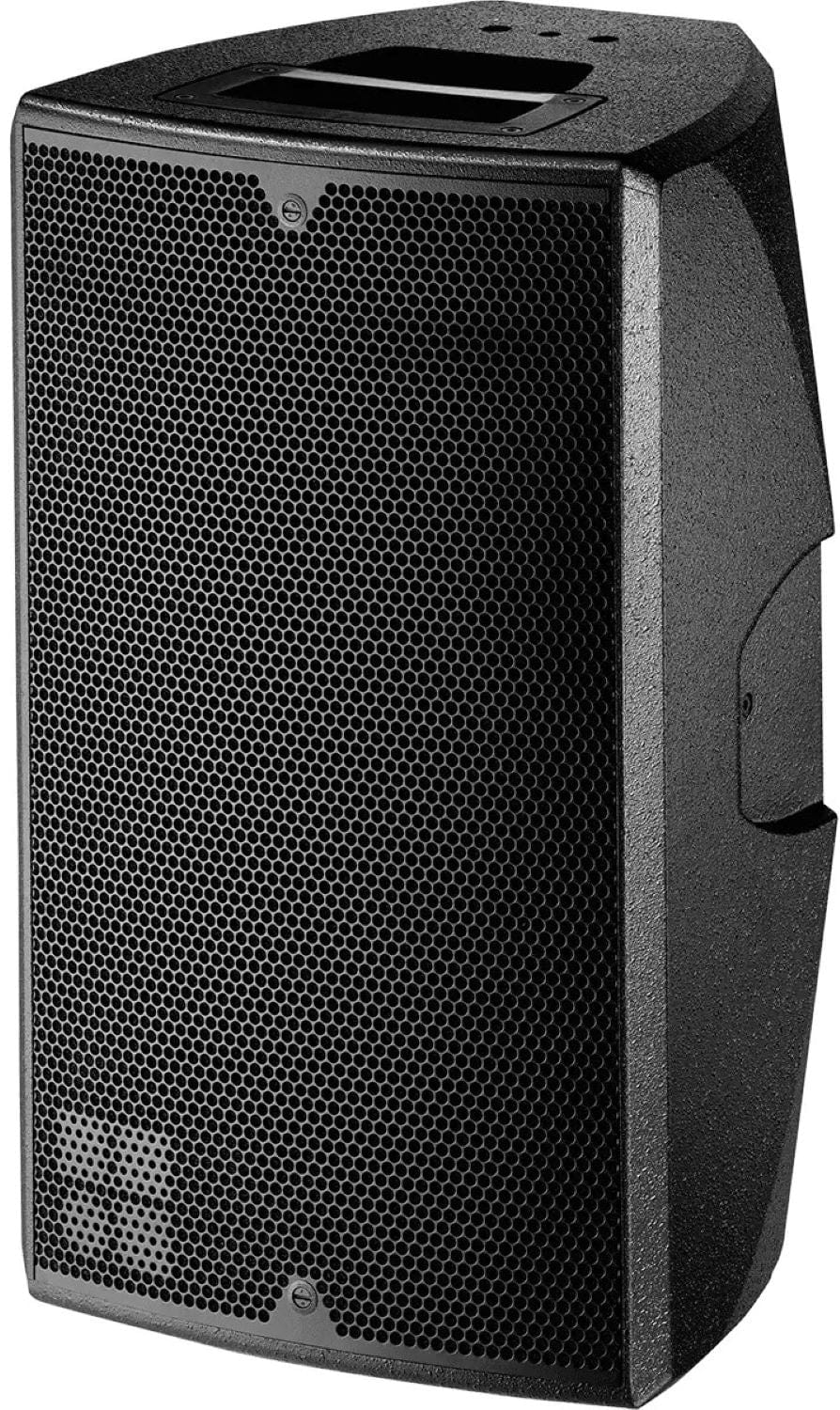

d&b audiotechnik E12-D: 12 Inch Coaxial Wide Dispersion Passive Loudspeaker, 110 x 50 Degree, NLT4 F/M
Model
:
E12-D NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik E12-D 12 Inch Wide Dispersion Loudspeaker with NLT4 F/M
The d&b audiotechnik E12-D is the wide dispersion version of the E12, a high performance 2 way coaxial loudspeaker with a 12 inch driver and 1.3 inch compression driver. Its 110 x 50 degree horn rotates through 90 degrees, and the cabinet works upright, horizontal or as a stage monitor. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the E12-D in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Wide 110 x 50 degree dispersion, rotatable
- 12 inch neodymium driver with coaxial 1.3 inch compression driver
- Up to 133 dB SPLmax with D12
- Upright, horizontal or stage monitor use
- Polyurethane integral hard foam cabinet
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E12-D (NLT4 F/M) |
| Type | 2 way coaxial passive loudspeaker, wide dispersion |
| Frequency Response | 50 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 130 dB with D6, 133 dB with D12 |
| Input Level (100 dB SPL/1 m) | -17 dBu |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Dispersion | 110 x 50 degrees, rotatable |
| Connections | 2 x NLT4 F/M |
| Weight | 16 kg (35 lb) |
Why Buy the d&b audiotechnik E12-D NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E12-D NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This d&b audiotechnik E12-D version is fitted with 2 x NLT4 F/M connectors.
The d&b audiotechnik E12-D reaches 130 dB maximum SPL with a D6 and 133 dB with a D12 (1 m, free field).
The d&b audiotechnik E12-D has a wide 110 x 50 degree pattern, and its horn rotates through 90 degrees to give 50 x 110 degrees.
The d&b audiotechnik E12-D uses a 12 inch neodymium driver with a coaxial 1.3 inch exit compression driver (3 inch coil) and a passive crossover.
The d&b audiotechnik E12-D needs an input level of -17 dBu for 100 dB SPL at 1 m.
Trianze Tech supplies the d&b audiotechnik E12-D NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
