d&b audiotechnik E12-D: 12 Inch Coaxial Wide Dispersion Passive Loudspeaker, 110 x 50 Degree, NL4
Model
:
E12-D NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik E12-D 12 Inch Wide Dispersion Coaxial Loudspeaker with NL4

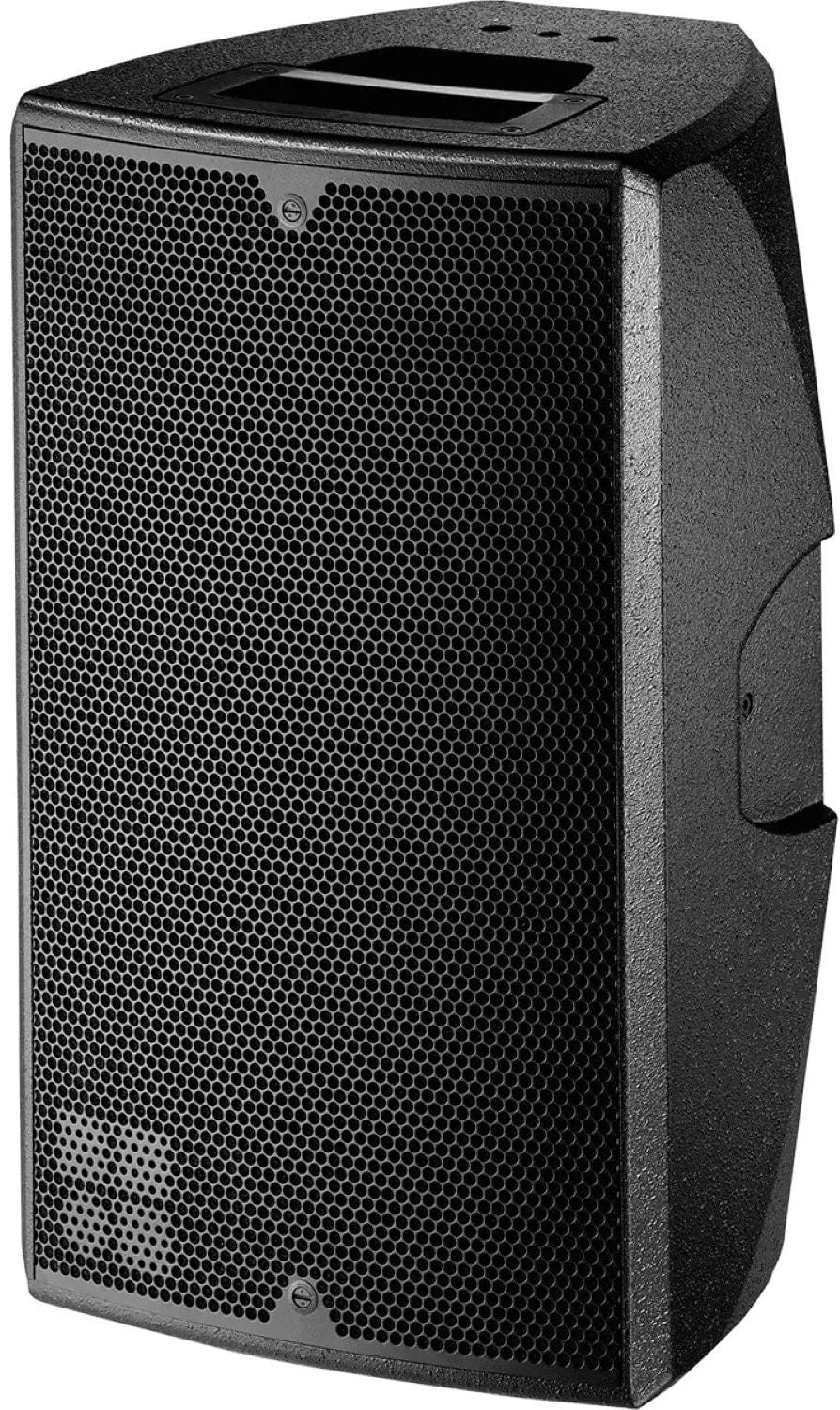

The d&b audiotechnik E12-D is the wide dispersion version of the E12, a high performance 2 way coaxial loudspeaker with a 12 inch driver and 1.3 inch compression driver. Its 110 x 50 degree horn rotates through 90 degrees, suiting wide audience areas for speech and music, and up to two cabinets run per amplifier channel. This version has 2 x NL4 connectors. Trianze Tech supplies the E12-D in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Wide 110 x 50 degree dispersion, rotatable to 50 x 110 degrees
- 12 inch neodymium driver with 1.3 inch compression driver
- Up to 133 dB SPLmax with D20, 30D, D40, D80 or 40D
- Two cabinets per amplifier channel
- 580 x 350 x 334 mm, 16 kg
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E12-D (NL4) |
| Type | 2 way coaxial passive loudspeaker, wide dispersion |
| Frequency Response | 50 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 130 dB with 10D, 133 dB with D20/30D/D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Dispersion | 110 x 50 degrees, rotatable to 50 x 110 |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 580 x 350 x 334 mm |
| Weight | 16 kg (35 lb) |
Why Buy the d&b audiotechnik E12-D NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E12-D NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik E12-D has a wider 110 x 50 degree dispersion pattern, while the E12 has 80 x 50 degrees. Both use the same 12 inch coaxial design.
The d&b audiotechnik E12-D reaches 130 dB maximum SPL with a 10D and 133 dB with a D20, 30D, D40, D80 or 40D amplifier.
Up to two d&b audiotechnik E12-D cabinets can be driven per amplifier channel.
The d&b audiotechnik E12-D measures 580 x 350 x 334 mm (22.8 x 13.8 x 13.2 inches) and weighs 16 kg (35 lb).
This d&b audiotechnik E12-D version has 2 x NL4 connectors.
Trianze Tech supplies the d&b audiotechnik E12-D NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
