d&b audiotechnik T-SUB: Compact Flyable 15 Inch Subwoofer for the T10, NLT4 F/M Connections
Model
:
T-SUB NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik T-SUB Compact Flyable Subwoofer with NLT4 F/M Connections

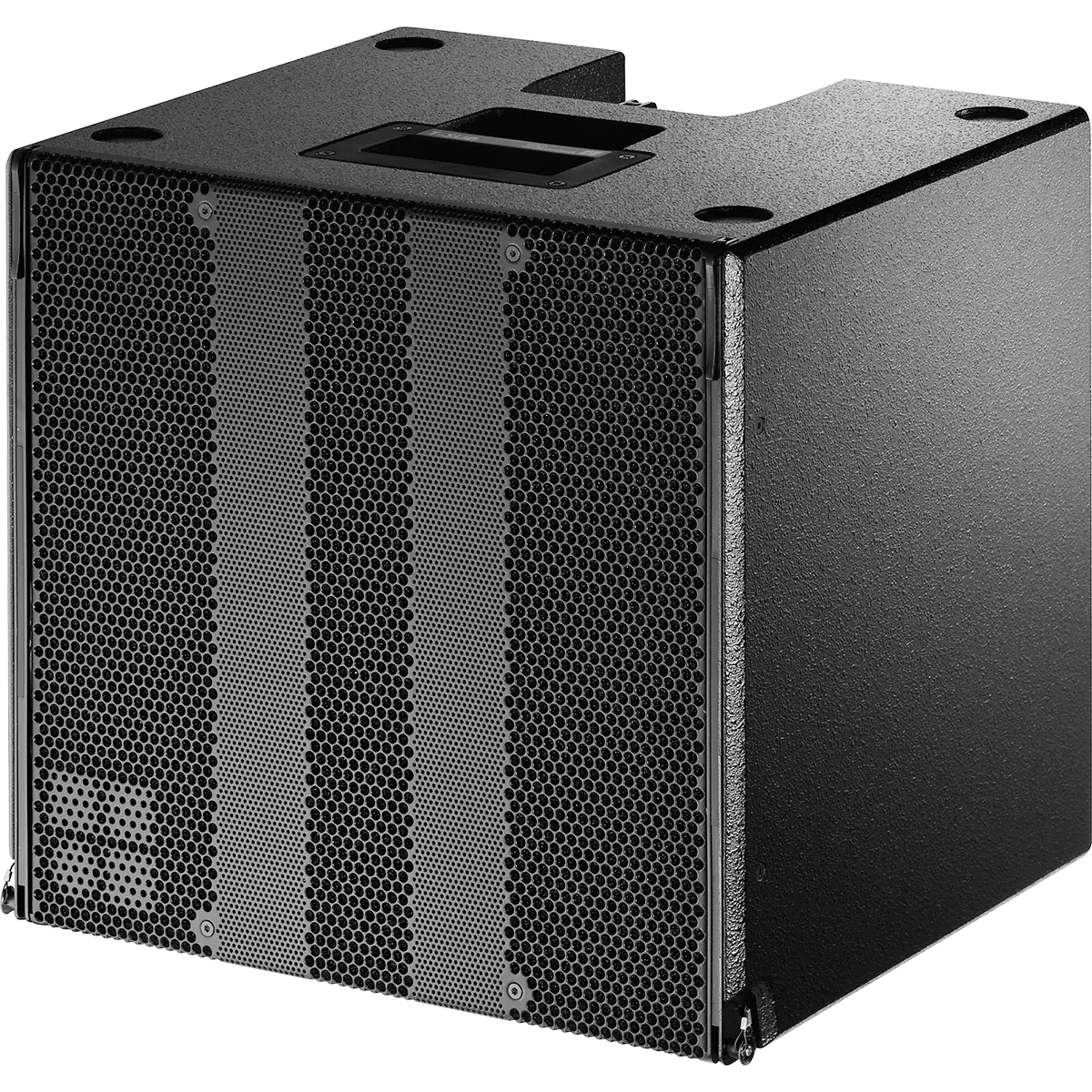

The d&b audiotechnik T-SUB is an actively driven bass reflex subwoofer with a high excursion 15 inch driver, used to supplement the low frequency headroom of the T10 loudspeaker, ground stacked or flown, on top of a T10 array or as a separate column. d&b SenseDrive technology is available when powered by the D12 amplifier. Rigging links slide out on both sides of the cabinet front, with a central splay link at the rear. The marine plywood cabinet has an impact resistant paint finish and a top handle. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the T-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- High excursion 15 inch neodymium driver
- 47 to 140 Hz frequency response
- Up to 130 dB SPLmax
- Flown on top of a T10 array or as a separate column
- SenseDrive available with the D12 amplifier
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | T-SUB (NLT4 F/M) |
| Type | Compact flyable subwoofer |
| Frequency Response | 47 to 140 Hz (standard), 47 to 100 Hz (100 Hz mode), -5 dB |
| Max SPL | 127 dB with 10D, 130 dB with D20/30D and D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Components | 1 x 15 inch driver with neodymium magnet |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 431 x 470 x 400 mm |
| Weight | 17 kg (37 lb) |
Why Buy the d&b audiotechnik T-SUB NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the T-SUB NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik T-SUB is a compact flyable 15 inch subwoofer that supplements the low frequency headroom of the T10 loudspeaker.
The d&b audiotechnik T-SUB covers 47 to 140 Hz in standard mode and 47 to 100 Hz in 100 Hz mode (-5 dB).

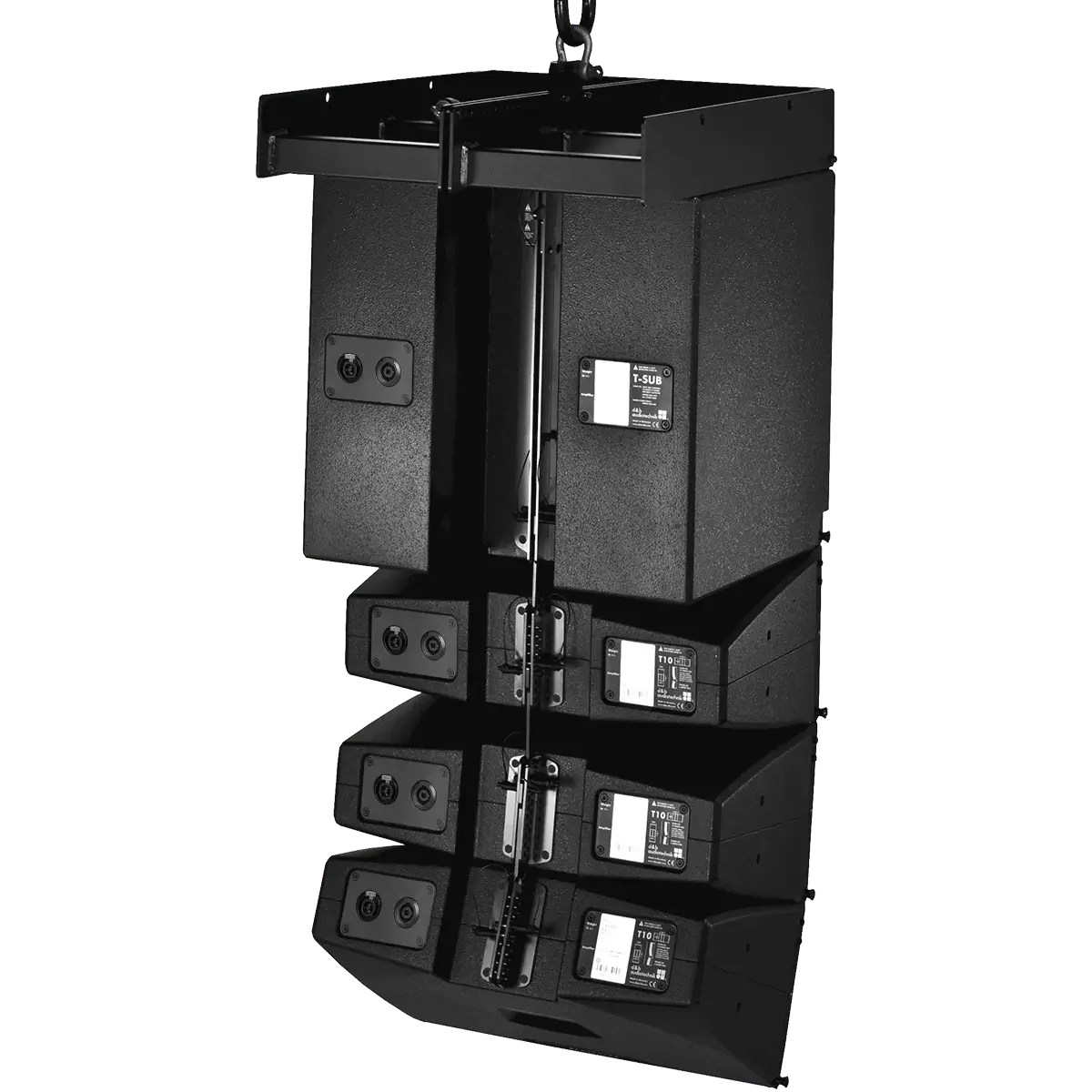

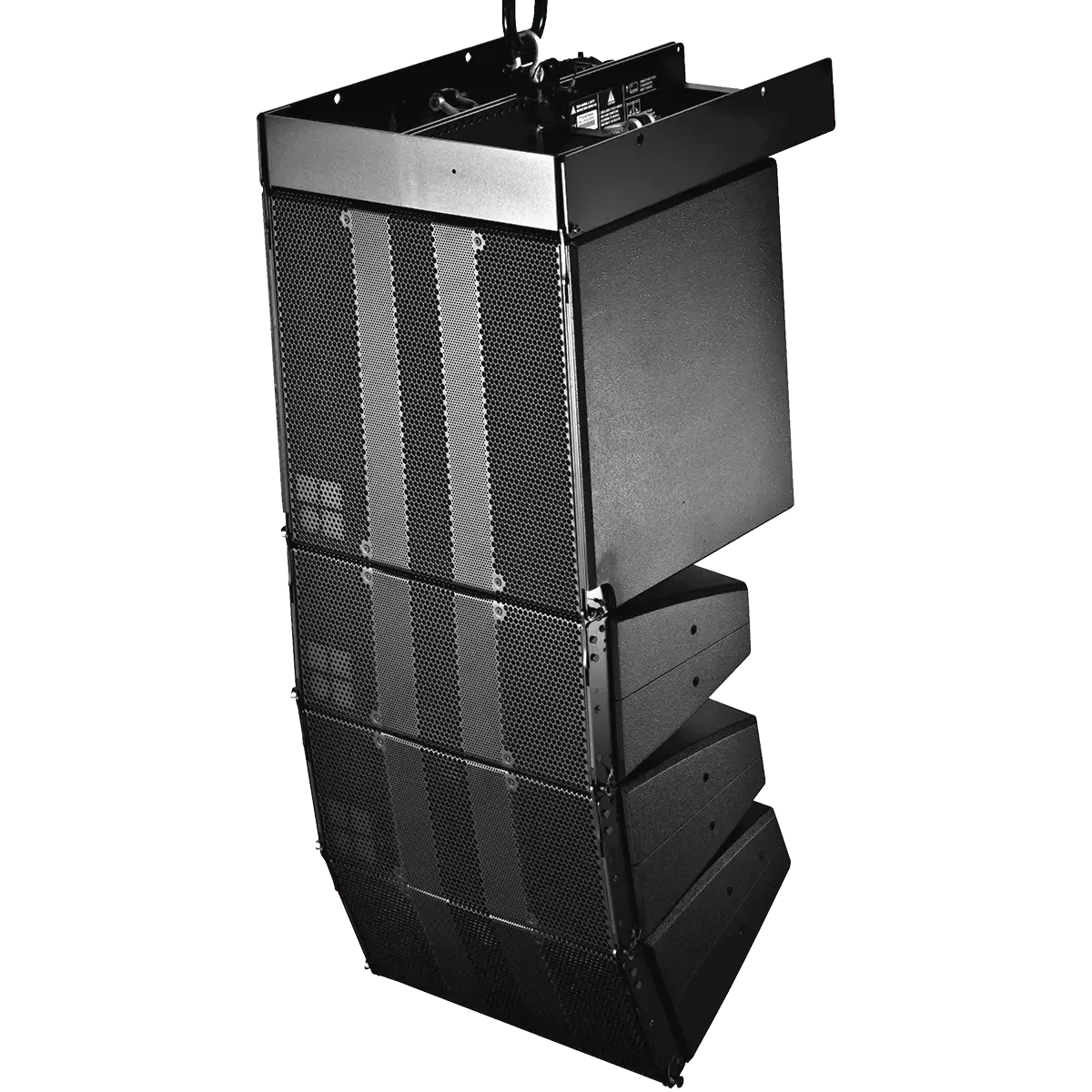

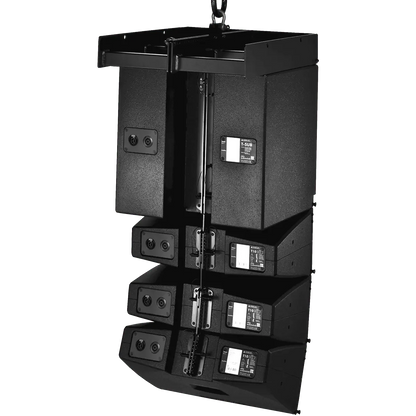

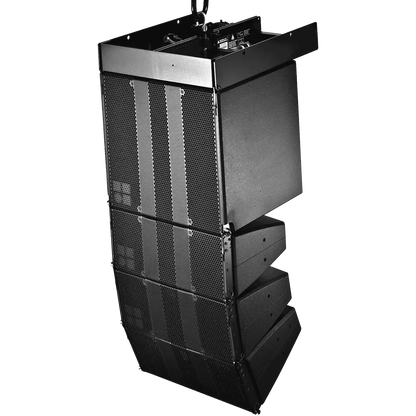

The d&b audiotechnik T-SUB uses rigging links that slide out on both sides of the cabinet front and a central splay link at the rear, flown on top of a T10 array or as a separate column.
d&b SenseDrive technology is available on the d&b audiotechnik T-SUB when it is powered by the D12 amplifier.
The d&b audiotechnik T-SUB weighs 17 kg (37 lb) and measures 431 x 470 x 400 mm.
Trianze Tech supplies the d&b audiotechnik T-SUB NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
