d&b audiotechnik T-SUB: Compact Flyable 15 Inch Subwoofer for the T10, NL4 Connections
Model
:
T-SUB NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik T-SUB Compact Flyable Subwoofer with NL4 Connections

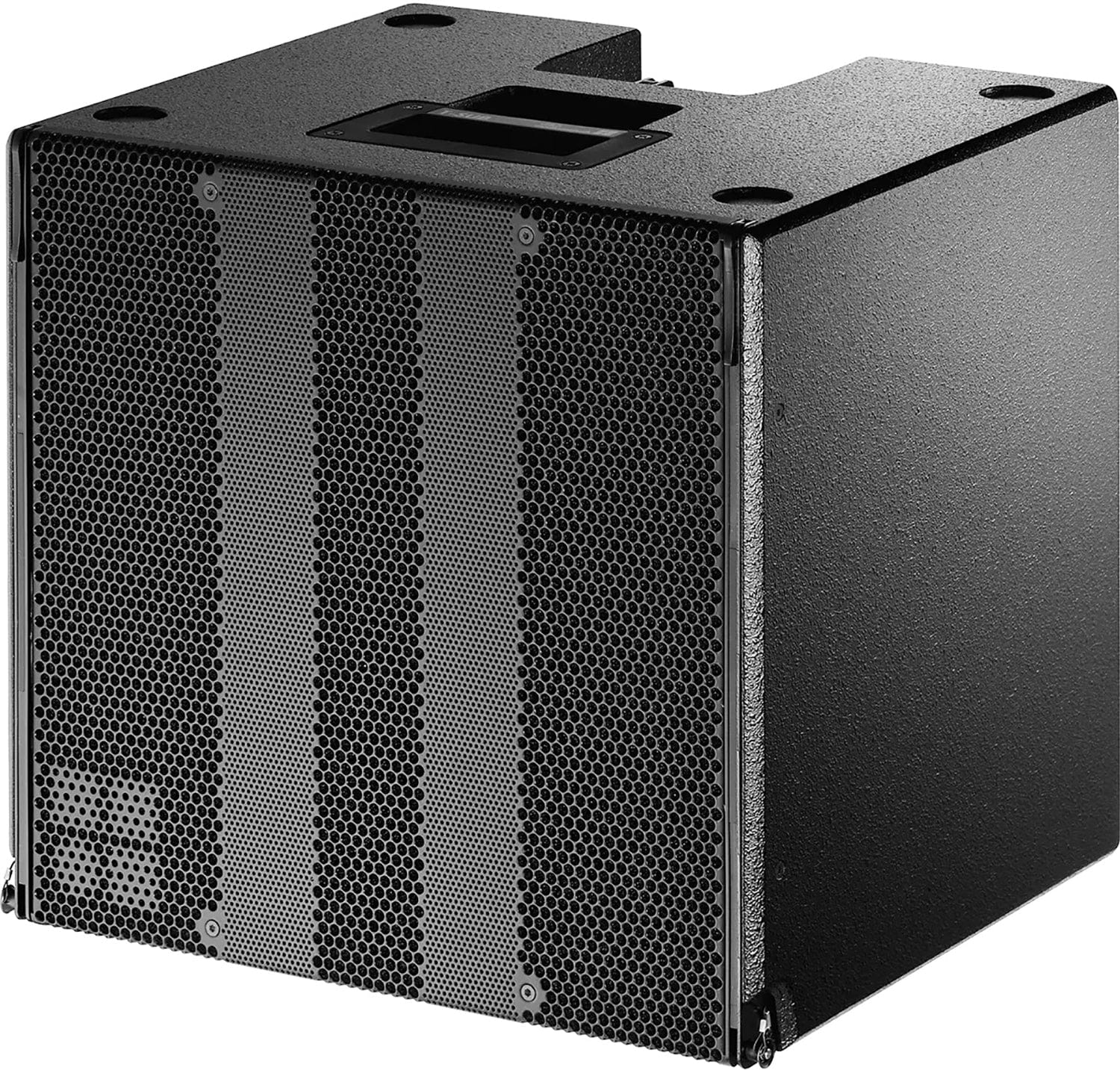

The d&b audiotechnik T-SUB is an actively driven bass reflex subwoofer with a high excursion 15 inch driver that supplements the low frequency headroom of the T10, ground stacked or flown, integrated on top of a T10 array or as a separate column. Cabinets connect using rigging links that slide out on both sides of the front and a central splay link at the rear, and d&b SenseDrive is available with the D12 amplifier. The marine plywood cabinet has an impact resistant paint finish and a top handle. This version has 2 x NL4 connectors wired in parallel. Trianze Tech supplies the T-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- High excursion 15 inch neodymium driver
- 47 to 140 Hz frequency response
- Up to 130 dB SPLmax

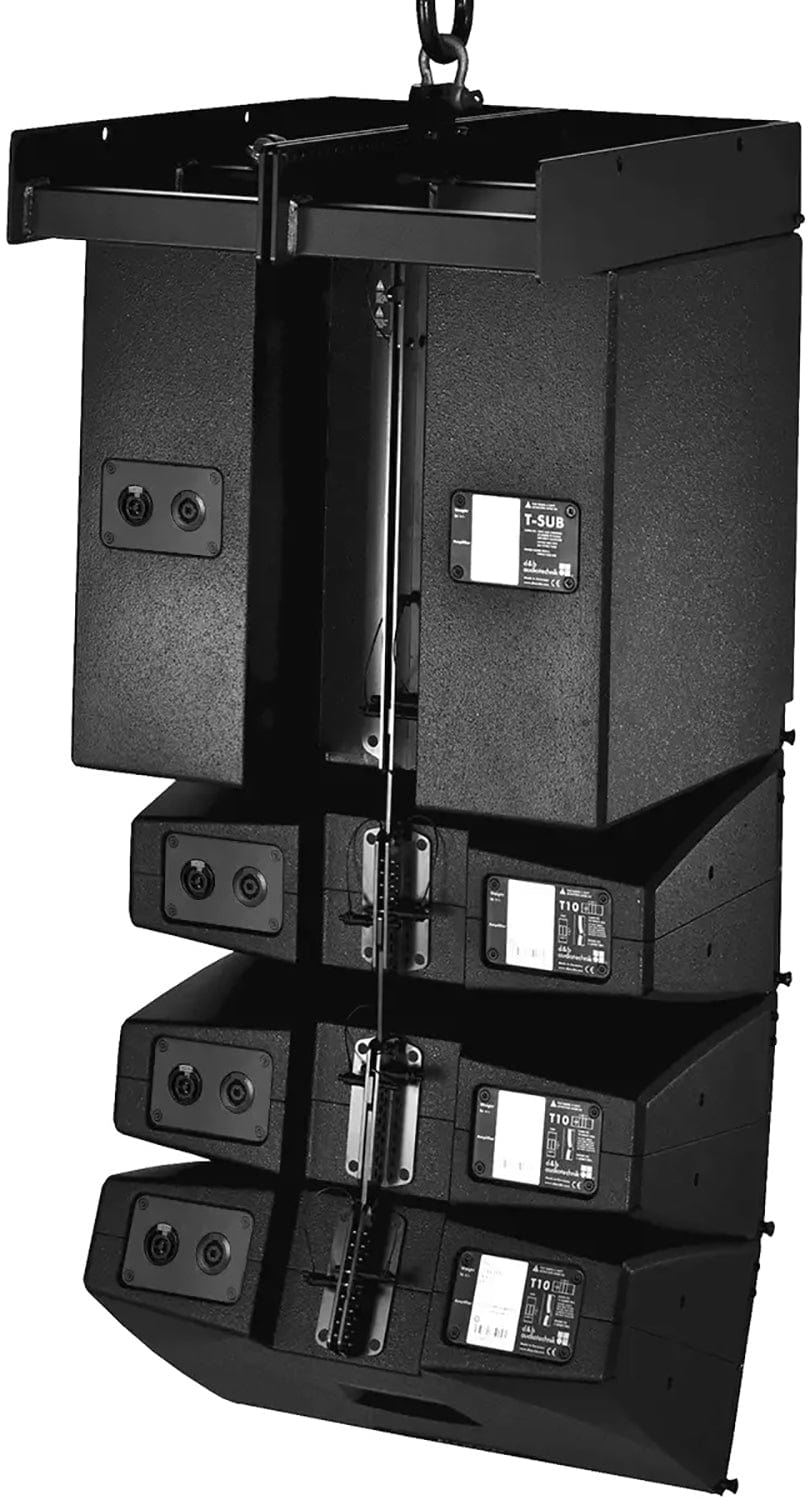

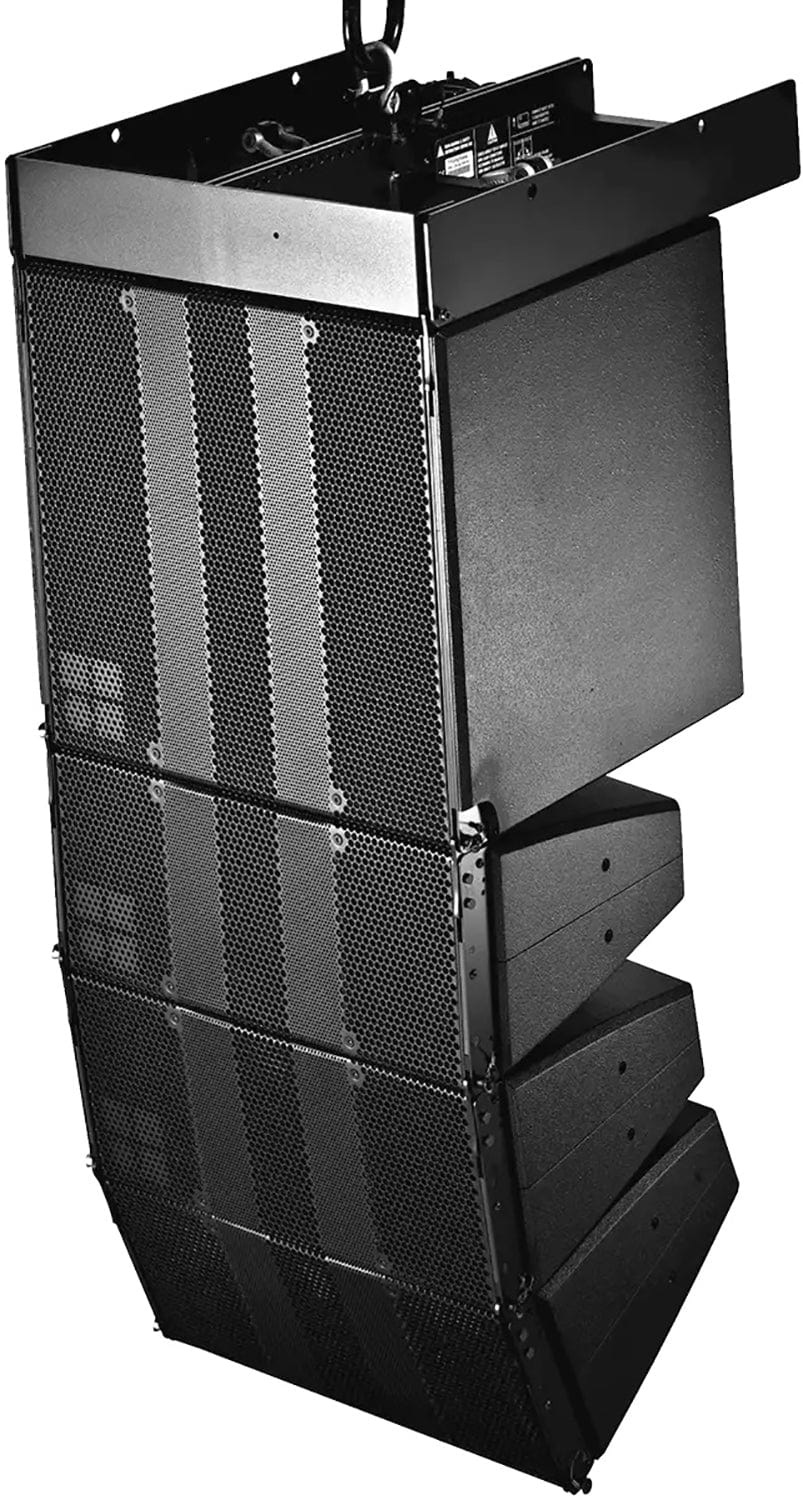

- Integrated on top of a T10 array or as a separate column
- Sliding front rigging links and rear splay link
- 2 x NL4 connectors wired in parallel
Technical Specifications:
| Spec | Value |
|---|---|
| Model | T-SUB (NL4) |
| Type | Compact flyable subwoofer |
| Frequency Response | 47 to 140 Hz (standard), 47 to 100 Hz (100 Hz mode), -5 dB |
| Max SPL | 127 dB with 10D, 130 dB with D20/30D and D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Components | 1 x 15 inch driver with neodymium magnet |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 431 x 470 x 400 mm |
| Weight | 17 kg (37 lb) |
Why Buy the d&b audiotechnik T-SUB NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the T-SUB NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik T-SUB supplements the low frequency headroom of the T10 loudspeaker, ground stacked or flown on top of a T10 array or as a separate column.
The d&b audiotechnik T-SUB reaches 127 dB with a 10D and 130 dB with a D20, 30D, D40, D80 or 40D.
The d&b audiotechnik T-SUB uses one high excursion 15 inch driver with a neodymium magnet in a bass reflex cabinet.
This version of the d&b audiotechnik T-SUB has 2 x NL4 connectors wired in parallel on the rear panel.
The d&b audiotechnik T-SUB measures 431 x 470 x 400 mm and weighs 17 kg (37 lb).
Trianze Tech supplies the d&b audiotechnik T-SUB NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
