d&b audiotechnik T10: 2 Way Passive Line Array and Point Source Loudspeaker with Rotatable Horn, NL4 Connections
Model
:
T10 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
d&b audiotechnik T10 Line and Point Source Loudspeaker with NL4 Connections

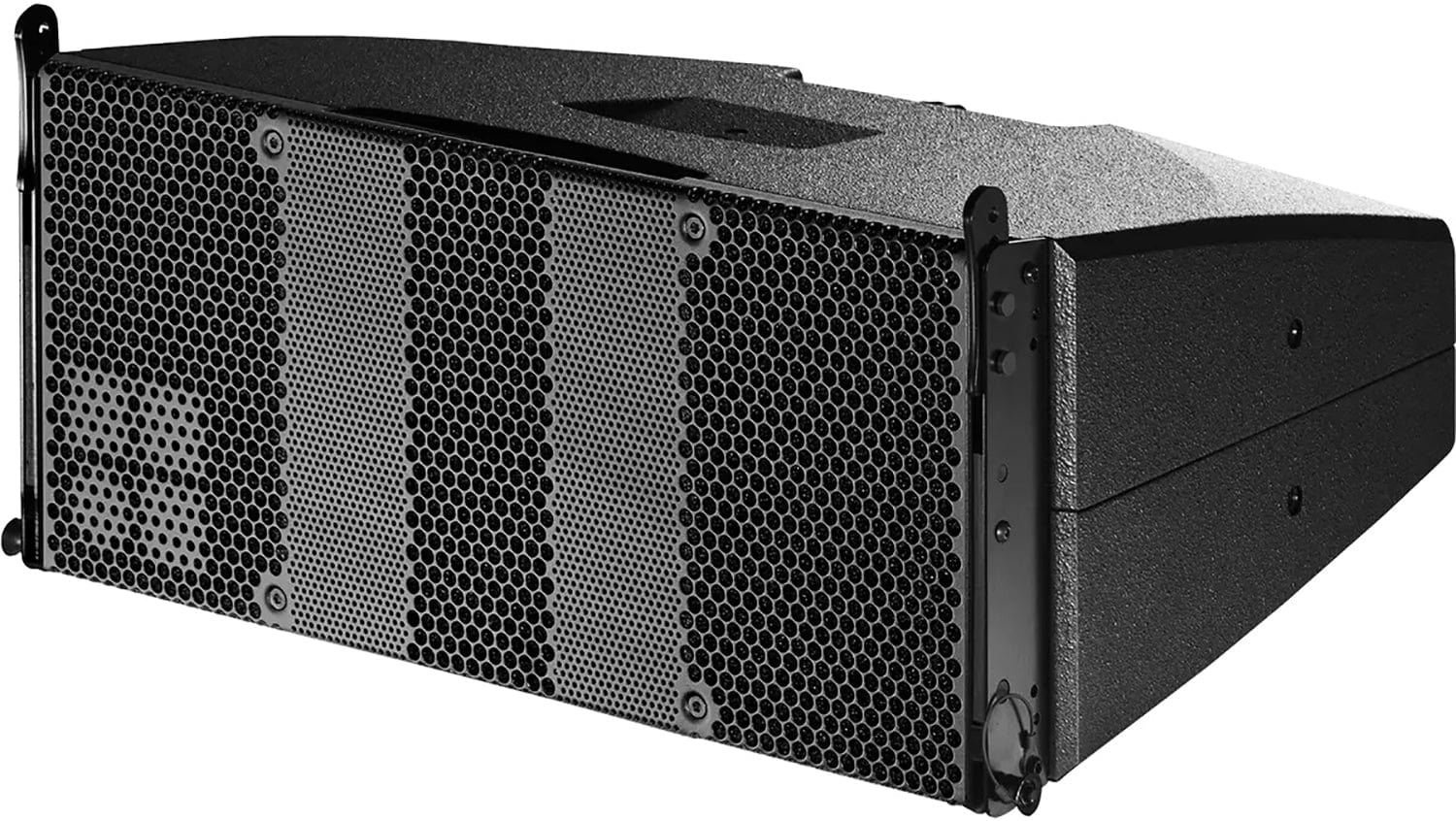

The d&b audiotechnik T10 is a passive 2 way loudspeaker with two 6.5 inch drivers in a dipolar arrangement, a 1.4 inch HF compression driver and a passive crossover. It works both as a line array element and as a high directivity point source: the waveguide produces line source directivity with 105 degree horizontal dispersion via an acoustic lens, and rotating the horn by 90 degrees gives 90 x 35 degree point source dispersion. The cabinet is polyurethane integral hard foam with integrated line array rigging. This version has 2 x NL4 connectors wired in parallel. Trianze Tech supplies the T10 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Works as a line array element or point source
- 2 x 6.5 inch neodymium drivers with 1.4 inch compression driver
- 105 degree line source or 90 x 35 degree point source dispersion
- Up to 132 dB SPLmax
- Four cabinets per amplifier channel

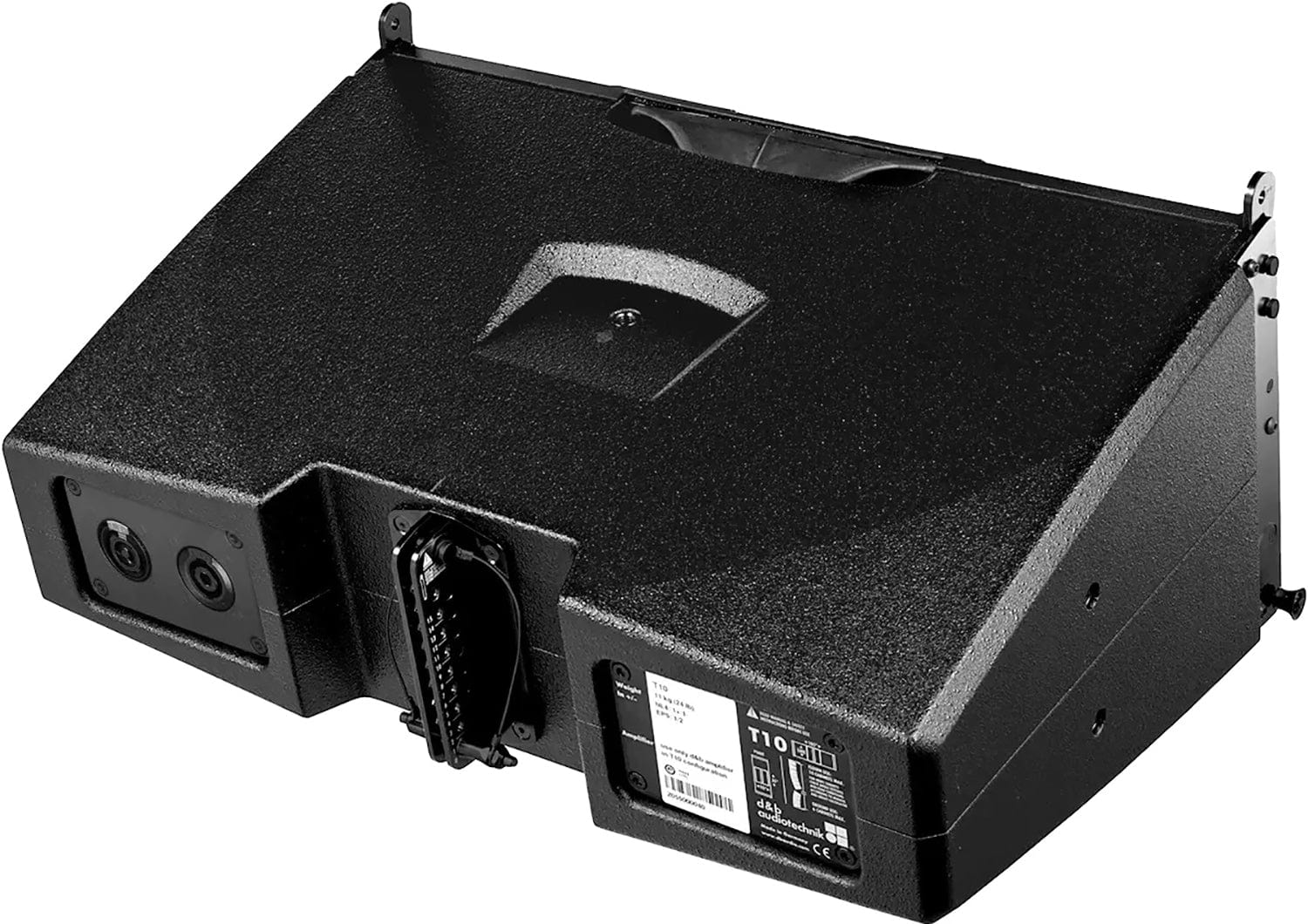

- 2 x NL4 connectors wired in parallel
Technical Specifications:
| Spec | Value |
|---|---|
| Model | T10 (NL4) |
| Type | 2 way loudspeaker with rotatable horn for point and line source operation |
| Frequency Response | 68 Hz to 18 kHz (standard), 120 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 129 / 127 dB with 10D, 132 / 130 dB with D20/5D/30D and D40/D80/40D (two operating configurations) |
| Cabinets per Amplifier Channel | 4 |
| Nominal Impedance | 16 ohms |
| Power Handling | 200 W RMS / 800 W peak (10 ms) |
| Dispersion | 90 x 35 degrees (point source), 105 degrees horizontal (line source) |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 197 x 470 x 300 mm |
| Weight | 11 kg (24 lb) |
Why Buy the d&b audiotechnik T10 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the T10 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. The d&b audiotechnik T10 gives 105 degree horizontal line source dispersion, and rotating its horn by 90 degrees turns it into a 90 x 35 degree point source loudspeaker.
Up to four d&b audiotechnik T10 cabinets can be driven per amplifier channel, with a 16 ohm nominal impedance each.

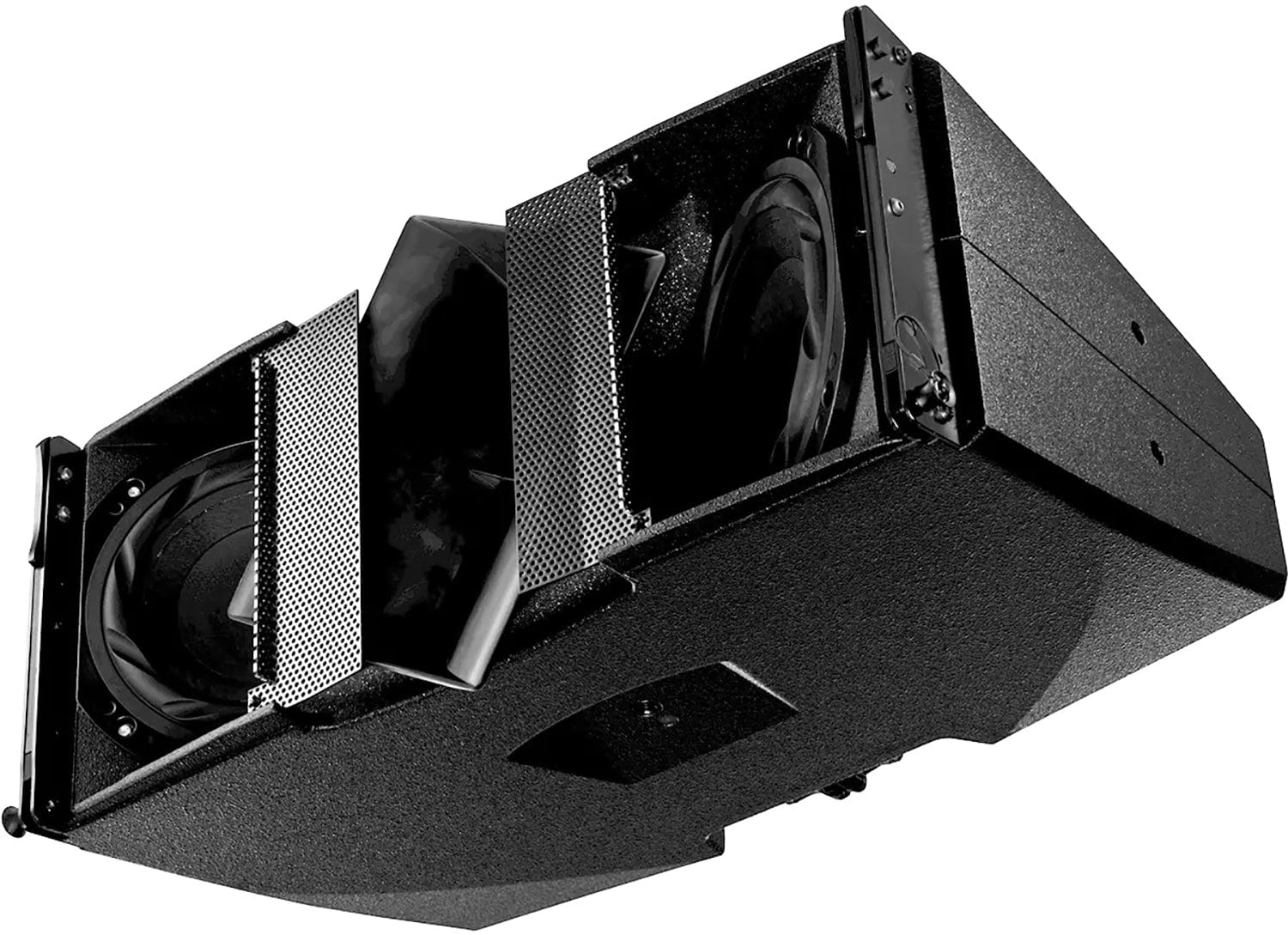

The d&b audiotechnik T10 uses 2 x 6.5 inch neodymium drivers in a dipolar arrangement and a 1.4 inch exit compression driver on a rotatable waveguide.
The d&b audiotechnik T10 cabinet is made of polyurethane integral hard foam with integrated line array rigging hardware and an impact resistant finish.
The d&b audiotechnik T10 measures 197 x 470 x 300 mm (7.8 x 18.5 x 11.8 inches) and weighs 11 kg (24 lb).
