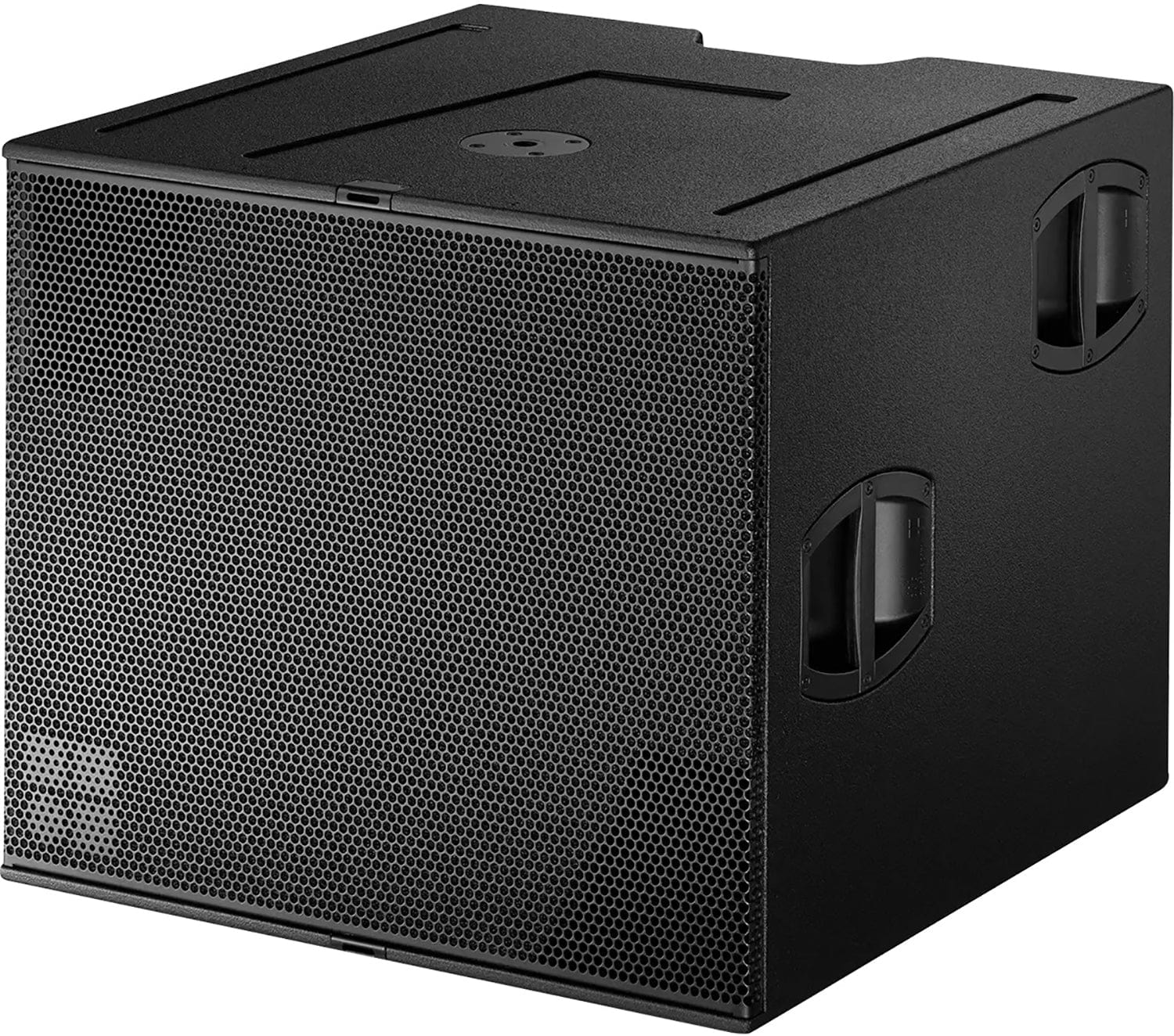

  • d&b audiotechnik V-GSUB cardioid subwoofer, NL4 version
  • d&b audiotechnik V-GSUB cardioid subwoofer, NL4 version, view 2
1 2

d&b audiotechnik V-GSUB: Ground Stack Cardioid Subwoofer with 18 Inch and 12 Inch Drivers, NL4 Connections

  • Ground stack cardioid subwoofer
  • 18 inch and 12 inch drivers
  • Single amplifier channel
  • 2 x NL4 connectors
Brand :d&b audiotechnik
Model : V-GSUB NL4

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • V-Series point source systems
  • Live events and concerts
  • Clubs and live music venues
  • Corporate events
d&b audiotechnik V-GSUB cardioid subwoofer, NL4 version, view 2
d&b audiotechnik V-GSUB NL4
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

d&b audiotechnik V-GSUB Ground Stack Cardioid Subwoofer with NL4 Connections

The d&b audiotechnik V-GSUB is an actively driven high performance cardioid subwoofer powered by a single amplifier channel, for ground stacked applications only. It houses an 18 inch driver in a bass reflex design facing front and a 12 inch driver in a two chamber bandpass design radiating to the rear, so the cardioid pattern avoids unwanted energy behind the system. The top panel has a recess matching the footprint of a V7P or V10P to stack one top loudspeaker, plus runner recesses for stacking subwoofers and an M20 high stand flange. This version has 2 x NL4 connectors. Trianze Tech supplies the V-GSUB in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • Cardioid subwoofer powered by a single amplifier channel
  • 18 inch front driver and 12 inch rear driver
  • 37 to 115 Hz frequency response
  • Up to 137 dB SPLmax
  • Top recess for a V7P or V10P and M20 high stand flange
  • 2 x NL4 connectors

Technical Specifications:

Spec Value
Model V-GSUB (NL4)
Type Ground stack cardioid subwoofer
Frequency Response 37 to 115 Hz (standard), 37 to 95 Hz (100 Hz mode), -5 dB
Max SPL 133 dB with D20/30D, 137 dB with D40/D80/40D
Cabinets per Amplifier Channel 2
Nominal Impedance 8 ohms
Power Handling 800 W RMS / 3200 W peak (10 ms)
Components 1 x 18 inch driver, 1 x 12 inch driver
Connections 2 x NL4
Dimensions (H x W x D) 606 x 700 x 728 / 830 mm
Weight 61 kg (135 lb)

Why Buy the d&b audiotechnik V-GSUB NL4 from Trianze Tech?

  • Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
  • System design help matching the V-GSUB NL4 with compatible d&b loudspeakers, amplifiers and rigging
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Pre-sales guidance for touring, live event and installed sound projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x d&b audiotechnik V-GSUB NL4
  • Confirm the full package contents with Trianze Tech at time of order

Warranty

  • d&b audiotechnik manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech audio team

Sustainability

  • Single amplifier channel per cabinet saves amplifier resources
  • Weather protected PCP finish for long service

Expandability

  • Stack a V7P or V10P on top in the matching recess
  • Flown counterpart is the V-SUB

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the V-GSUB NL4

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik V-GSUB is a ground stack cardioid subwoofer powered by a single amplifier channel, sharing the acoustic design of the flown V-SUB.

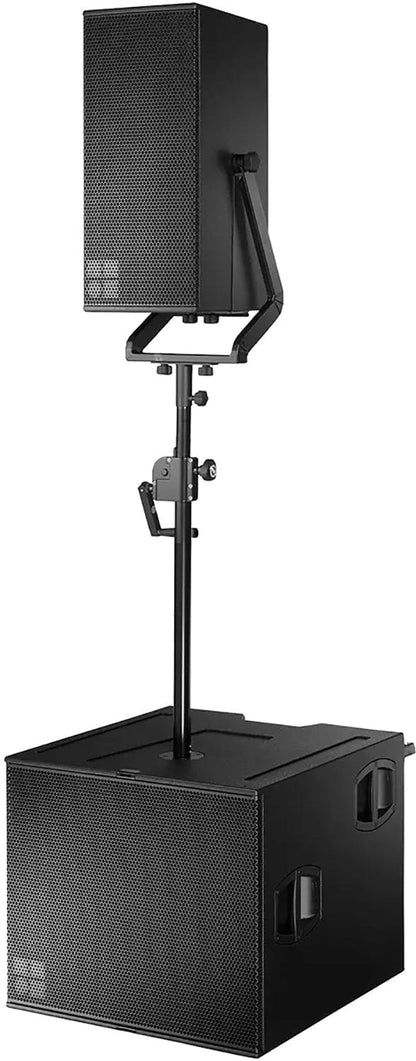

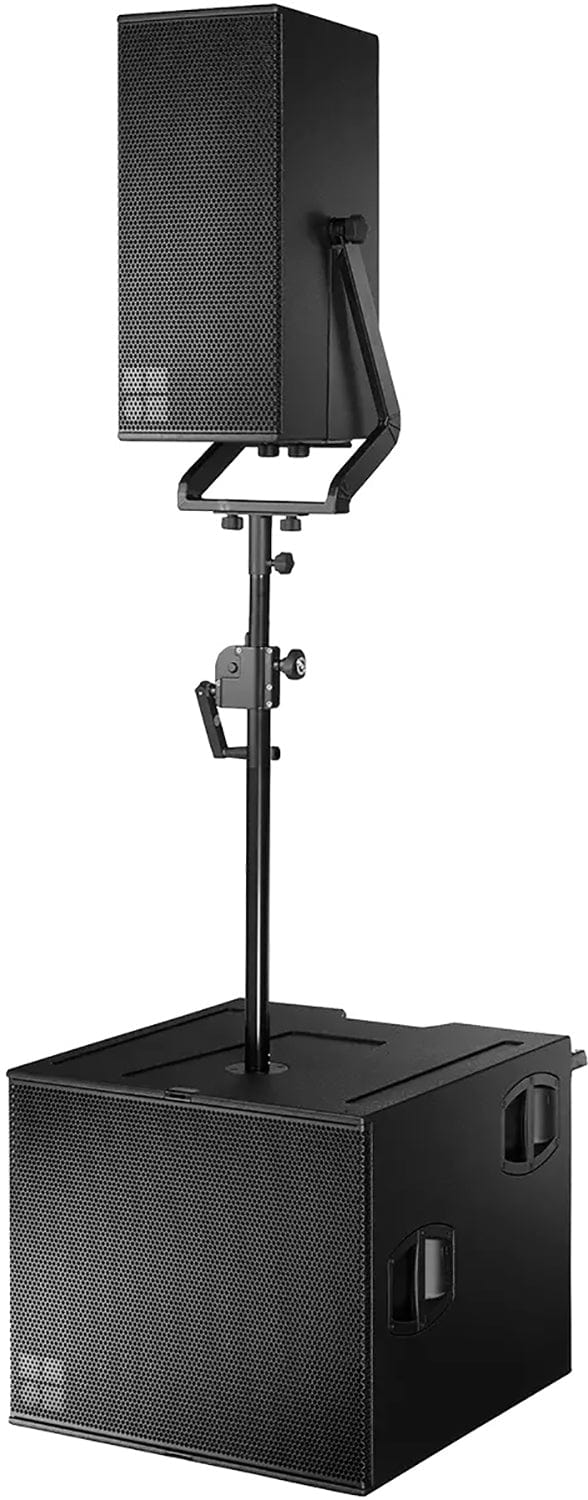

Yes. The top panel of the d&b audiotechnik V-GSUB has a recess matching the footprint of a V7P or V10P, and an M20 high stand flange for pole mounting.
The d&b audiotechnik V-GSUB covers 37 to 115 Hz in standard mode and 37 to 95 Hz in 100 Hz mode (-5 dB).
The d&b audiotechnik V-GSUB reaches 133 dB with a D20 or 30D and 137 dB with a D40, D80 or 40D.
The d&b audiotechnik V-GSUB weighs 61 kg (135 lb) and measures 606 x 700 x 728 / 830 mm, with two handles on each side.
Trianze Tech supplies the d&b audiotechnik V-GSUB NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
