d&b audiotechnik V-SUB: Flyable Cardioid Subwoofer with 18 Inch and 12 Inch Drivers, NLT4 F/M Connections
Model
:
V-SUB NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

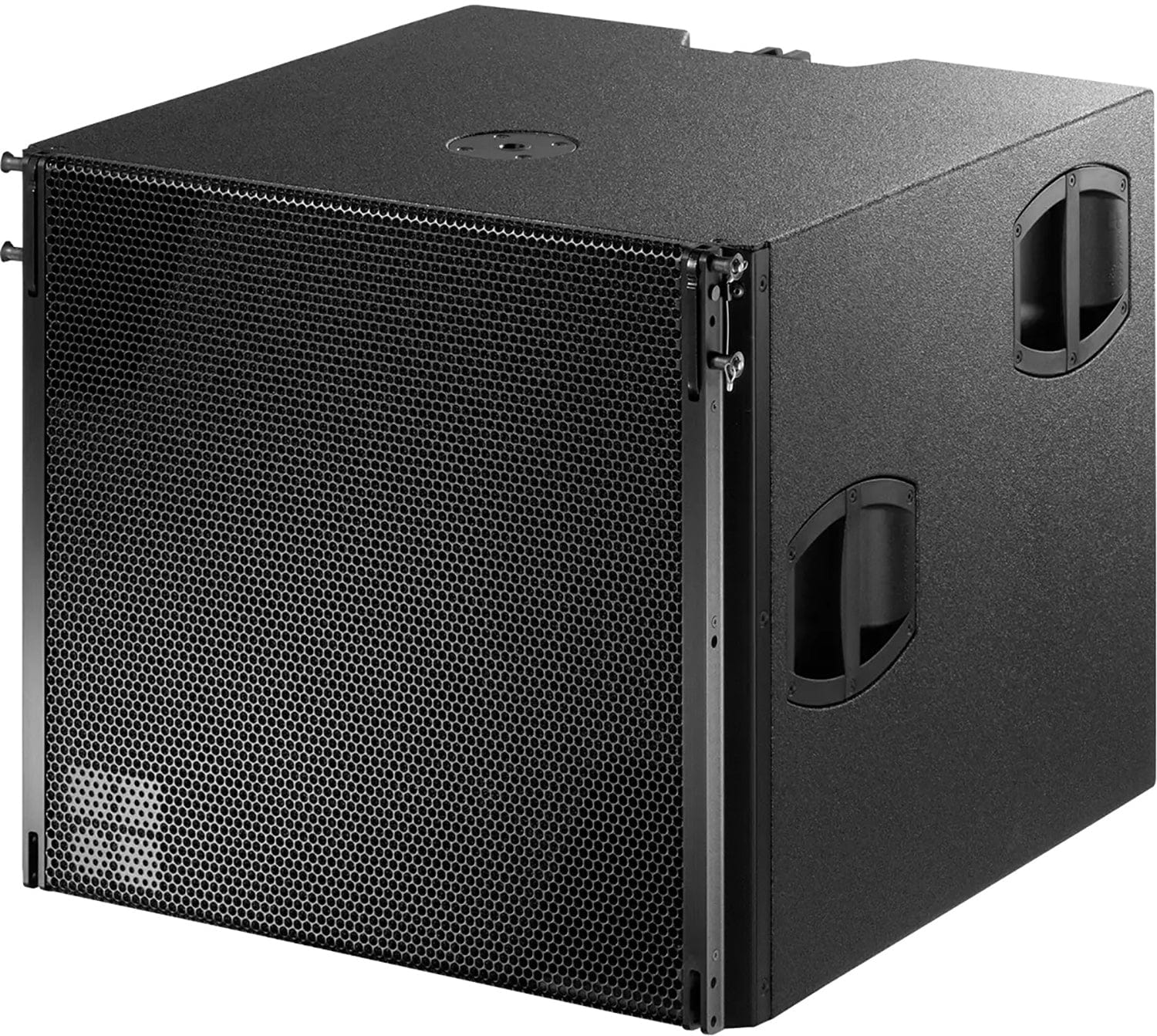

d&b audiotechnik V-SUB Flyable Cardioid Subwoofer with NLT4 F/M Connections

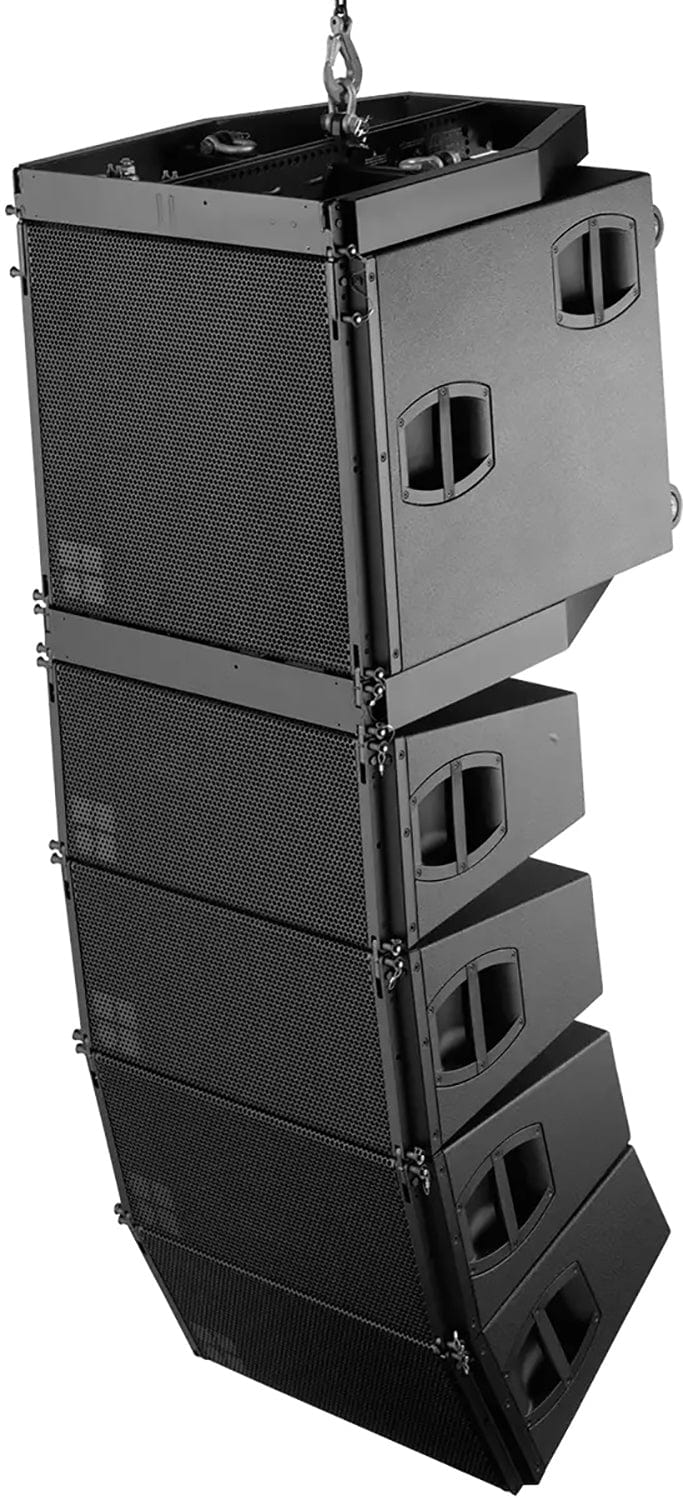

The d&b audiotechnik V-SUB is an actively driven high performance cardioid subwoofer powered by a single amplifier channel, with integrated rigging. An 18 inch bass reflex driver faces front and a 12 inch driver in a two chamber bandpass design radiates to the rear for a cardioid pattern. It supplements V8 and V12 loudspeakers, ground stacked or flown, either on top of a V8 or V12 array or as a separate column. The marine plywood cabinet has a PCP finish, two handles on each side and an M20 high stand flange. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the V-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Flyable cardioid subwoofer with integrated rigging
- 18 inch front driver and 12 inch rear driver
- 37 to 115 Hz frequency response
- Up to 137 dB SPLmax
- 0 and 2.5 degree splay settings
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V-SUB (NLT4 F/M) |
| Type | Flyable cardioid subwoofer |
| Frequency Response | 37 to 115 Hz (standard), 37 to 95 Hz (100 Hz mode), -5 dB |
| Max SPL | 133 dB with D20/30D, 137 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 800 W RMS / 3200 W peak (10 ms) |
| Splay Angle Settings | 0 and 2.5 degrees |
| Components | 1 x 18 inch driver, 1 x 12 inch driver |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 606 x 700 x 728 / 830 mm |
| Weight | 64 kg (141 lb) |
Why Buy the d&b audiotechnik V-SUB NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V-SUB NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik V-SUB supplements V8 and V12 loudspeakers, flown on top of a V8 or V12 array, as a separate column, or ground stacked.
The d&b audiotechnik V-SUB uses an 18 inch bass reflex driver facing front and a 12 inch driver in a two chamber bandpass design radiating to the rear, from one amplifier channel.
The d&b audiotechnik V-SUB covers 37 to 115 Hz in standard mode and 37 to 95 Hz in 100 Hz mode (-5 dB).
This version of the d&b audiotechnik V-SUB has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik V-SUB weighs 64 kg (141 lb) and measures 606 x 700 x 728 / 830 mm.
Trianze Tech supplies the d&b audiotechnik V-SUB NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
