d&b audiotechnik V-SUB Flyable Cardioid Subwoofer with NL4 Connection

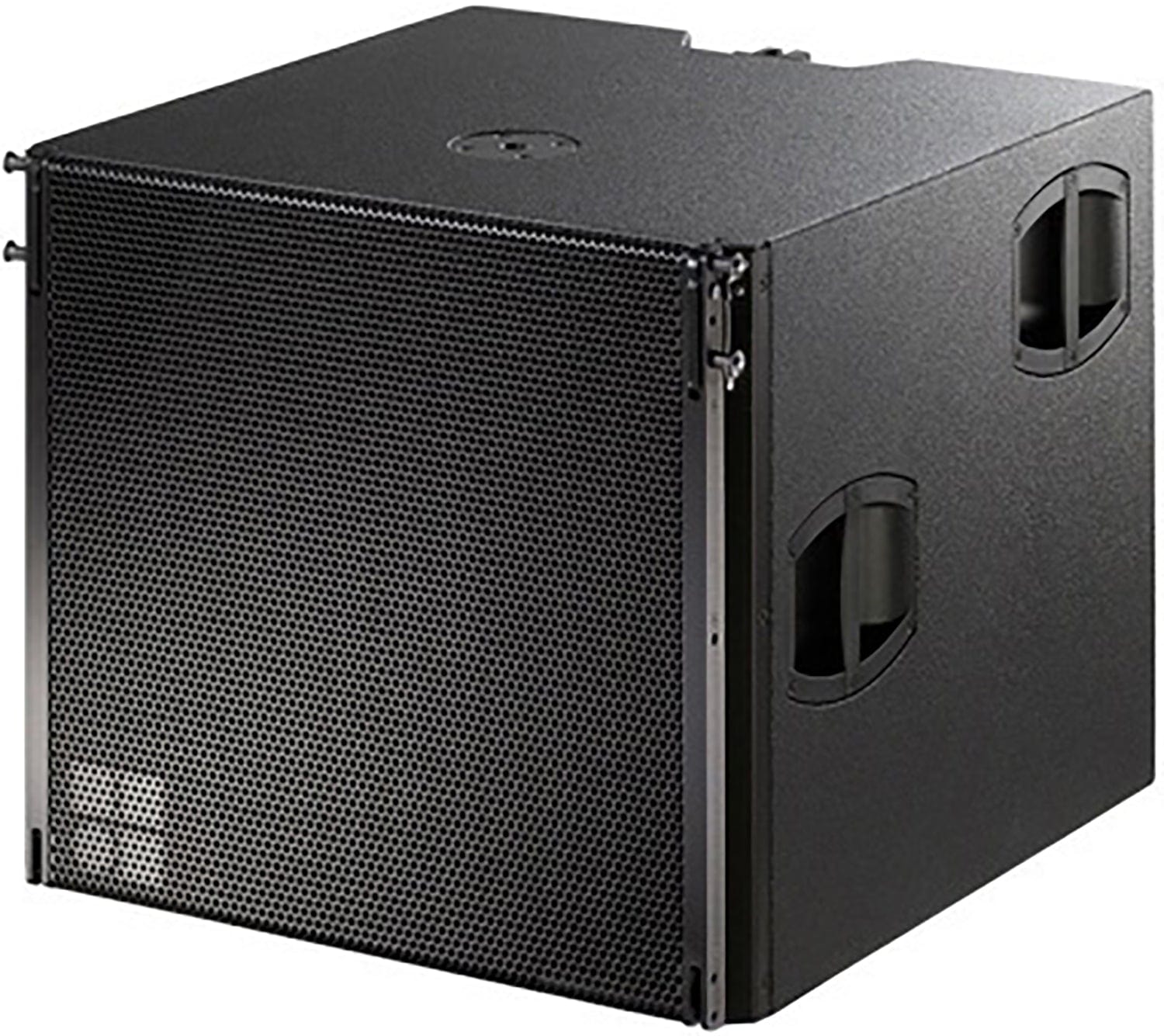

The d&b audiotechnik V-SUB is an actively driven high performance cardioid subwoofer powered by a single amplifier channel, with integrated rigging. An 18 inch bass reflex driver faces front and a 12 inch two chamber bandpass driver radiates to the rear for accurate low frequency reproduction. It supplements V8 and V12 loudspeakers, flown on top of an array, as a separate column or ground stacked. The marine plywood cabinet has a PCP finish, two handles per side and an M20 high stand flange. This listing is the NL4 connection version. Trianze Tech supplies the V-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Flyable cardioid subwoofer with integrated rigging
- 18 inch front driver and 12 inch rear driver
- 37 to 115 Hz frequency response
- Up to 137 dB SPLmax
- M20 high stand flange
- NL4 connection version
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V-SUB (NL4) |
| Type | Flyable cardioid subwoofer |
| Frequency Response | 37 to 115 Hz (standard), 37 to 95 Hz (100 Hz mode), -5 dB |
| Max SPL | 133 dB with D20/30D, 137 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 800 W RMS / 3200 W peak (10 ms) |
| Splay Angle Settings | 0 and 2.5 degrees |
| Components | 1 x 18 inch driver, 1 x 12 inch driver |
| Connections | NL4 version (d&b standard 2 x NLT4 F/M, optional 2 x NL4) |
| Dimensions (H x W x D) | 606 x 700 x 728 / 830 mm |
| Weight | 64 kg (141 lb) |
Why Buy the d&b audiotechnik V-SUB NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V-SUB NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This listing is the NL4 connection version of the d&b audiotechnik V-SUB. The d&b standard is 2 x NLT4 F/M with 2 x NL4 as an option.
The d&b audiotechnik V-SUB supplements V8 and V12 loudspeakers, flown on top of the array, as a separate column, or ground stacked.
The d&b audiotechnik V-SUB reaches 133 dB with a D20 or 30D and 137 dB with a D40, D80 or 40D.
The d&b audiotechnik V-SUB handles 800 W RMS and 3200 W peak (10 ms) at a nominal impedance of 8 ohms.
The d&b audiotechnik V-SUB weighs 64 kg (141 lb) and measures 606 x 700 x 728 / 830 mm.
