d&b audiotechnik V12: 3 Way Passive Line Array Loudspeaker, 120 Degree Horizontal, NLT4 F/M Connections
Model
:
V12 NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik V12 3 Way Line Array Loudspeaker with NLT4 F/M Connections

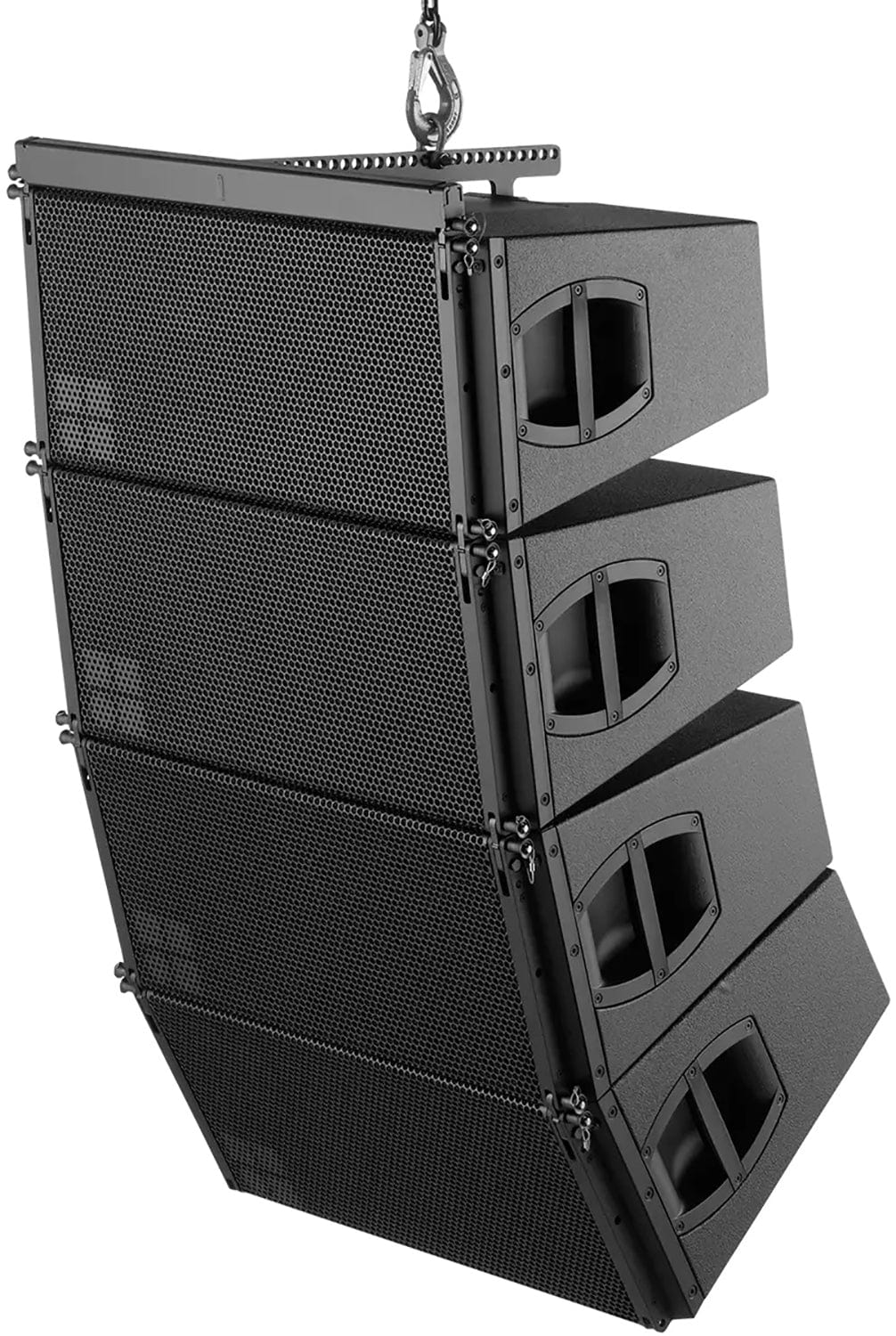

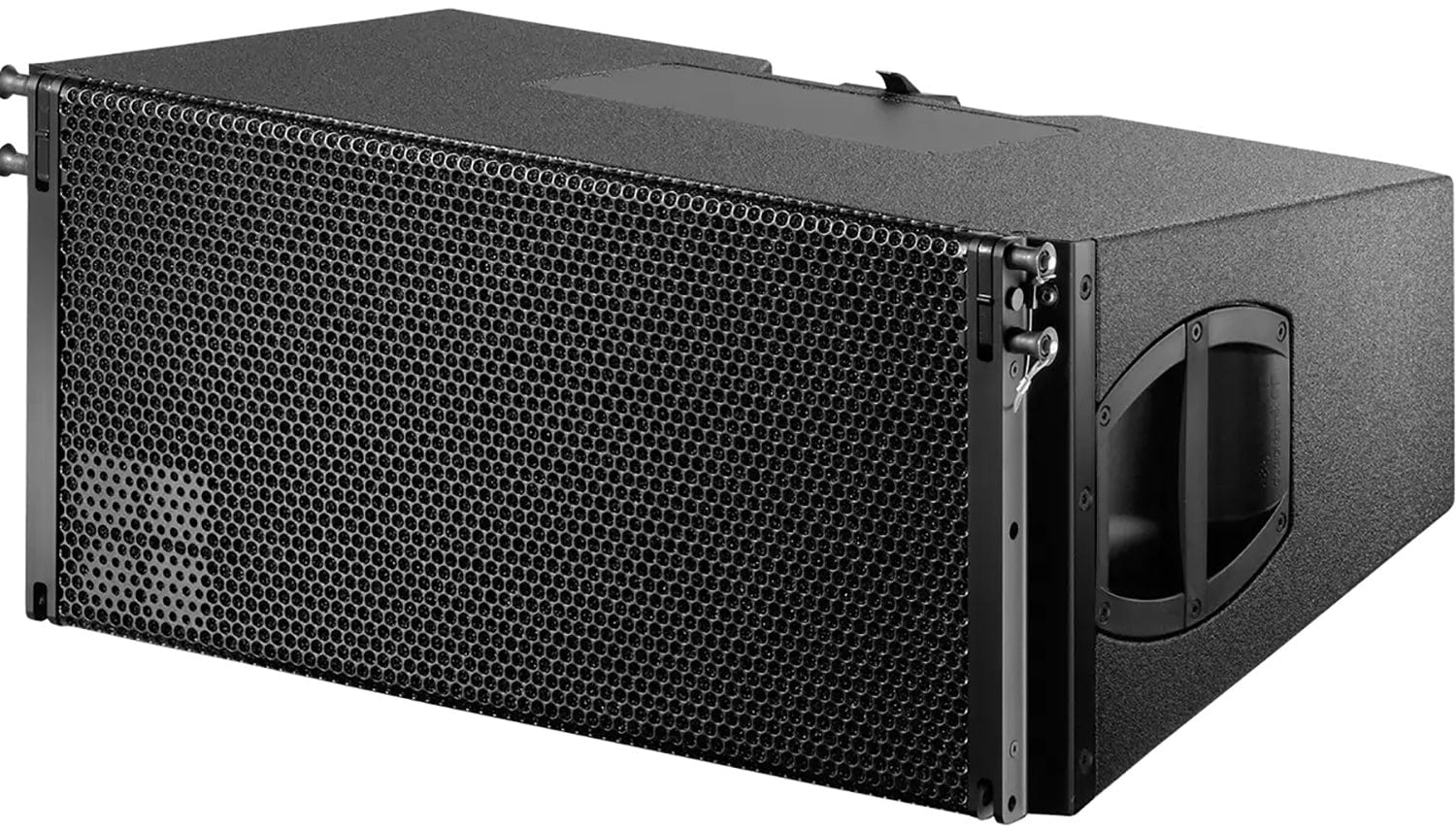

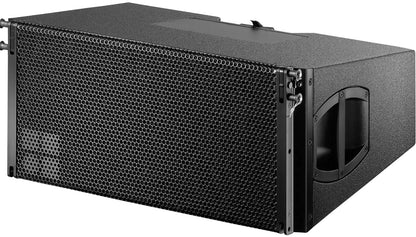

The d&b audiotechnik V12 is a 3 way passive line array loudspeaker with 2 x 10 inch LF drivers, a horn loaded 8 inch MF driver and two 1.4 inch HF compression drivers on a waveshaping device. The symmetrical dipolar arrangement gives a smooth crossover overlap and 120 degree horizontal constant directivity down to 250 Hz. Arrays of up to twenty four loudspeakers can be flown, alone or combined with V8 and V-SUB cabinets. The marine plywood cabinet has a PCP finish, side handles and rear recessed grips. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the V12 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 3 way passive line array design
- 120 degree horizontal dispersion controlled down to 250 Hz
- Up to 142 dB SPLmax
- Splay angles 0 to 14 degrees in 1 degree steps
- Arrays of up to twenty four cabinets
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V12 (NLT4 F/M) |
| Type | 3 way passive line array loudspeaker |
| Frequency Response | 67 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 139 dB with D20/30D, 142 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 500 W RMS / 2000 W peak (10 ms) |
| Dispersion | 120 degrees horizontal |
| Splay Angle Settings | 0 to 14 degrees (1 degree increments) |
| Components | 2 x 10 inch, 1 x 8 inch, 2 x 1.4 inch compression drivers |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 310 x 700 x 460 mm |
| Weight | 34 kg (75 lb) |
Why Buy the d&b audiotechnik V12 NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V12 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik V12 has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik V12 covers 67 Hz to 18 kHz in standard mode and 100 Hz to 18 kHz in CUT mode (-5 dB).
The d&b audiotechnik V12 handles 500 W RMS and 2000 W peak (10 ms), with two cabinets per amplifier channel.
The d&b audiotechnik V12 offers splay angles from 0 to 14 degrees in 1 degree increments, in arrays of up to twenty four cabinets.
The d&b audiotechnik V12 measures 310 x 700 x 460 mm and weighs 34 kg (75 lb).
Trianze Tech supplies the d&b audiotechnik V12 NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
