d&b audiotechnik V12: 3 Way Passive Line Array Loudspeaker, 120 Degree Horizontal, NL4 Connections
Model
:
V12 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

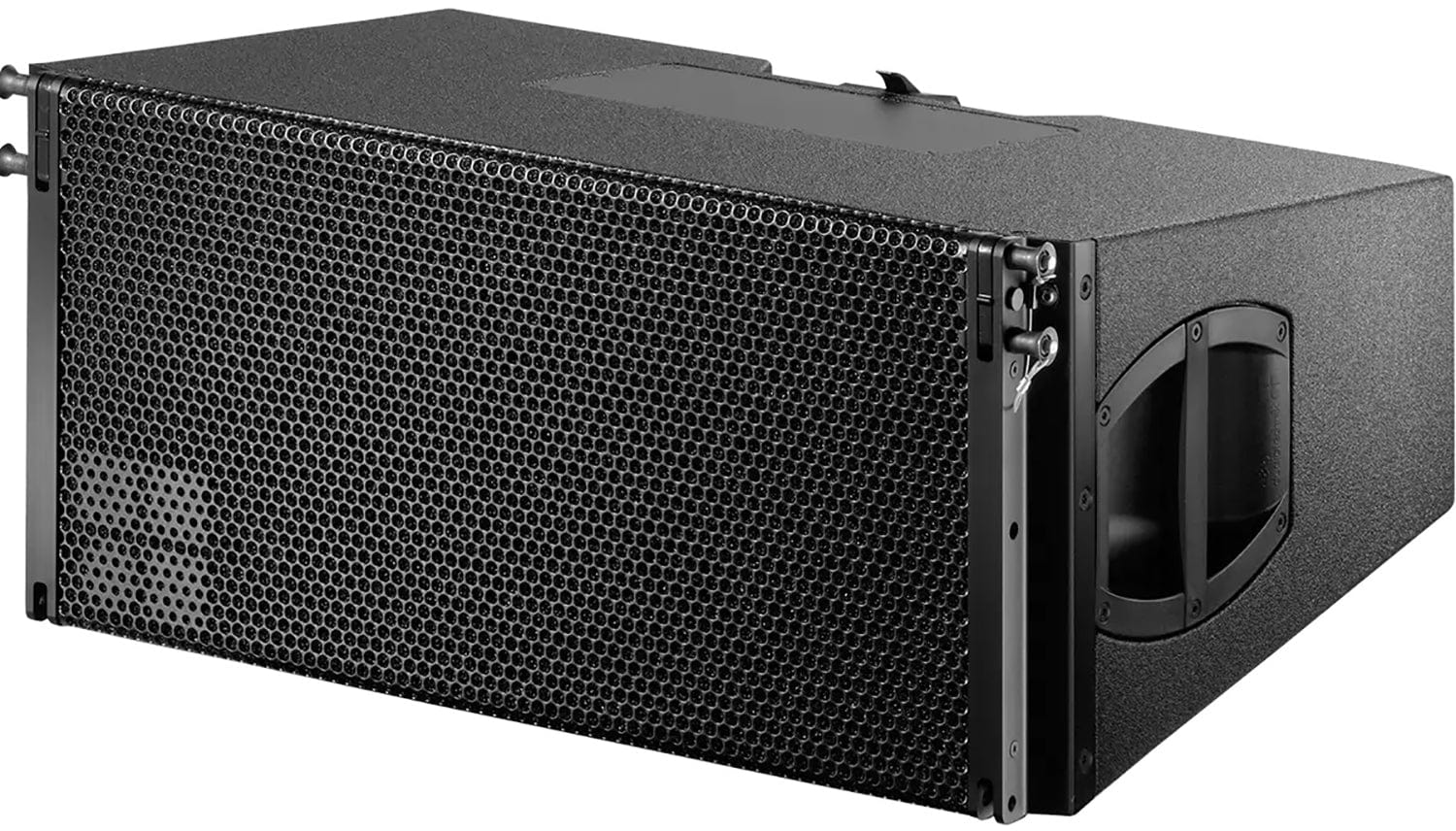

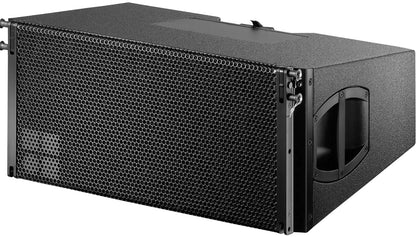

d&b audiotechnik V12 3 Way Line Array Loudspeaker with NL4 Connections
The d&b audiotechnik V12 is a 3 way passive line array loudspeaker with 2 x 10 inch LF drivers, one horn loaded 8 inch MF driver and two 1.4 inch exit HF compression drivers with 2.5 inch voice coils on a waveshaping device. The symmetrical dipolar layout gives 120 degree horizontal constant directivity maintained down to 250 Hz. Vertical arrays of up to twenty four loudspeakers can be flown, as pure V12 columns or combined with V8 and V-SUB cabinets. The marine plywood cabinet has a PCP finish and handles. This version has 2 x NL4 connectors. Trianze Tech supplies the V12 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 3 way passive line array design
- 120 degree horizontal dispersion controlled down to 250 Hz
- Up to 142 dB SPLmax
- Splay angles 0 to 14 degrees in 1 degree steps
- Arrays of up to twenty four cabinets
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V12 (NL4) |
| Type | 3 way passive line array loudspeaker |
| Frequency Response | 67 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 139 dB with D20/30D, 142 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 500 W RMS / 2000 W peak (10 ms) |
| Dispersion | 120 degrees horizontal |
| Splay Angle Settings | 0 to 14 degrees (1 degree increments) |
| Components | 2 x 10 inch, 1 x 8 inch, 2 x 1.4 inch compression drivers |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 310 x 700 x 460 mm |
| Weight | 34 kg (75 lb) |
Why Buy the d&b audiotechnik V12 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V12 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik V12 has 120 degree horizontal constant directivity maintained down to 250 Hz.
The d&b audiotechnik V12 reaches 139 dB with a D20 or 30D and 142 dB with a D40, D80 or 40D.

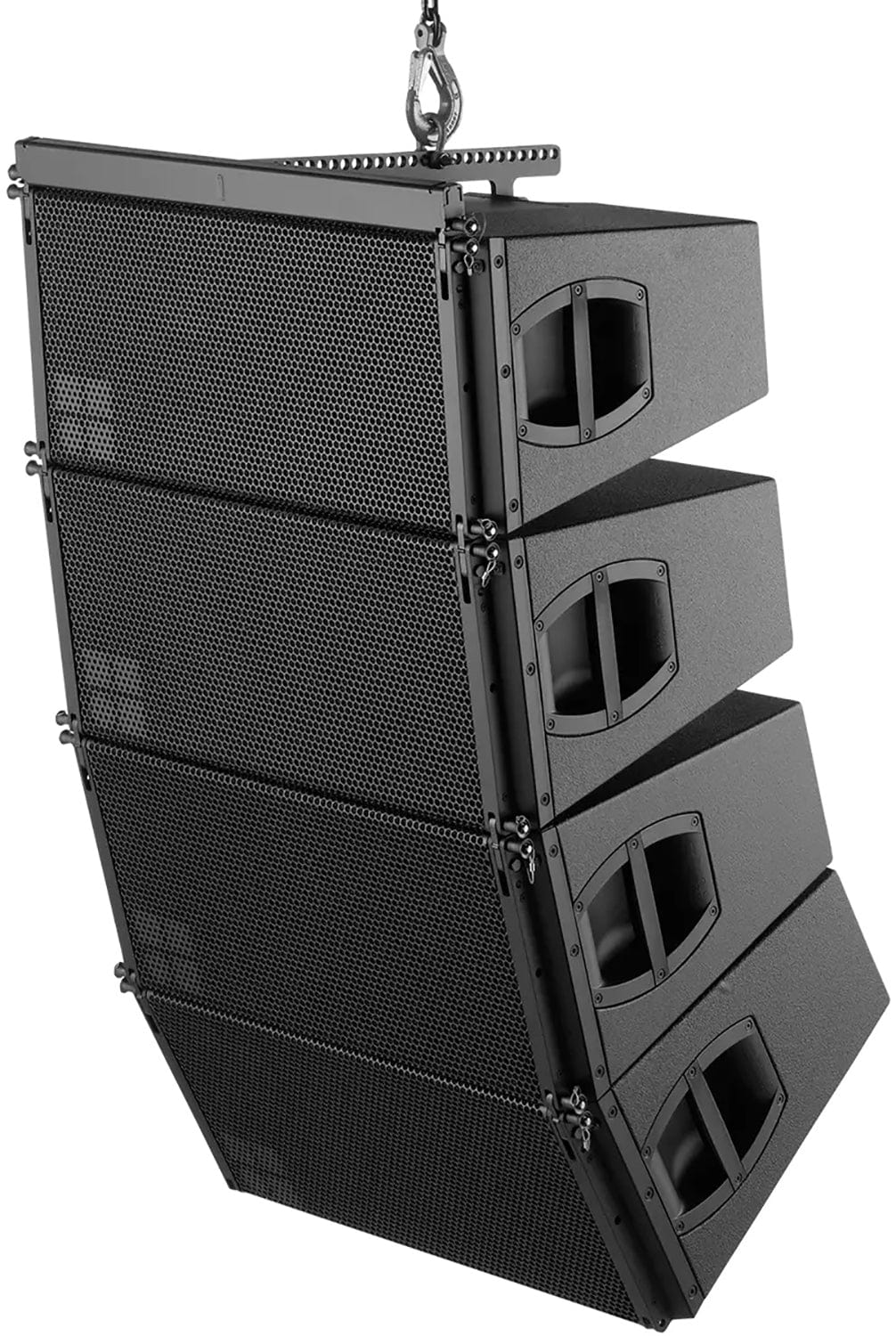

Up to twenty four d&b audiotechnik V12 cabinets can be flown in a vertical array, with splay angles from 0 to 14 degrees in 1 degree steps.
The d&b audiotechnik V12 has 120 degree horizontal dispersion and the V8 has 80 degrees, and both can be combined in the same column with V-SUB cabinets.
The d&b audiotechnik V12 weighs 34 kg (75 lb) and measures 310 x 700 x 460 mm (12.2 x 27.5 x 18 inches).
