d&b audiotechnik V8: 3 Way Passive Line Array Loudspeaker, 80 Degree Horizontal, NL4 Connections
Model
:
V8 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

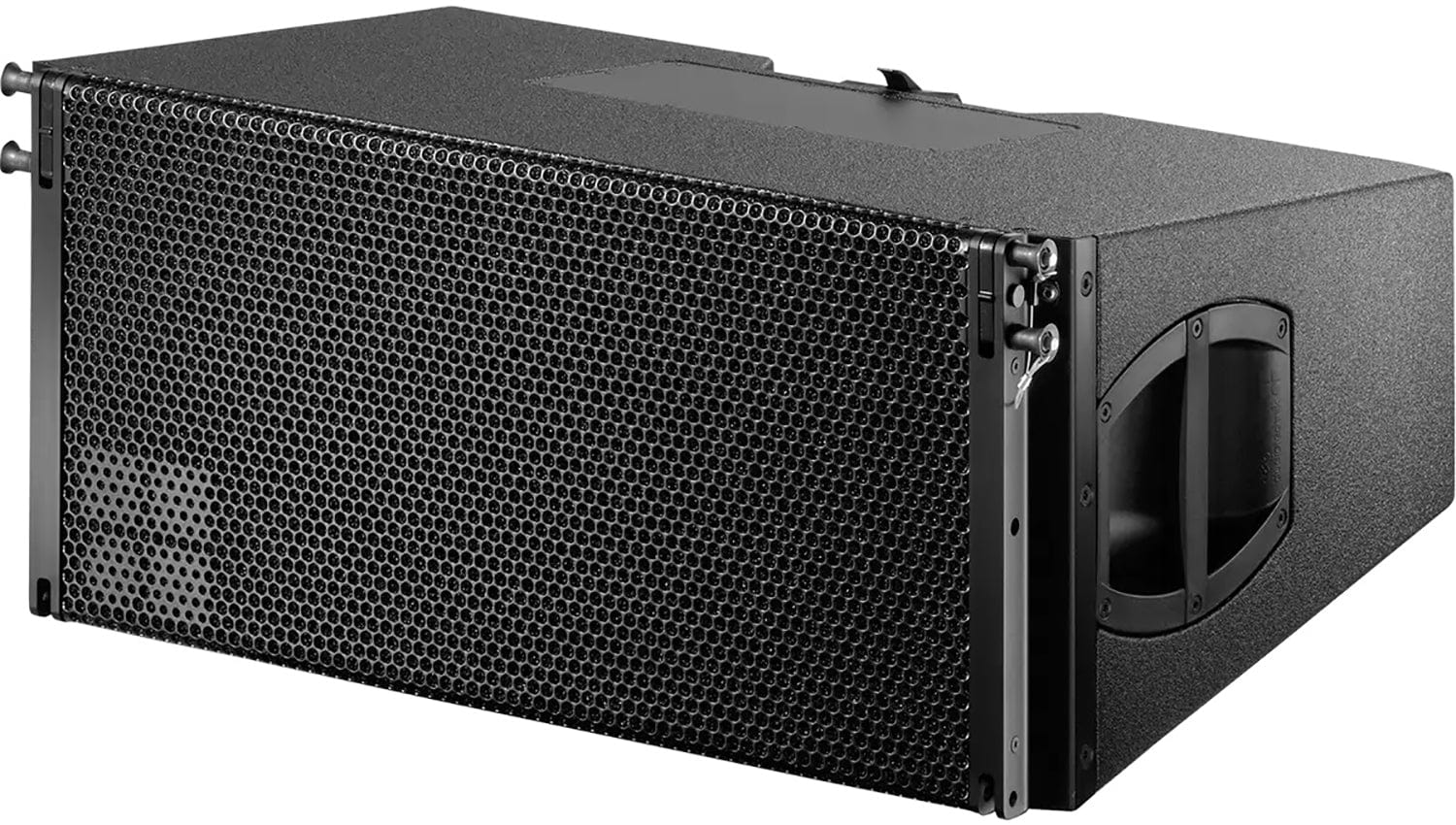

d&b audiotechnik V8 3 Way Line Array Loudspeaker with NL4 Connections
The d&b audiotechnik V8 is a 3 way passive line array loudspeaker with 2 x 10 inch LF drivers, one horn loaded 8 inch MF driver and two 1.4 inch exit HF compression drivers with 2.5 inch voice coils on a waveshaping device. The symmetrical dipolar layout gives 80 degree horizontal constant directivity maintained down to 250 Hz. Vertical arrays of up to twenty four loudspeakers can be flown, as pure V8 columns or combined with V12 and V-SUB cabinets. The marine plywood cabinet has a PCP finish and handles. This version has 2 x NL4 connectors. Trianze Tech supplies the V8 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 3 way passive line array design
- 80 degree horizontal dispersion controlled down to 250 Hz
- Up to 142 dB SPLmax
- Splay angles 0 to 14 degrees in 1 degree steps
- Arrays of up to twenty four cabinets
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V8 (NL4) |
| Type | 3 way passive line array loudspeaker |
| Frequency Response | 67 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 139 dB with D20/30D, 142 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 500 W RMS / 2000 W peak (10 ms) |
| Dispersion | 80 degrees horizontal |
| Splay Angle Settings | 0 to 14 degrees (1 degree increments) |
| Components | 2 x 10 inch, 1 x 8 inch, 2 x 1.4 inch compression drivers |

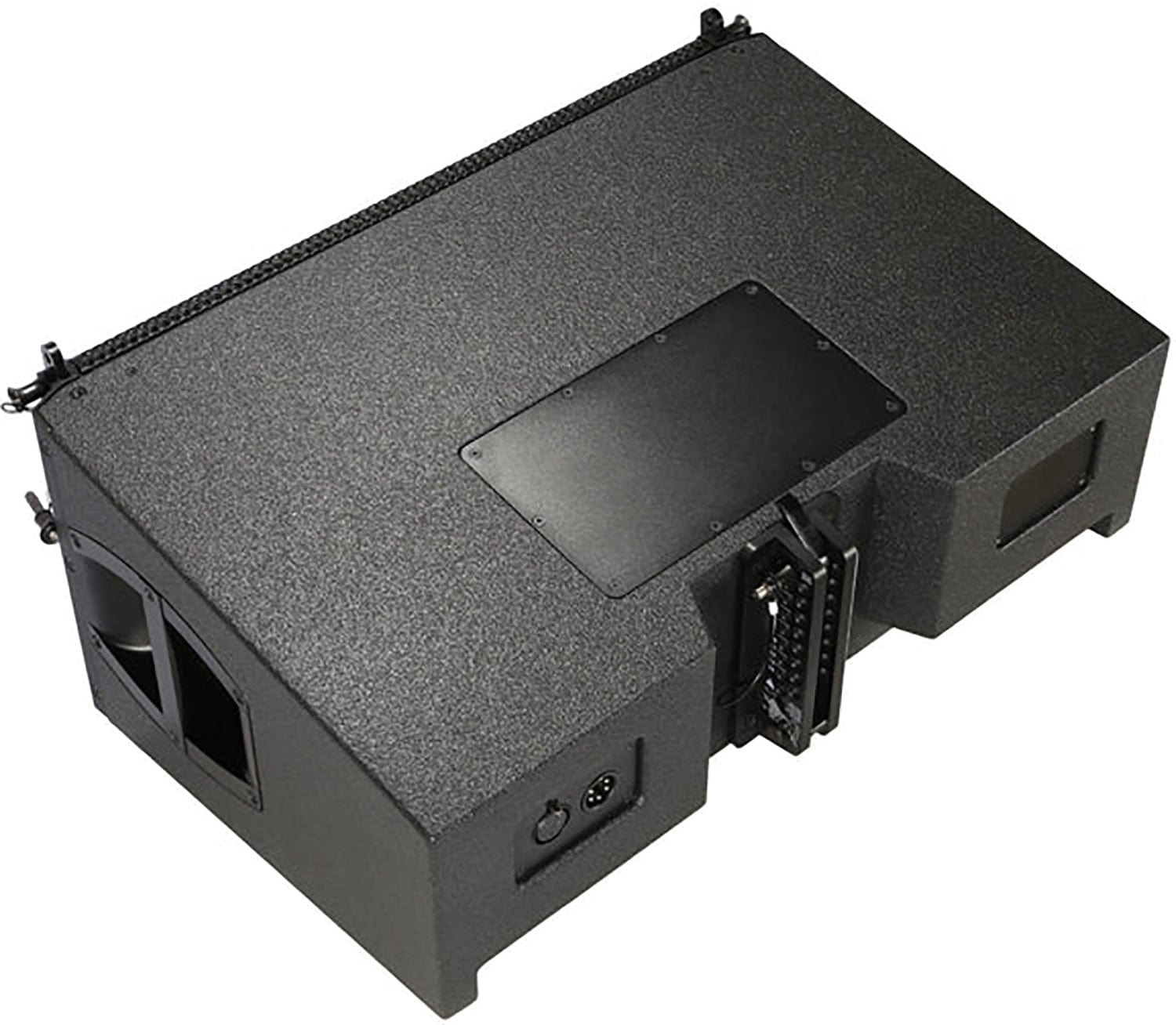

| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 310 x 700 x 460 mm |
| Weight | 34 kg (75 lb) |
Why Buy the d&b audiotechnik V8 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V8 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik V8 has 80 degree horizontal constant directivity maintained down to 250 Hz, suited to longer throw coverage.
The d&b audiotechnik V8 reaches 139 dB with a D20 or 30D and 142 dB with a D40, D80 or 40D.
Yes. The d&b audiotechnik V8 can be flown in pure V8 columns or combined with V12 and V-SUB cabinets in arrays of up to twenty four loudspeakers.
The d&b audiotechnik V8 uses 2 x 10 inch LF drivers, a horn loaded 8 inch MF driver and two 1.4 inch exit compression drivers with 2.5 inch voice coils.
The d&b audiotechnik V8 weighs 34 kg (75 lb) and measures 310 x 700 x 460 mm (12.2 x 27.5 x 18 inches).
Trianze Tech supplies the d&b audiotechnik V8 NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
