d&b audiotechnik E6: 6.5 Inch Coaxial Passive Loudspeaker with 100 x 55 Degree Rotatable Horn and NL4
Model
:
E6 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support

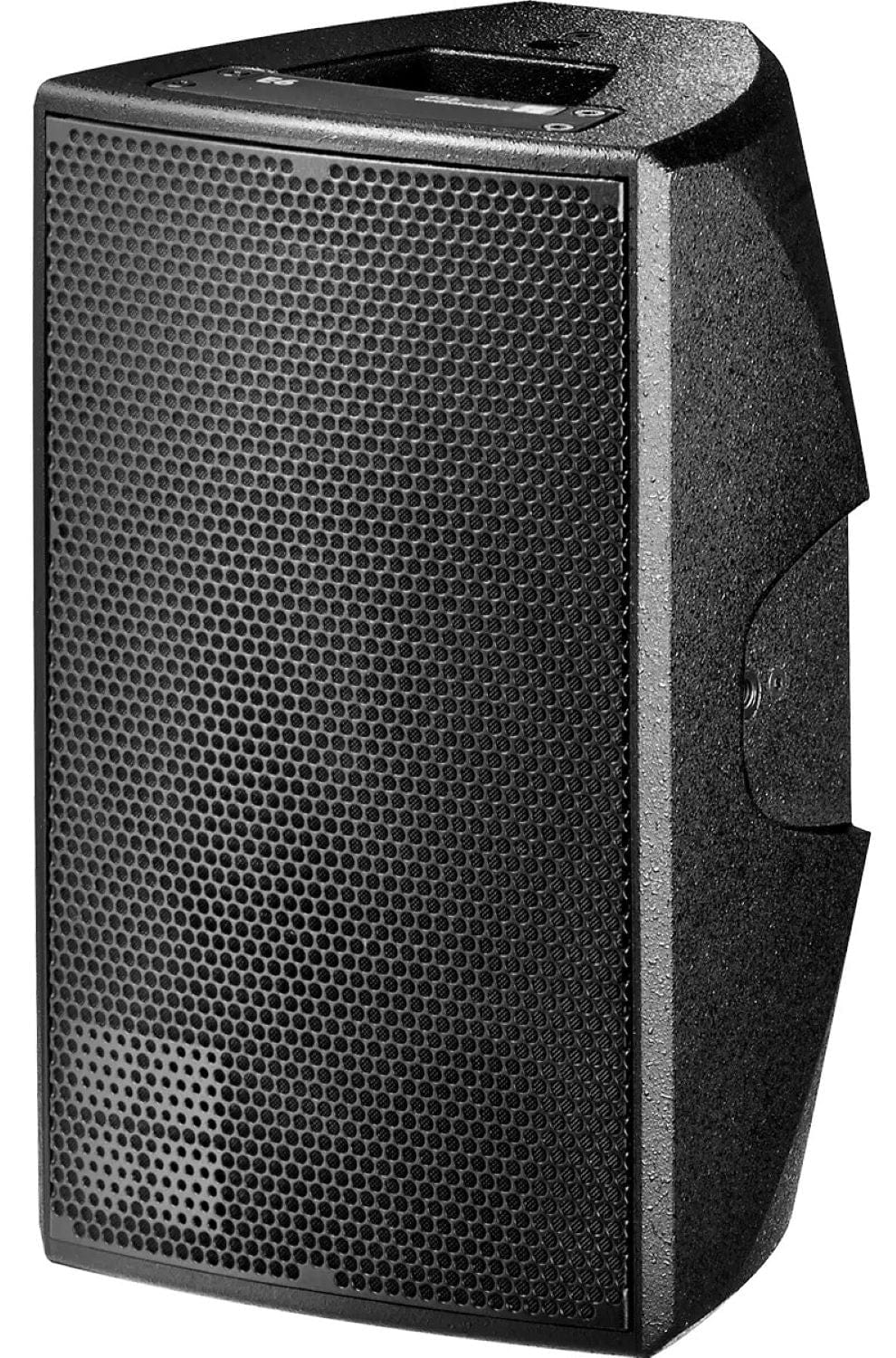

d&b audiotechnik E6 6.5 Inch Coaxial Loudspeaker with NL4 Connectors
The d&b audiotechnik E6 is a small high performance multipurpose loudspeaker with an integrated 6.5 inch and 1 inch coaxial driver. Its 100 x 55 degree horn rotates through 90 degrees without tools, so it deploys vertically or horizontally, including as a stage monitor, and it matches the larger E8 and E12. This version has 2 x NL4 connectors. Trianze Tech supplies the E6 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 6.5 inch neodymium driver with coaxial 1 inch compression driver
- 100 x 55 degree horn, rotatable without tools
- Up to 123 dB SPLmax with D12
- Stage monitor, vertical or horizontal use
- Compatible with E8 and E12 loudspeakers
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E6 (NL4) |
| Type | 2 way coaxial passive loudspeaker |
| Frequency Response | 85 Hz to 20 kHz (standard), 120 Hz to 20 kHz (CUT mode), -5 dB |
| Max SPL | 120 dB with D6 or E-PAC, 123 dB with D12 |
| Input Level (100 dB SPL/1 m) | -11 dBu |
| Nominal Impedance | 20 ohms |
| Power Handling | 150 W RMS / 800 W peak (10 ms) |
| Dispersion | 100 x 55 degrees, rotatable |
| Components | 6.5 inch neodymium driver, coaxial 1 inch compression driver with 1.75 inch coil |
| Connections | 2 x NL4 (1+/1-) |
| Weight | 5.0 kg (11 lb) |
Why Buy the d&b audiotechnik E6 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E6 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik E6 has a 100 x 55 degree horn that rotates through 90 degrees without tools, giving 55 x 100 degrees.
The d&b audiotechnik E6 reaches 120 dB maximum SPL with a D6 or E-PAC and 123 dB with a D12 (1 m, free field).
The d&b audiotechnik E6 has a nominal impedance of 20 ohms and handles 150 W RMS and 800 W peak (10 ms).
d&b audiotechnik names the E12X subwoofer, or any other E-Series subwoofer, as the way to let the E6 reproduce high level music program.
The d&b audiotechnik E6 weighs 5.0 kg (11 lb).
Trianze Tech supplies the d&b audiotechnik E6 NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
