d&b audiotechnik E12X-SUB: 12 Inch Compact Passive Subwoofer, Weather Resistant IP55 Version
Model
:
E12X-SUB WR
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

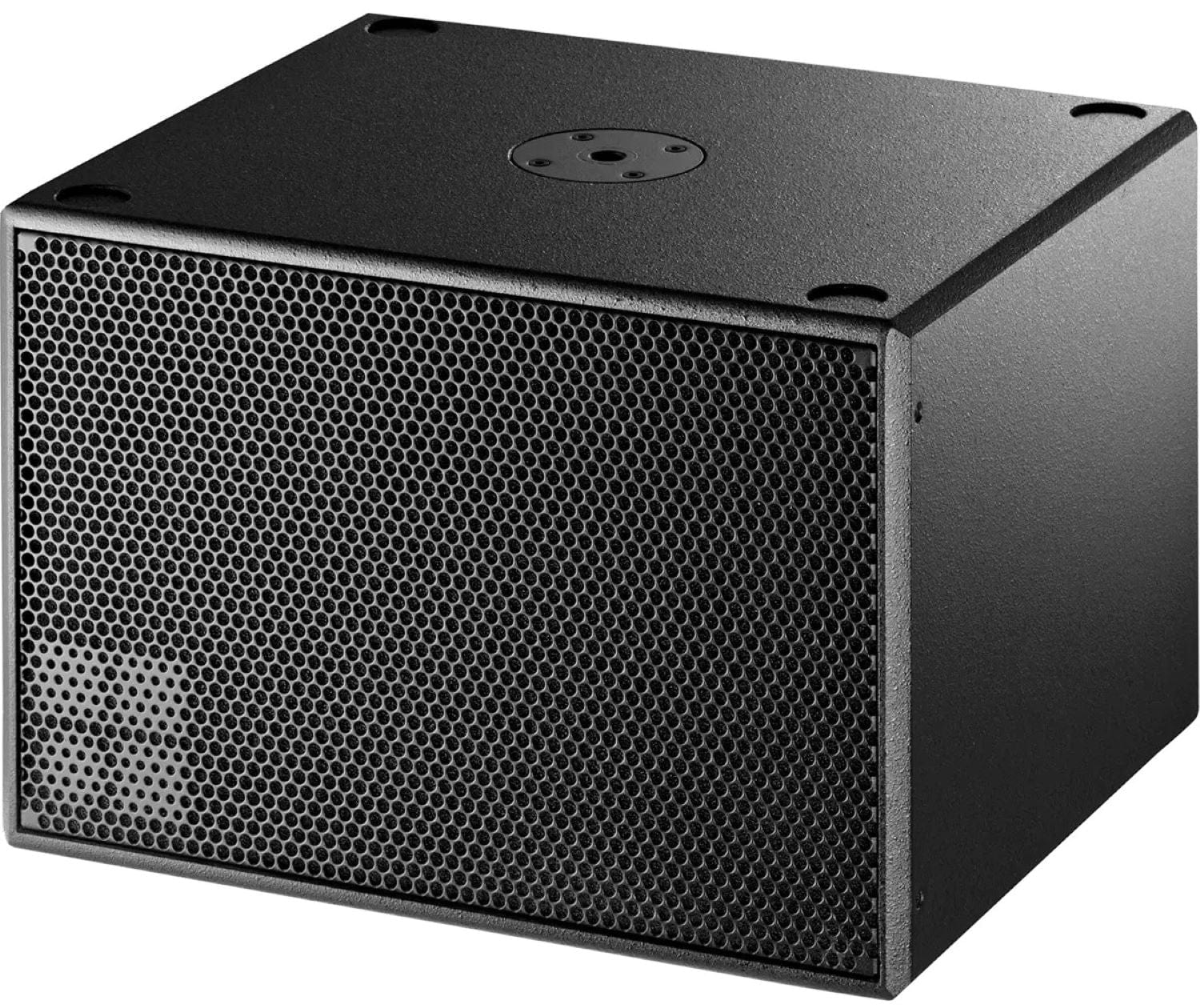

d&b audiotechnik E12X-SUB WR Weather Resistant Compact Subwoofer
The d&b audiotechnik E12X-SUB WR is the Weather Resistant version of the compact E12X-SUB, a lightweight 12 inch subwoofer for d&b E-Series loudspeakers. The Weather Resistant option provides an IP55 rating for operation in changing ambient conditions, and the cabinet uses a Faston connector. It can run passively alongside an E8 or actively on its own amplifier channel. Trianze Tech supplies the E12X-SUB WR for outdoor projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- IP55 Weather Resistant version
- 12 inch compact subwoofer for E-Series
- Passive operation with an E8 or active mode
- Up to 127 dB SPLmax
- 45 to 140 Hz in 140 Hz mode
- Faston connector type 2
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E12X-SUB WR |
| Type | Compact passive subwoofer, weather resistant |
| Protection | IP55 |
| Frequency Response | 45 to 100 Hz (standard), 45 to 140 Hz (140 Hz mode), -5 dB |
| Max SPL | 124 dB with 10D, 127 dB with D20/5D/30D/D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Connections | Faston connector type 2 |
| Dimensions (H x W x D) | 358 x 530 x 448 mm |
| Weight | 18 kg (40 lb) |
Why Buy the d&b audiotechnik E12X-SUB WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E12X-SUB WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik E12X-SUB Weather Resistant option provides an IP55 rating for operation in changing ambient conditions.
The d&b audiotechnik E12X-SUB WR uses a Faston connector type 2.
The d&b audiotechnik E12X-SUB WR covers 45 to 100 Hz in standard mode and 45 to 140 Hz in 140 Hz mode (-5 dB).
The d&b audiotechnik E12X-SUB WR reaches 124 dB maximum SPL with a 10D and 127 dB with a D20, 5D, 30D, D40, D80 or 40D.
The d&b audiotechnik E12X-SUB WR measures 358 x 530 x 448 mm and weighs 18 kg (40 lb).
Trianze Tech supplies the d&b audiotechnik E12X-SUB WR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
