d&b audiotechnik E12X-SUB: 12 Inch Compact Passive Subwoofer for E-Series with Twist Lock Connectors
Model
:
E12X-SUB NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

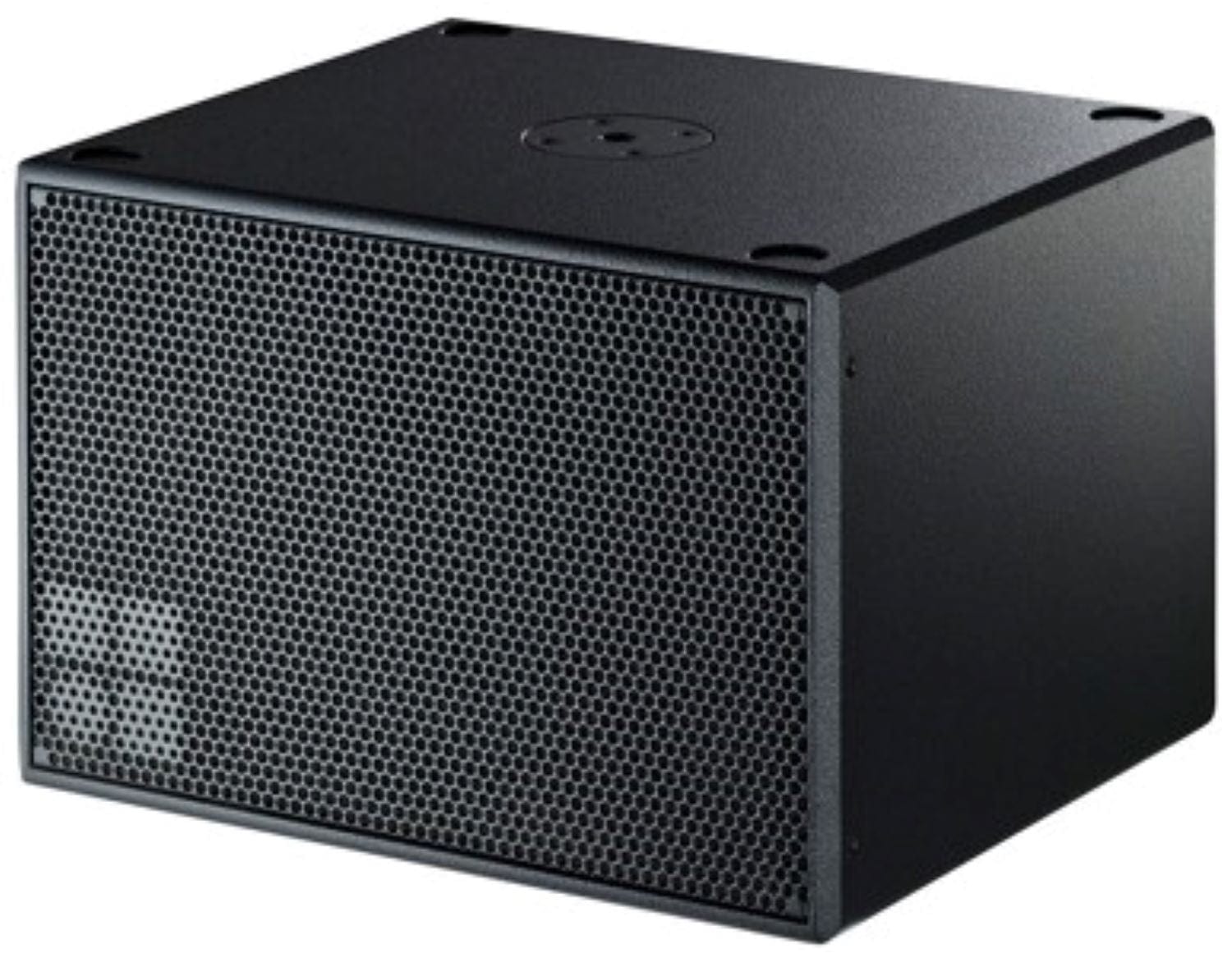

d&b audiotechnik E12X-SUB 12 Inch Compact Subwoofer with NLT4 F/M
The d&b audiotechnik E12X-SUB is a compact, lightweight, high performance subwoofer for d&b E-Series loudspeakers. Its built in passive crossover lets it run in parallel with an E8 on the same amplifier channel, or it can be driven actively on its own channel to supplement any E-Series cabinet. This version is fitted with 2 x NLT4 F/M connectors for rental and touring cabling. Trianze Tech supplies the E12X-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12 inch compact subwoofer for E-Series
- Passive operation in parallel with an E8 on one amplifier channel
- Active mode on its own amplifier channel
- Up to 127 dB SPLmax
- Marine plywood cabinet with M20 threaded flange
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E12X-SUB (NLT4 F/M) |
| Type | Compact passive subwoofer |
| Frequency Response | 45 to 100 Hz (standard), 45 to 140 Hz (140 Hz mode), -5 dB |
| Max SPL | 124 dB with 10D, 127 dB with D20/5D/30D/D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Components | 12 inch driver |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 358 x 530 x 448 mm |
| Weight | 18 kg (40 lb) |
Why Buy the d&b audiotechnik E12X-SUB NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E12X-SUB NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This d&b audiotechnik E12X-SUB version is fitted with 2 x NLT4 F/M connectors.
Yes. The d&b audiotechnik E12X-SUB can be driven actively from its own amplifier channel without any changes to the subwoofer, supplementing any E-Series cabinet.
The d&b audiotechnik E12X-SUB handles 300 W RMS and 1600 W peak (10 ms) at a nominal impedance of 8 ohms.
Up to two d&b audiotechnik E12X-SUB cabinets can be driven per amplifier channel.
The d&b audiotechnik E12X-SUB weighs 18 kg (40 lb) and measures 358 x 530 x 448 mm.
Trianze Tech supplies the d&b audiotechnik E12X-SUB NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
