d&b audiotechnik E12X-SUB: 12 Inch Compact Passive Subwoofer for E-Series, NL4 Connectors
Model
:
E12X-SUB NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

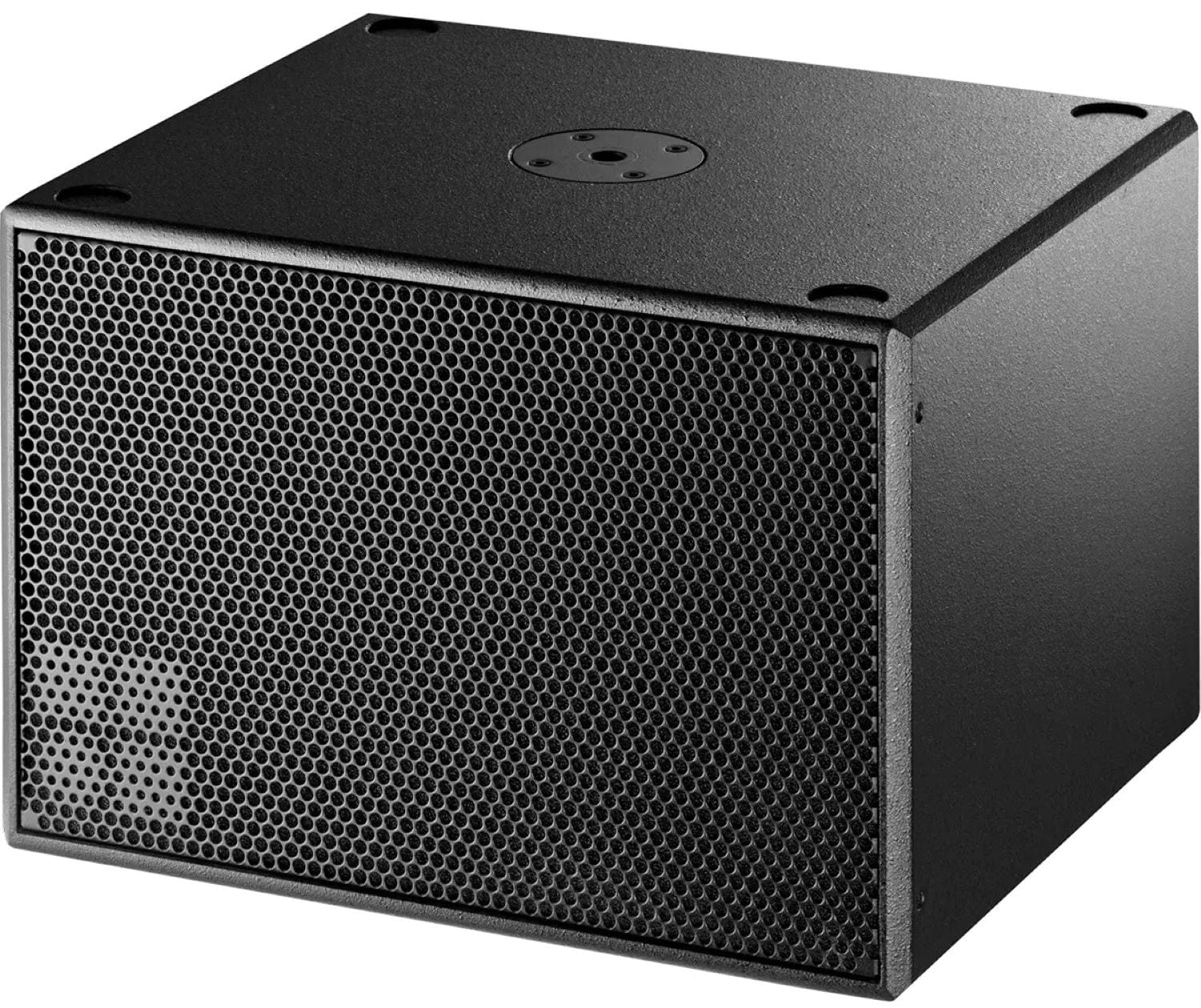

d&b audiotechnik E12X-SUB 12 Inch Compact Subwoofer with NL4
The d&b audiotechnik E12X-SUB is a compact, lightweight, high performance subwoofer for d&b E-Series loudspeakers. Its built in passive crossover lets it run in parallel with an E8 on the same amplifier channel, or it can be driven actively on its own channel to supplement any E-Series cabinet. The marine plywood cabinet has an M20 threaded flange for a loudspeaker stand. This version has 2 x NL4 connectors. Trianze Tech supplies the E12X-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12 inch compact subwoofer for E-Series
- Passive operation in parallel with an E8 on one amplifier channel
- Active mode with its own amplifier channel
- Up to 127 dB SPLmax
- Marine plywood cabinet with M20 threaded flange
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E12X-SUB (NL4) |
| Type | Compact passive subwoofer |
| Frequency Response | 45 to 100 Hz (standard), 45 to 140 Hz (140 Hz mode), -5 dB |
| Max SPL | 124 dB with 10D, 127 dB with D20/5D/30D/D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Components | 12 inch driver |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 358 x 530 x 448 mm |
| Weight | 18 kg (40 lb) |
Why Buy the d&b audiotechnik E12X-SUB NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E12X-SUB NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. With the E8-X configuration selected, the d&b audiotechnik E12X-SUB runs passively in parallel with an E8 on the same amplifier channel.
The d&b audiotechnik E12X-SUB can be driven by the D20, D40 and D80 mobile amplifiers and the 5D, 10D, 30D and 40D installation amplifiers.
The d&b audiotechnik E12X-SUB covers 45 to 100 Hz in standard mode and 45 to 140 Hz in 140 Hz mode (-5 dB).
The d&b audiotechnik E12X-SUB reaches 124 dB maximum SPL with a 10D and 127 dB with a D20, 5D, 30D, D40, D80 or 40D.
The d&b audiotechnik E12X-SUB measures 358 x 530 x 448 mm (14.1 x 20.9 x 17.6 inches) and weighs 18 kg (40 lb).
Trianze Tech supplies the d&b audiotechnik E12X-SUB NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
