d&b audiotechnik M2: Active 2 x 12 Inch Low Profile Stage Monitor, 45 x 60 Degree, NL8 Connections
Model
:
M2 NL8
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

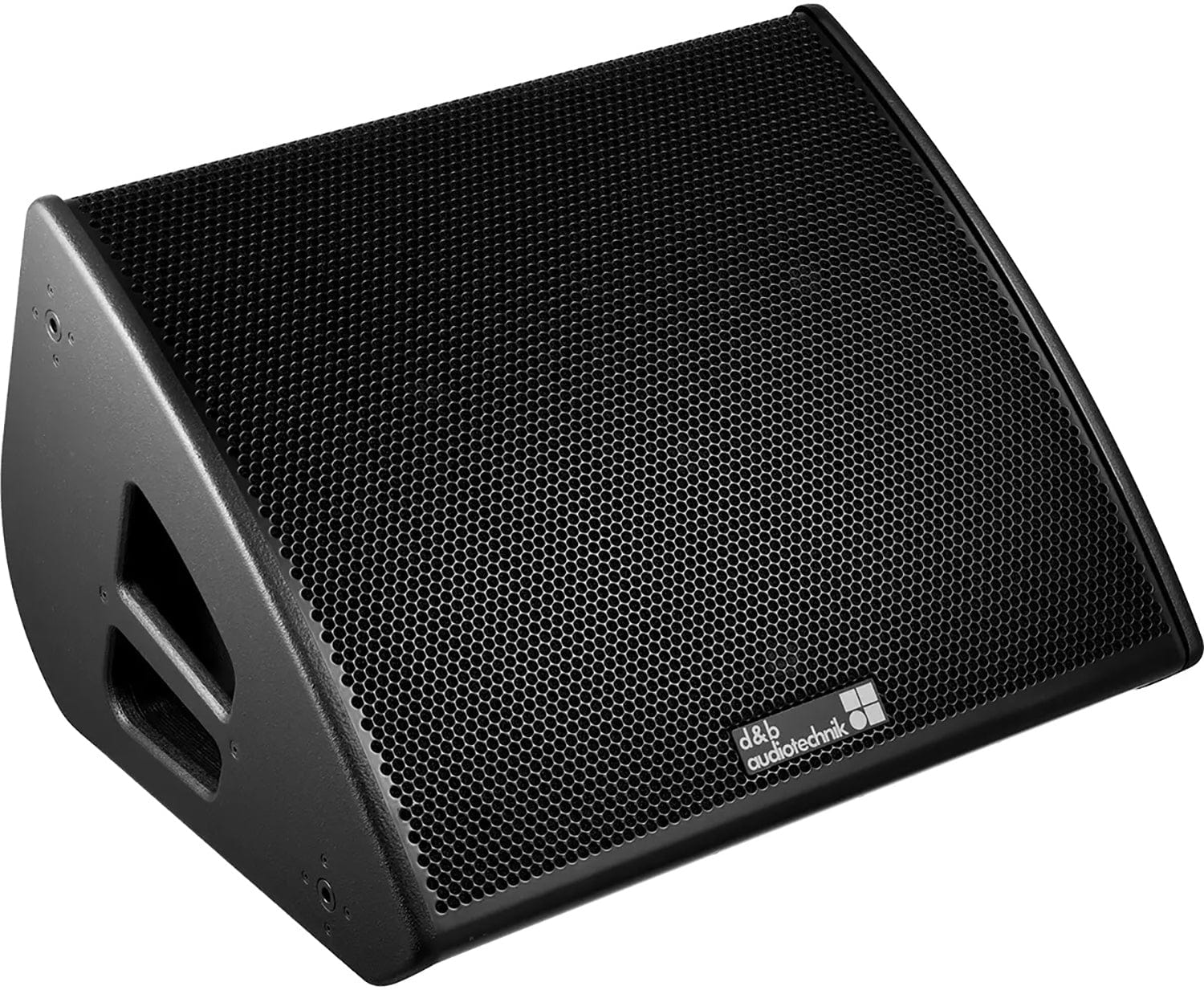

d&b audiotechnik M2 High Performance Stage Monitor with NL8 Connections
The d&b audiotechnik M2 is a high performance stage monitor with two 12 inch LF drivers in a bass reflex enclosure optimised for minimal air compression and a 1.4 inch exit HF compression driver on a low distortion waveguide horn. It is actively crossed over and powered by both channels of a d&b amplifier, with constant directivity from 600 Hz upward at 45 x 60 degrees and a 40 degree baffle angle that keeps solo voices clearly in front of the mix. Fittings on both sides accept the 10 mm flying pin. This version has 2 x NL8 connectors. Trianze Tech supplies the M2 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 12 inch LF drivers and 1.4 inch HF compression driver
- Actively crossed over, powered by both amplifier channels
- 45 x 60 degree dispersion from 600 Hz upward
- 143 dB SPLmax
- Low profile cabinet with 40 degree baffle angle
- 2 x NL8 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | M2 (NL8) |
| Type | Active 2 way stage monitor |
| Frequency Response | 50 Hz to 17 kHz, -5 dB |
| Max SPL | 143 dB with 30D or D80 (1 m, free field) |
| Nominal Impedance | 4 ohms LOW / 8 ohms HIGH |
| Power Handling LOW | 500 W RMS / 2000 W peak (10 ms) |
| Power Handling HIGH | 50 W RMS / 200 W peak (10 ms) |
| Dispersion | 45 x 60 degrees |
| Components | 2 x 12 inch drivers, 1.4 inch compression driver with CD horn |
| Connections | 2 x NL8 |
| Weight | 38 kg (83 lb) |
Why Buy the d&b audiotechnik M2 NL8 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the M2 NL8 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik M2 has 2 x NL8 connectors, with nominal impedances of 4 ohms LOW and 8 ohms HIGH.
The d&b audiotechnik M2 component layout allows a low profile cabinet that still holds constant directivity from 600 Hz upward, with a 40 degree baffle angle to the floor.
The d&b audiotechnik M2 handles 500 W RMS and 2000 W peak on the LOW section and 50 W RMS and 200 W peak on the HIGH section (10 ms).
The d&b audiotechnik M2 is powered by both channels of an appropriate d&b amplifier and reaches 143 dB with a 30D or D80.
The d&b audiotechnik M2 weighs 38 kg (83 lb).
Trianze Tech supplies the d&b audiotechnik M2 NL8 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
