  • d&b audiotechnik M2 stage monitor, NLT4 version
1 1

d&b audiotechnik M2: Active 2 x 12 Inch Low Profile Stage Monitor, 45 x 60 Degree, NLT4 F/M Connections

  • Active 2 x 12 inch stage monitor
  • 45 x 60 degree dispersion
  • 143 dB SPLmax
  • 2 x NLT4 F/M connectors
Brand :d&b audiotechnik
Model : M2 NLT4 F/M

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Large concert stage monitoring
  • Touring and rental inventory
  • Festival stages
  • Vocal and lead instrument monitoring
d&b audiotechnik M2 stage monitor, NLT4 version
d&b audiotechnik M2 NLT4 F/M
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

d&b audiotechnik M2 High Performance Stage Monitor with NLT4 F/M Connections

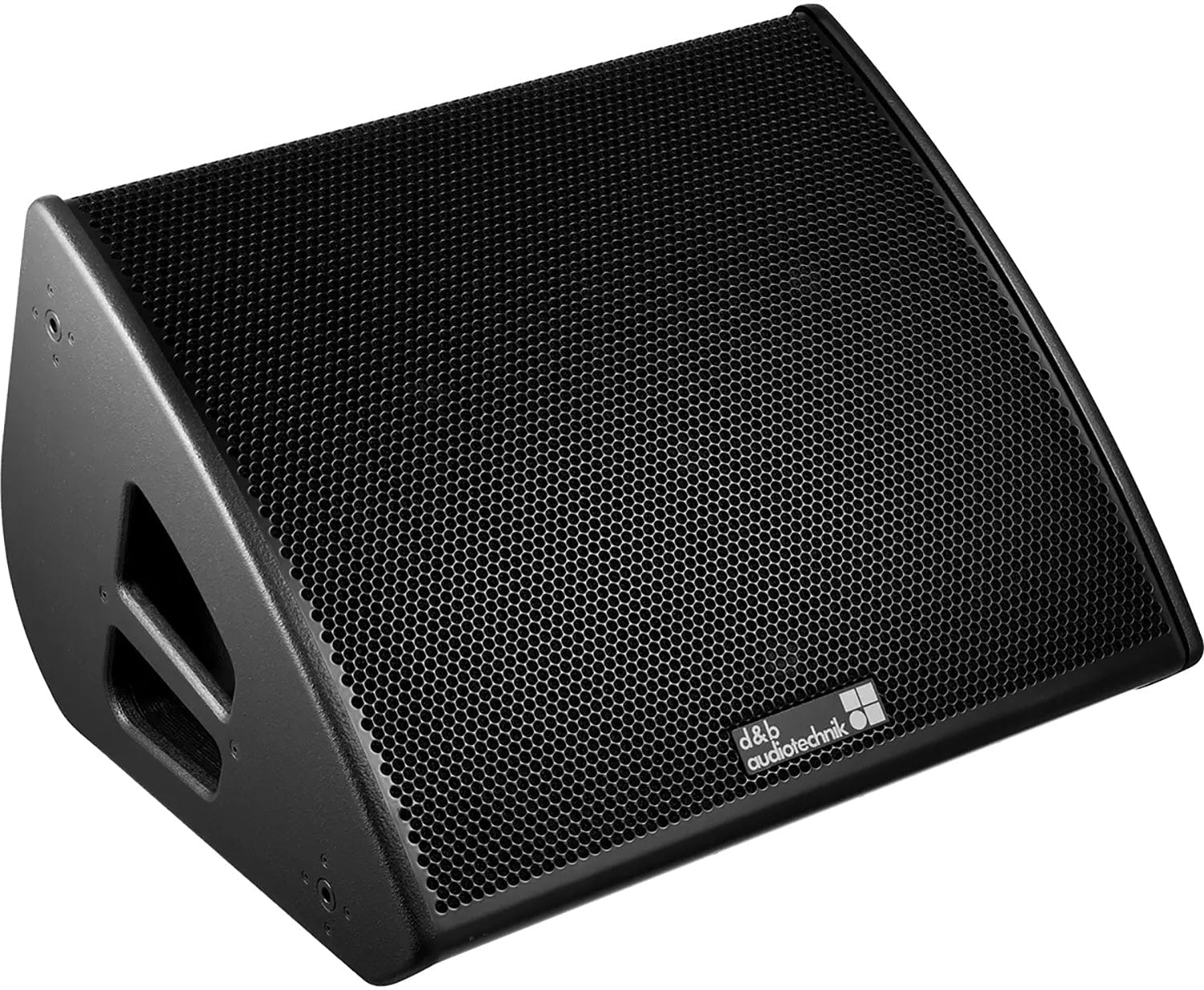

The d&b audiotechnik M2 is a high performance stage monitor with two 12 inch LF drivers in a bass reflex enclosure and a 1.4 inch exit HF compression driver on a low distortion waveguide horn. It is actively crossed over and powered by both channels of a d&b amplifier. The low profile cabinet achieves constant directivity from 600 Hz upwards with 45 x 60 degree dispersion, and a 40 degree baffle angle gives the artist a listening area starting directly above the cabinet and reaching far upstage. Fittings on both sides accept the 10 mm flying pin. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the M2 in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • 2 x 12 inch LF drivers and 1.4 inch HF compression driver
  • Actively crossed over, powered by both amplifier channels
  • 45 x 60 degree dispersion from 600 Hz upward
  • 143 dB SPLmax
  • 40 degree baffle angle
  • 2 x NLT4 F/M connectors

Technical Specifications:

Spec Value
Model M2 (NLT4 F/M)
Type Active 2 way stage monitor
Frequency Response 50 Hz to 17 kHz, -5 dB
Max SPL 143 dB with 30D or D80 (1 m, free field)
Nominal Impedance 4 ohms LOW / 8 ohms HIGH
Power Handling LOW 500 W RMS / 2000 W peak (10 ms)
Power Handling HIGH 50 W RMS / 200 W peak (10 ms)
Dispersion 45 x 60 degrees
Components 2 x 12 inch drivers, 1.4 inch compression driver with CD horn
Connections 2 x NLT4 F/M
Weight 38 kg (83 lb)

Why Buy the d&b audiotechnik M2 NLT4 F/M from Trianze Tech?

  • Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
  • System design help matching the M2 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Pre-sales guidance for touring, live event and installed sound projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x d&b audiotechnik M2 NLT4 F/M
  • Confirm the full package contents with Trianze Tech at time of order

Warranty

  • d&b audiotechnik manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech audio team

Sustainability

  • Low profile cabinet keeps stage sightlines clear
  • Marine plywood cabinet for long service life

Expandability

  • 10 mm flying pin fittings for quick rigging
  • NLT4 F/M connectors suit rental cable systems

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the M2 NLT4 F/M

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik M2 is actively crossed over and powered by both channels of an appropriate d&b amplifier, such as the 30D or D80.
The d&b audiotechnik M2 has 45 x 60 degree dispersion with constant directivity from 600 Hz upward, and a 40 degree baffle angle to the floor.
The d&b audiotechnik M2 reaches 143 dB maximum SPL with a 30D or D80, at 1 m in free field.
The d&b audiotechnik M2 uses two 12 inch LF drivers in a bass reflex enclosure and a 1.4 inch exit HF compression driver on a waveguide horn.
The d&b audiotechnik M2 weighs 38 kg (83 lb) and has fittings on both sides for the 10 mm flying pin.
