d&b audiotechnik B22-SUB Dual 18 Inch High Performance Subwoofer, NLT4 F/M

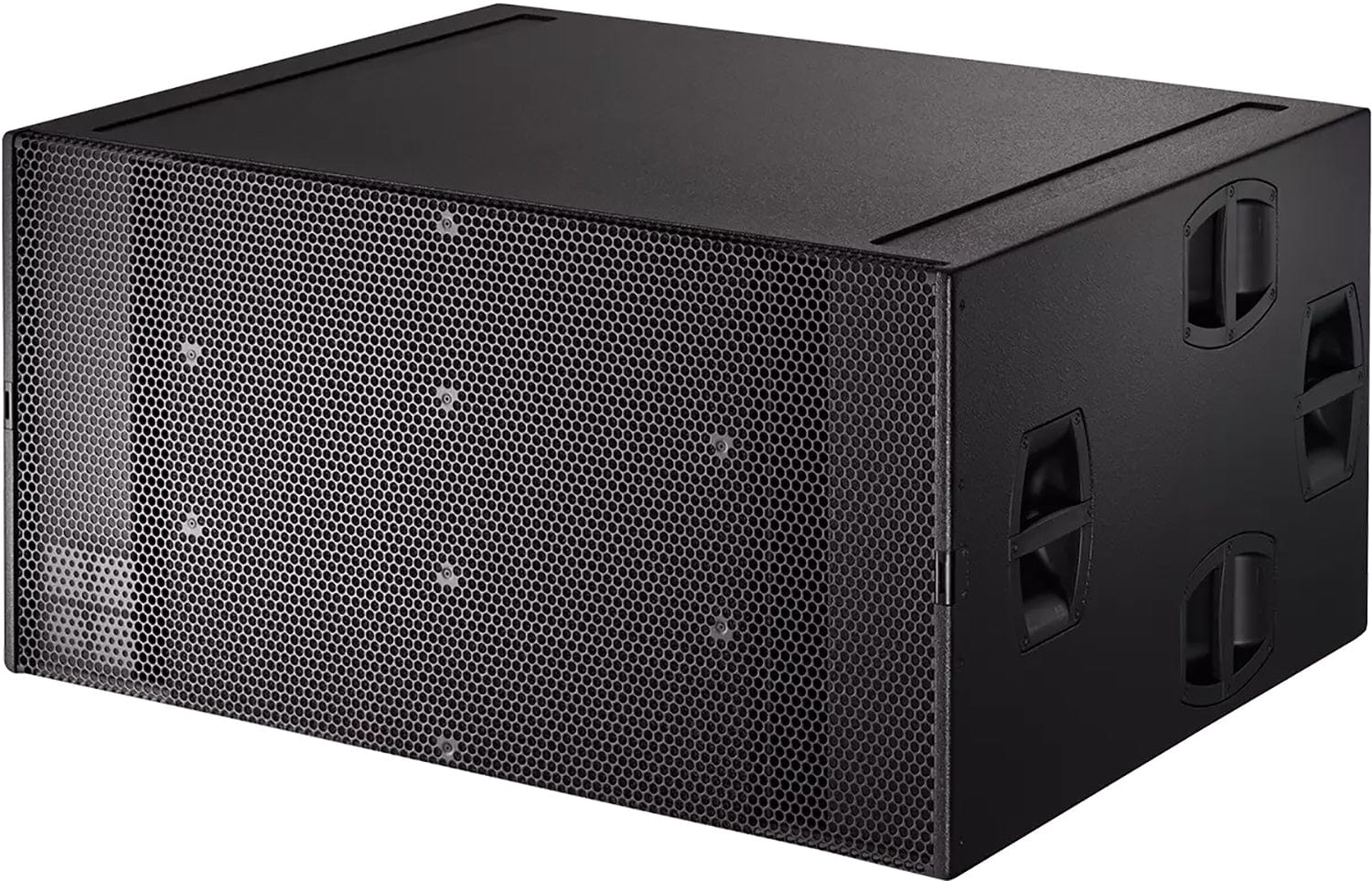

The d&b audiotechnik B22-SUB is a high performance subwoofer for ground stacked applications, with two long excursion 18 inch neodymium drivers in a bandpass horn cabinet. It reaches 143 dB maximum SPL, extends down to 32 Hz in INFRA mode, and three or more cabinets can form a cardioid subwoofer array. Trianze Tech supplies the B22-SUB for large format sound reinforcement in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Two 18 inch long excursion neodymium drivers
- Bandpass horn cabinet design
- INFRA mode extends response down to 32 Hz
- Cardioid subwoofer arrays with three or multiples of three cabinets
- Four wheels, eight handles and stacking runners
- NLT4 F/M connections
Technical Specifications:
| Spec | Value |
|---|---|
| Model | B22-SUB |
| Type | High performance ground stack subwoofer, passive |
| Components | 2 x 18 inch neodymium drivers |
| Frequency Response (-5 dB) | 37 to 90 Hz standard, 32 to 68 Hz INFRA mode |
| Max SPL | 140 dB (D20/30D), 143 dB (D40/D80/40D) |
| Nominal Impedance | 4 ohms |
| Power Handling (RMS/peak) | 1000/4000 W |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 585 x 1160 x 920 mm (1046 mm with wheels) |
| Weight | 106 kg (234 lb) |
Why Buy the d&b audiotechnik B22-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the B22-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik B22-SUB reaches 143 dB maximum SPL with D40, D80 or 40D amplifiers, and 140 dB with D20 or 30D.
In INFRA mode the d&b audiotechnik B22-SUB covers 32 Hz to 68 Hz, so it can extend the low end of a system alongside other d&b subwoofers. Standard mode covers 37 Hz to 90 Hz.
Yes. Three or any multiple of three d&b audiotechnik B22-SUB cabinets can be arranged as a Cardioid Subwoofer Array to reduce energy radiating towards the rear.
No. The d&b audiotechnik B22-SUB is designed for ground stacked applications, with wheels on the rear, handles on the sides and runners for stable stacking.
The d&b audiotechnik B22-SUB weighs 106 kg (234 lb) and measures 585 x 1160 x 920 mm (H x W x D), or 1046 mm deep including wheels.
