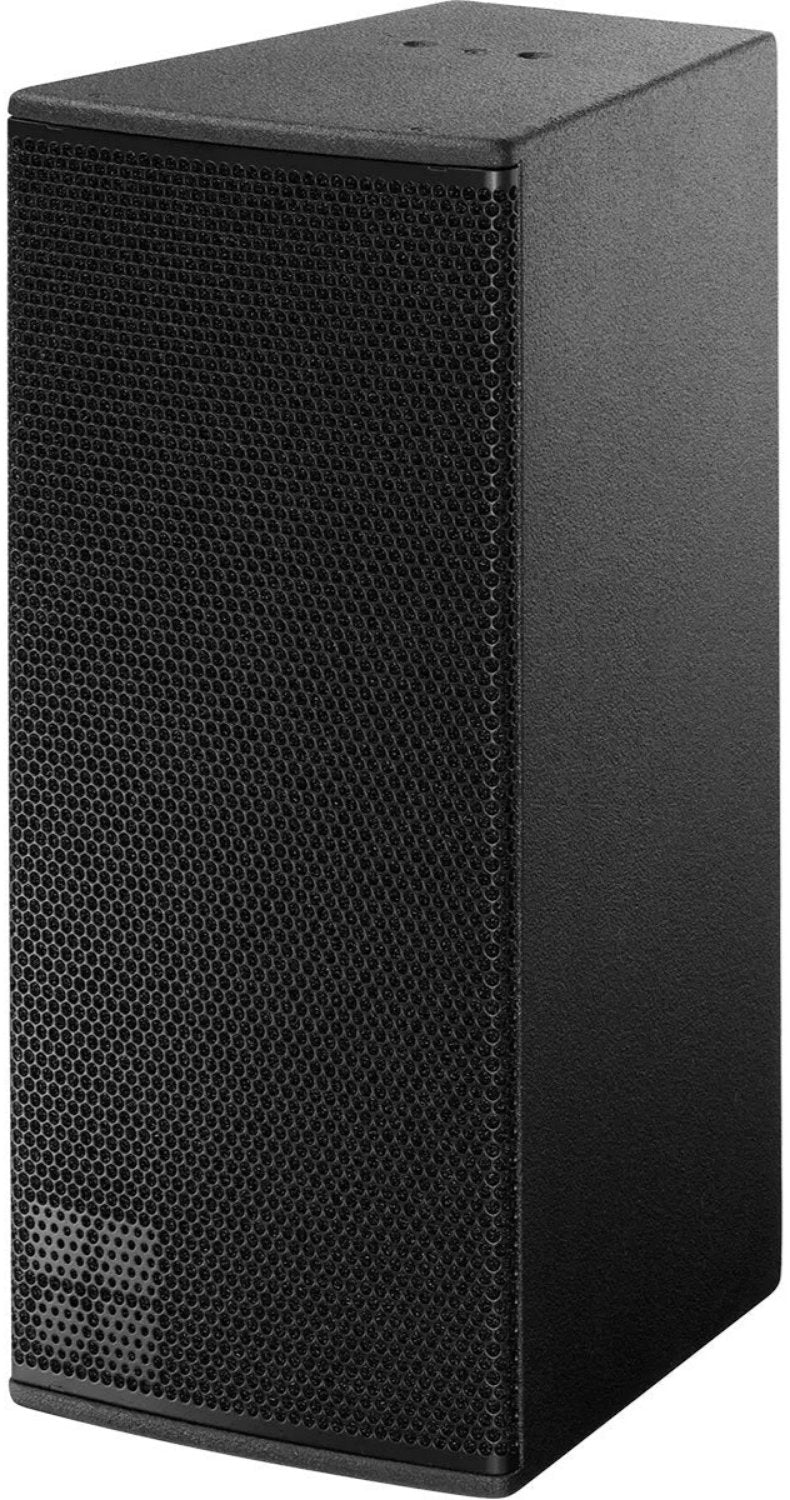

  • d&b audiotechnik Yi7P installation loudspeaker

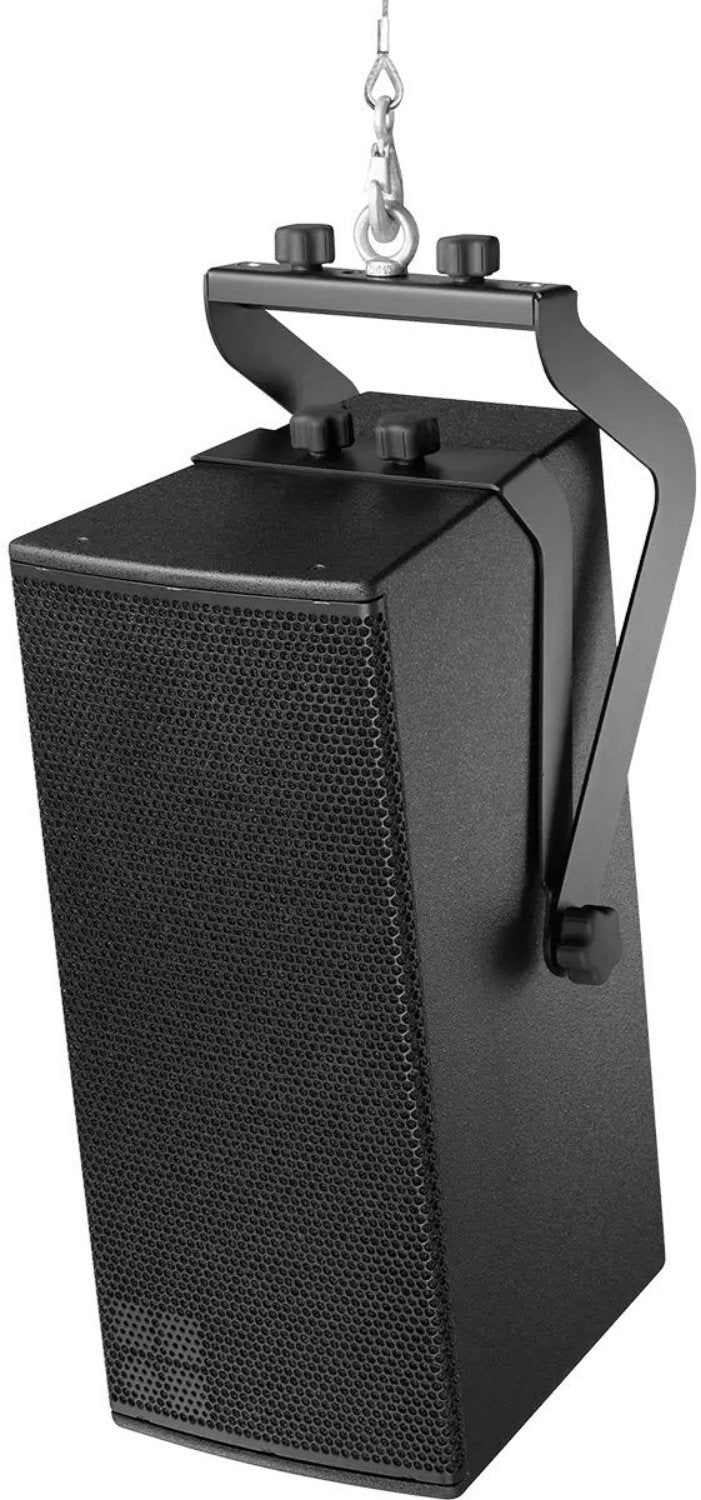

  • d&b audiotechnik Yi7P installation loudspeaker, view 2

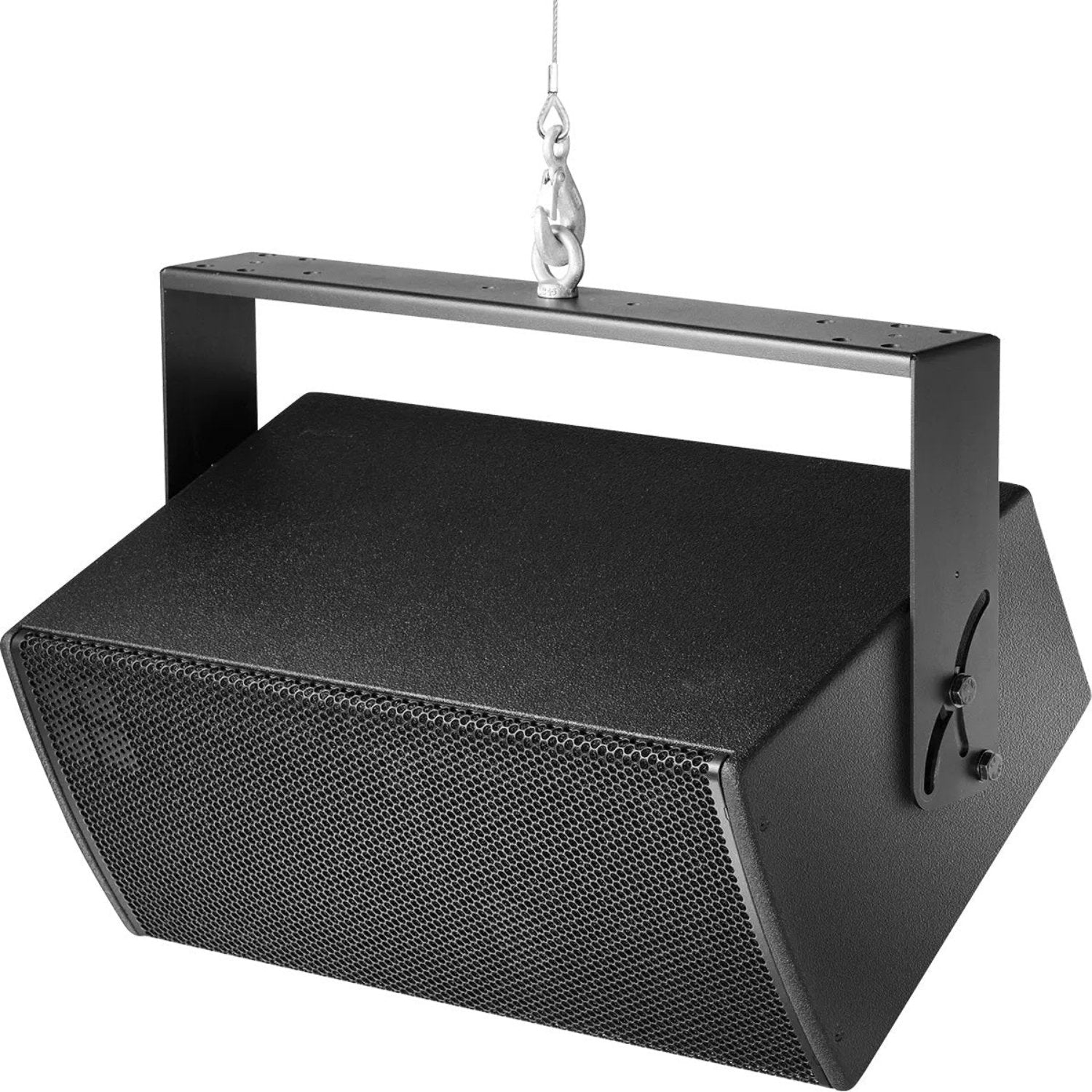

  • d&b audiotechnik Yi7P installation loudspeaker, view 3
1 3

d&b audiotechnik Yi7P: Installation 2 Way Passive Point Source Loudspeaker, 2 x 8 Inch, 75 x 40 Degree Horn

  • Installation 2 way passive loudspeaker
  • 2 x 8 inch drivers, 1.4 inch HF
  • 75 x 40 degree rotatable horn
  • 137 dB SPLmax
Brand :d&b audiotechnik
Model : Yi7P

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Theatres and auditoriums
  • Houses of worship
  • Live music venues
  • Conference and event halls
d&b audiotechnik Yi7P installation loudspeaker, view 2
d&b audiotechnik Yi7P
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

d&b audiotechnik Yi7P Installation 2 Way Passive Point Source Loudspeaker

The d&b audiotechnik Yi7P is a compact 2 way passive point source loudspeaker with two 8 inch drivers in a dipole arrangement and a 1.4 inch compression driver on a rotatable CD horn. It is the installation version of the Y7P, differing only in cabinet construction, finish and mounting hardware. It offers 75 degree horizontal directivity controlled down to 500 Hz with 40 degree vertical dispersion, and the horn rotates by 90 degrees for horizontal use. The marine plywood cabinet has an impact resistant paint finish, with Weather Resistant (IP55) and Special Color versions available. Trianze Tech supplies the Yi7P in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • 2 x 8 inch neodymium drivers in dipole arrangement
  • 1.4 inch compression driver on rotatable CD horn
  • 75 x 40 degree dispersion
  • Up to 137 dB SPLmax
  • Installation cabinet version of the Y7P
  • 2 x NL4 and screw terminal block connections

Technical Specifications:

Spec Value
Model Yi7P
Type Installation 2 way passive point source loudspeaker
Frequency Response 59 Hz to 18 kHz (standard), 118 Hz to 18 kHz (CUT mode), -5 dB
Max SPL 132 dB with 10D, 135 dB with D20/30D, 137 dB with D40/D80/40D
Cabinets per Amplifier Channel 2
Nominal Impedance 8 ohms
Power Handling 400 W RMS / 1600 W peak (10 ms)
Dispersion 75 x 40 degrees, rotatable
Connections 2 x NL4, screw terminal block
Dimensions (H x W x D) 580 x 257 x 341 mm
Weight 18 kg (40 lb)

Why Buy the d&b audiotechnik Yi7P from Trianze Tech?

  • Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
  • System design help matching the Yi7P with compatible d&b loudspeakers, amplifiers and rigging
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Pre-sales guidance for touring, live event and installed sound projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x d&b audiotechnik Yi7P
  • Confirm the full package contents with Trianze Tech at time of order

Warranty

  • d&b audiotechnik manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech audio team

Sustainability

  • Marine plywood cabinet for long service life
  • Two cabinets per amplifier channel saves amplifier resources

Expandability

  • Combine with other Y-Series elements, ground stacked or flown
  • Weather Resistant (IP55) and Special Color versions available

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the Yi7P

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Yi7P is the installation version of the Y7P and differs only in cabinet construction, finish and mounting hardware.
The d&b audiotechnik Yi7P has 75 degree horizontal directivity controlled down to 500 Hz and 40 degree vertical dispersion, and the horn rotates by 90 degrees for horizontal orientation.
The d&b audiotechnik Yi7P reaches 132 dB with a 10D, 135 dB with a D20 or 30D, and 137 dB with a D40, D80 or 40D.
The d&b audiotechnik Yi7P has 2 x NL4 connectors and a screw terminal block, at a nominal impedance of 8 ohms.
The d&b audiotechnik Yi7P weighs 18 kg (40 lb) and measures 580 x 257 x 341 mm (22.8 x 10 x 13.4 inches).
