d&b audiotechnik XSLi12: Install Specific 3 Way Line Array Loudspeaker, 120 Degree
Model
:
XSLi12
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

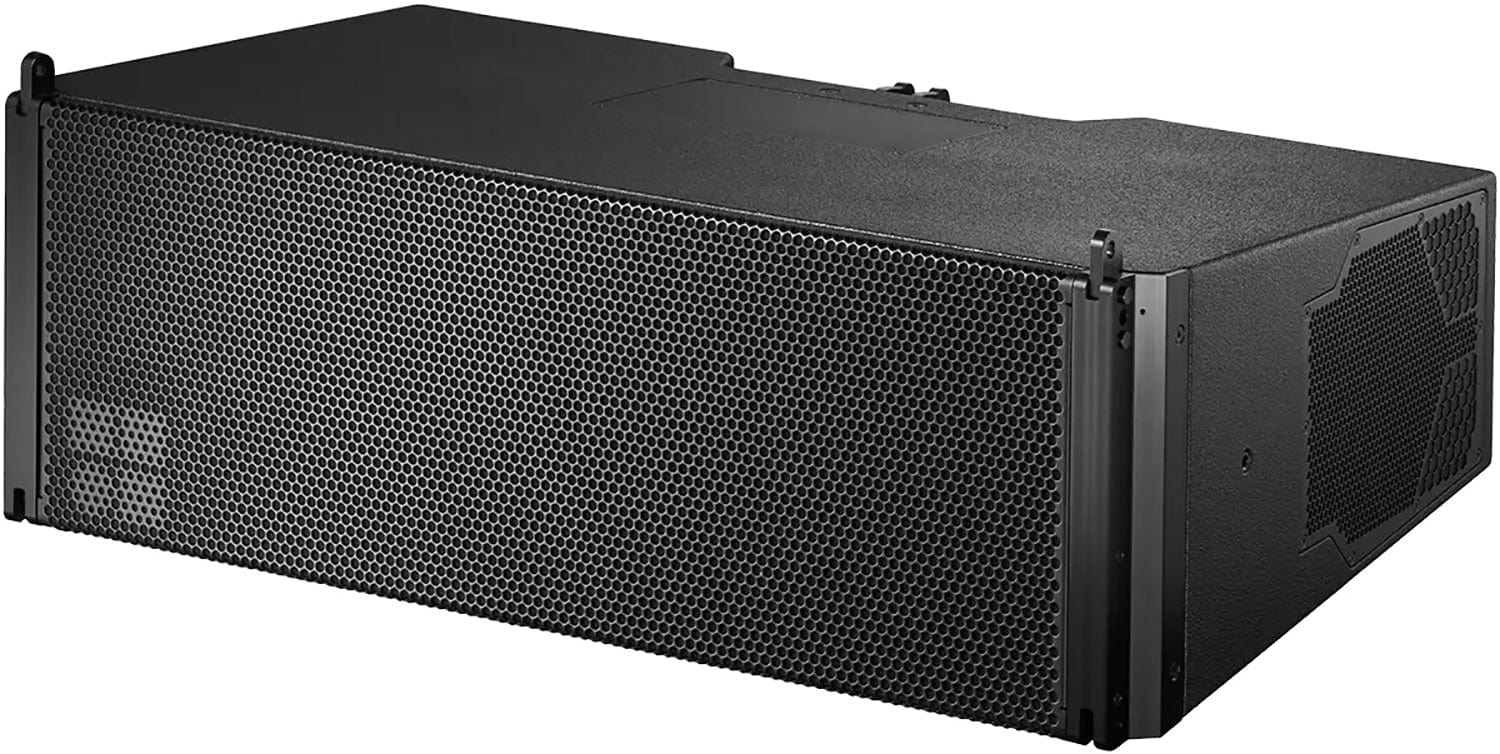

d&b audiotechnik XSLi12 Installation Line Array Loudspeaker with 120 Degree Dispersion
The d&b audiotechnik XSLi12 is a purpose built installation version of the XSL line array module for small to medium sound reinforcement projects, and it also serves as fill or delay in KSLi systems. It delivers a 120 degree horizontal pattern from 60 Hz to 18 kHz and is available in black or white. Trianze Tech supplies the XSLi12 for permanent installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 8 inch neodymium front LF and 2 x 6.5 inch side firing LF drivers
- 6.5 inch MF driver and two 1 inch HF compression drivers
- 120 degree horizontal dispersion
- Up to 24 cabinets with the XSLi Flying frame or 12 with the XSLi Mounting frame
- Line or Arc mode links two cabinets for short arrays
- Weather protected 2K finish with water repellent fabric behind metal grills
Technical Specifications:
| Spec | Value |
|---|---|
| Model | XSLi12 |
| Type | 3-way installation line array loudspeaker |
| Front LF | 2 x 8 inch |
| Side LF | 2 x 6.5 inch |
| MF | 1 x 6.5 inch |
| HF | 2 x 1 inch compression drivers |
| Horizontal Dispersion | 120 degrees |
| Frequency Range | 60 Hz to 18 kHz |
| Max SPL | 140 dB |
| Power Handling | Front LF 400/1200 W, side LF/MF/HF 300/850 W (RMS/peak) |
| Impedance | 8 ohms per section |
| Colours | Black or white |
Why Buy the d&b audiotechnik XSLi12 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the XSLi12 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik XSLi12 is an installation line array module for small to medium sound reinforcement projects, and also serves as fill or delay in KSLi systems.
The d&b audiotechnik XSLi12 is the install specific version with installation rigging and finishes, while the XSL12 is the mobile touring version. Both have 120 degree dispersion.
The d&b audiotechnik XSLi12 reaches a maximum SPL of 140 dB, with a frequency range of 60 Hz to 18 kHz.
Up to 24 d&b audiotechnik XSLi12 cabinets can be flown with the XSLi Flying frame, or up to 12 with the XSLi Mounting frame.
The d&b audiotechnik XSLi12 is available in black or white, and d&b also offers Special Color (SC) and Weather Resistant (WR) versions.
Trianze Tech supplies the d&b audiotechnik XSLi12 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
