d&b audiotechnik XSL8: 3 Way Medium Format Line Array Loudspeaker, 80 Degree
Model
:
XSL8
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

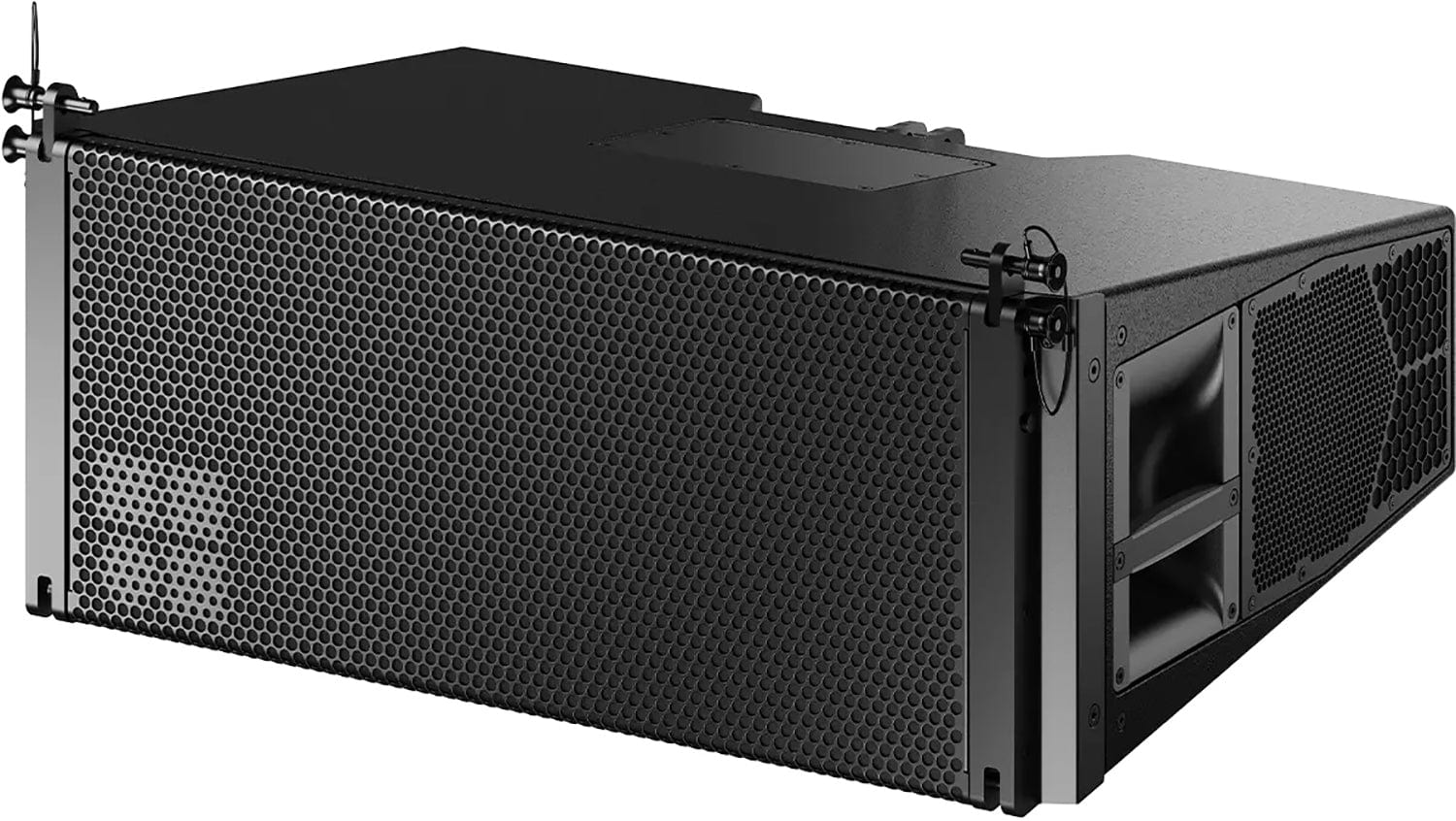

d&b audiotechnik XSL8 Mobile 3 Way Line Array Loudspeaker with 80 Degree Dispersion
The d&b audiotechnik XSL8 is a mobile specific medium format 3-way line array module for small to medium scale sound reinforcement, and it also works as fill and delay for GSL and KSL systems. Front and side firing LF drivers keep an 80 degree pattern from 60 Hz to above 18 kHz. Trianze Tech supplies the XSL8 for touring, events and venues in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 8 inch neodymium front LF and 2 x 6.5 inch neodymium side firing LF drivers
- Horn loaded 6.5 inch MF driver and two 1 inch exit HF compression drivers
- 80 degree directivity maintained from 60 Hz to above 18 kHz
- Up to 24 cabinets per column from the XSL Flying frame
- SL-Series rigging in tension or compression mode, 0 to 14 degree splay
- Injection molded PC-ABS enclosure with weather protected 2K finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | XSL8 |
| Type | 3-way line array loudspeaker, mobile |
| Front LF | 2 x 8 inch neodymium |
| Side LF | 2 x 6.5 inch neodymium |
| MF | 1 x 6.5 inch, horn loaded |
| HF | 2 x 1 inch exit compression drivers, 2 inch voice coil |
| Horizontal Dispersion | 80 degrees |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 90 Hz to 18 kHz CUT mode |
| Max SPL | 141 dB (D40/D80/40D) |
| Power Handling | Front LF 400/1200 W, side LF/MF/HF 300/850 W (RMS/peak) |
| Impedance | 8 ohms per section |
| Splay Angles | 0 to 14 degrees, 1 degree steps |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 283 x 700 x 507 mm |
| Weight | 39 kg (86 lb) |
Why Buy the d&b audiotechnik XSL8 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the XSL8 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik XSL8 reaches 141 dB maximum SPL with a D40, D80 or 40D amplifier.
The d&b audiotechnik XSL8 covers 60 Hz to 18 kHz (-5 dB) in standard mode, or 90 Hz to 18 kHz in CUT mode.
Yes. d&b designed the XSL8 for small to medium scale systems and also as fill and delay for GSL and KSL line arrays.
Up to 24 d&b audiotechnik XSL8 cabinets in compression mode, or 22 in tension mode, can be flown from the XSL Flying frame. The smaller XSL Mounting frame takes up to 12.
The d&b audiotechnik XSL8 weighs 39 kg (86 lb) and measures 283 x 700 x 507 mm (H x W x D).
Trianze Tech supplies the d&b audiotechnik XSL8 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
