d&b audiotechnik XSL12: 3 Way Medium Format Line Array Loudspeaker, 120 Degree
Model
:
XSL12
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

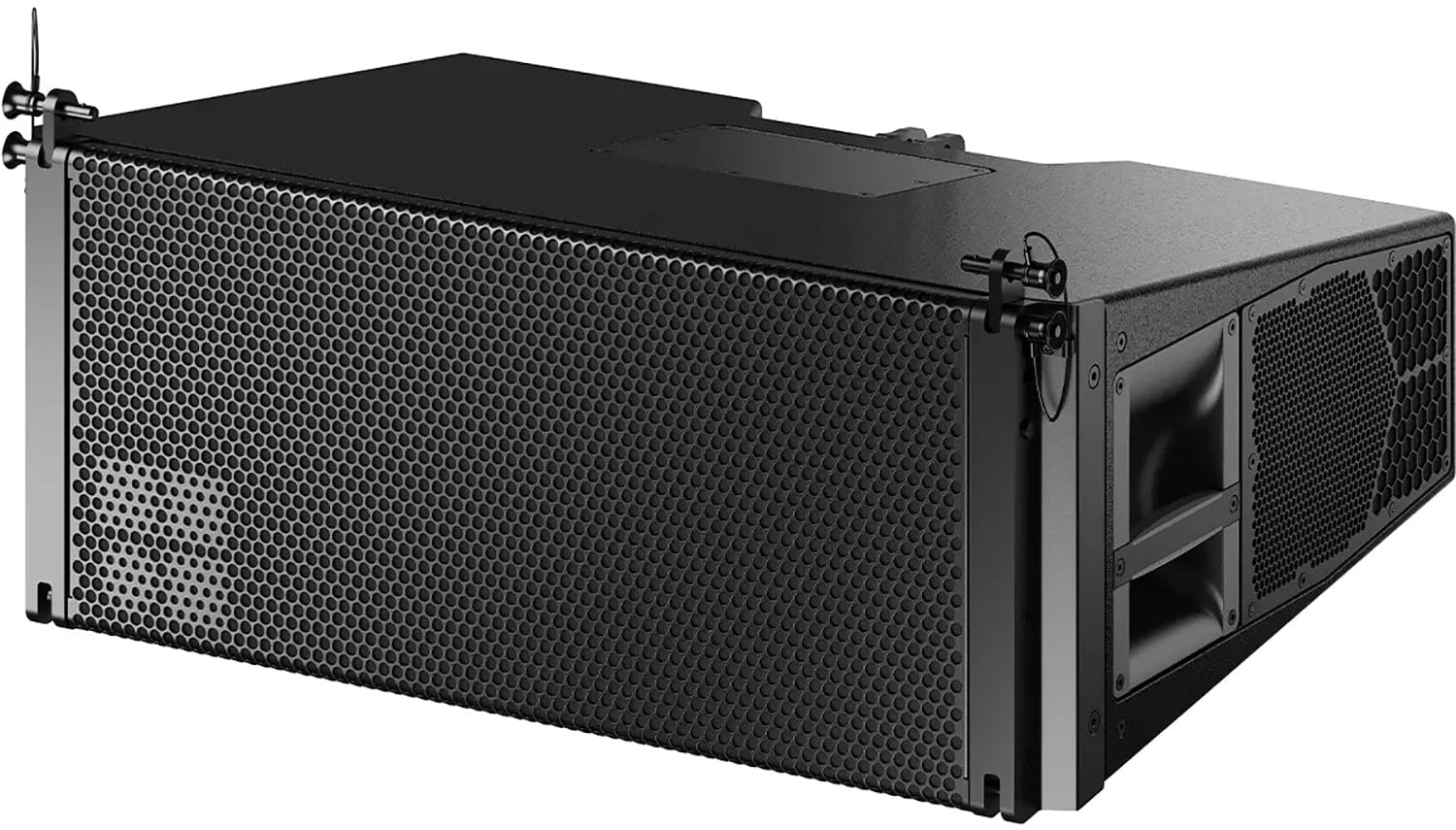

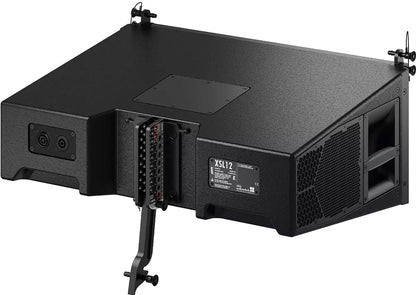

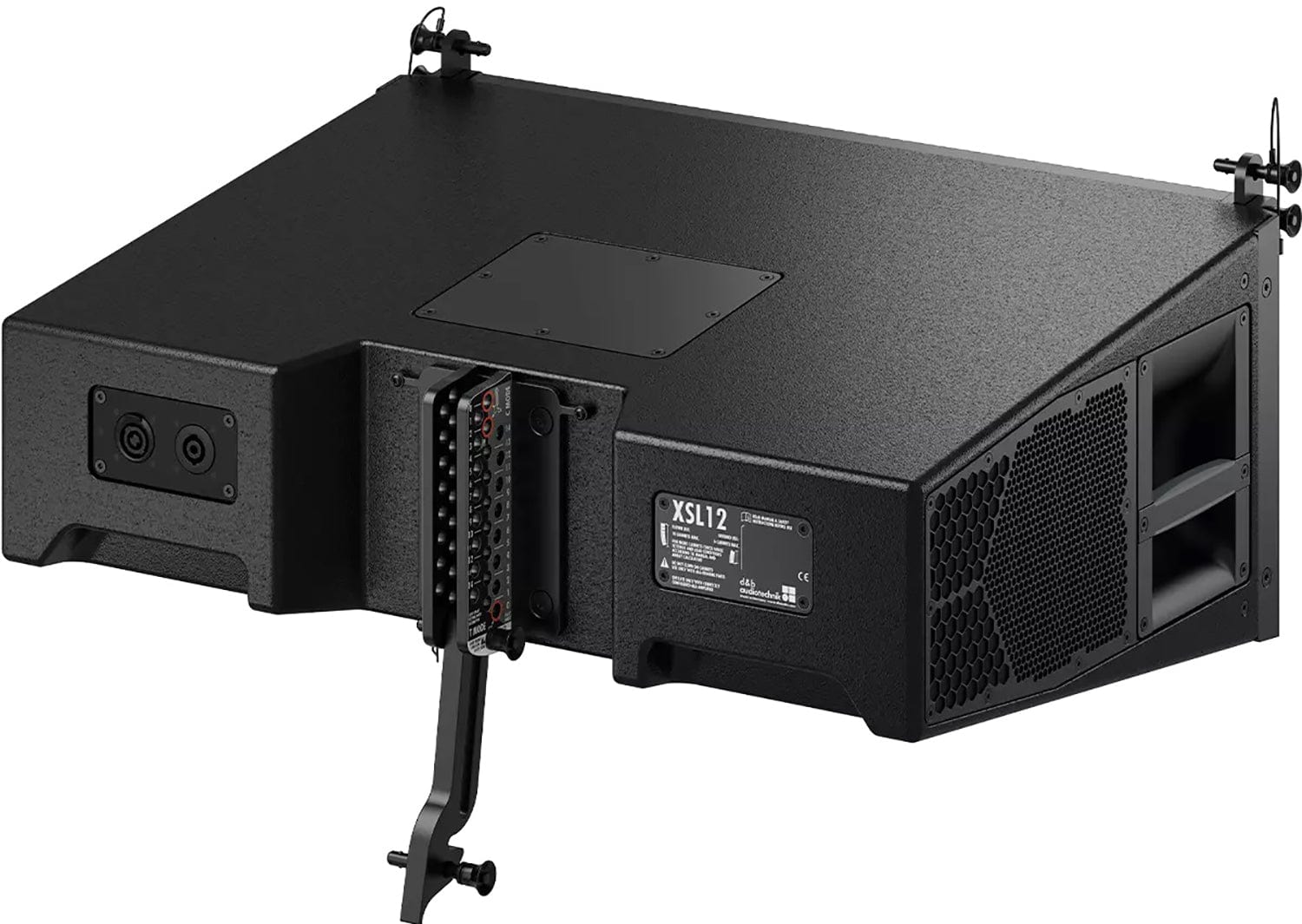

d&b audiotechnik XSL12 Mobile 3 Way Line Array Loudspeaker with 120 Degree Dispersion
The d&b audiotechnik XSL12 is a mobile specific medium format 3-way line array module with a wide 120 degree horizontal pattern, built for small to medium scale sound reinforcement and as fill or delay for GSL and KSL systems. It shares the XSL8 drivers and cabinet. Trianze Tech supplies the XSL12 for touring, events and venues in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 8 inch neodymium front LF and 2 x 6.5 inch neodymium side firing LF drivers
- Horn loaded 6.5 inch MF driver and two 1 inch exit HF compression drivers
- Wide 120 degree horizontal dispersion
- Line or Arc mode links two cabinets for short arrays
- SL-Series rigging in tension or compression mode, 0 to 14 degree splay
- Injection molded PC-ABS enclosure with weather protected 2K finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | XSL12 |
| Type | 3-way line array loudspeaker, mobile |
| Front LF | 2 x 8 inch neodymium |
| Side LF | 2 x 6.5 inch neodymium |
| MF | 1 x 6.5 inch |
| HF | 2 x 1 inch exit compression drivers, 2 inch voice coil |
| Horizontal Dispersion | 120 degrees |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 90 Hz to 18 kHz CUT mode |
| Max SPL | 140 dB (D40/D80/40D) |
| Power Handling | Front LF 400/1200 W, side LF/MF/HF 300/850 W (RMS/peak) |
| Impedance | 8 ohms per section |
| Splay Angles | 0 to 14 degrees, 1 degree steps |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 283 x 700 x 507 mm |
| Weight | 39 kg (86 lb) |
Why Buy the d&b audiotechnik XSL12 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the XSL12 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Both use the same drivers and 39 kg cabinet. The d&b audiotechnik XSL12 has a 120 degree horizontal dispersion and 140 dB max SPL, while the XSL8 has 80 degrees and 141 dB.
The d&b audiotechnik XSL12 reaches 140 dB maximum SPL with a D40, D80 or 40D amplifier.
The d&b audiotechnik XSL12 runs on d&b D40 and D80 amplifiers, with two cabinets per amplifier when using Array Processing.
The d&b audiotechnik XSL12 measures 283 x 700 x 507 mm (H x W x D) and weighs 39 kg (86 lb).
The d&b audiotechnik XSL12 has 2 x NLT4 F/M connectors for input and link through.
Trianze Tech supplies the d&b audiotechnik XSL12 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
